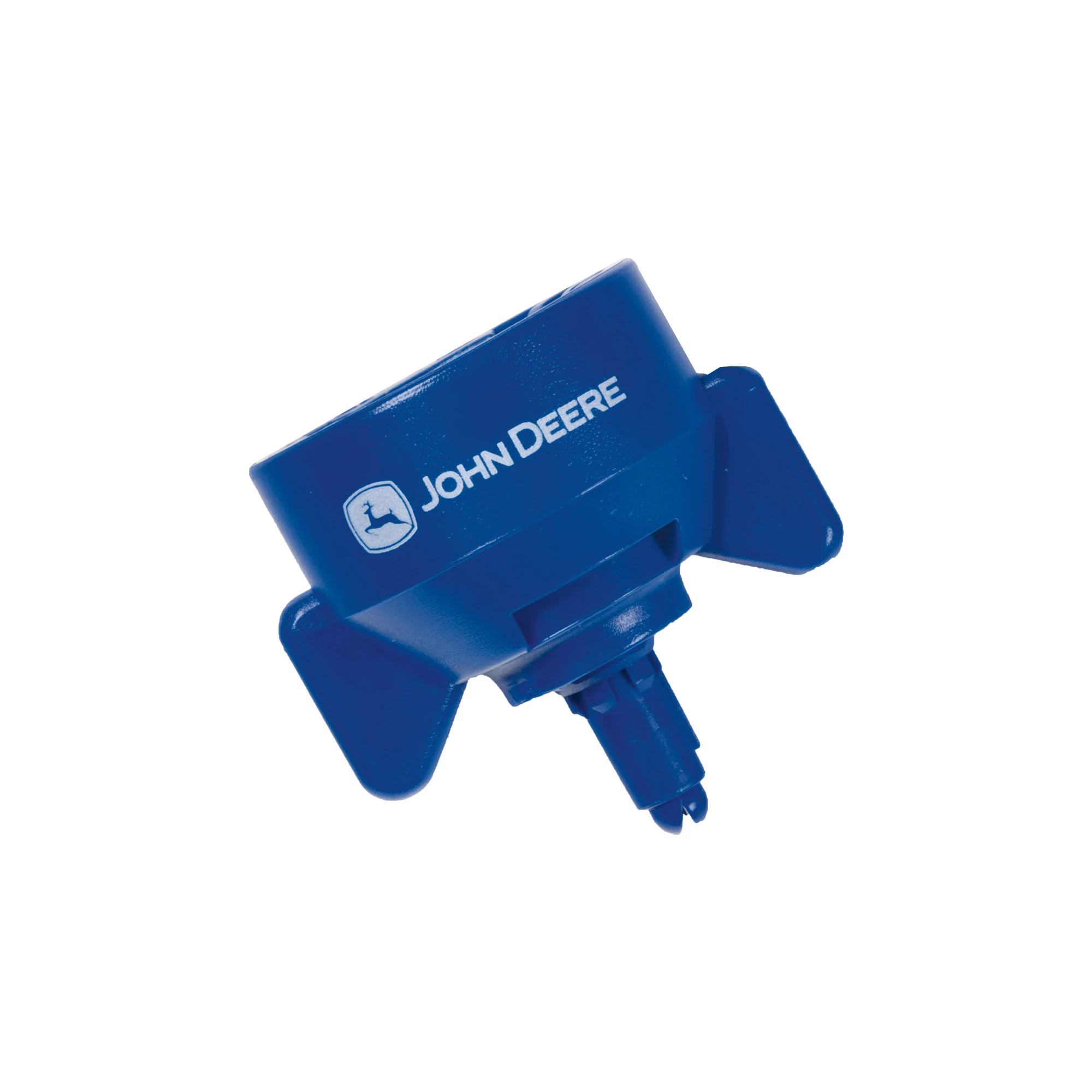

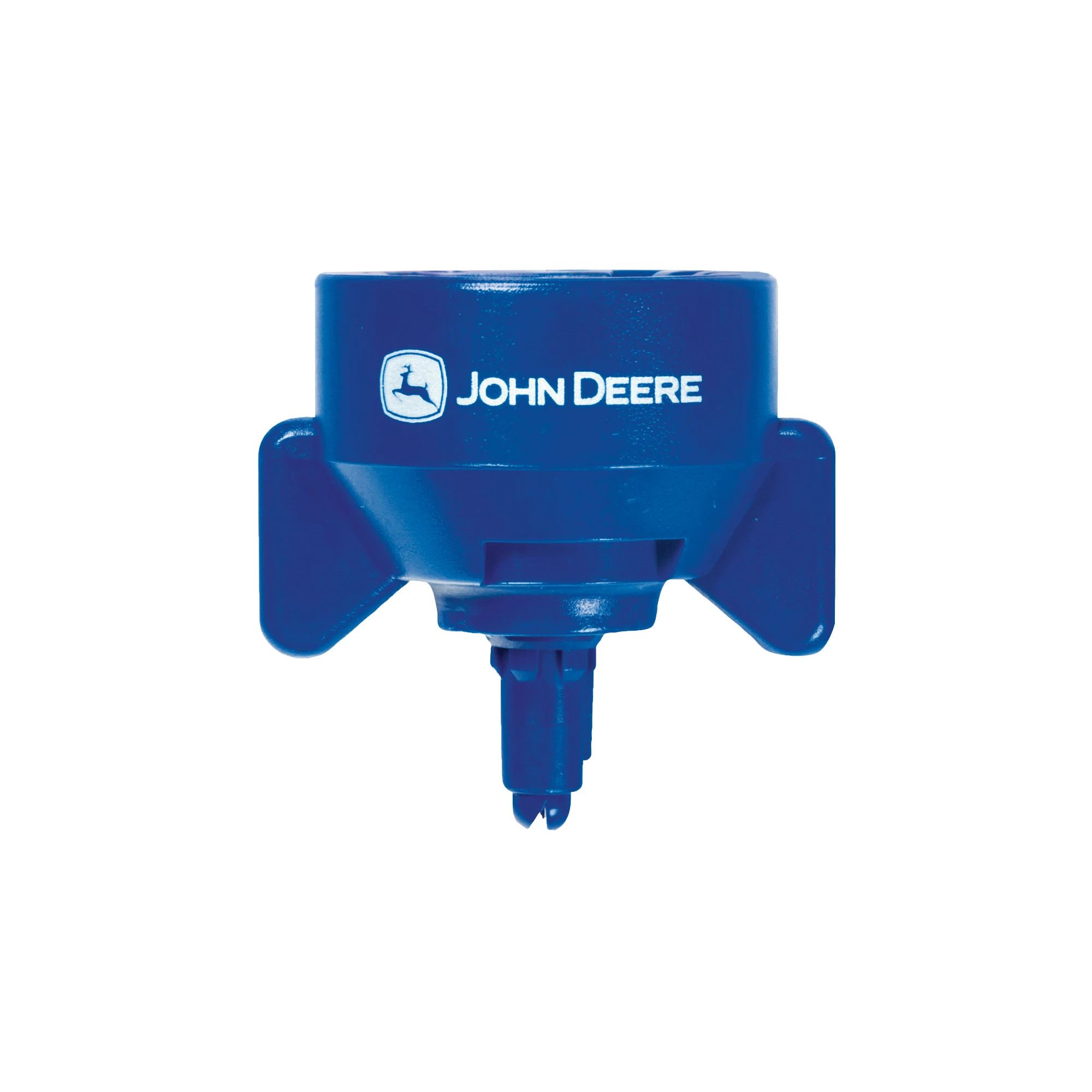

PSLDAQ1003: Low-Drift Air (LDA) 110 Degree Spray Angle Nozzle, 0.3 GPM, 1.2 LPM, Tip Size 03

Part Number: PSLDAQ1003

  • Air-Filled Droplets: The LDA nozzle produces air-filled droplets that reduce drift while increasing droplet deposition and retention on foliage
  • Speed-Optimized Spray Incline: The nozzle's spray incline is optimized for speed, allowing for more uniform coverage across the sprayed area
  • Quick Change Nozzle Assembly: The assembly includes a tip, cap, and gasket for easy installation and replacement
  • Includes: PSLDA1003 - Tip, PS90003 - Cap, PM200040-1 - Cap Gasket (EPDM), PM200040V1 - Cap Gasket (Viton)
  • Compatible with conventional spraying
  • The Low-Drift Air (LDA) spray nozzle is designed to provide uniform coverage of post-emerge plant health protectants and contact herbicides while minimizing drift. It maintains a steady exchange between droplet and spray pressure, ensuring effective application.
  • Droplet Sizes: Medium, coarse, very coarse, extremely coarse, and ultra coarse
  • Spray Pattern: Tapered flat fan
  • Material: Polyacetal

Product Dimensions

Weight
0.015 kg
Height
6.477 cm
Width
10.541 cm
Length
12.827 cm
