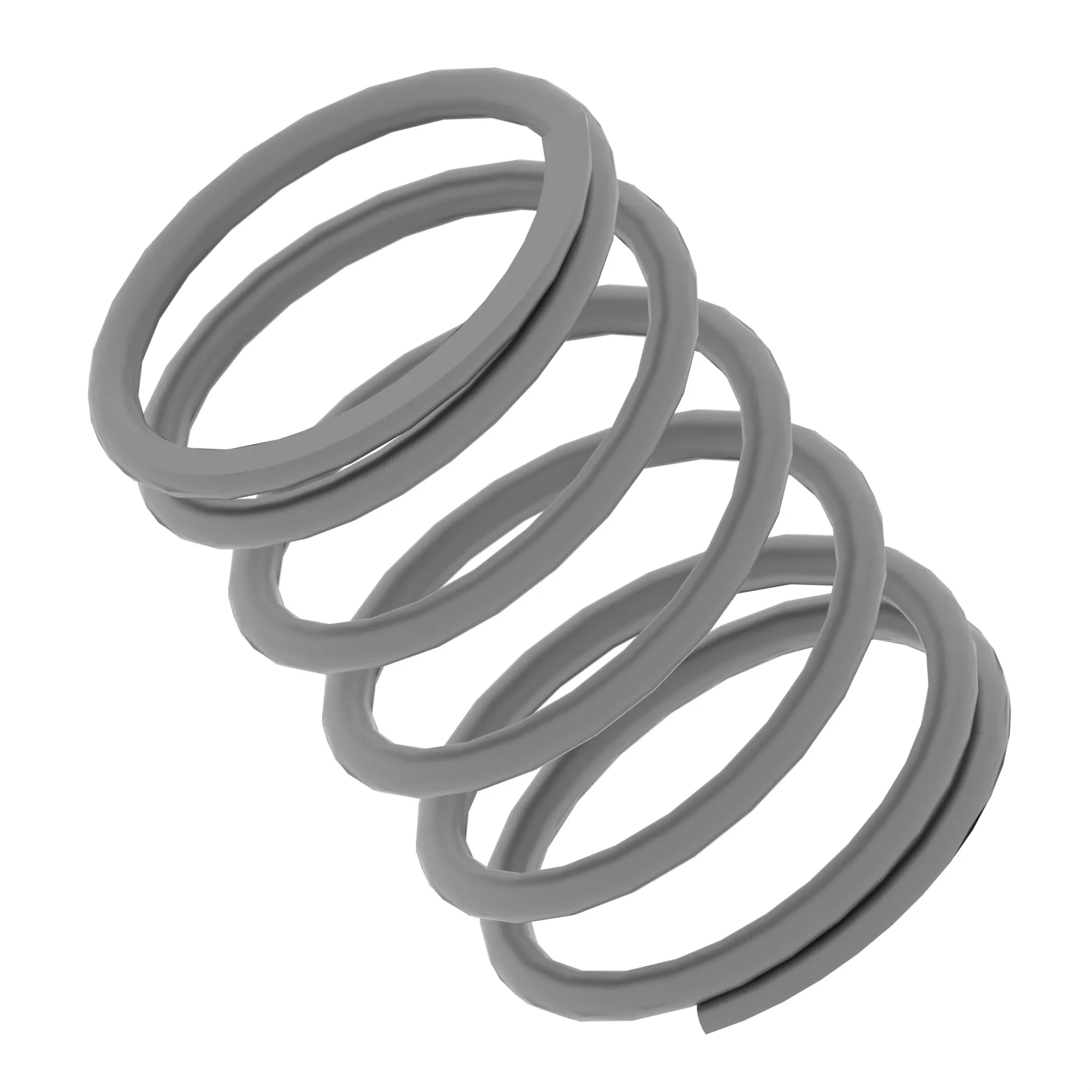

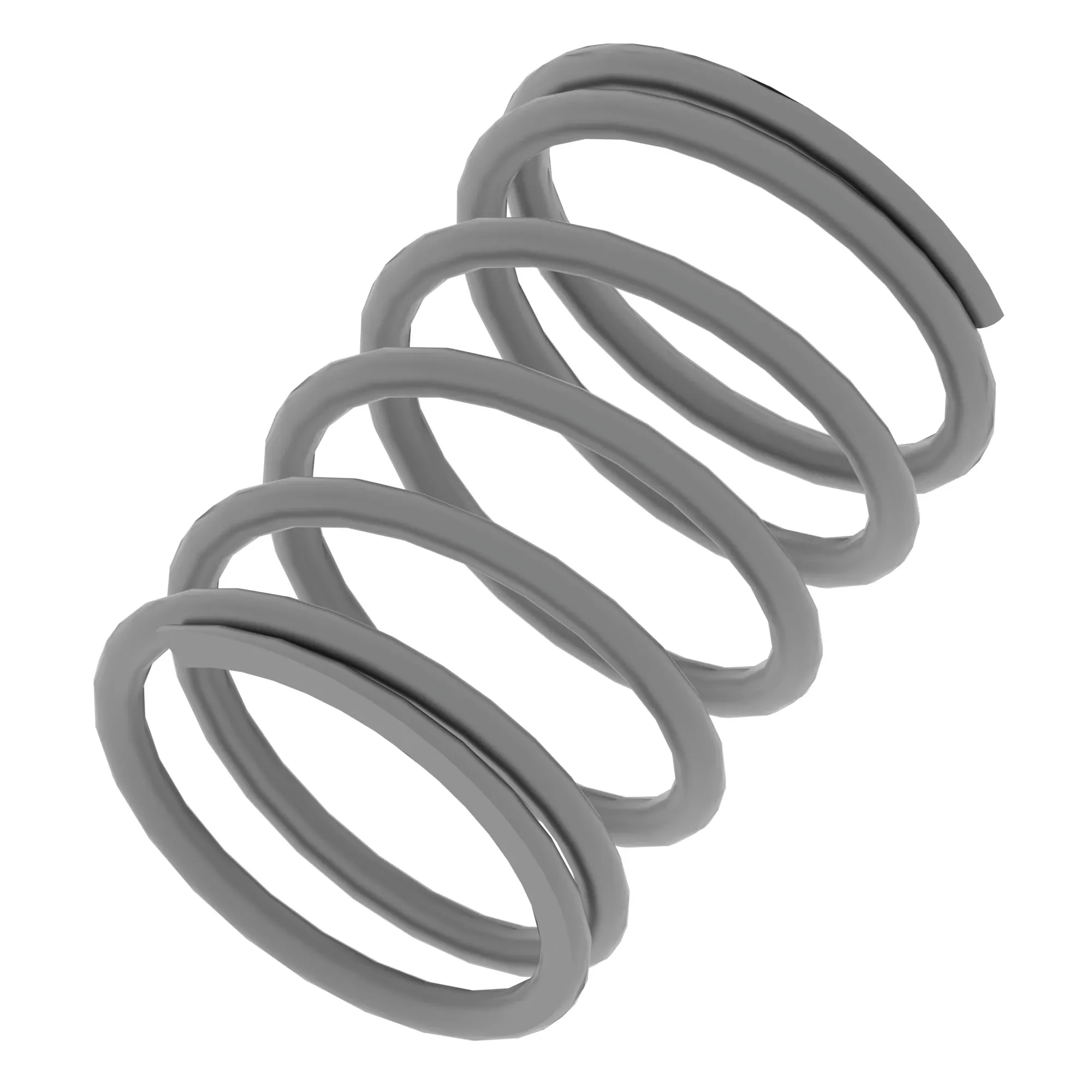

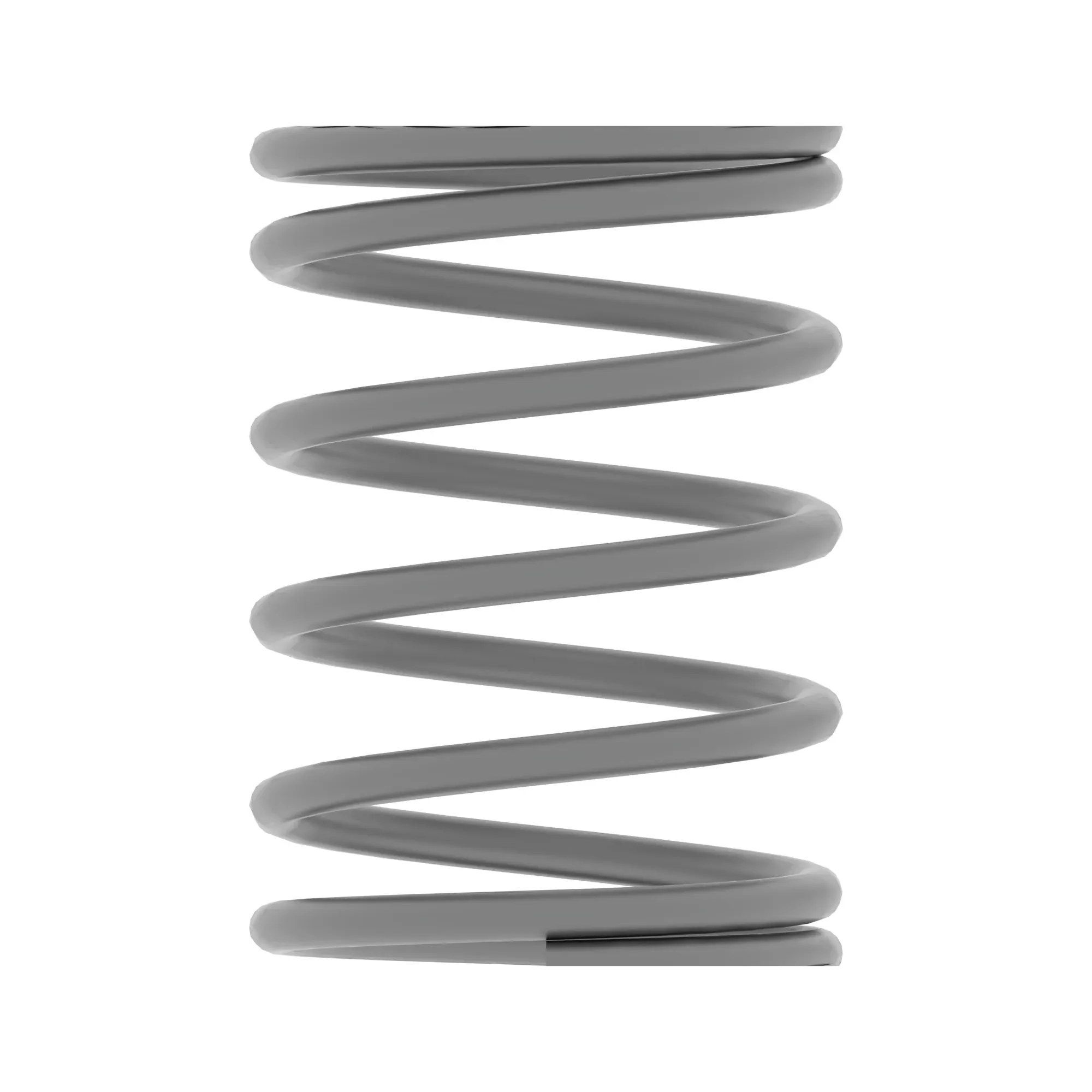

Designed to provide reliable tension and support, this spring is ideal for various mechanical applications
Features a 12 mm (0.47 in) wire diameter and an outer diameter of 128 mm (5.04 in), ensuring durability and strength in heavy-duty tasks
Offers a free length of 198 mm (7.8 in) and a solid length of 66 mm (2.6 in), making it versatile for different compression needs
Made from high quality steel, ensuring longevity and resistance to wear and tear
Product Dimensions
Weight
4.51 lb
Height
6.2 in
Width
6.4 in
Length
9.2 in
Specifications
Spring Rate
0
Wire Diameter
12 mm
Spring Type
Compression Spring
Material
Steel Alloy
Outside Diameter
128 mm
Free Length
198 mm
Solid Length
66 mm
For the most accurate fit and confidence, please select the equipment you are shopping for. Parts can be used across a number of different models, the models shown here indicate general fit of the part.
3316
C100
R2 300
R230
W2 300
W2 400
W50
W70
W70 V2
W80
W100
W210
W230
W430
