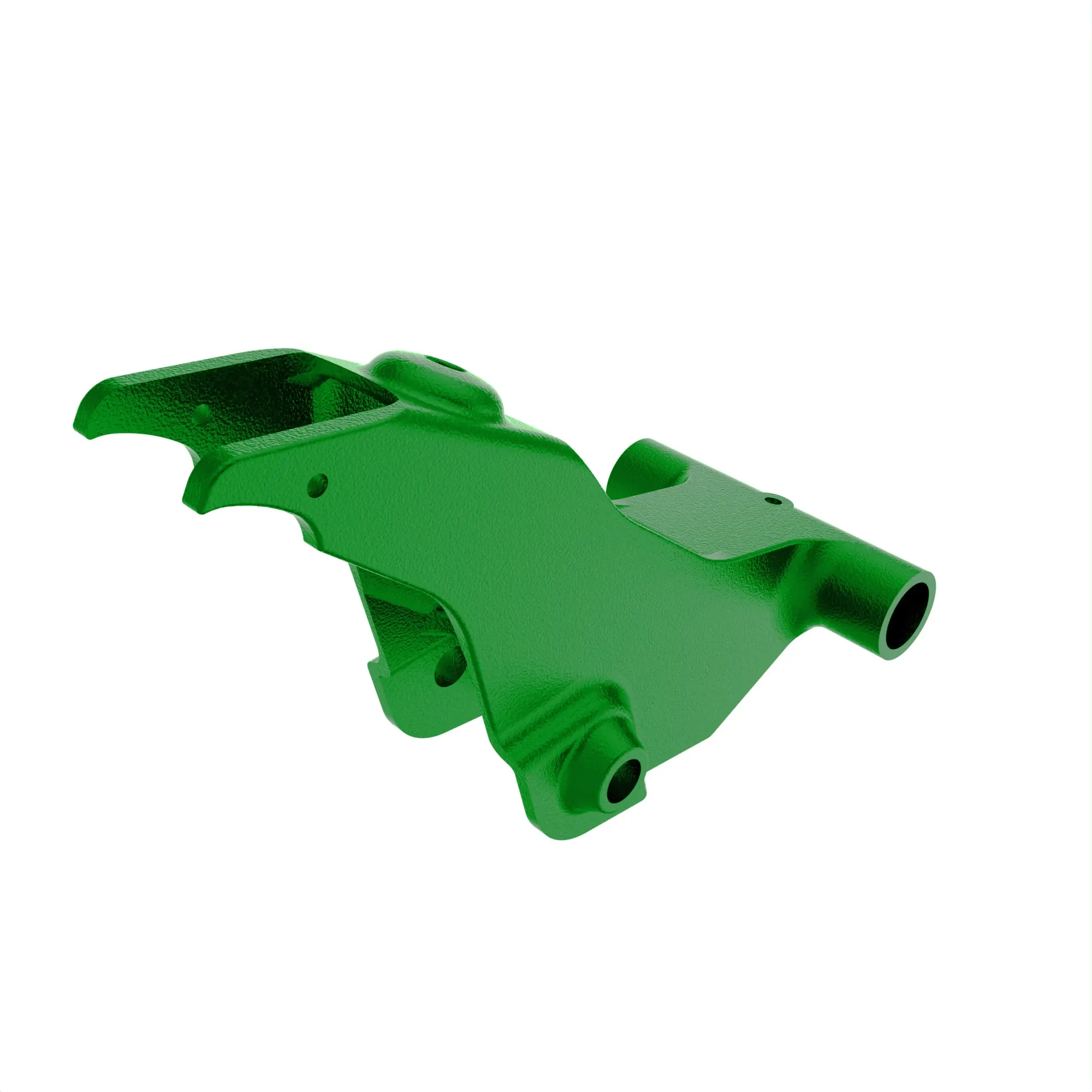

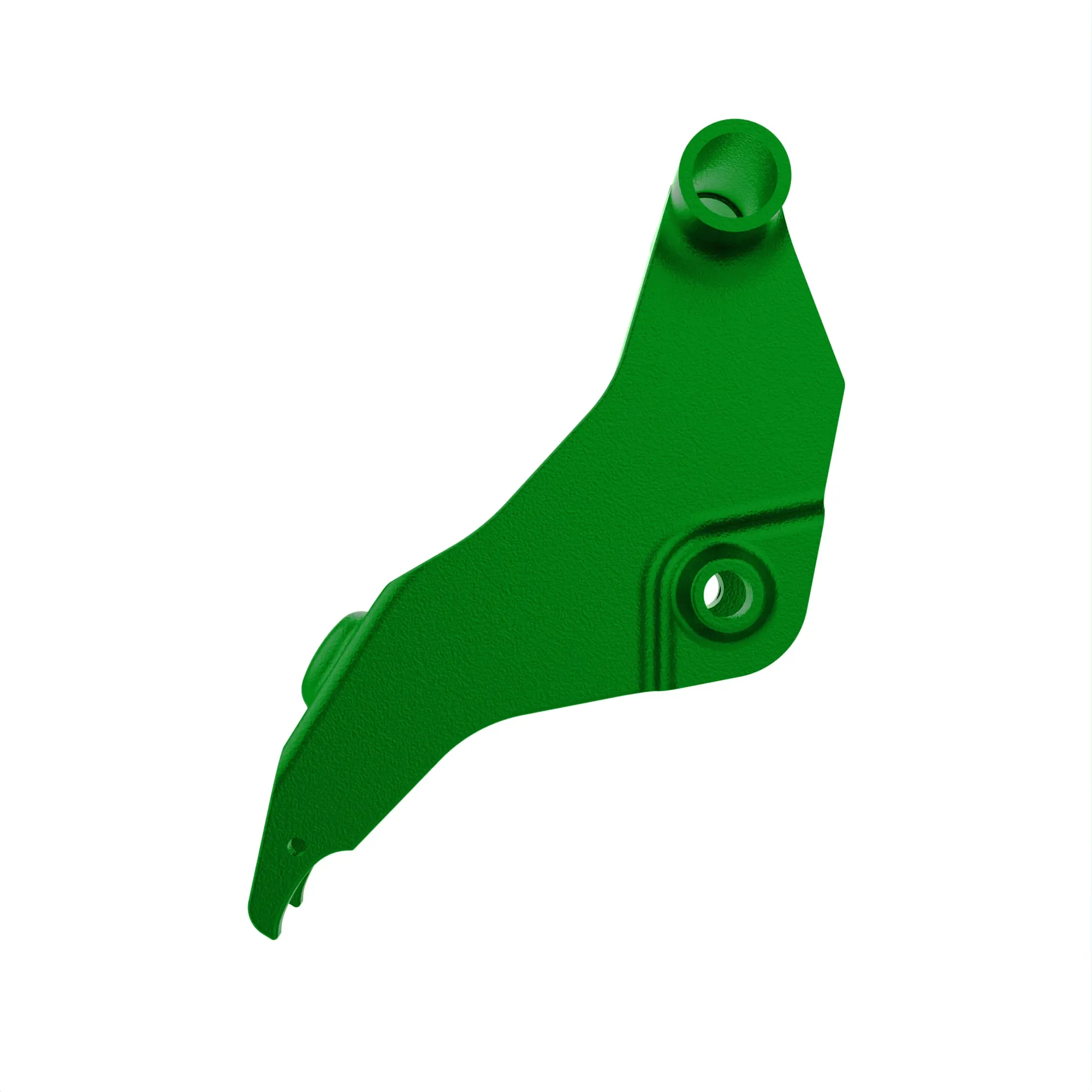

Name: W47741: Axle Spring Suspension Bracket
Brand: John Deere

Product Dimensions

Weight

32.14 lb

Height

9.2 in

Width

9.8 in

Length

23.1 in

For the most accurate fit and confidence, please select the equipment you are shopping for. Parts can be used across a number of different models, the models shown here indicate general fit of the part.

CX15
CX20
FC10R
FC15M
FC15R
FC20M
FC20R
HX15
HX20
M15
M20
R20
