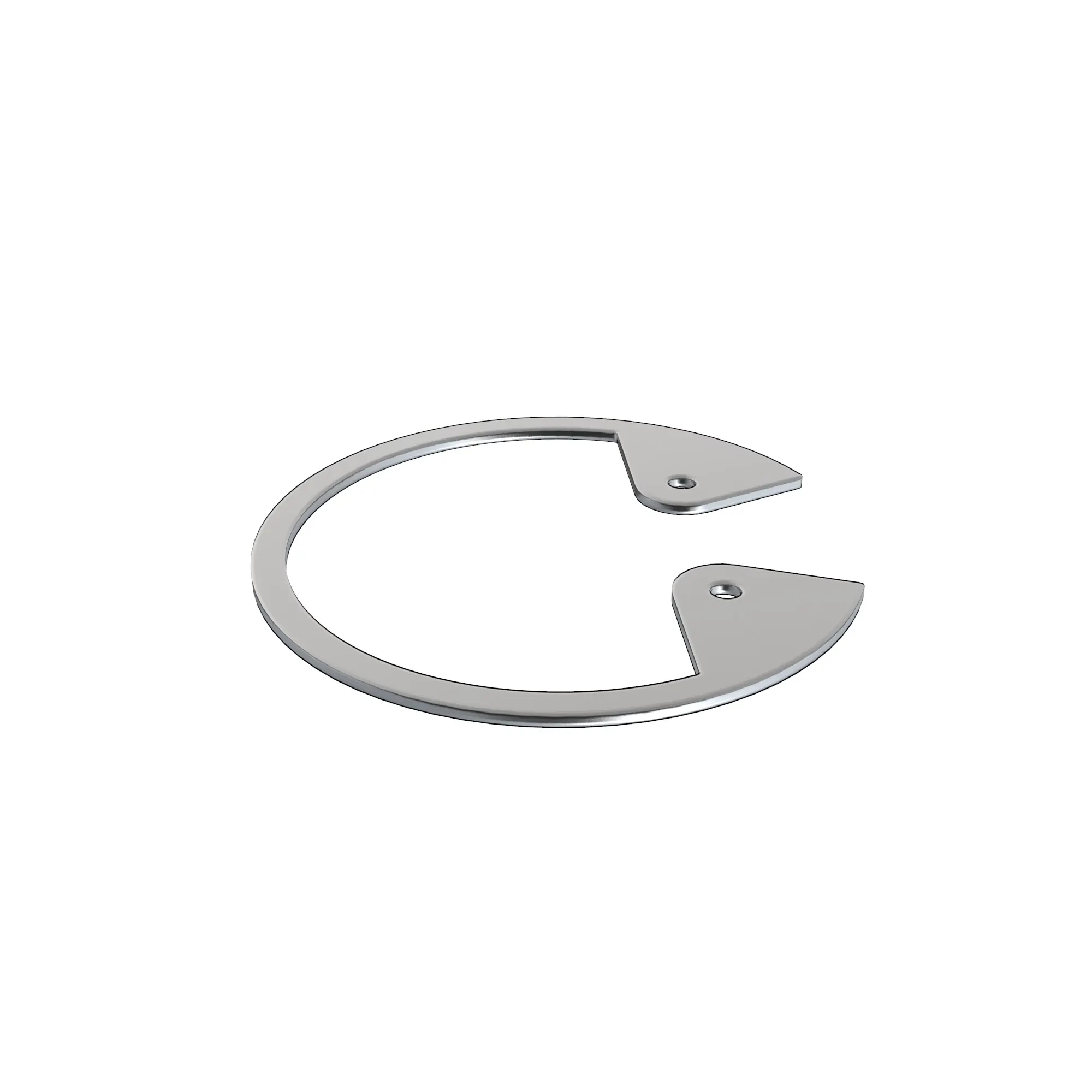

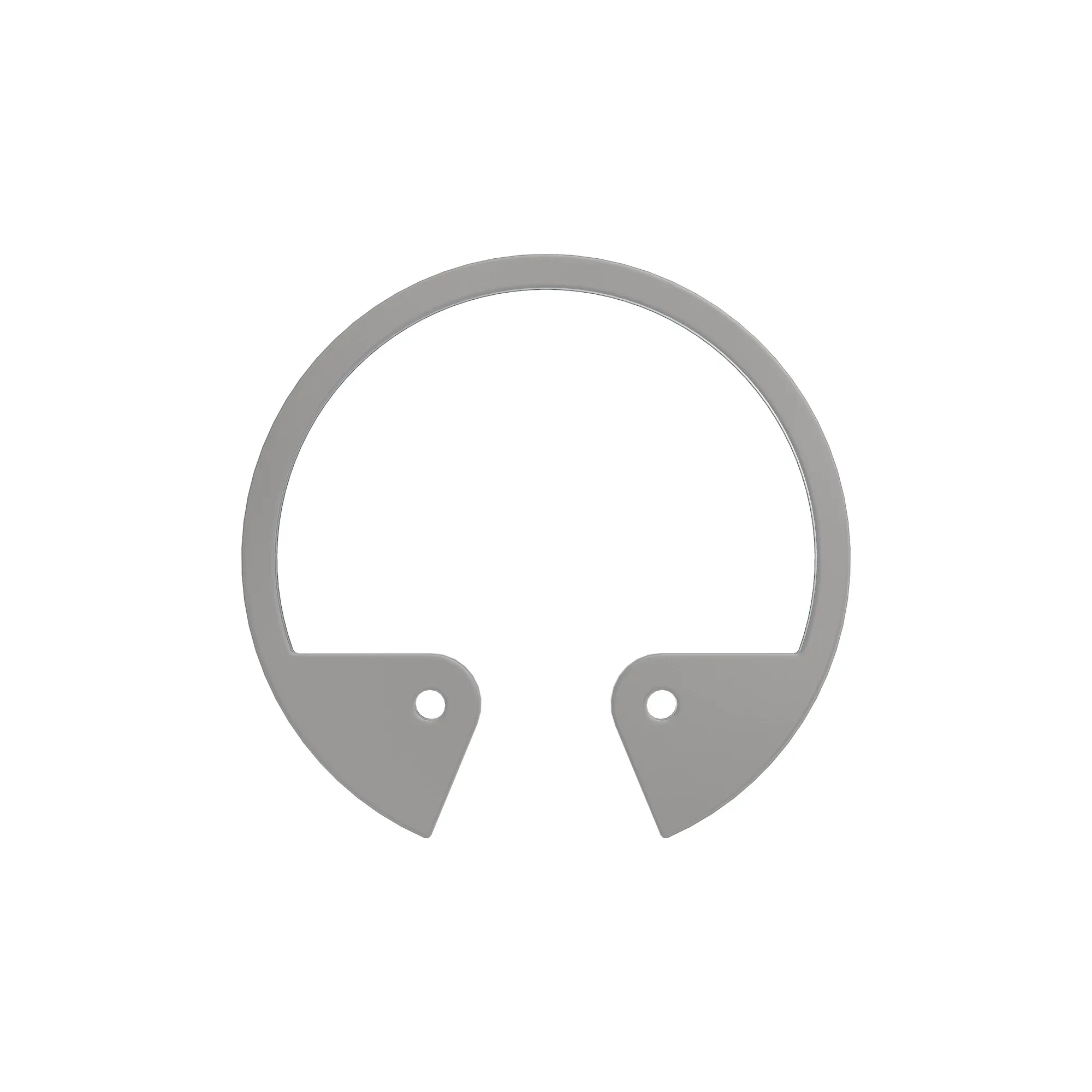

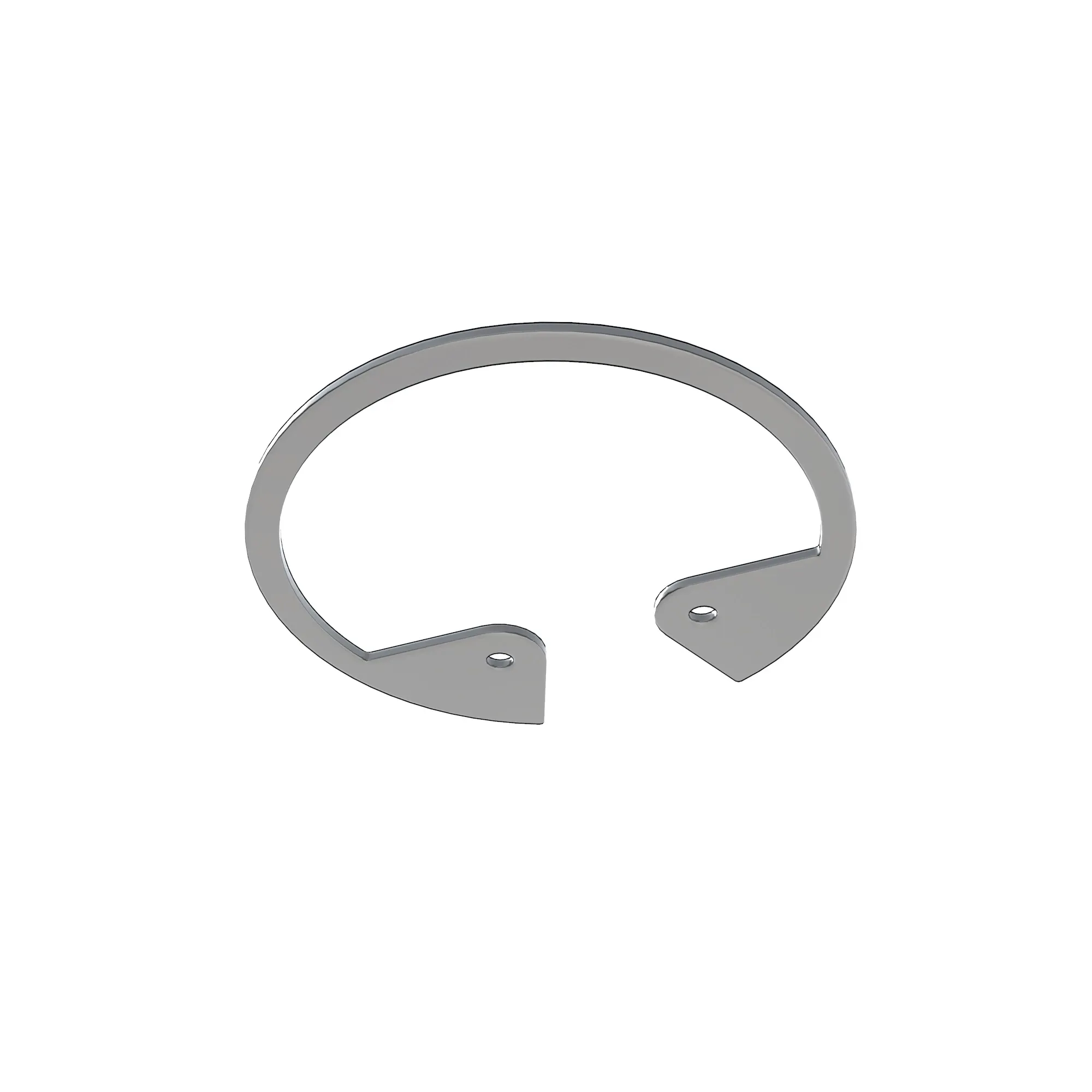

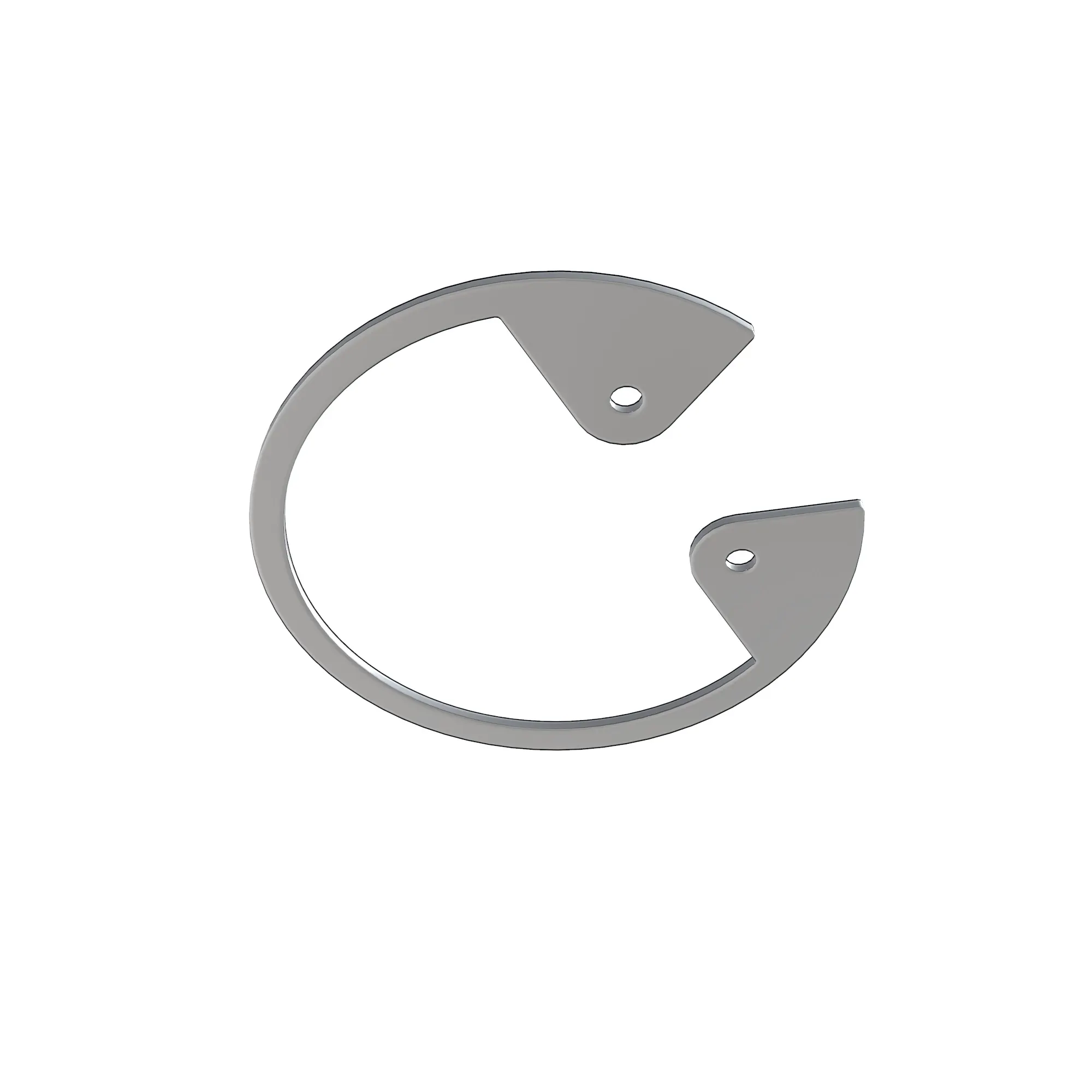

U15409: Internal Snap Ring

Part Number: U15409

Parts Tier: Original

Designed for securing components within a bore, this internal snap ring ensures reliable retention and stability
Key specs: Free O.D. of 119.15 mm (4.69 in), radial width of 8.51 mm (0.34 in), and bore diameter of 107.95 mm (4 1/4 in) for precise fitting
Additional specs: Width of 2.77 mm (0.11 in), groove width of 3.05 mm (0.12 in), and groove diameter of 113.54 mm (4.47 in) for optimal performance
Made from high quality general steel for durability and strength

WARNING/ADVERTENCIA -Cancer and Reproductive Harm/Cáncer y Daño Reproductivo. www.p65warnings.ca.gov

Product Dimensions

Weight

0.12 lb

Height

4.6 in

Length

0.1 in

For the most accurate fit and confidence, please select the equipment you are shopping for. Parts can be used across a number of different models, the models shown here indicate general fit of the part.

9R 390
9R 440
9R 490
9R 490 SCRAPER
9R 540
9R 540 SCRAPER
9R 590
9R 590 SCRAPER
9R 640
9R 640 SCRAPER
9RX 490
9RX 490 SCRAPER
9RX 540
9RX 540 SCRAPER
9RX 590
9RX 590 SCRAPER
9RX 640
4050
4055
4250
4255
4450
4455
8560
8570
8760
8770
8870
8960
8970
9100
9120
9200
9200 SCRAPER
9220
9230
9300
9300 SCRAPER
9320
9330
9360R
9370R
9400
9400 SCRAPER
9410R
9420
9420R
9420RX
9430
9460R
9470R
9470RX
9470RX SCRAPER
9510R
9520
9520R
9520RX
9520RX SCRAPER
9530
9530 SCRAPER
9560R
9570R
9570RX
9570RX SCRAPER
9620
9620R
9620RX
9630
9630 SCRAPER
