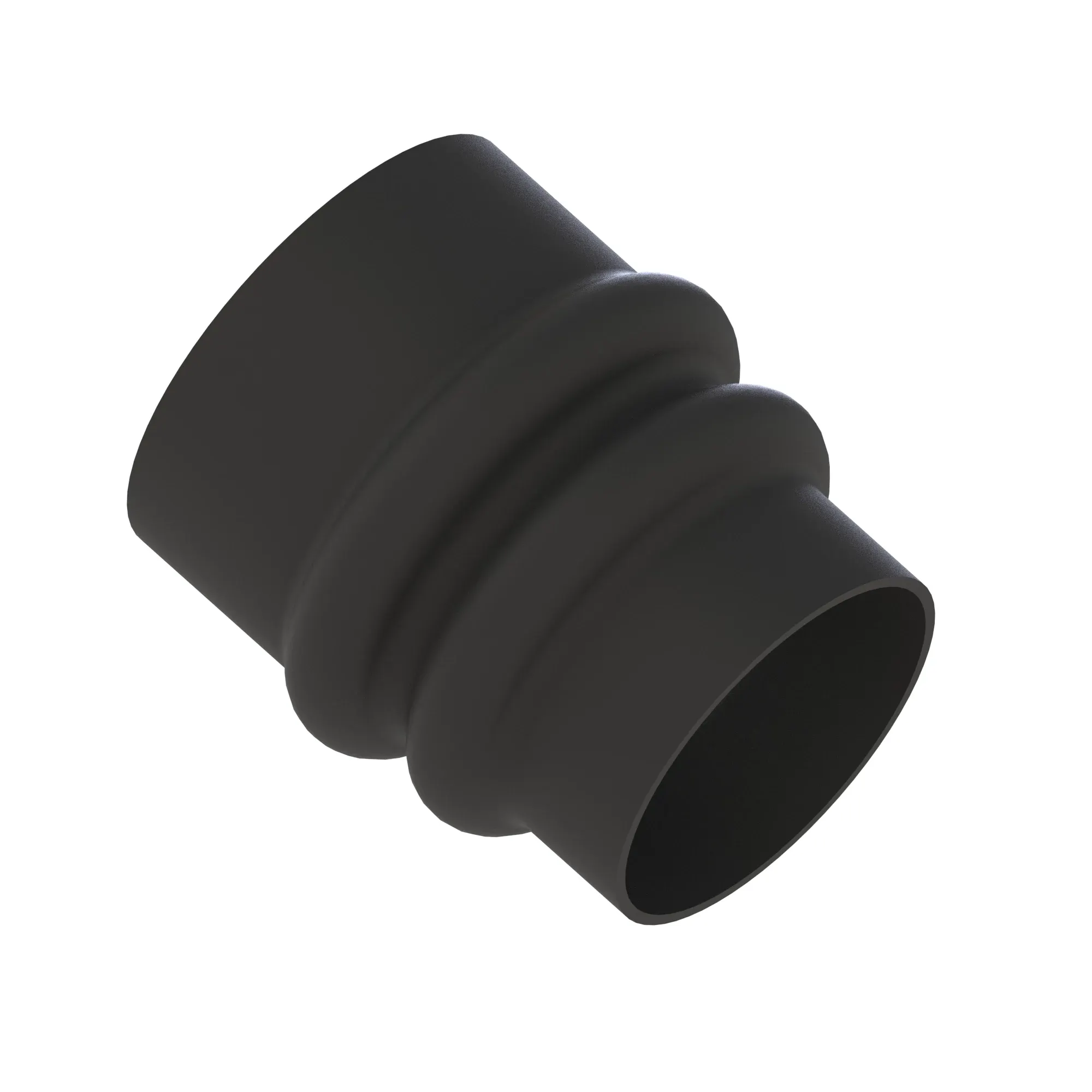

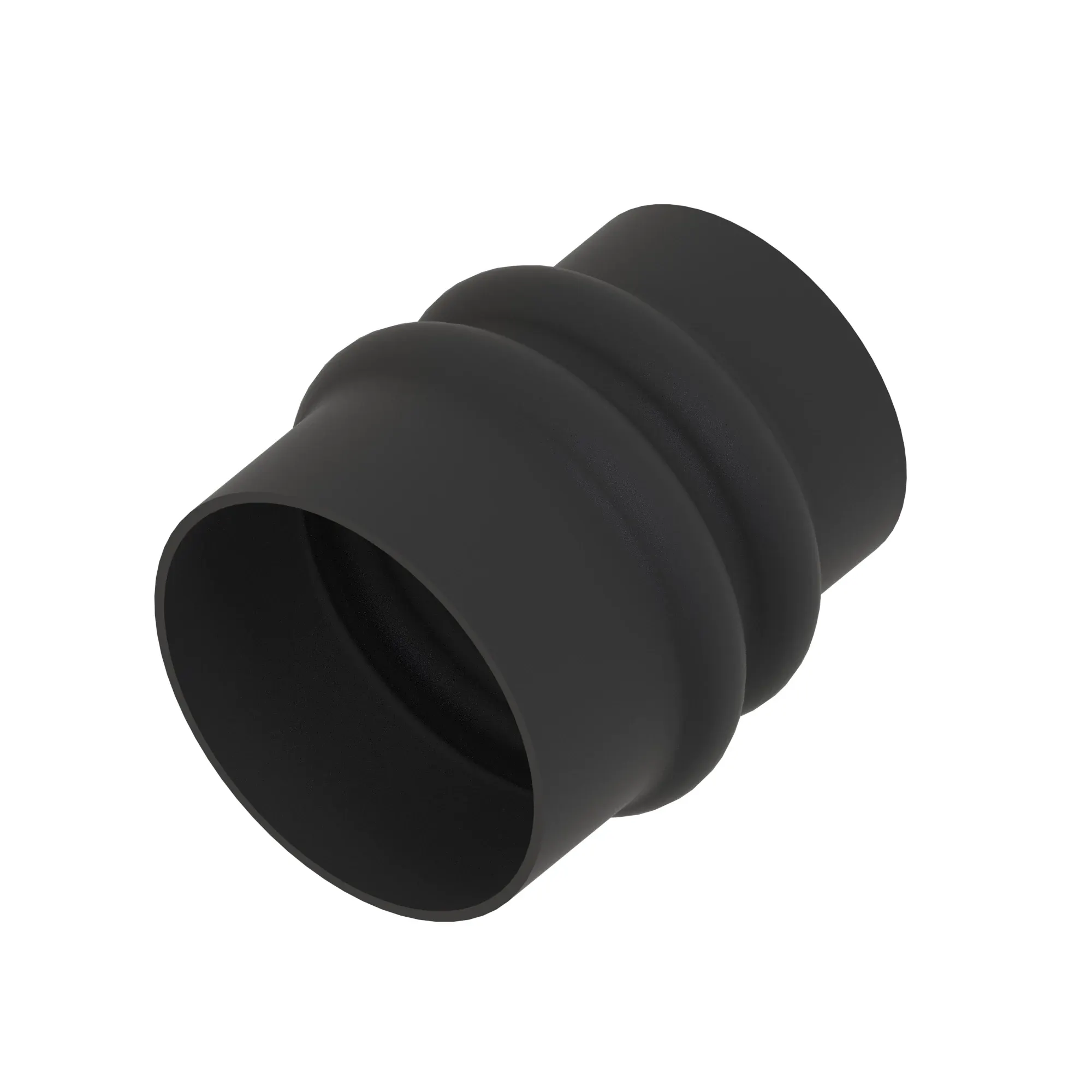

TR105234: Air Intake Bellows Pipe

Part Number: TR105234

Parts Tier: Original

John Deere air intake bellows pipe directs airflow to the engine, supporting proper operation across compatible equipment platforms
Shaped routing geometry allows this pipe to fit defined paths within the assembly, helping maintain clearance and position during use
Rubber material construction provides flexibility and resilience appropriate for air transfer applications in machinery systems

Product Dimensions

Weight

1.002 lb

Height

8 in

Length

8.2 in

For the most accurate fit and confidence, please select the equipment you are shopping for. Parts can be used across a number of different models, the models shown here indicate general fit of the part.

9R 390
9R 440
9R 490
9R 490 SCRAPER
9R 540
9R 540 SCRAPER
9R 590
9R 590 SCRAPER
9R 640
9R 640 SCRAPER
9RT 470
9RT 470 SCRAPER
9RT 490
9RT 490 SCRAPER
9RT 520
9RT 520 SCRAPER
9RT 540
9RT 540 SCRAPER
9RT 570
9RT 570 SCRAPER
9RT 590
9RT 590 SCRAPER
9RX 490
9RX 490 SCRAPER
9RX 540
9RX 540 SCRAPER
9RX 590
9RX 590 SCRAPER
9RX 640
