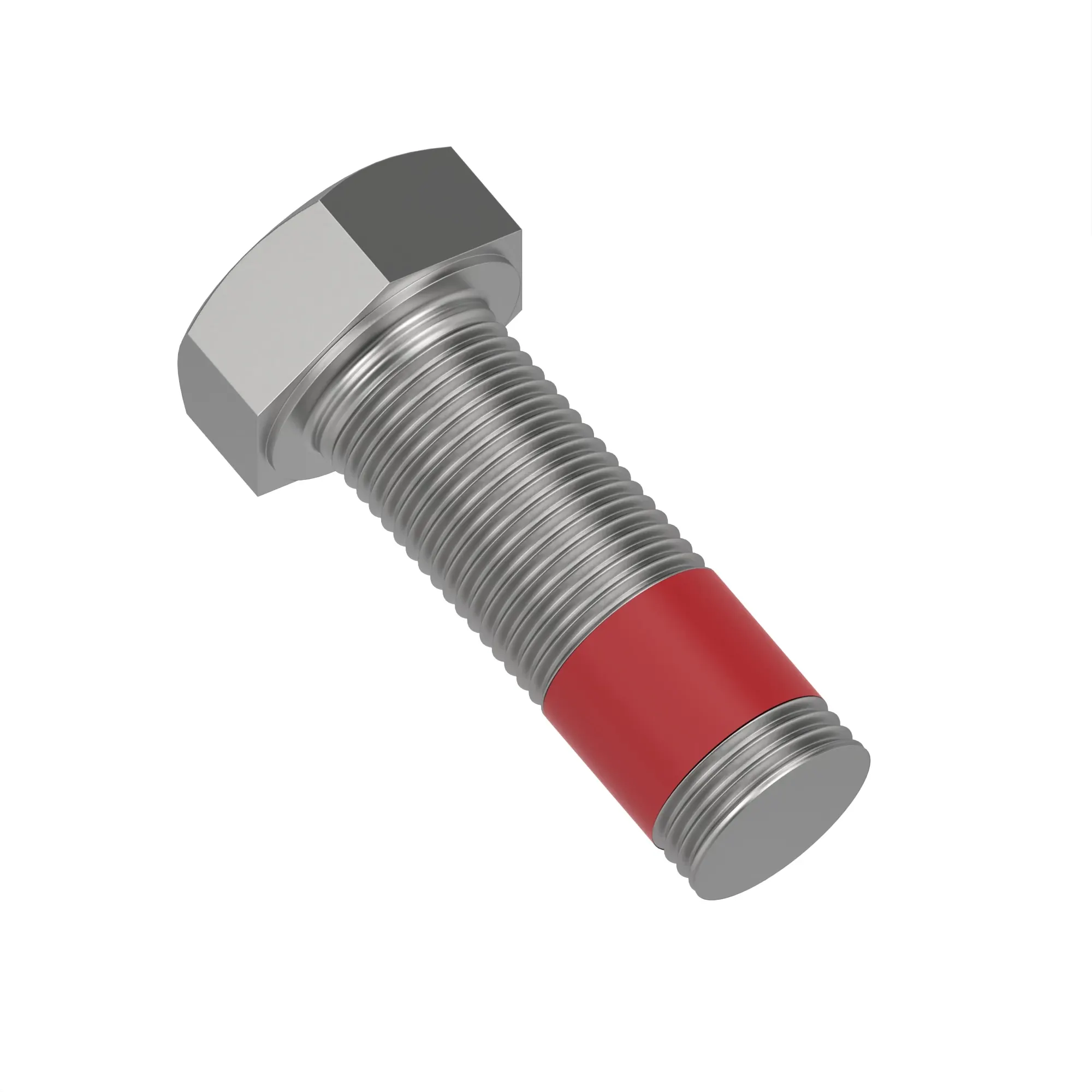

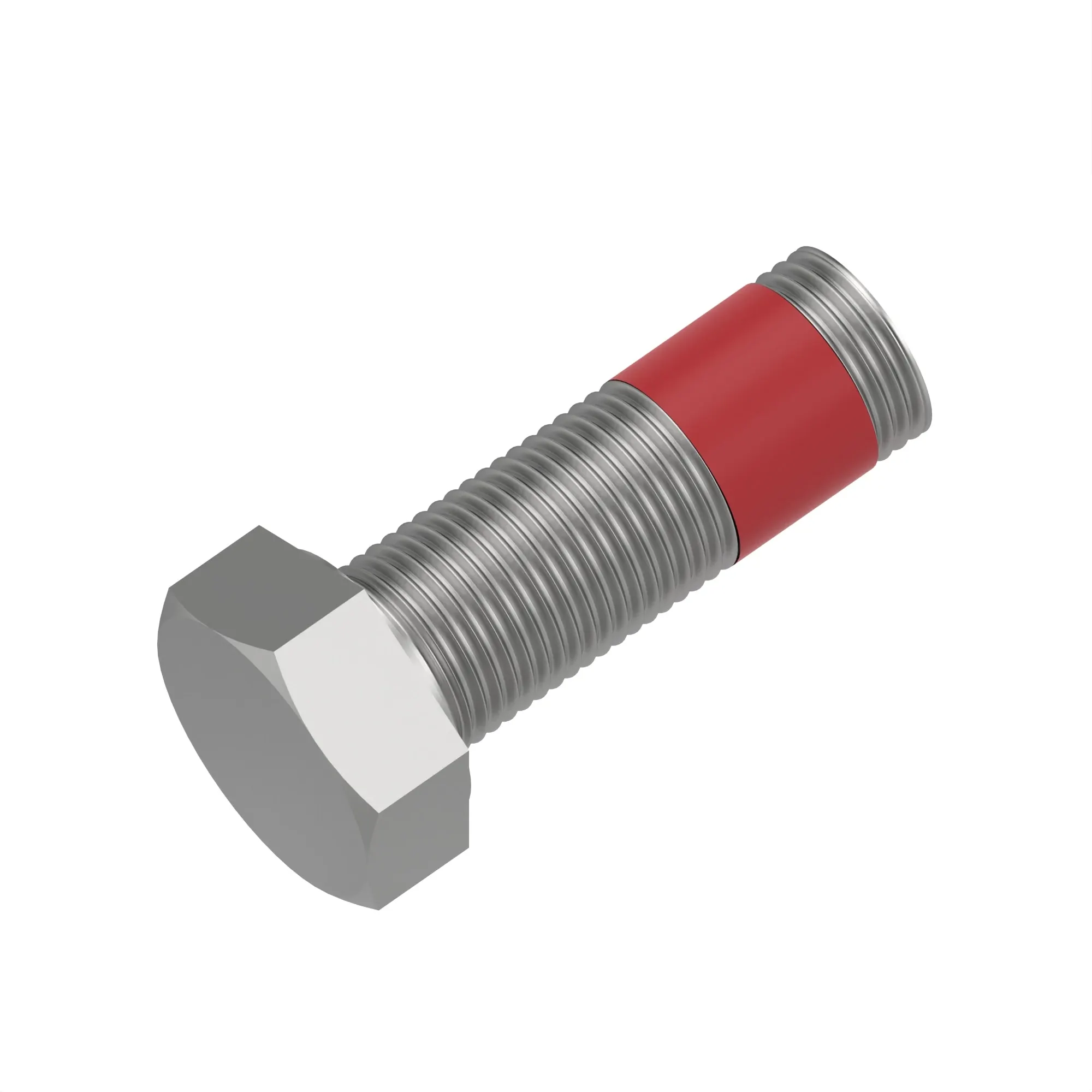

TM13505: Hexagonal Head Cap Screw
Part Number: TM13505
The right parts for your machine, every time
Hexagonal Head Cap Screw designed for secure fastening in various applications
Features a thread length of 39 mm (1.54 in) and an overall length of 45 mm (1.77 in) with a thread pitch of 2 mm (0.08 in)
Head thickness of 10.18 mm (0.4 in) and head width of 24 mm (0.94 in) for optimal torque distribution
Made from high quality material for enhanced durability and performance
Zinc finish provides excellent corrosion resistance and longevity
Product Dimensions
Weight
0.18 lb
Height
1.1 in
Length
2.2 in
Specifications
Thread Length
39 mm
Thread Size or Diameter
16 mm
For the most accurate fit and confidence, please select the equipment you are shopping for. Parts can be used across a number of different models, the models shown here indicate general fit of the part.
620 G
620 P
620G
622 G
622 P
622G
670 G
670 P
670G
672 G
672 P
672G
744 P
744 X
770 G
770 P
770G
772 G
772 P
772G
824 P
824 X
844 P
844 X
870 P
870G
872 P
872G
904 P
904 X
944 X
944K
