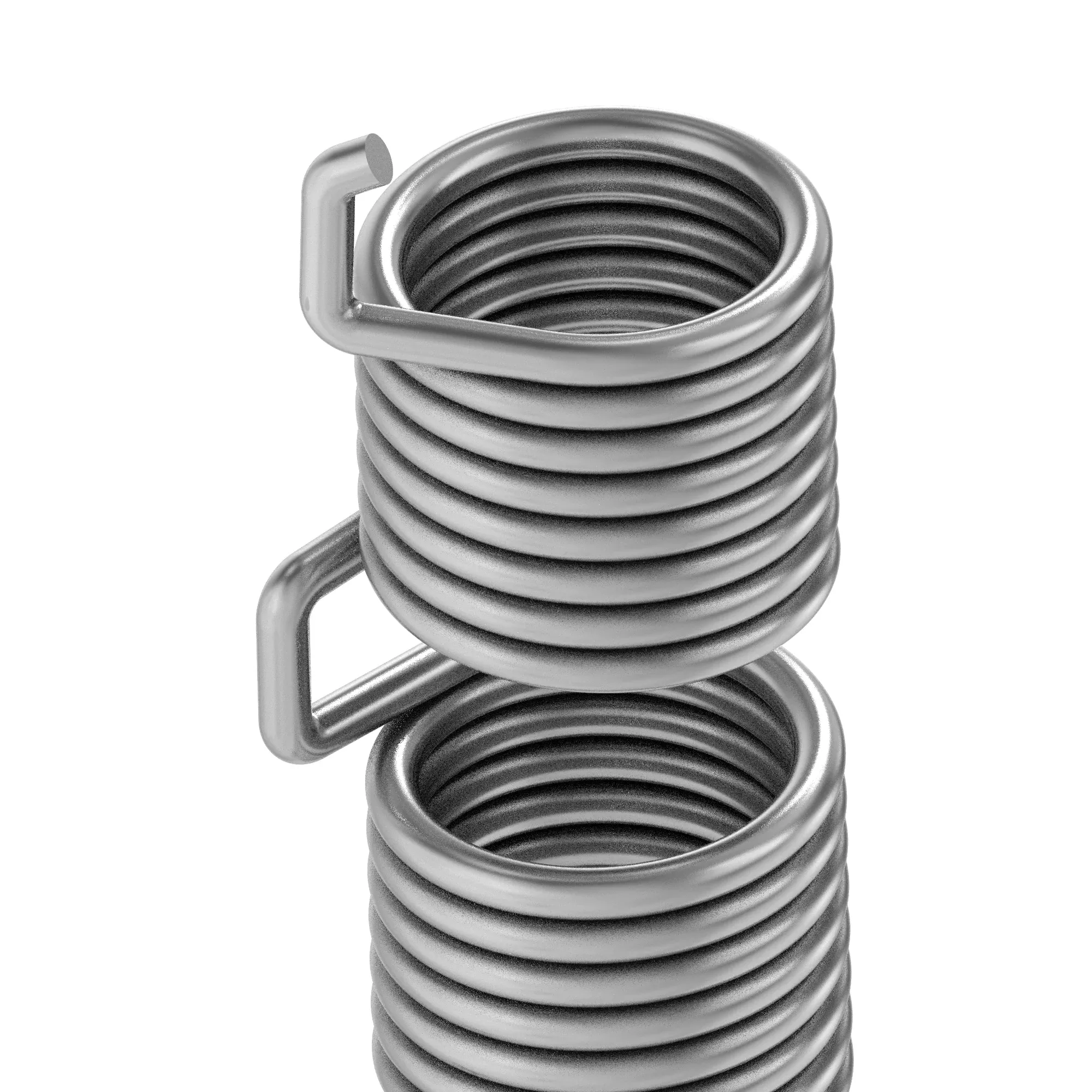

T76684: Double Torsion Spring

Part Number: T76684

Parts Tier: Original

  • The Double Torsion Spring is designed for applications requiring rotational force, providing reliable tension and stability in mechanical systems
  • Features a D/7.66 coil type with a length of 120.14 mm (4.73 in) and a wire size of 4.32 mm (0.17 in), ideal for precise mechanical movements
  • Inner diameter of 29.97 mm (1.18 in) and height of 19.05 mm (3/4 in) for compatibility with various assemblies
  • Made from high quality steel for durability and strength
  • Heat treated finish enhances resilience and performance under stress

    Product Dimensions

    Weight
    0.46 lb
    Height
    1.7 in
    Length
    5.2 in

    Specifications

    Spring Rate
    0
    Wire Diameter
    4.318 mm
    Spring Type
    Torsion Spring
    Material
    Steel Alloy
    Free Length
    120.142 mm
    Inside Diameter
    29.972 mm
