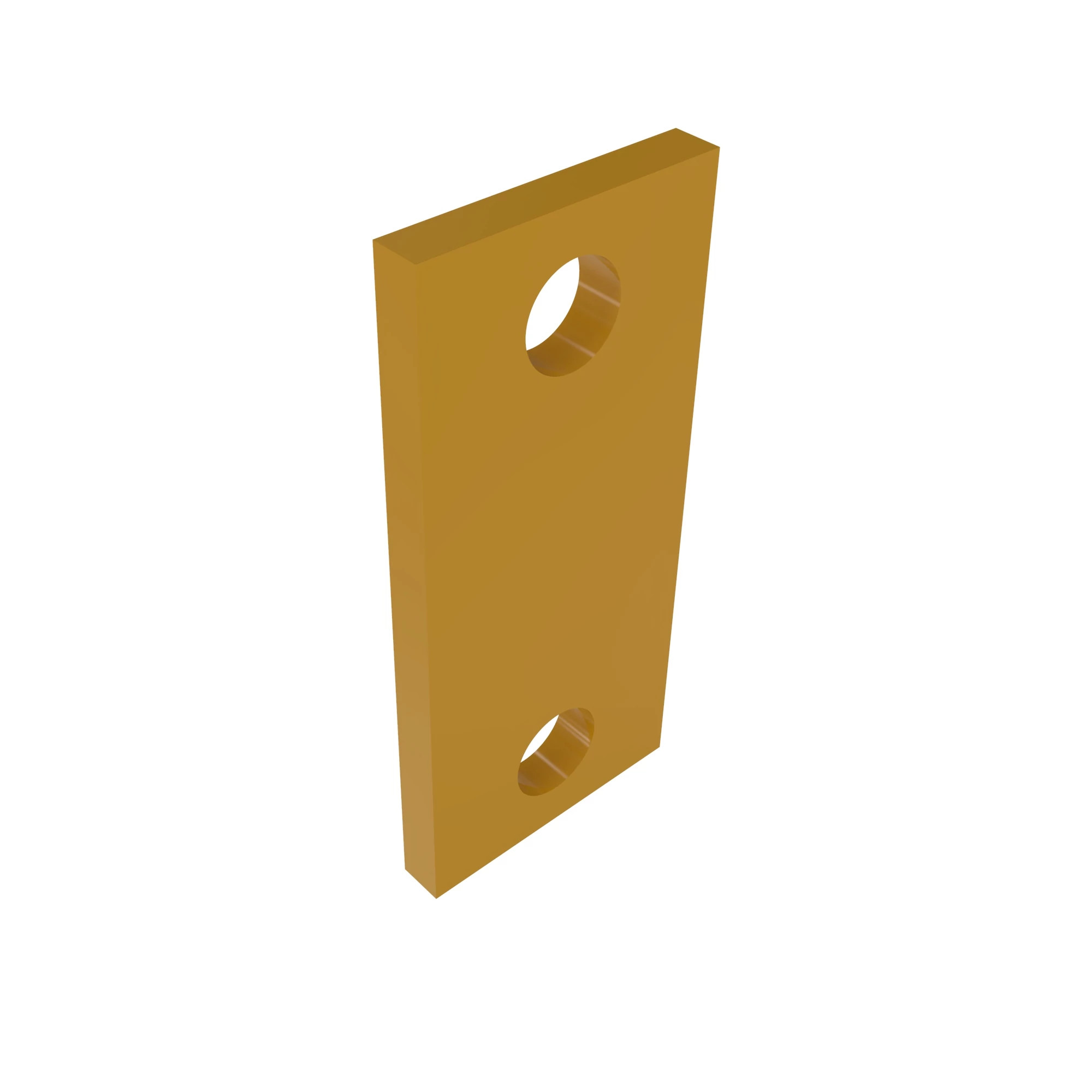

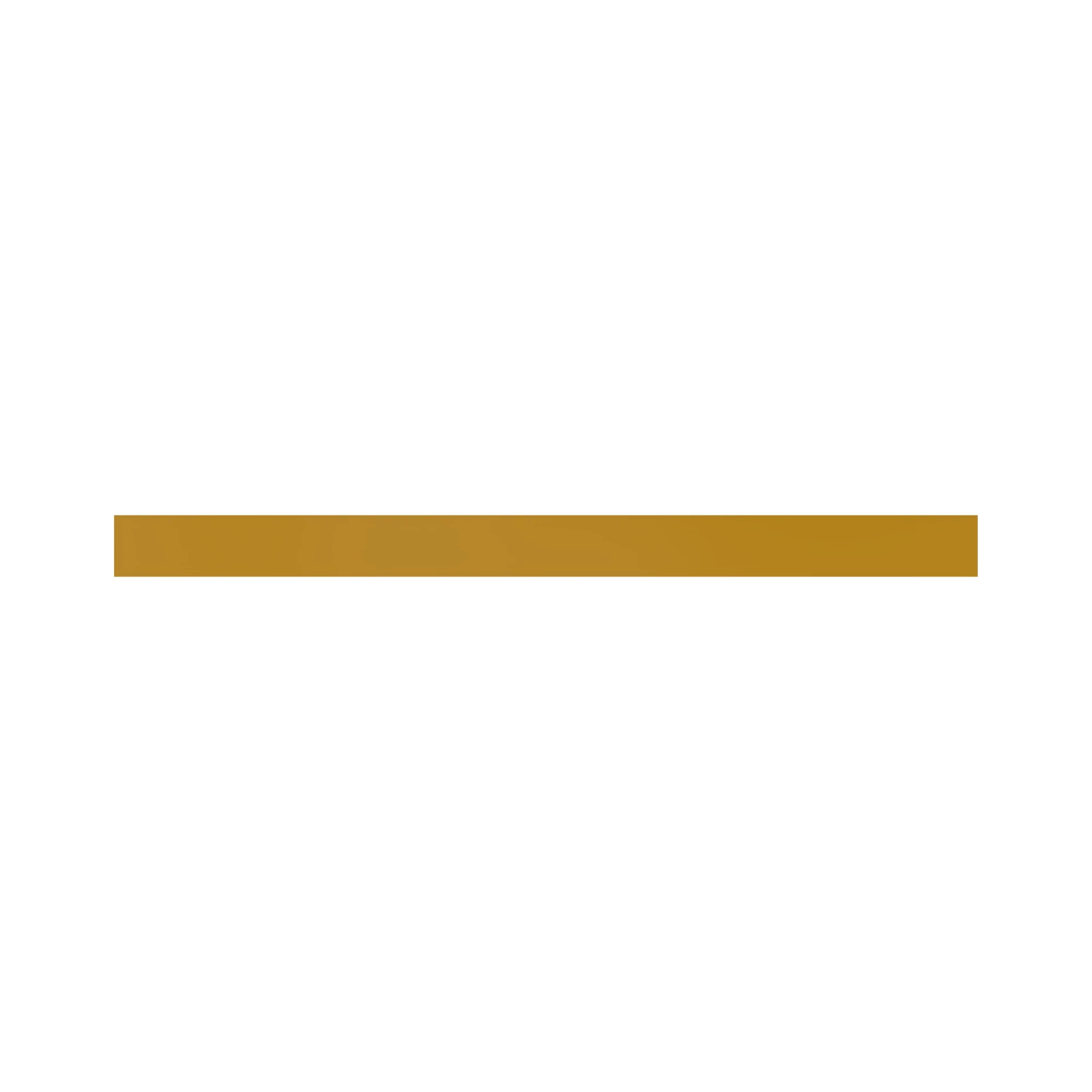

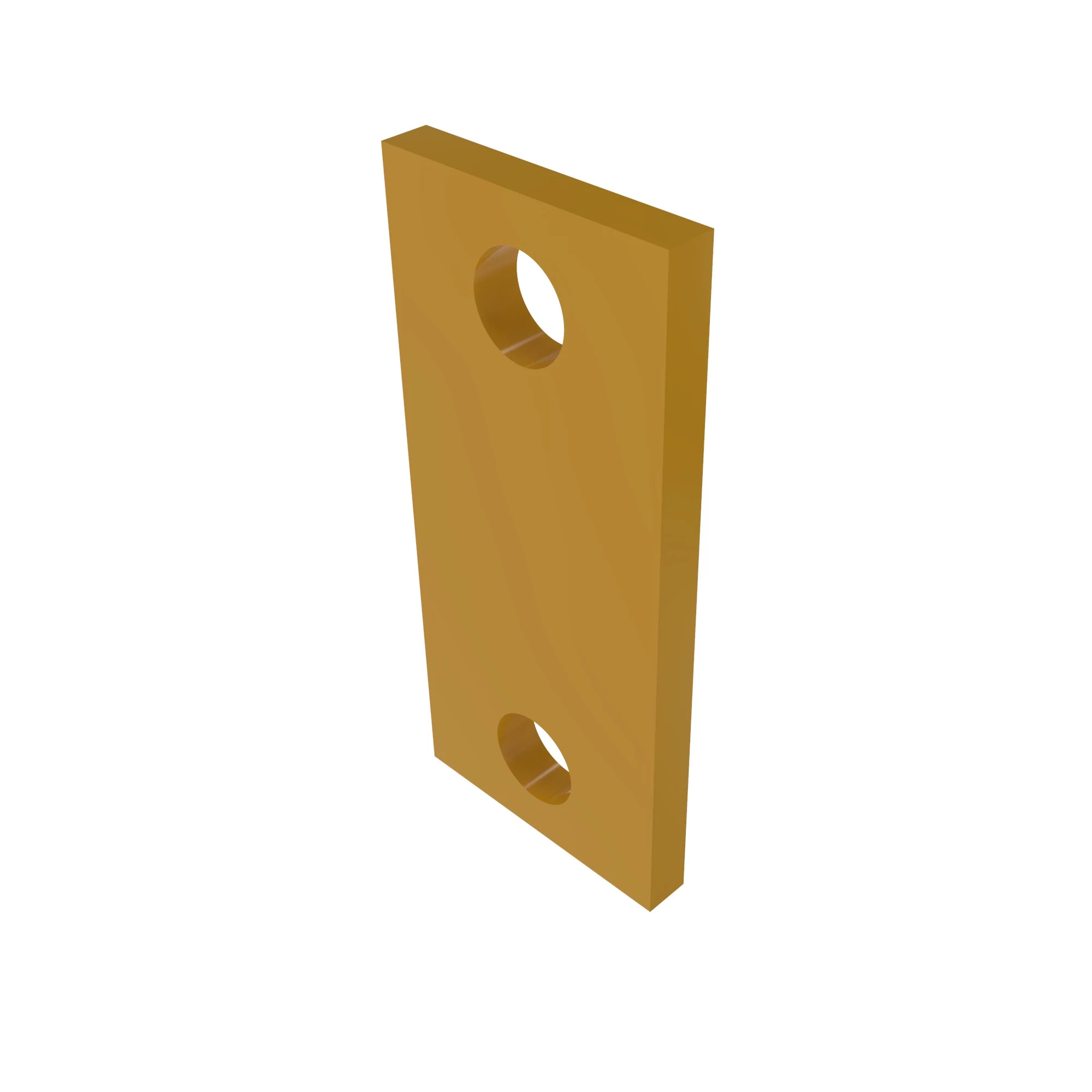

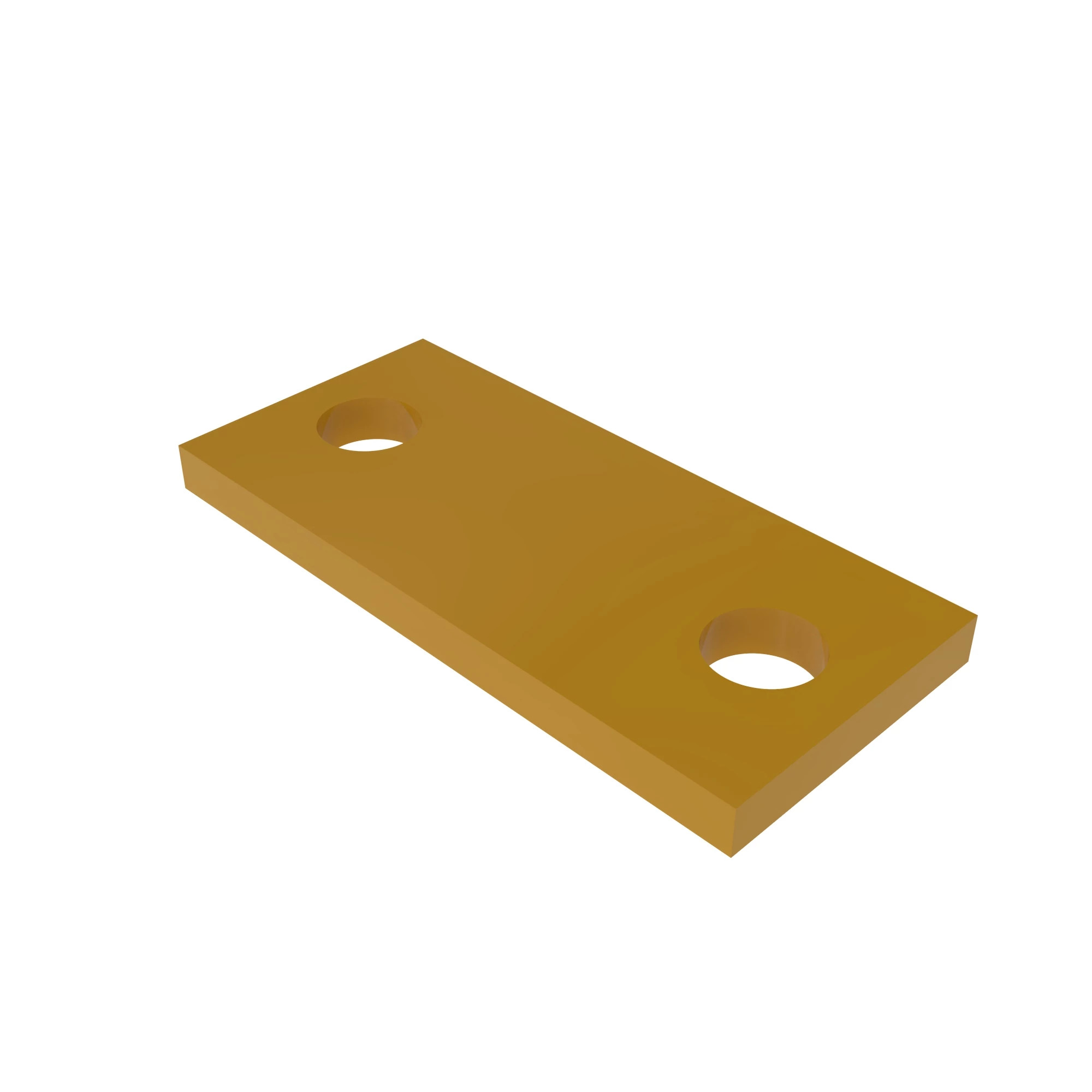

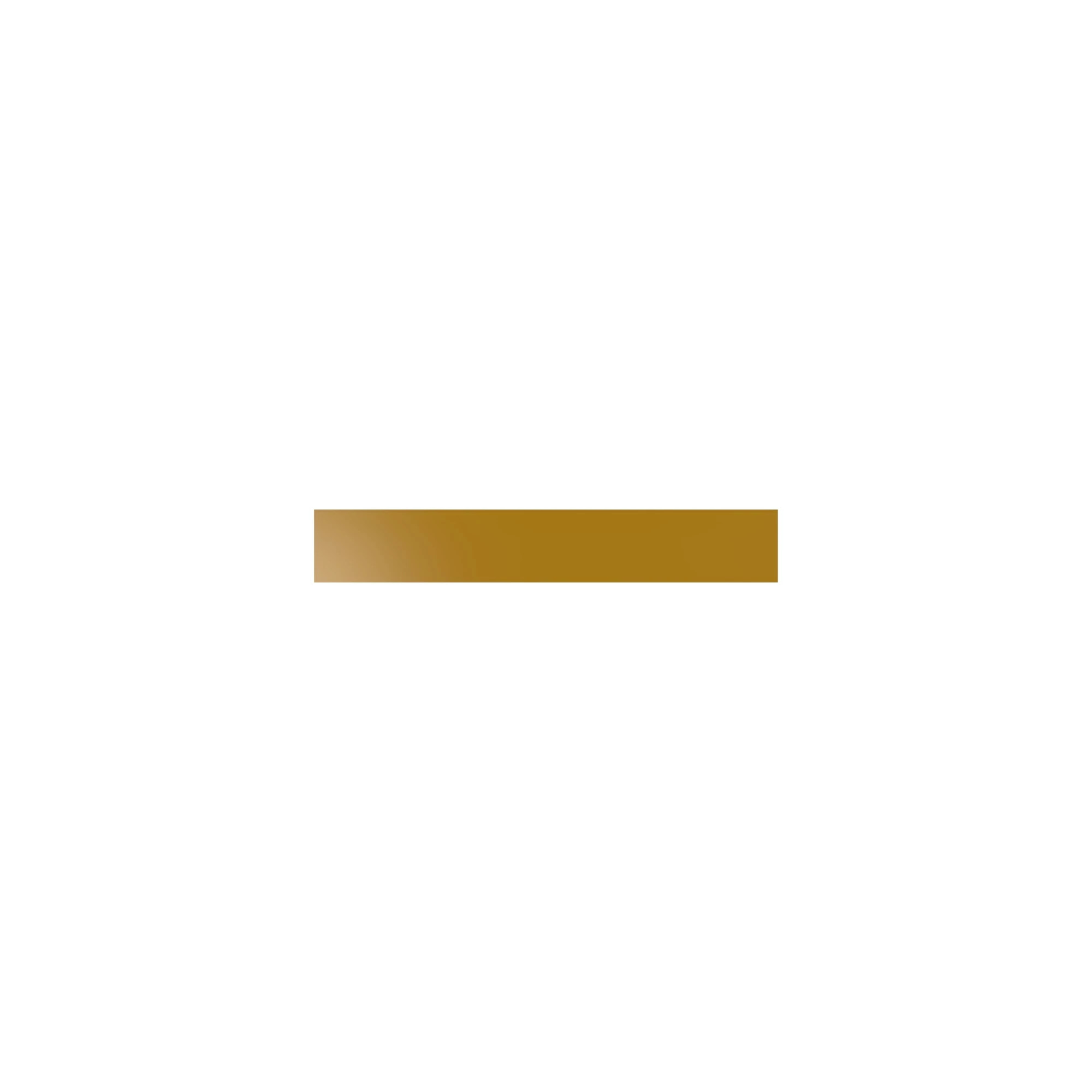

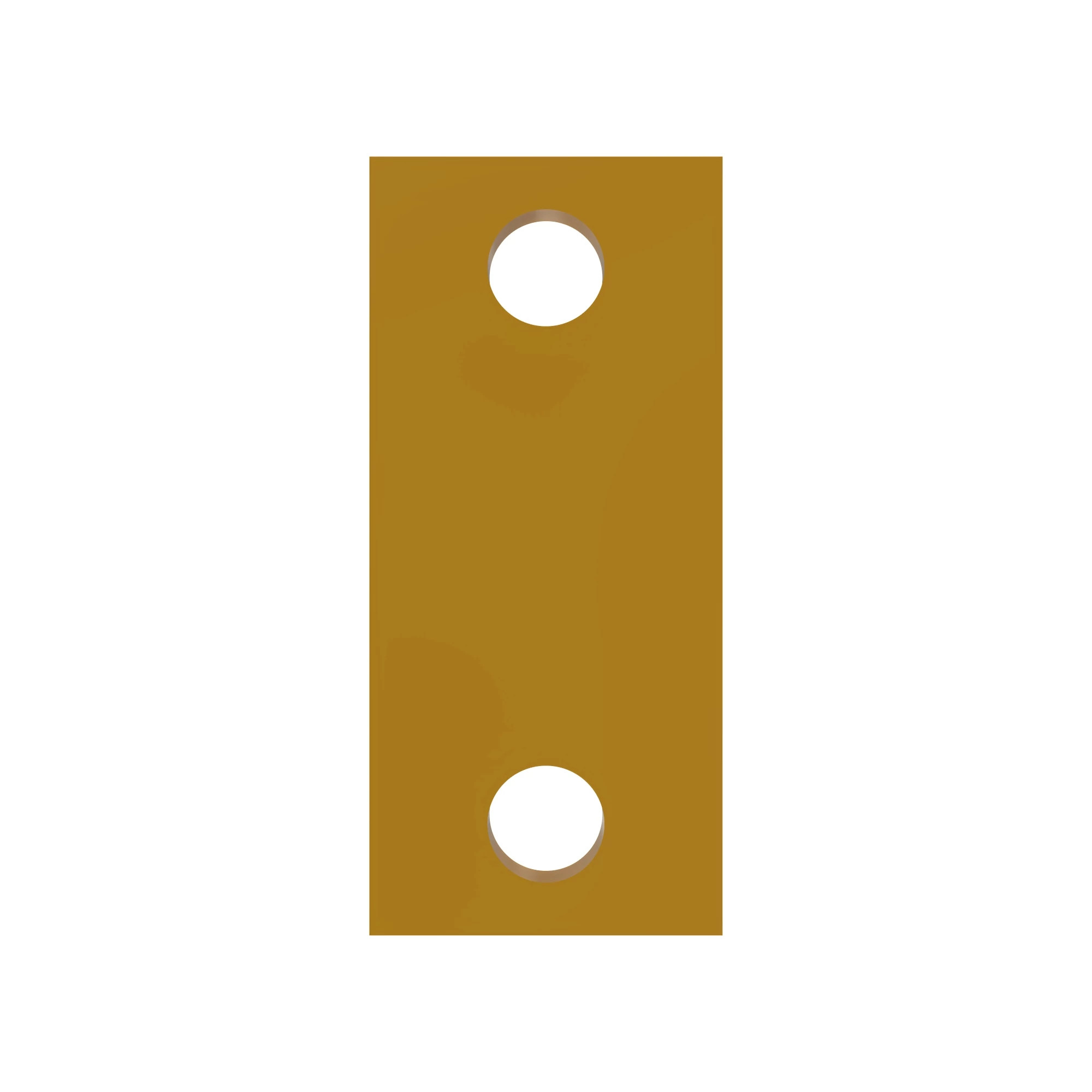

T177028: C-Frame Strap

Part Number: T177028

Parts Tier: Original

  • John Deere C Frame Strap supports secure attachment within the associated assembly, giving customers a purpose-matched replacement that restores the specified role of the component in the
  • This c-frame strap matches the specified attachment arrangement to help restore proper component positioning and reliable assembly function while supporting dependable equipment service
  • Correct fit and secure positioning help the c frame strap maintain the intended component relationship, supporting consistent assembly function and dependable equipment operation
WARNING/ADVERTENCIA -Cancer and Reproductive Harm/Cáncer y Daño Reproductivo. www.p65warnings.ca.gov

Product Details

    Product Dimensions

    Weight
    1.343 lb
    Height
    0.36 in
    Width
    2 in
    Length
    5.5 in

    Specifications

    Overall Length
    140 mm
    Hole to End Length
    20 mm
    Width
    63.5 mm
    Thickness
    10 mm
    Hole Size
    21.5 mm
    Hole Spacing
    100 mm
    Hole Location
    31.75 mm
    Material
    Carbon steel (hot rolled)

    Compatible Equipment

    • 700 P
    • 700H
    • 700J
    • 700J-II
    • 700K
    • 700L
    • 750 P
    • 750J
    • 750K
    • 750L
    • 764
    • 850J
    • 850K
