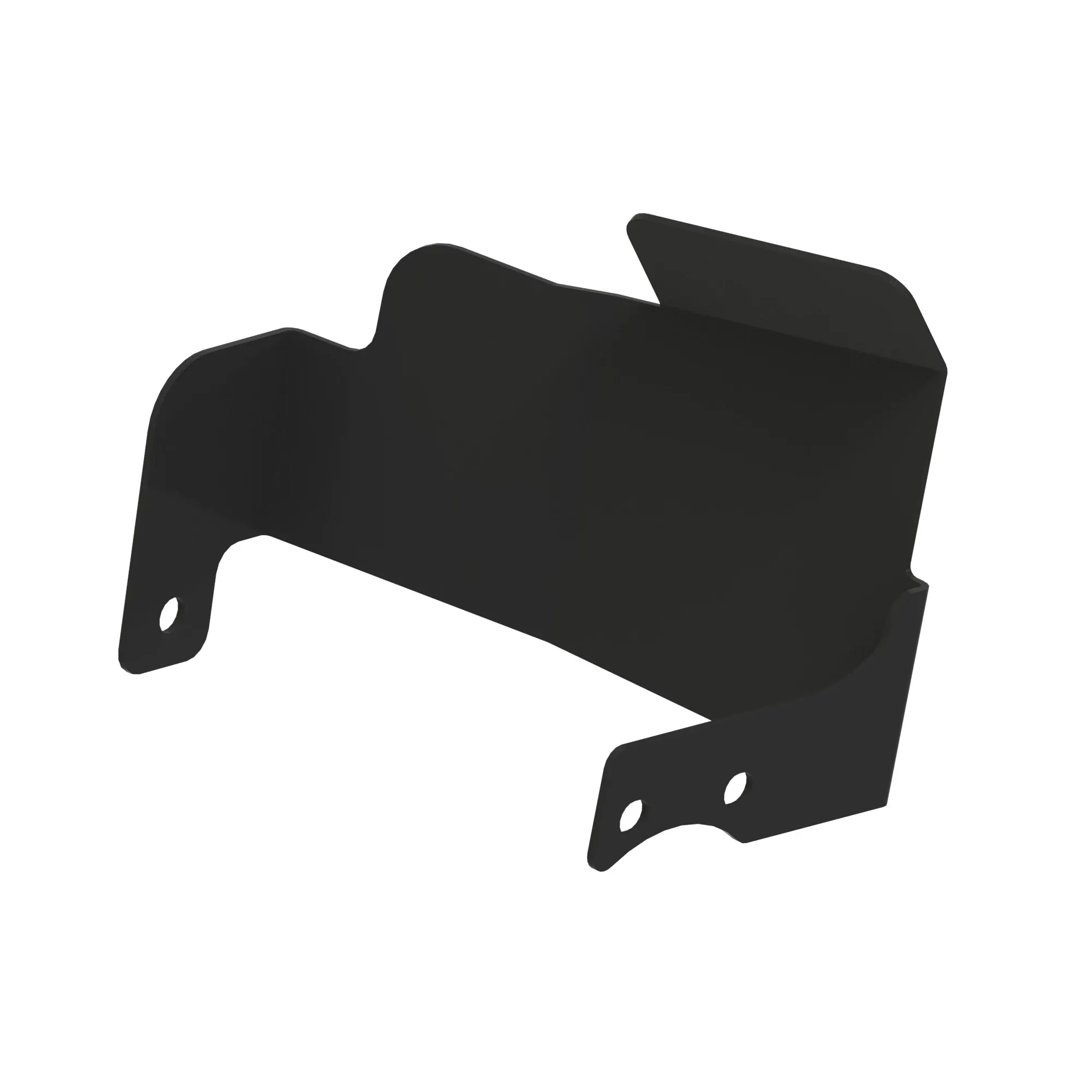

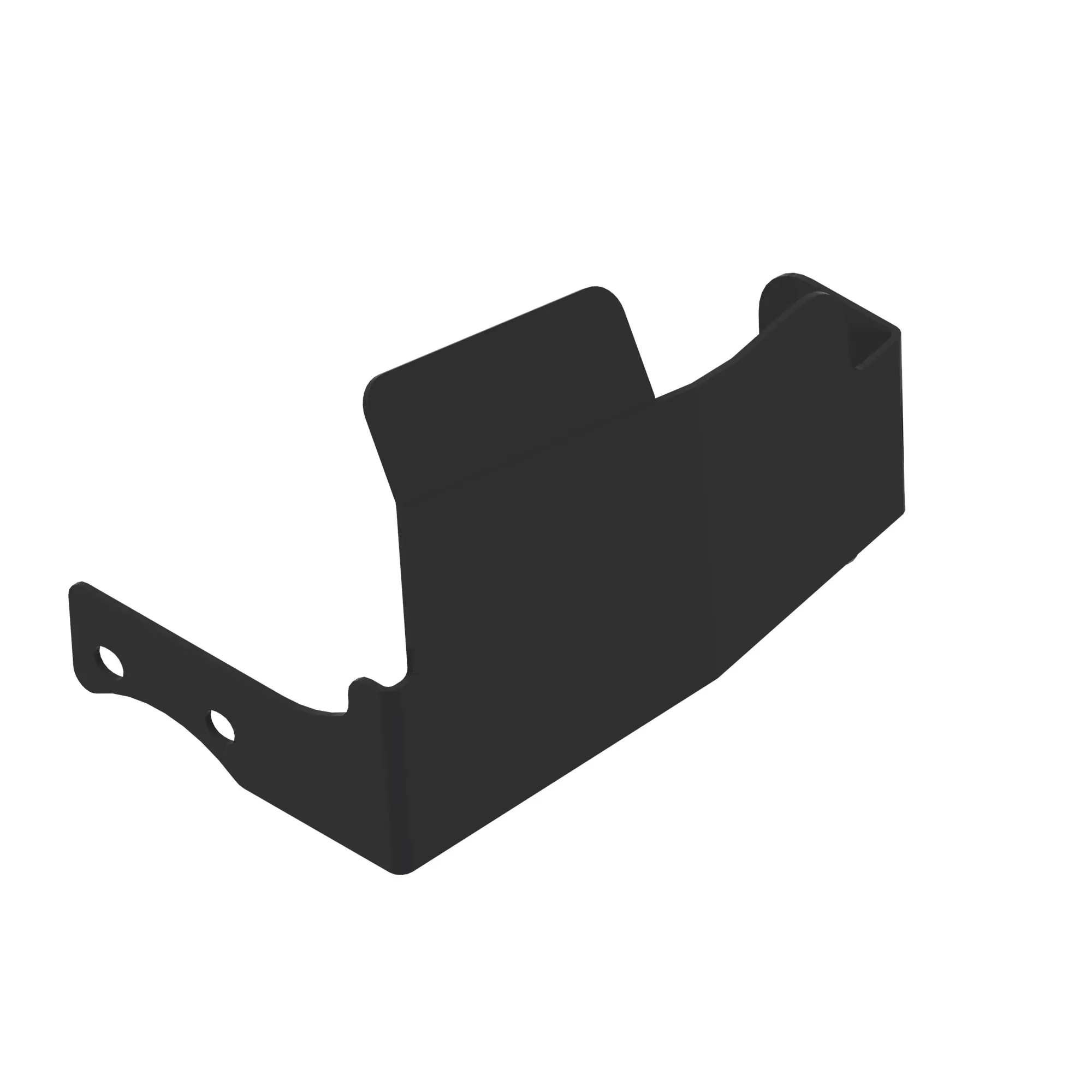

Name: SU23173: Guide
Brand: John Deere

Product Dimensions

Weight

1.33 lb

Height

5.2 in

Width

7.3 in

Length

8.7 in

For the most accurate fit and confidence, please select the equipment you are shopping for. Parts can be used across a number of different models, the models shown here indicate general fit of the part.

5085E
5085M
5090M
5090R
5100E
5100M
5100MH
5100ML
5100R
5115M
5115ML
5115R
5125R
6105D
6115D
6130D
6140D
