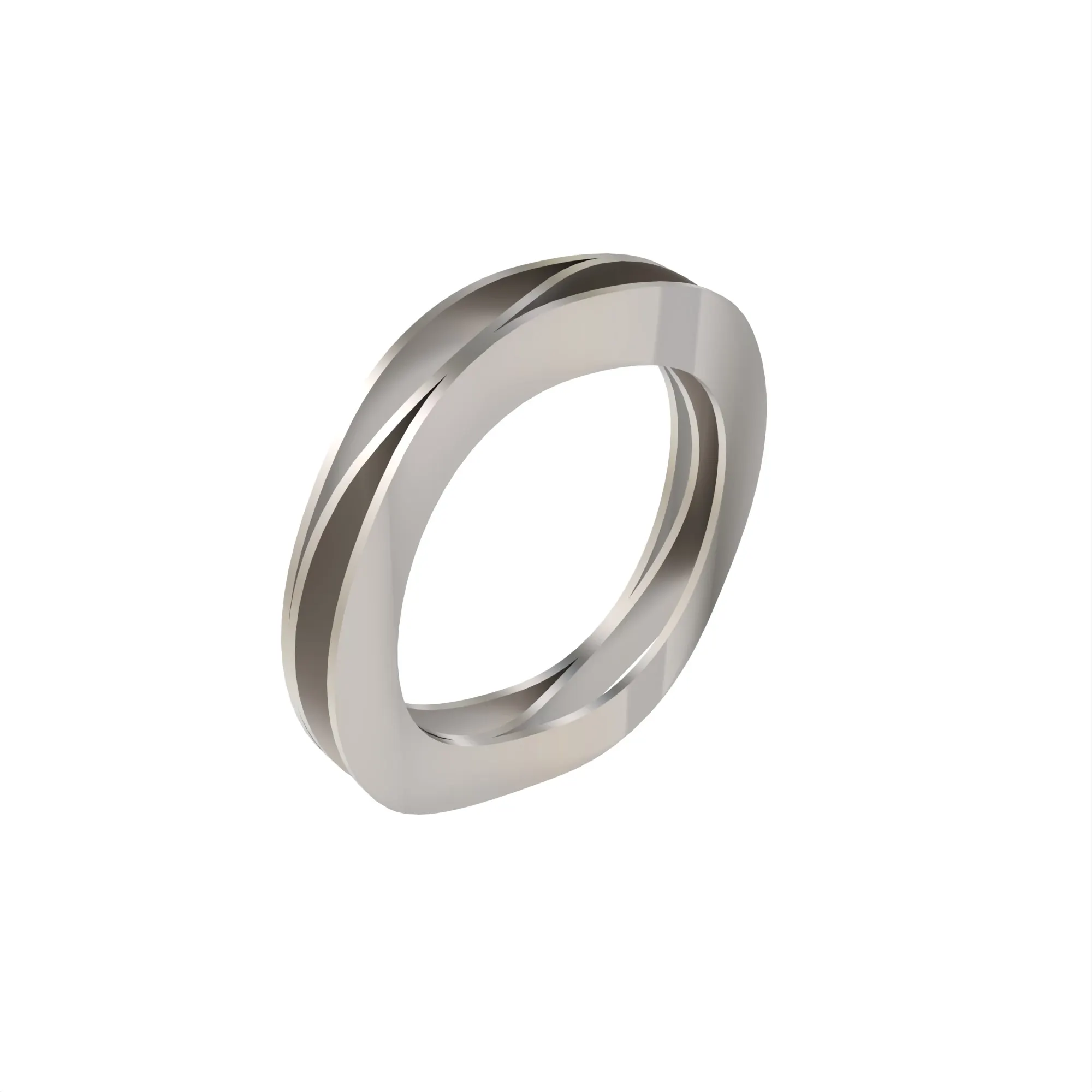

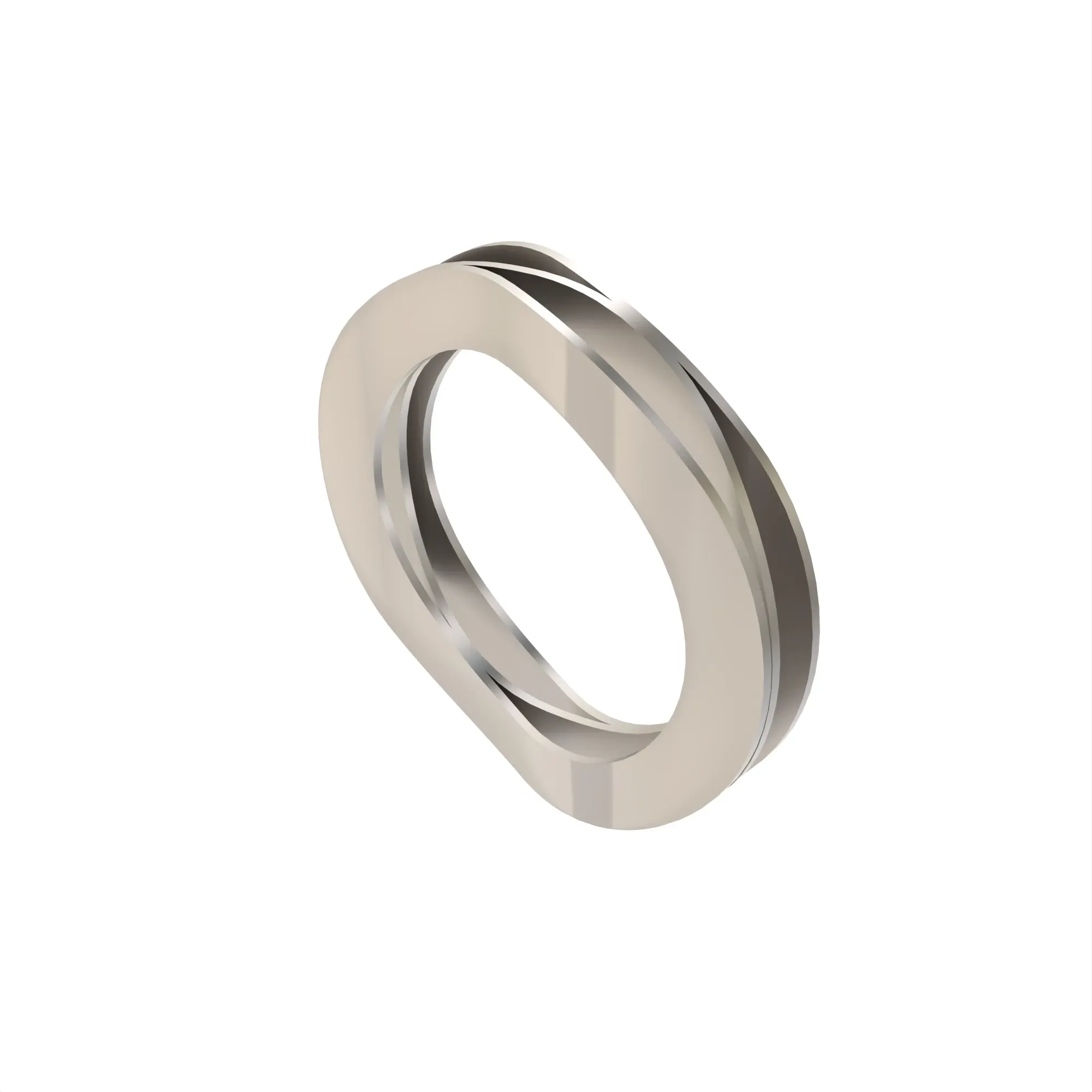

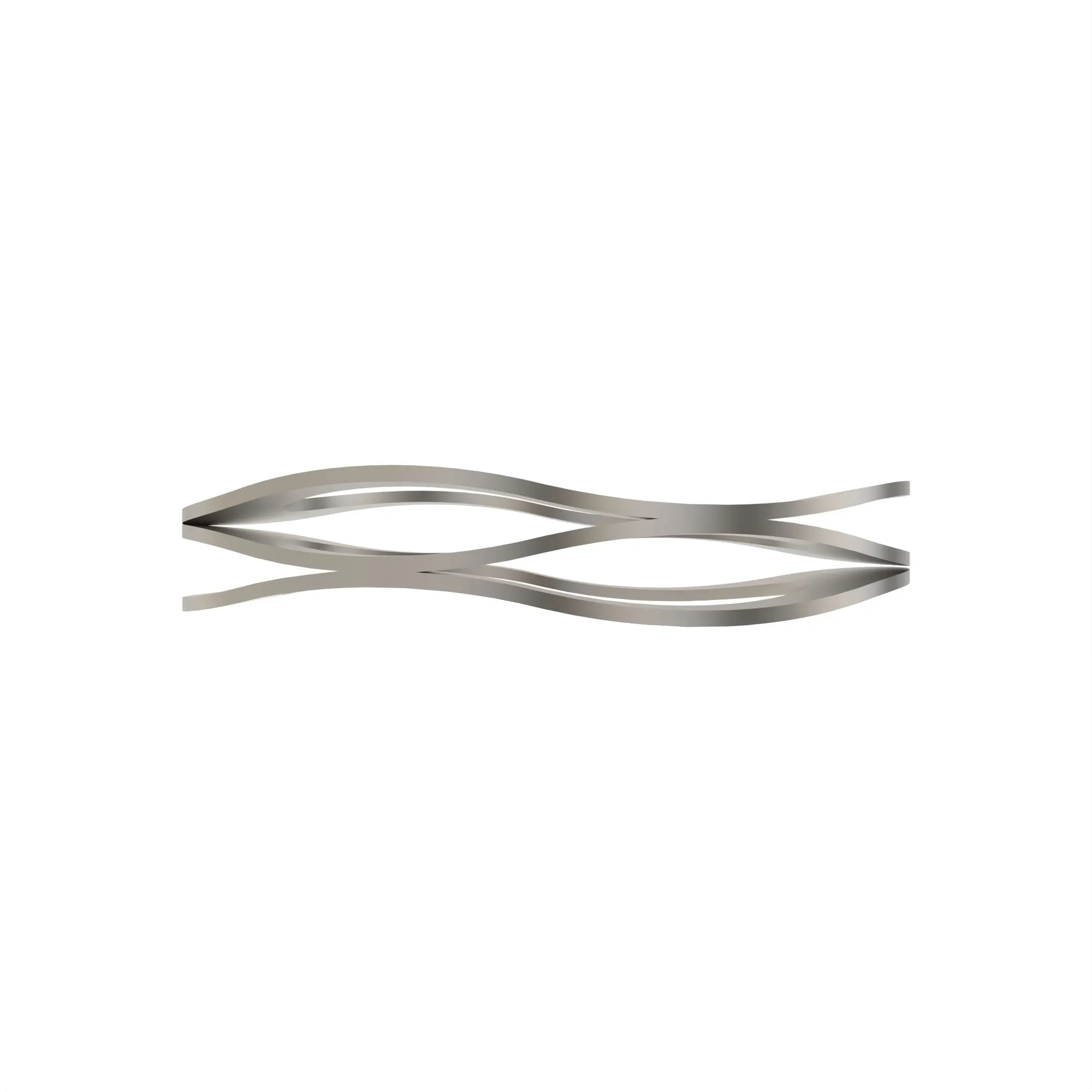

SU23101: Wave Spring
Part Number: SU23101
Parts Tier: Original
- Designed for efficient load-bearing and space-saving applications, this wave spring is ideal for compact assemblies and precise load management
- Features a free height of 4.45 mm and a bore diameter of 11.20 mm, perfect for tight spaces and ensuring optimal performance
- With a radial width of 1.47 mm and a material thickness of 0.25 mm, it offers durability and flexibility for various mechanical applications
- Made from high quality steel, ensuring strength and longevity in demanding environments
Product Dimensions
Weight
0.01 lb
Height
0.45 in
Length
0.2 in
Specifications
Spring Rate
0
Wire Diameter
1.473 mm
Spring Type
Compression Spring (Wave)
Outside Diameter
11.201 mm
Free Length
4.445 mm
Solid Length
2.007 mm
