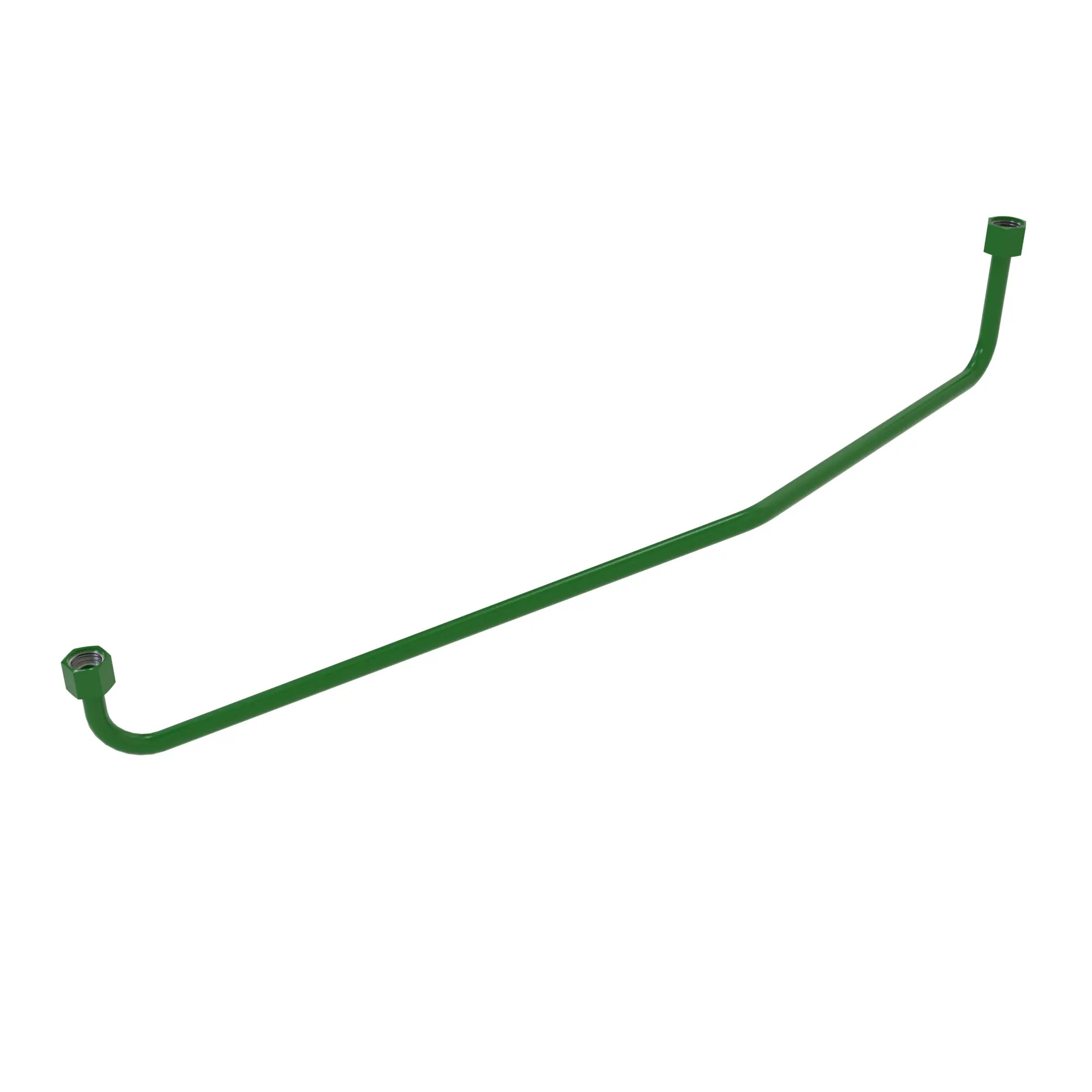

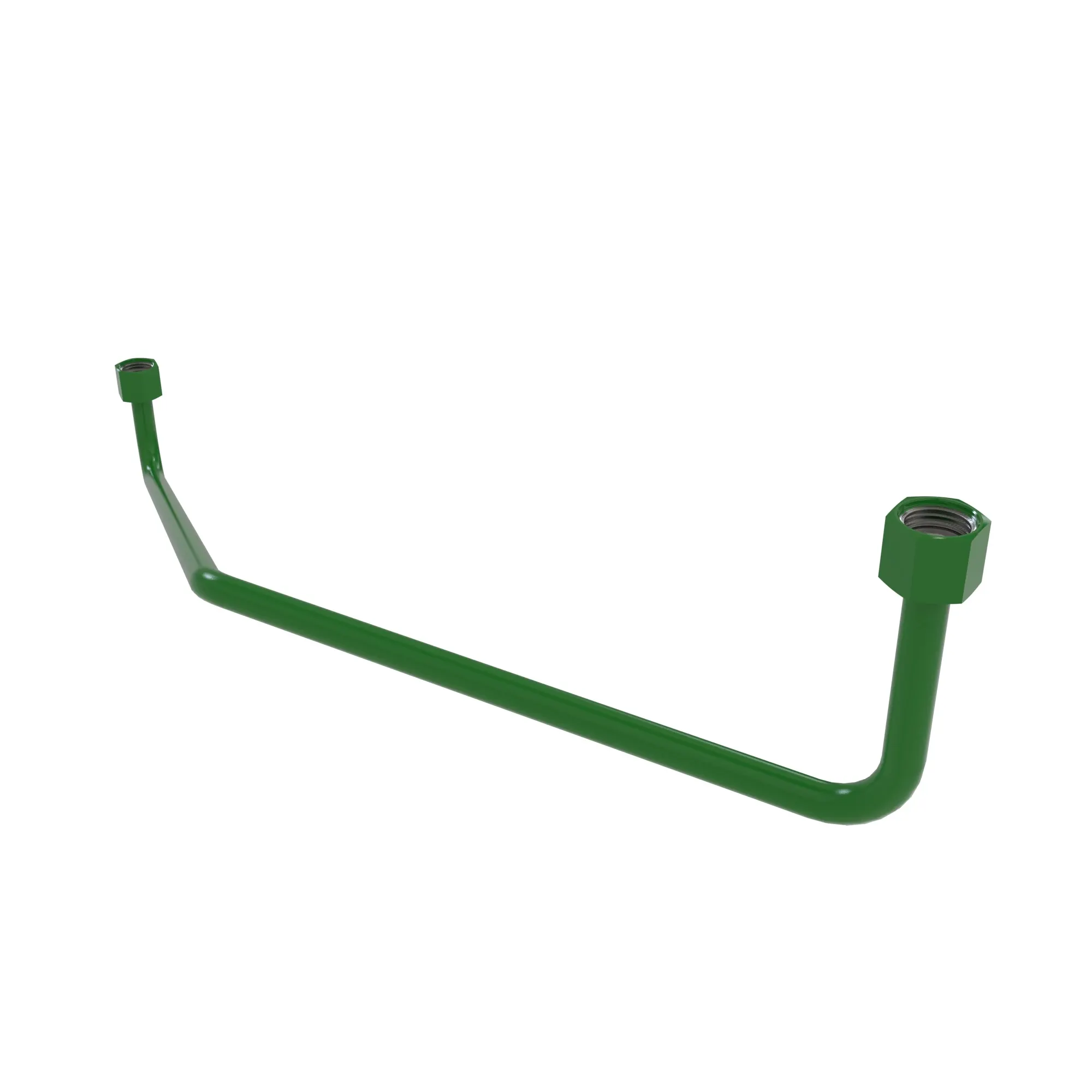

Designed for efficient hydraulic fluid transfer, this Grapple Extend Oil Line ensures optimal performance in machine components
Features a centerline length of 811.10 mm (31.93 in) and an outer diameter of 12.70 mm (1/2 in), making it ideal for robust applications
Includes SFZ61 type ends and a wall thickness of 1.65 mm (0.06 in) for enhanced durability and reliability
Made from high quality general steel for superior strength and longevity
Finished with a durable paint coating to resist corrosion and wear
Product Dimensions
Weight
1 lb
Height
1.1 in
Length
34.4 in
General Details
Outer Diameter
12.7 mm
Application Type
Oil Line
Inner Diameter
11.05 mm
Wall Thickness
1.65 mm
Fittings Included
Yes
Overall Length (Crowflight)
642 mm
Material
Steel
For the most accurate fit and confidence, please select the equipment you are shopping for. Parts can be used across a number of different models, the models shown here indicate general fit of the part.
543R
603R
5075M
5085M
5090M
5095M
5100M
5100MH
5100ML
5105M
5105MH
5105ML
5115M
5115ML
5120M
5120ML
5125M
5130M
