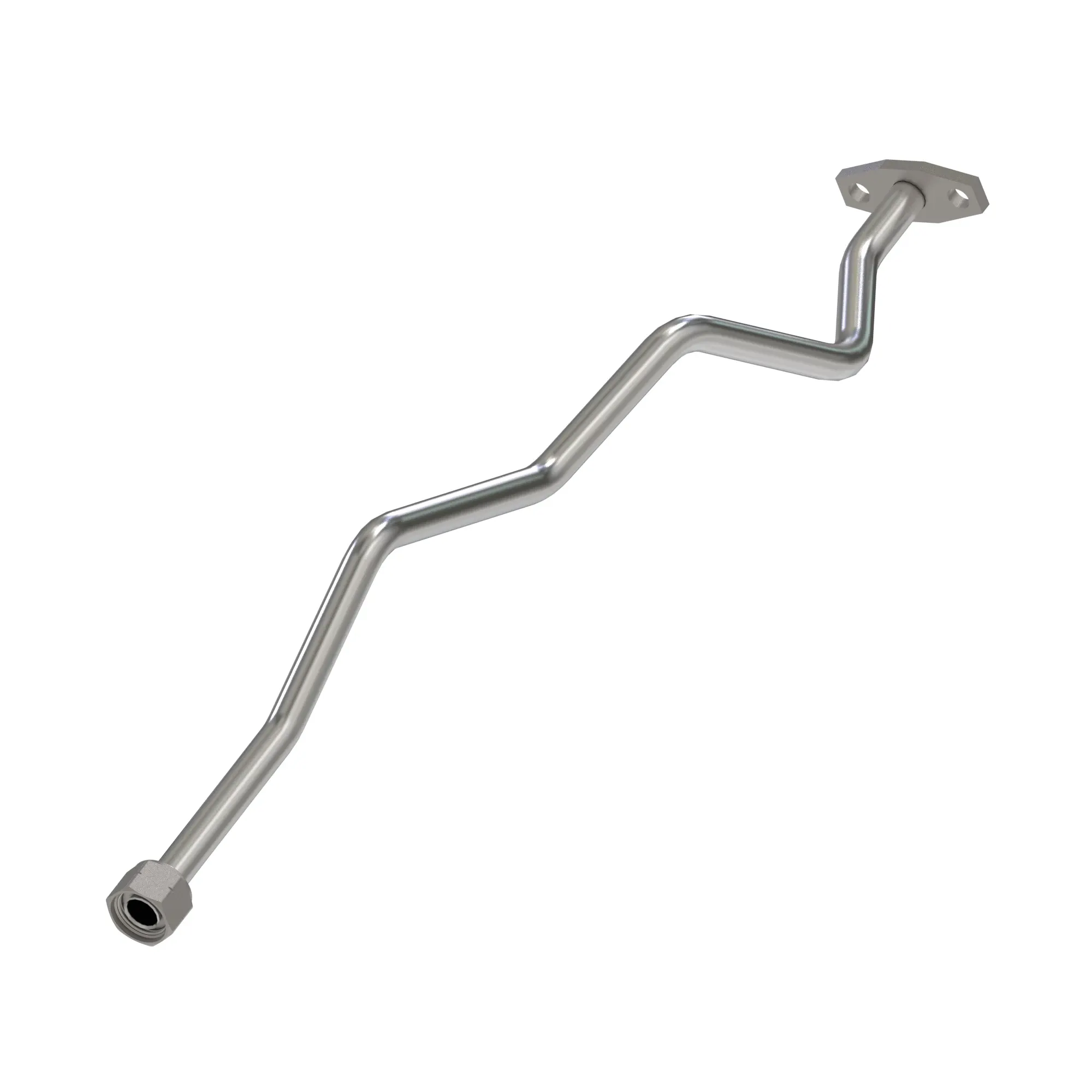

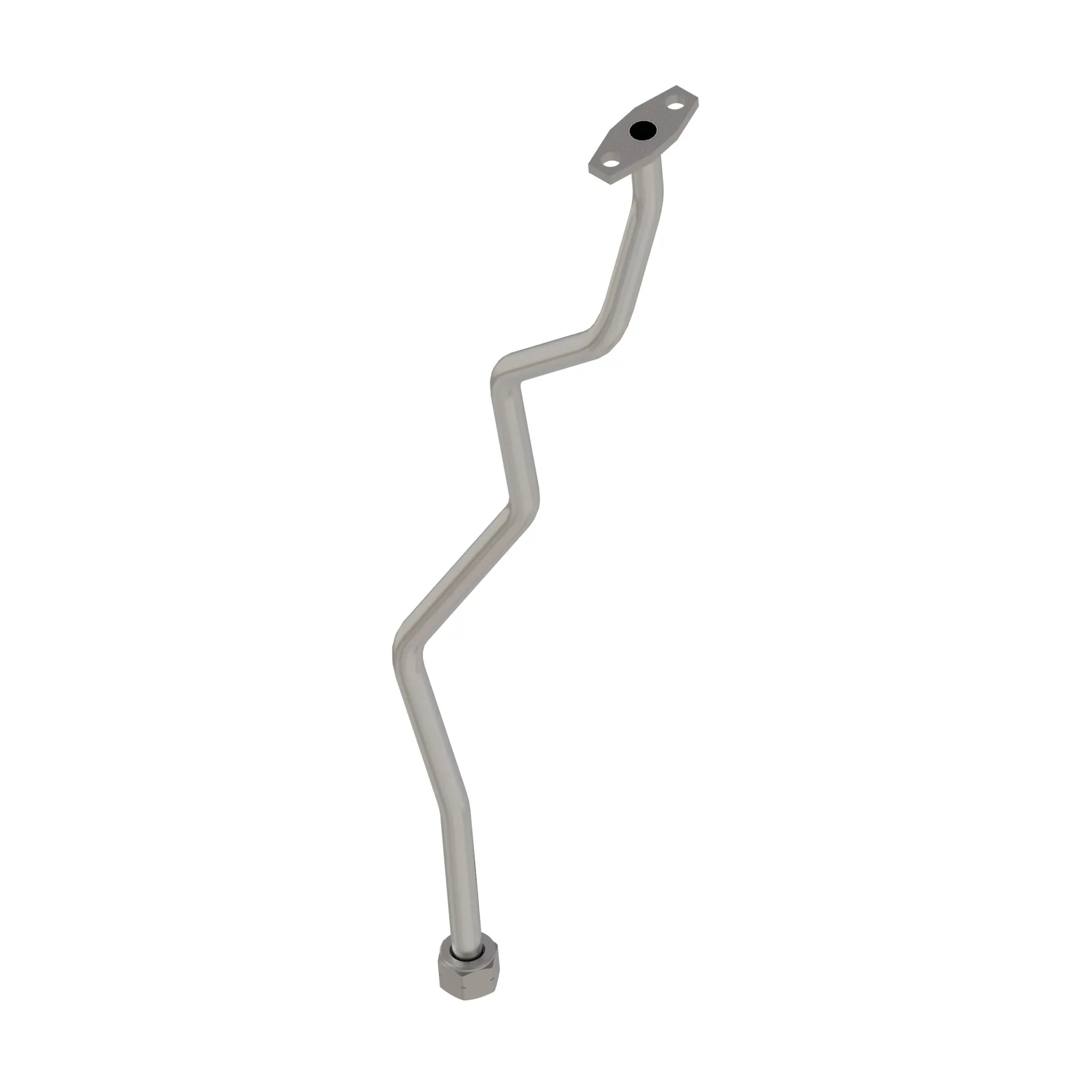

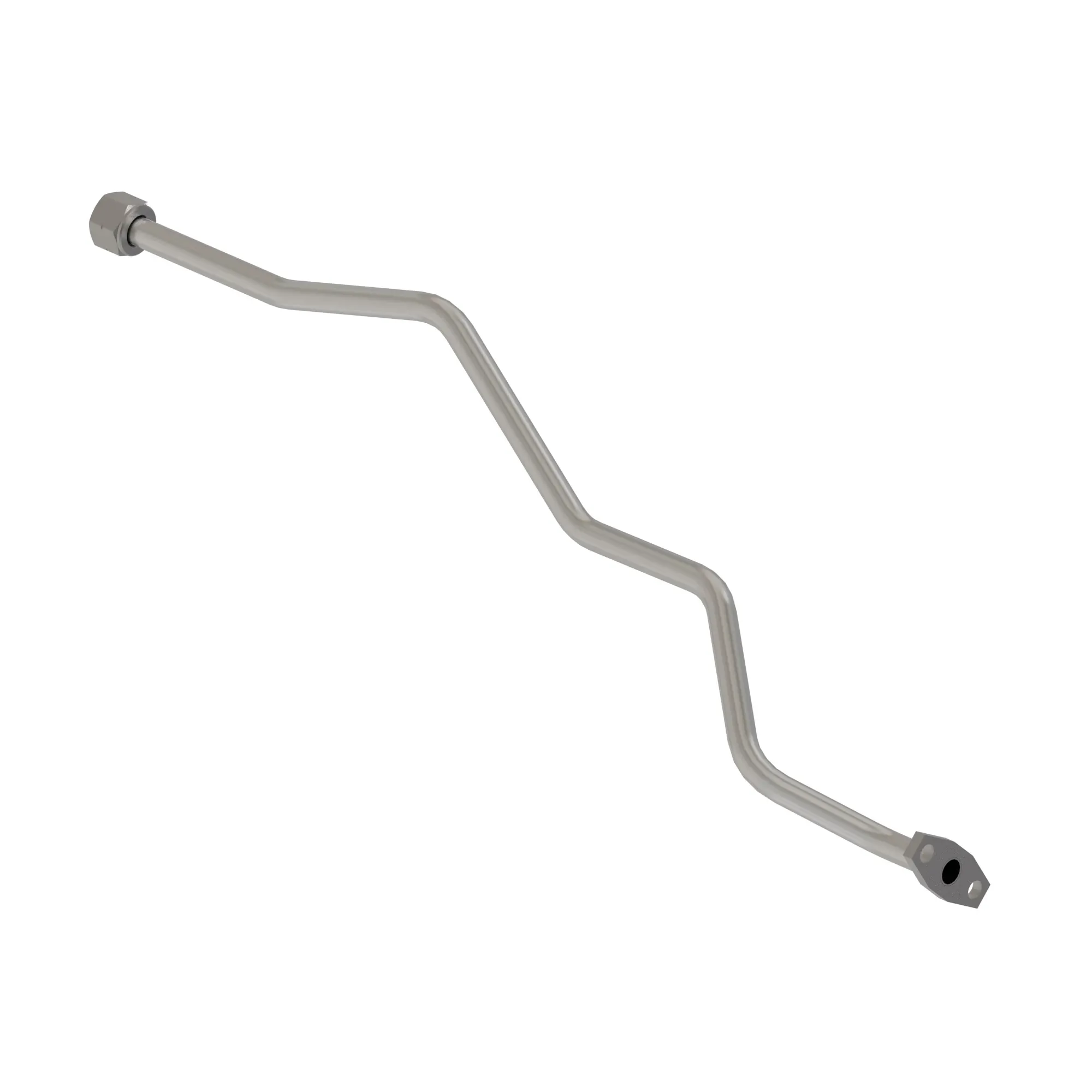

RE60653: Turbocharger Drain Oil Tube with Adapter
Part Number: RE60653
The right parts for your machine, every time
Turbocharger drain oil tube with adapter designed to efficiently channel oil away from the turbocharger
Key specifications: 42 mm length, RMS53 end type, 134 mm length, 671 mm length, 15.88 mm outer diameter
Additional specifications: 0.89 mm wall thickness, SFZ61 end type, 685.50 mm crowflight length
Made from high quality material assembly
Product Dimensions
Weight
0.75 lb
Height
1.2 in
Width
2.8 in
Length
29 in
Volume
0.422 gal
General Details
Outer Diameter
15.88 mm
Application Type
Oil Line
Inner Diameter
14.99 mm
Wall Thickness
0.89 mm
Fittings Included
Yes
Overall Length (Crowflight)
685.5 mm
For the most accurate fit and confidence, please select the equipment you are shopping for. Parts can be used across a number of different models, the models shown here indicate general fit of the part.
6610
6650
6710
6750
6810
6850
6910
6950
7200
7300
7400
7500
9970
9976
9986
9996
