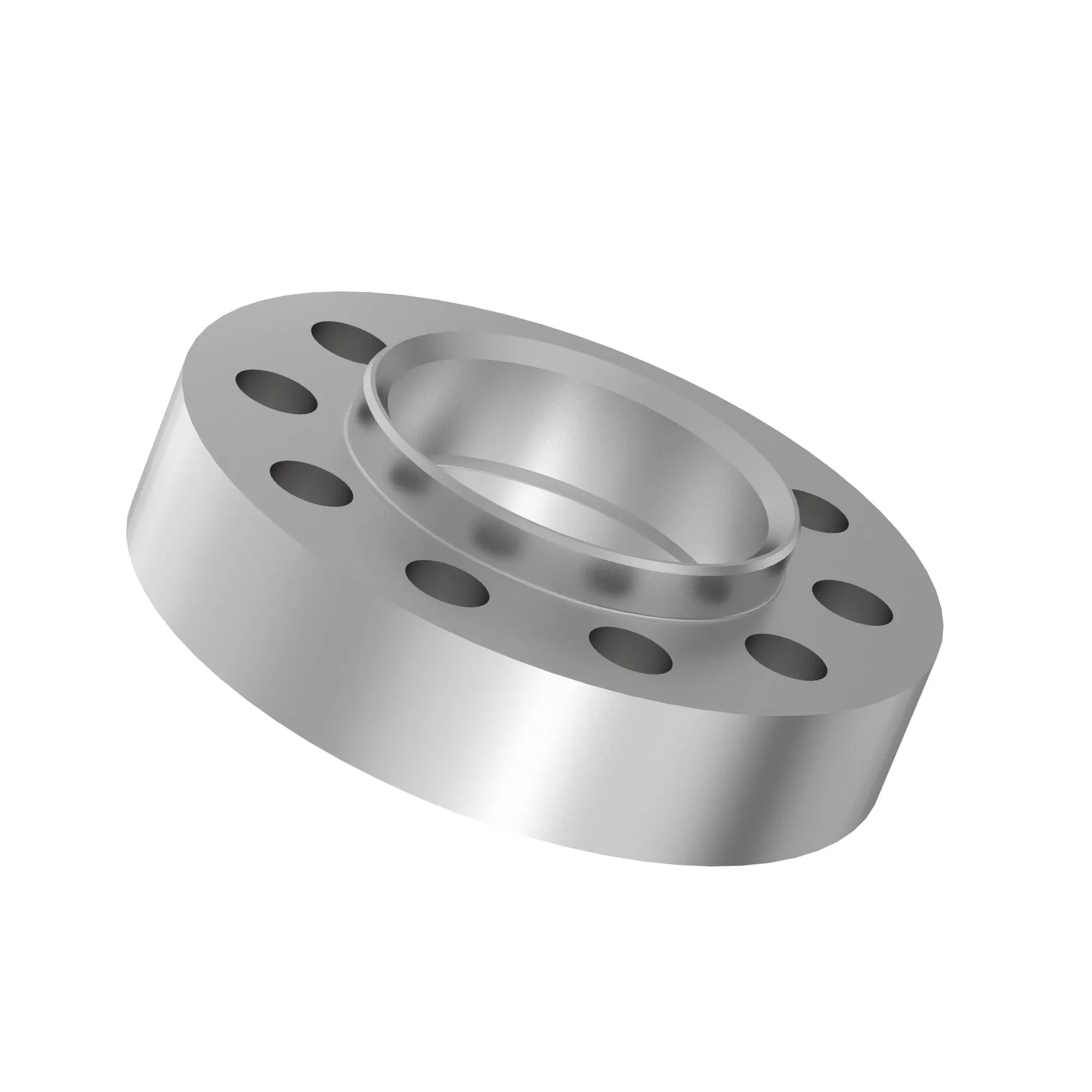

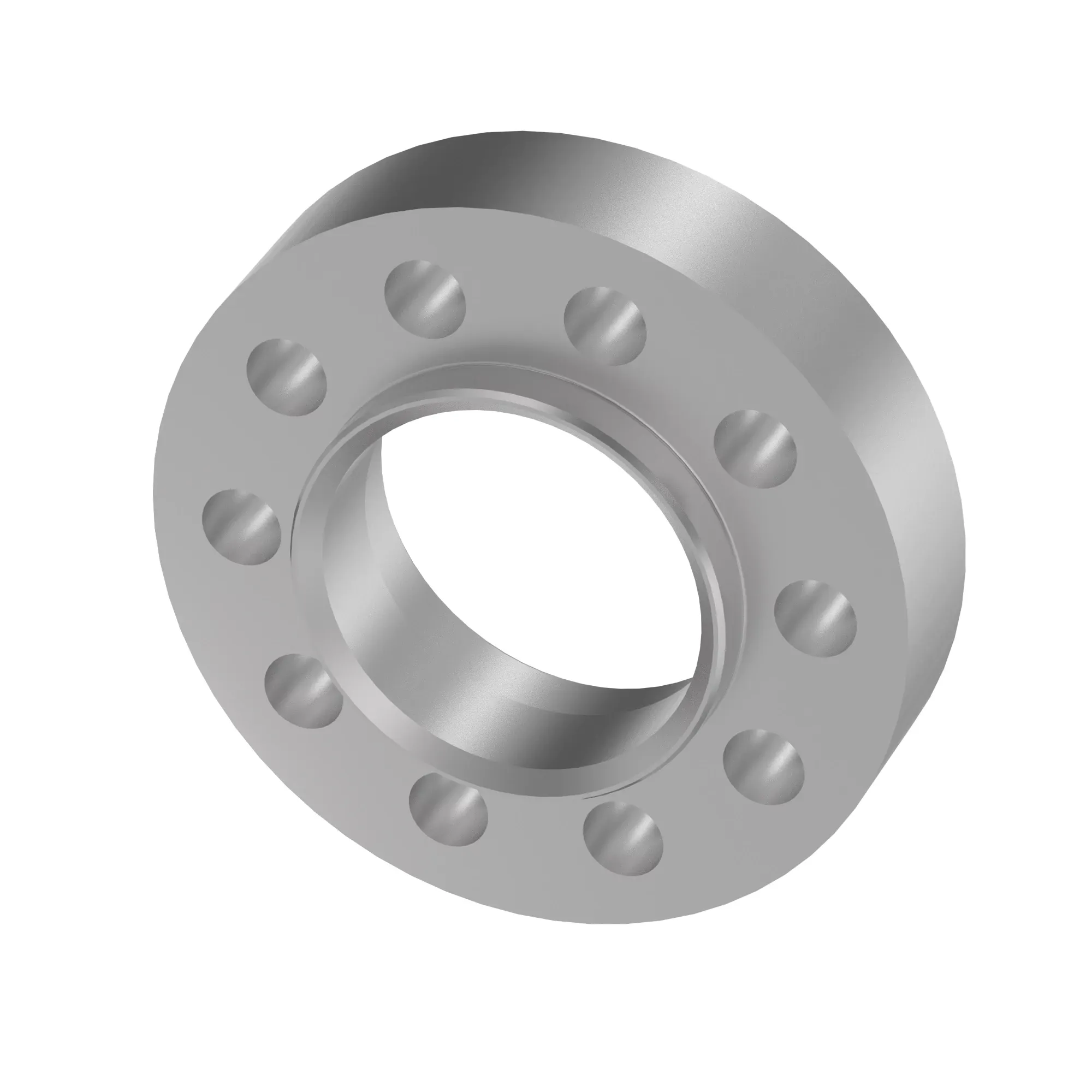

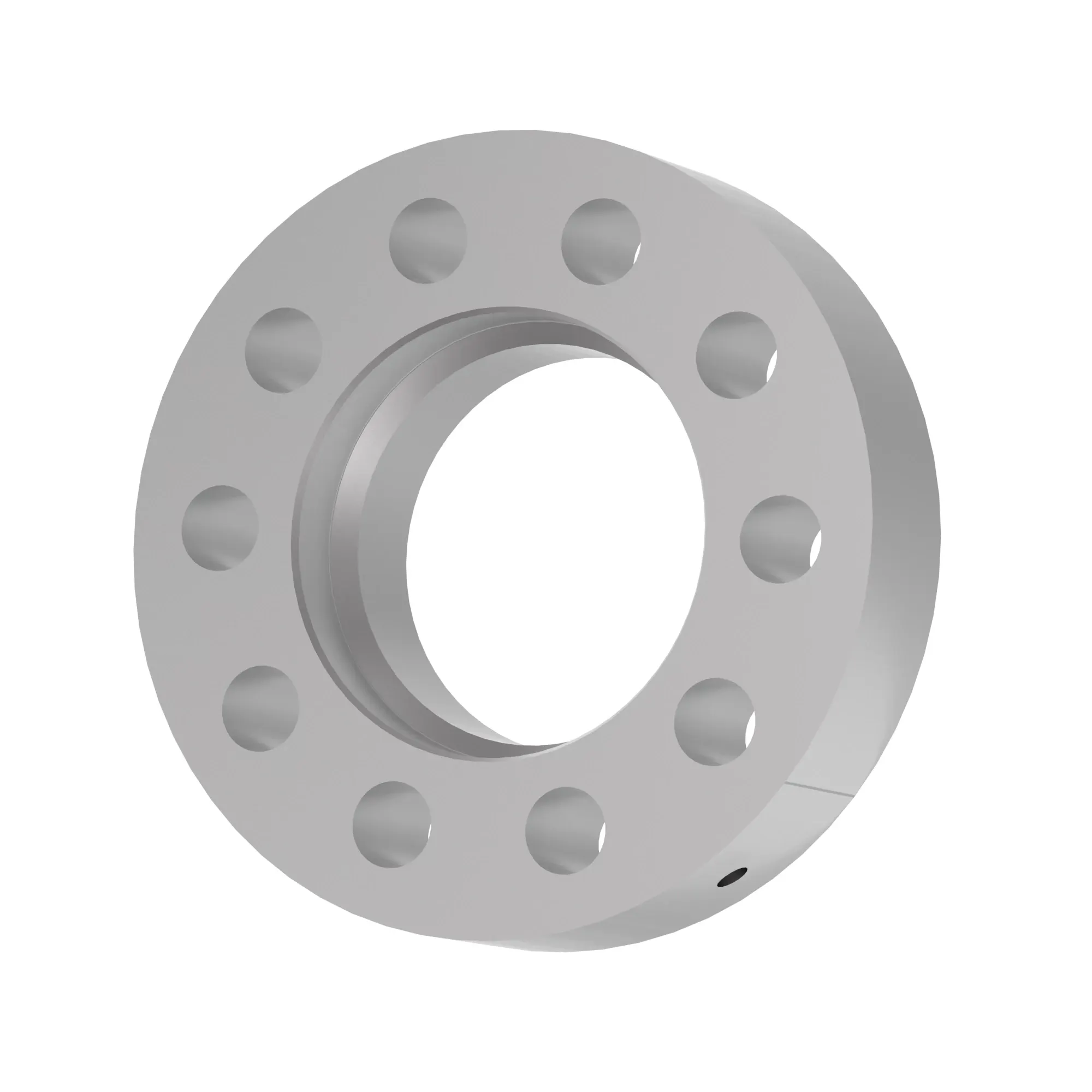

R562256: Drive Spindle Frame Spacer

Part Number: R562256

Drive Spindle Frame Spacer designed to provide optimal spacing and alignment in drive spindle assemblies
Features a hole size of 21.50 mm (0.85 in) and a spacer length of 43.25 mm (1.7 in) for precise fit and function
Includes a pilot length of 15 mm (0.59 in) and a pilot diameter of 114.85 mm (4.52 in) for accurate positioning
Made from high quality general steel for durability and reliability in demanding applications

Product Dimensions

Weight

14.8 lb

Height

8 in

Length

2.5 in

Specifications

Spacer Length

43.25 mm

Hole Size

21.5 mm

Pilot Diameter

114.85 mm

Bolt Circle Diameter

152 mm

Inside Diameter

100.027 mm

Number of Holes

For the most accurate fit and confidence, please select the equipment you are shopping for. Parts can be used across a number of different models, the models shown here indicate general fit of the part.

9R 390
9R 440
9R 490
9R 490 SCRAPER
9R 540
9R 540 SCRAPER
9R 590
9R 590 SCRAPER
9R 640
9R 640 SCRAPER
9RX 490
9RX 490 SCRAPER
9RX 540
9RX 540 SCRAPER
9RX 590
9RX 590 SCRAPER
9RX 640
9420R
9420RX
9470R
9470RX
9470RX SCRAPER
9520R
9520RX
9520RX SCRAPER
9570R
9570RX
9570RX SCRAPER
9620R
9620RX
