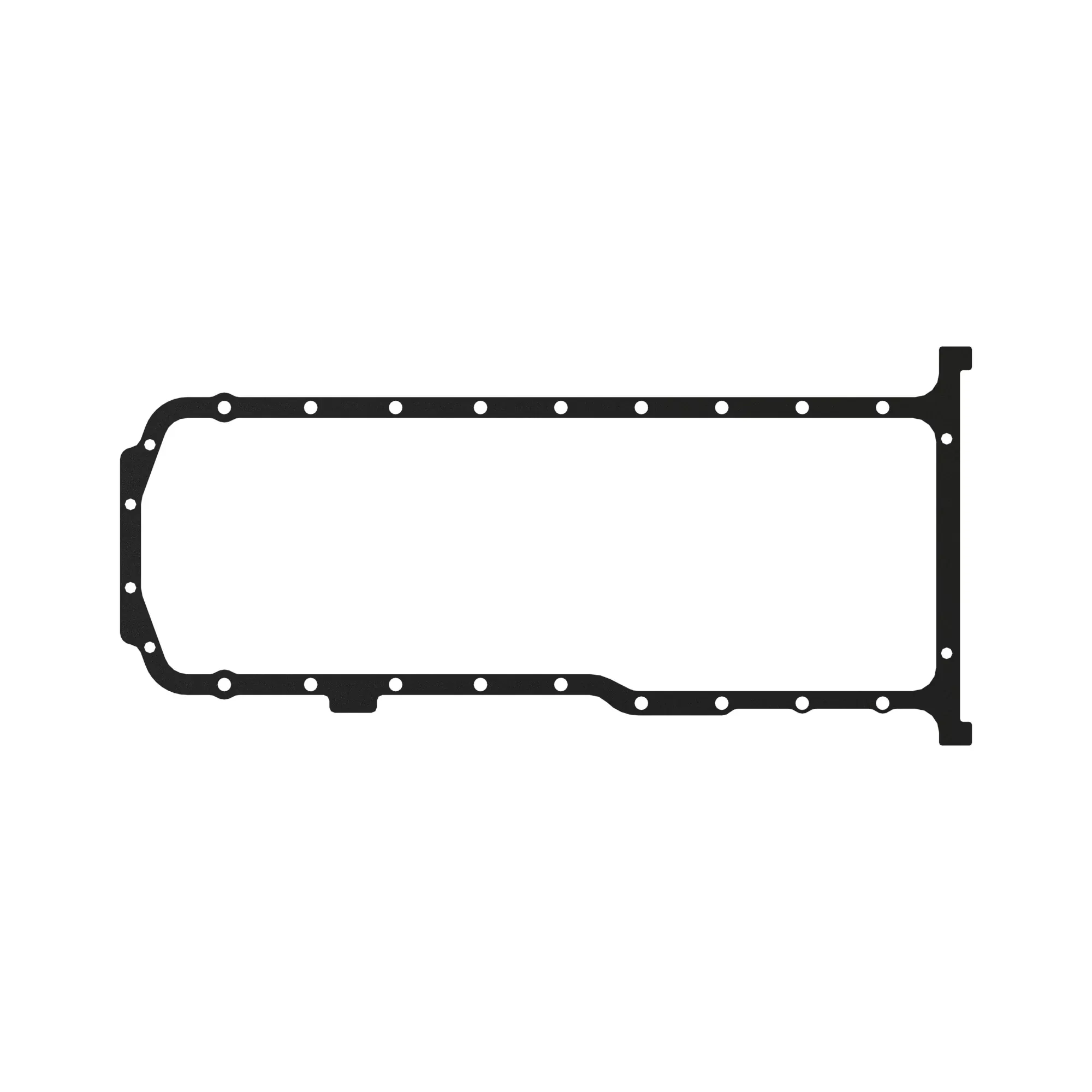

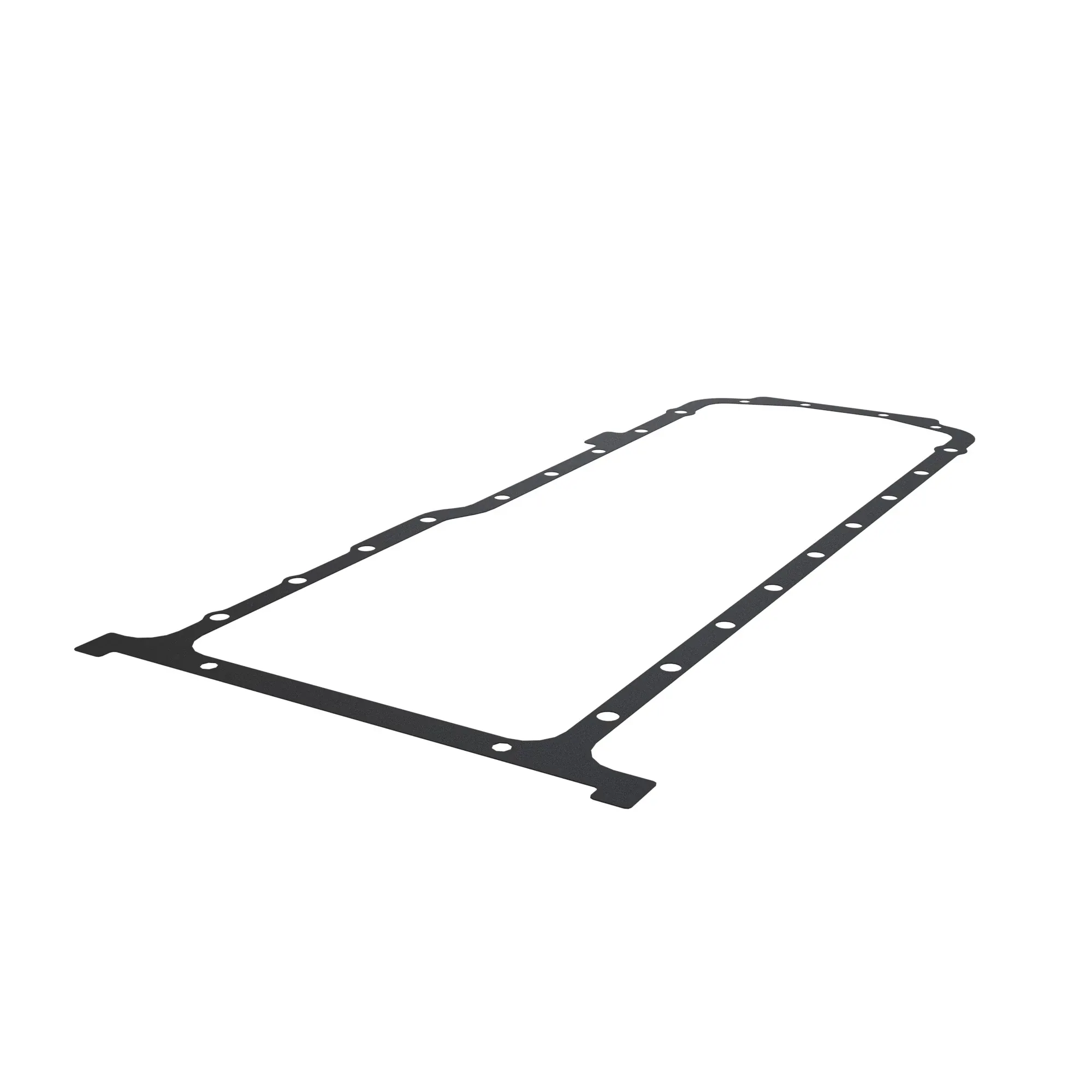

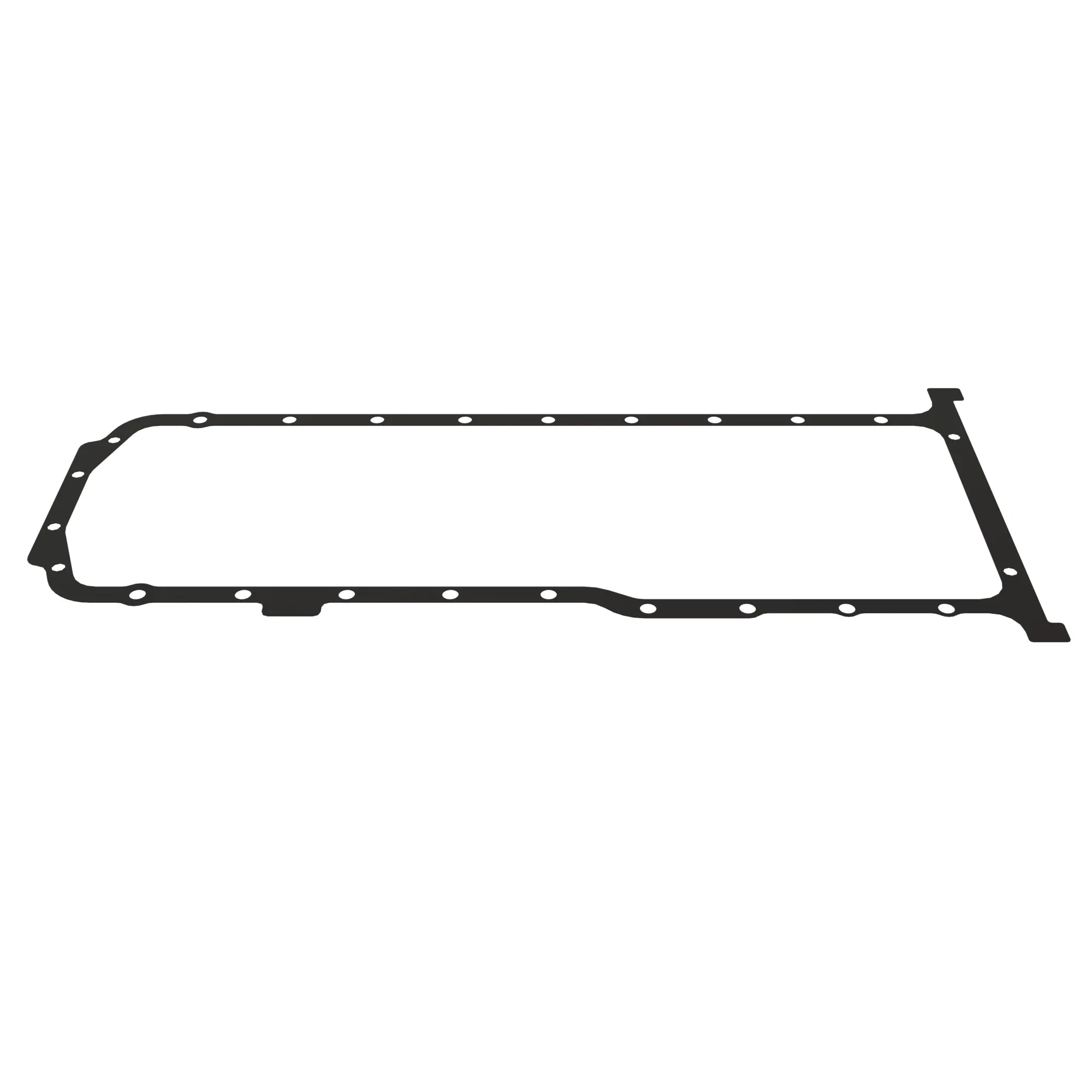

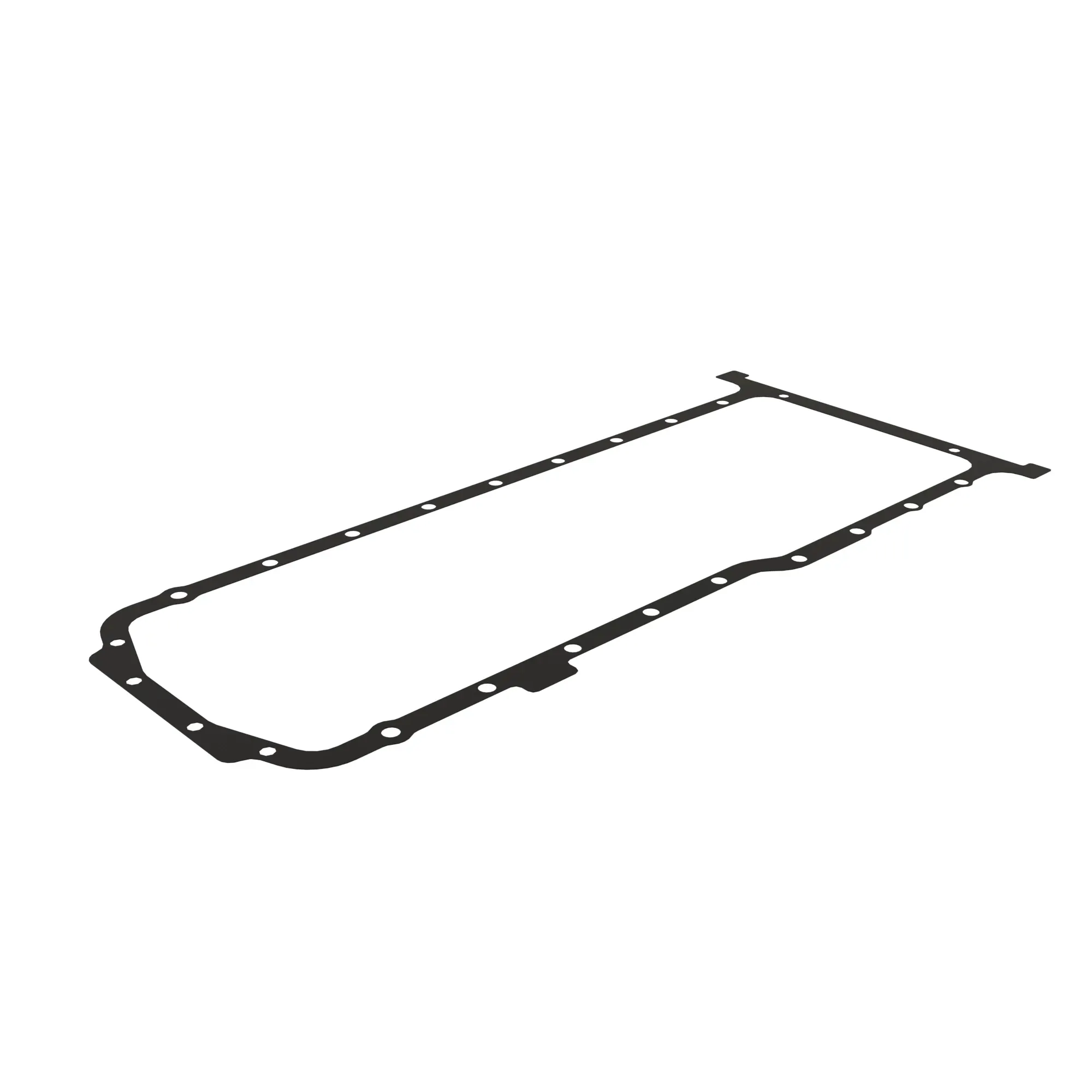

R523503: Oil Pan Gasket

Part Number: R523503

Parts Tier: Original

John Deere Oil Pan Gasket provides a sealing interface between mating components during assembly
Designed to align with the intended mounting interface in compatible equipment
Rubber construction provides a flexible sealing surface for compatible mating interfaces

Product Dimensions

Weight

0.15 lb

Height

0.02 in

Width

16.7 in

Length

36 in

Compatible Equipment

For the most accurate fit and confidence, please select the equipment you are shopping for. Parts can be used across a number of different models, the models shown here indicate general fit of the part.

330C
370C
608BH
608L
608LH
608SH
644H
644HMH
644J
670 G
670 P
670G
672 G
672 P
672G
703G
703GH
703JH
724J
748G-II
748G-III
750J
753G
753GH
753GL
753J
753JH
759G
759GH
759J
759JH
770 G
770 P
770D
770G
772 G
772 P
772D
772G
850J
853G
870 P
870D
870G
872 P
872D
872G
900
903G
953G
3004
3554
4920
6081AFM75
6081HF070
7710
7720
7810
7820
7920
8120
8120T
8220
8220T
8320
8320T
8420
8420T
8520
8520T
9120
9220
9320
9420
9520
9540
9560
9580
9620
9640
9650
9660
9660 WTS
9680
9780
9996
