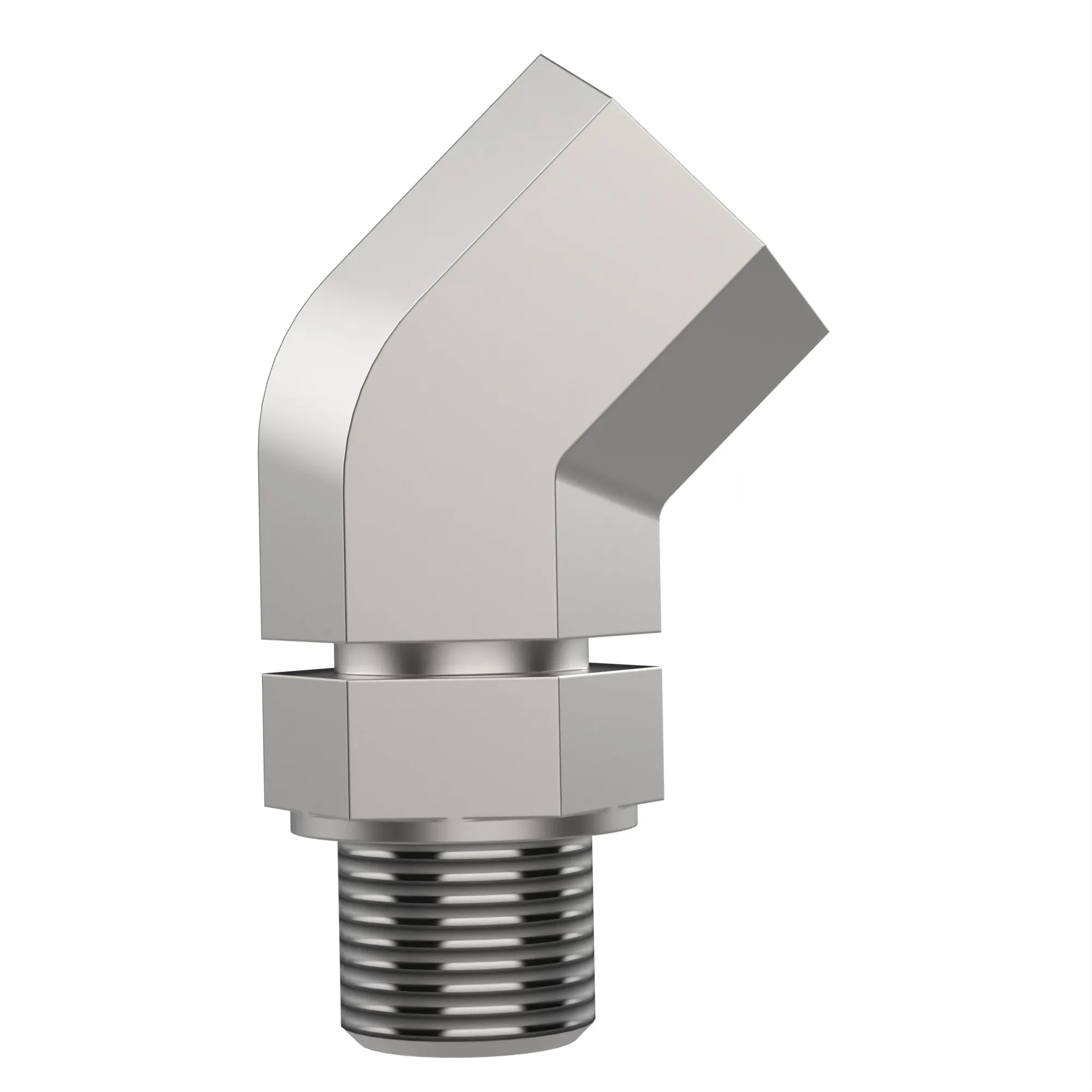

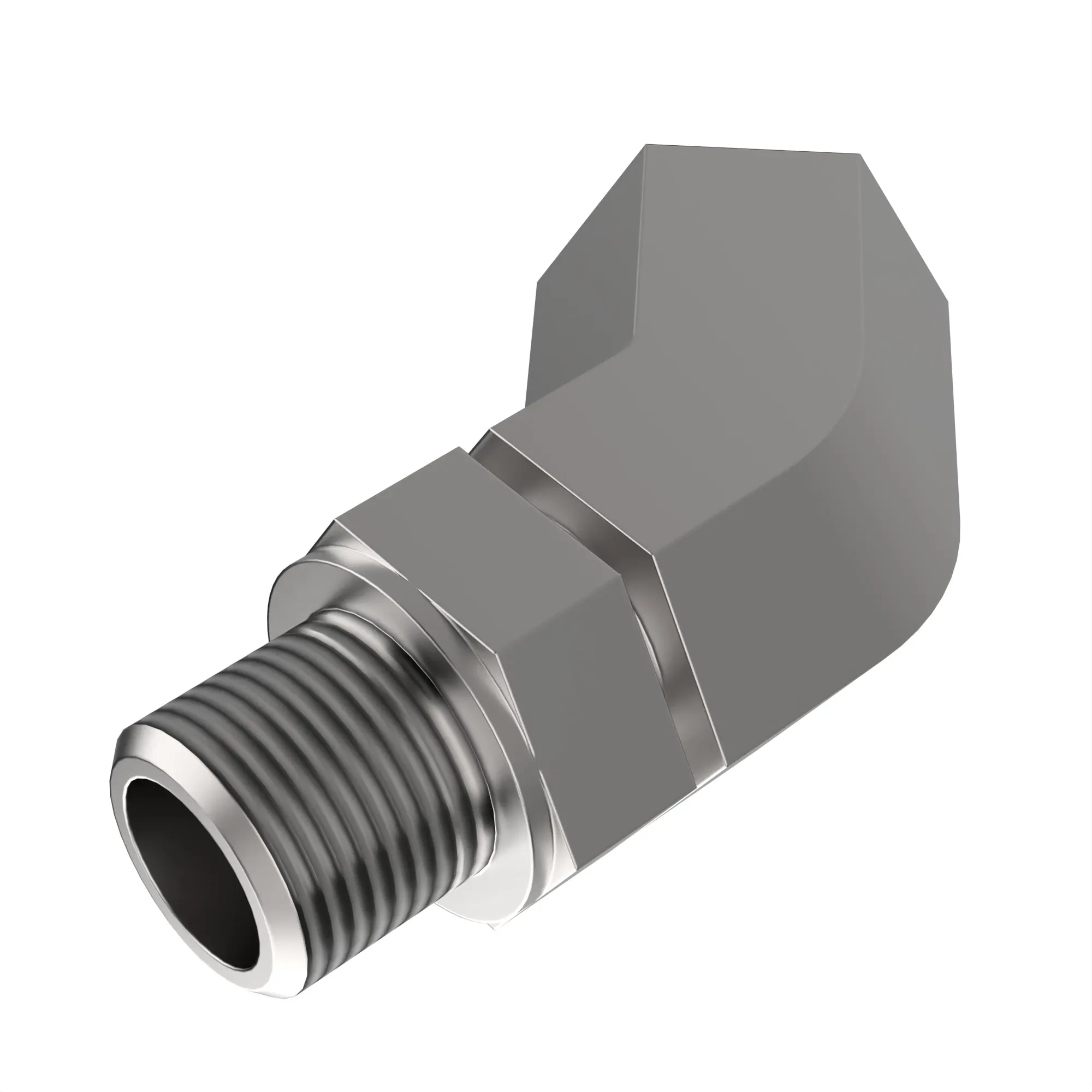

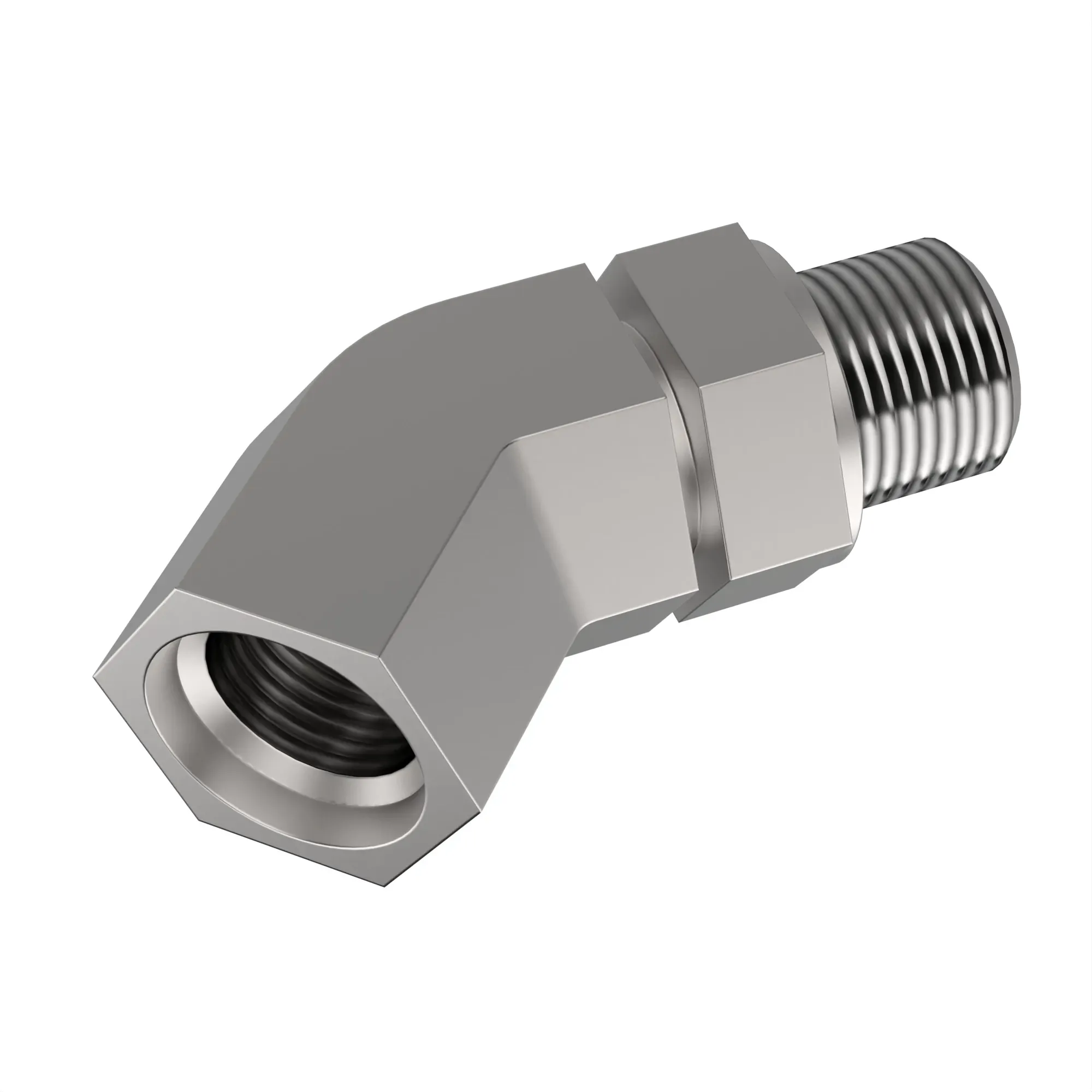

R504812: Elbow Fitting

Part Number: R504812

Parts Tier: Original

John Deere Elbow Fitting helps direct fluid for efficient routing within equipment systems
Provides a secure connection between compatible hoses, tubes, or components
Helps simplify routing in confined spaces by allowing directional changes without excessive hose or tube bending
Designed for proper fit and easy installation on compatible John Deere equipment

Product Dimensions

Weight

0.17 lb

Height

0.8 in

Width

4 in

Length

5.5 in

Specifications

Thread Type Code

Metric Straight Thread

For the most accurate fit and confidence, please select the equipment you are shopping for. Parts can be used across a number of different models, the models shown here indicate general fit of the part.

450C
744H
744J
824J
6105AF001
6105HF001
6125ADW01
6125AF001
6125AFM01
6125AFM75
6125HF001
6125HF070
6125SFM75
6135HF475
6135HF485
6135HFC48
7700
7800
9120
9220
9320
9320T
9320T SCRAPER
9420
9420T
9420T SCRAPER
9520
9520T
9520T SCRAPER
9620
9620T
9750 STS
9860 STS
9880 STS
