R109128: Axle Final Drive Planet Pinion Carrier | Shop.Deere.com
Original

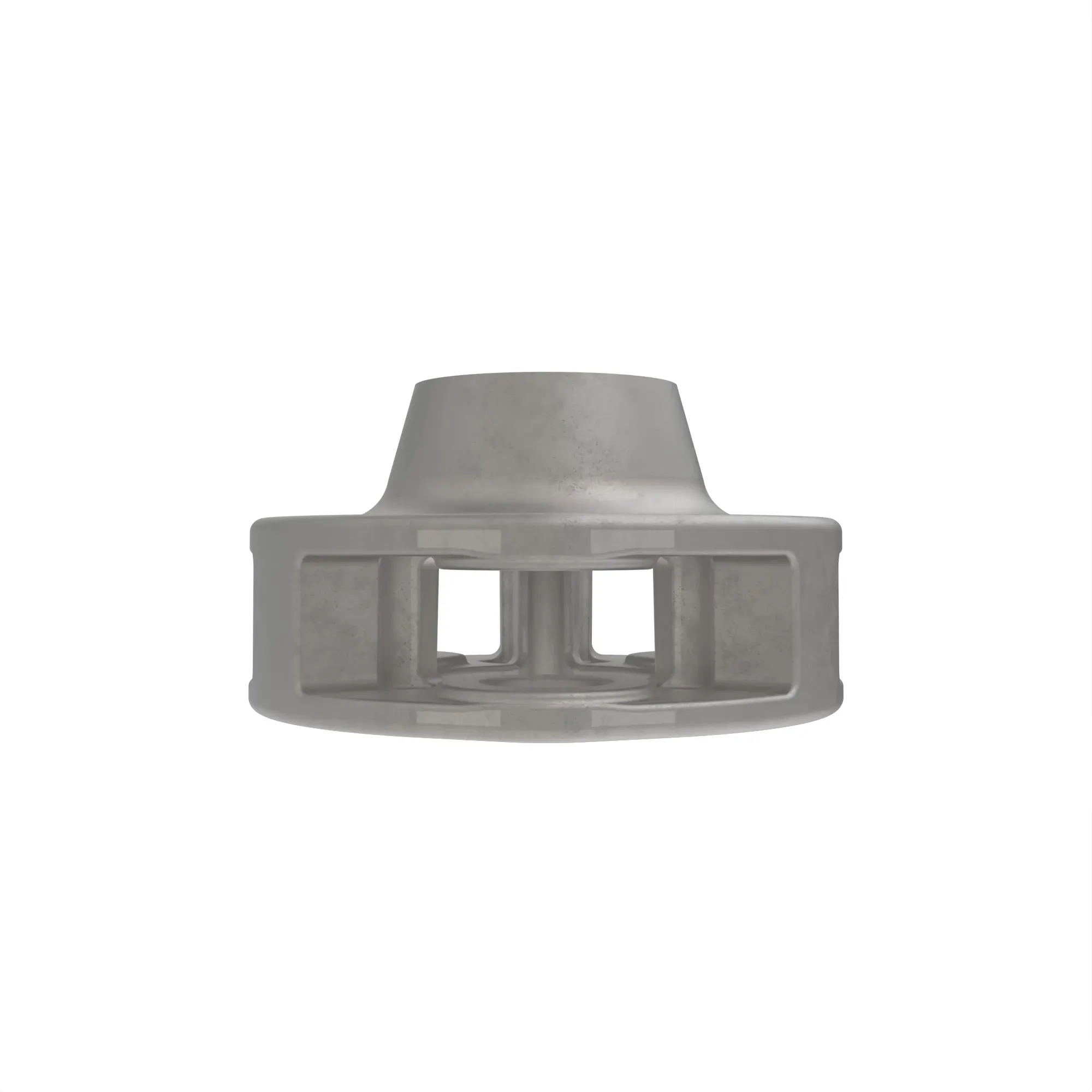

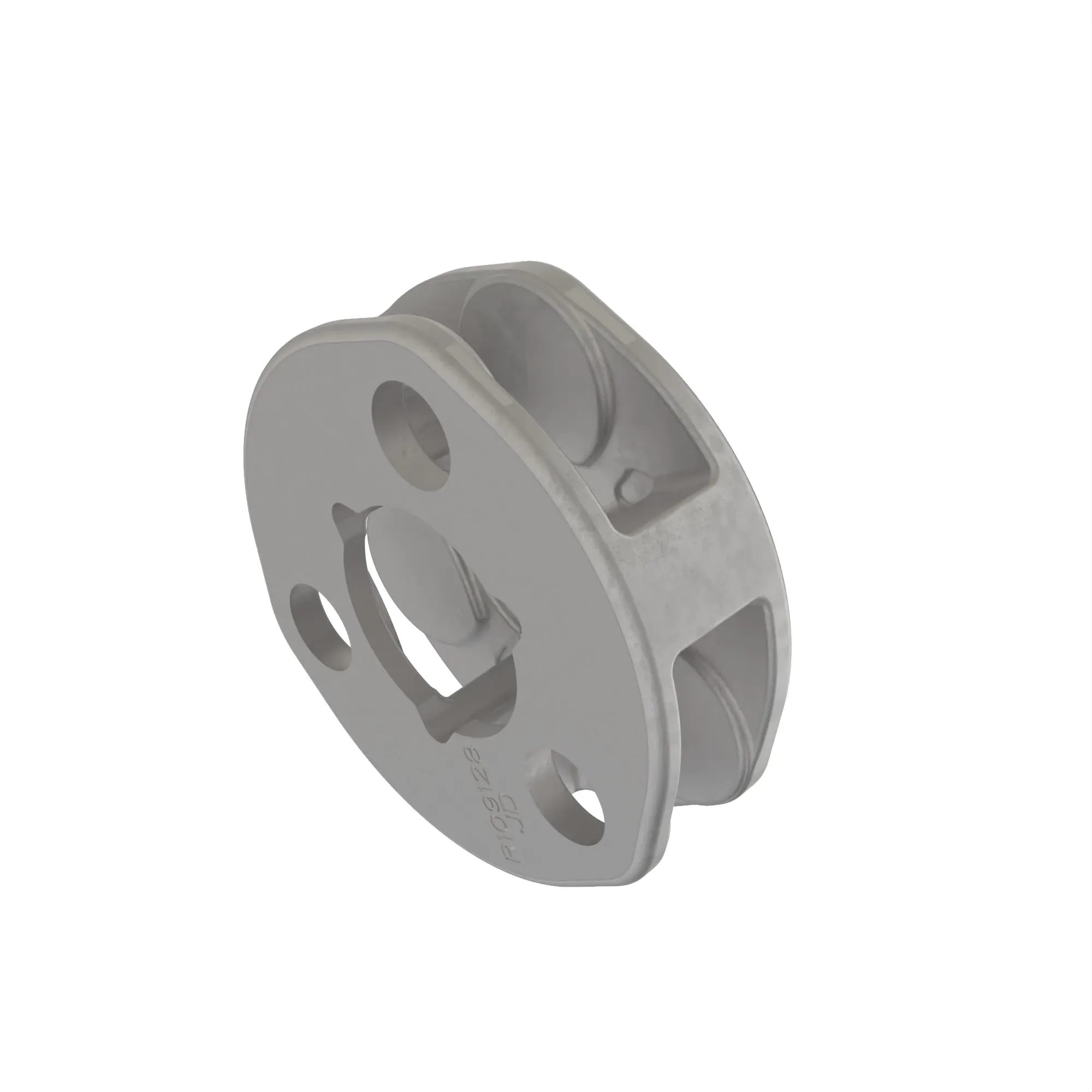

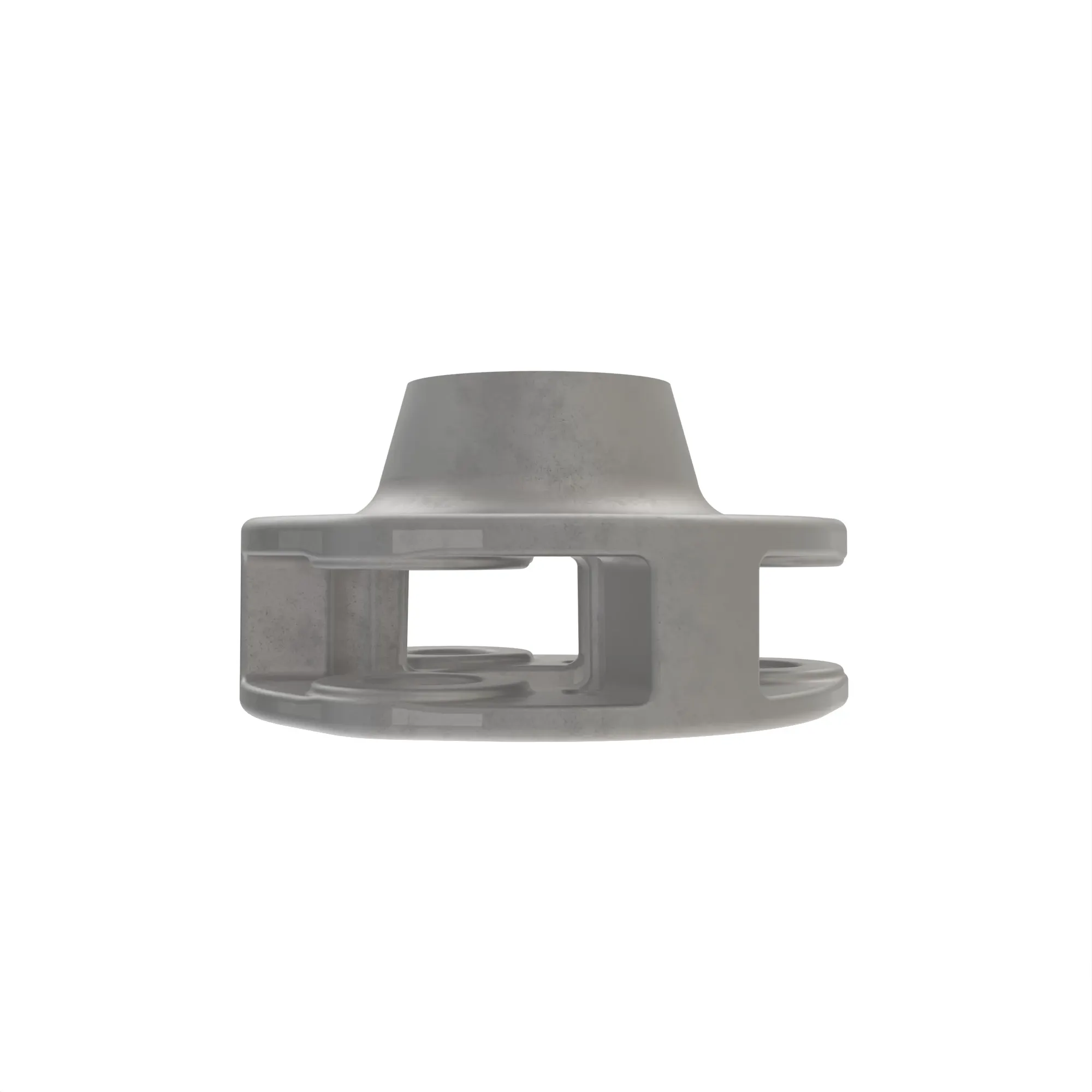

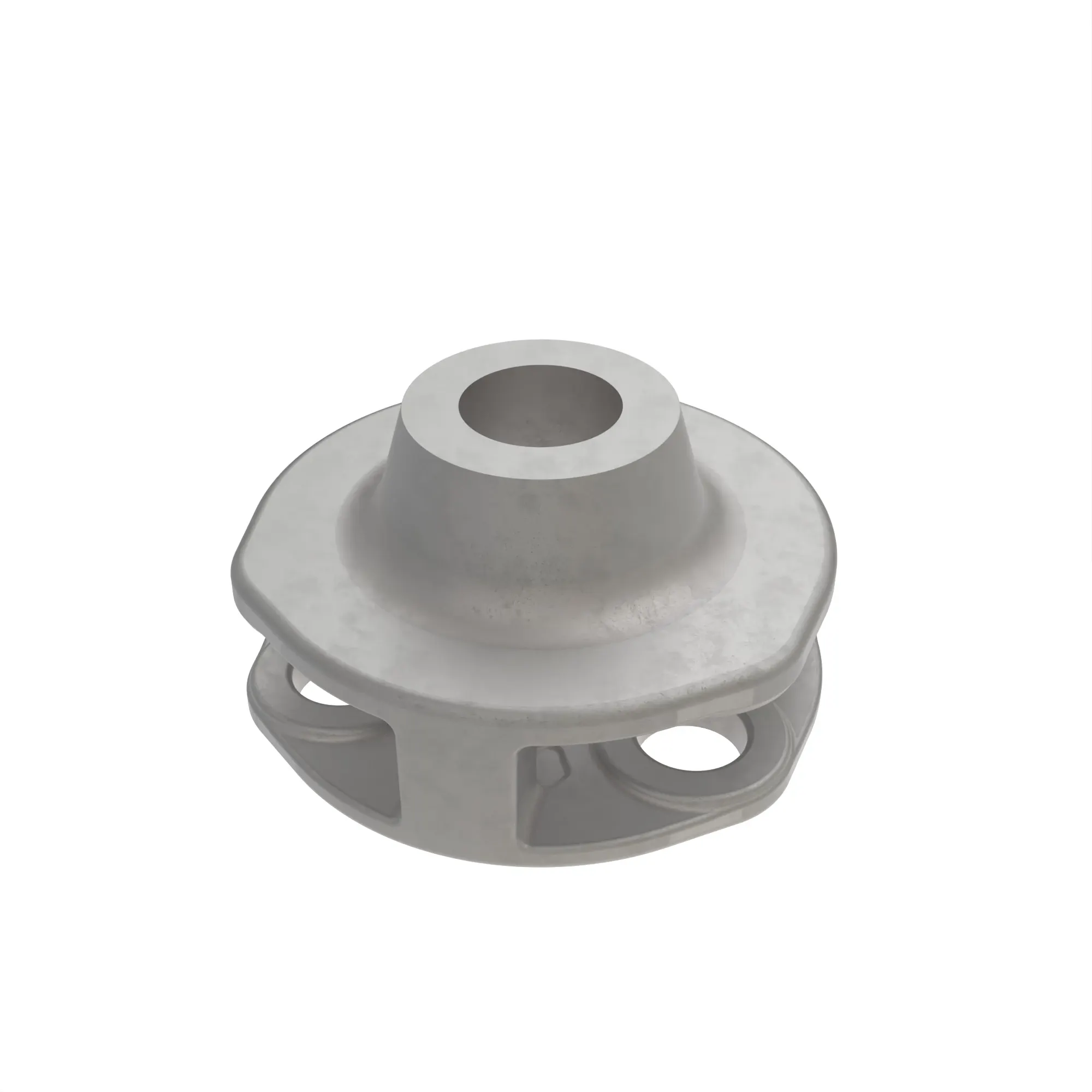

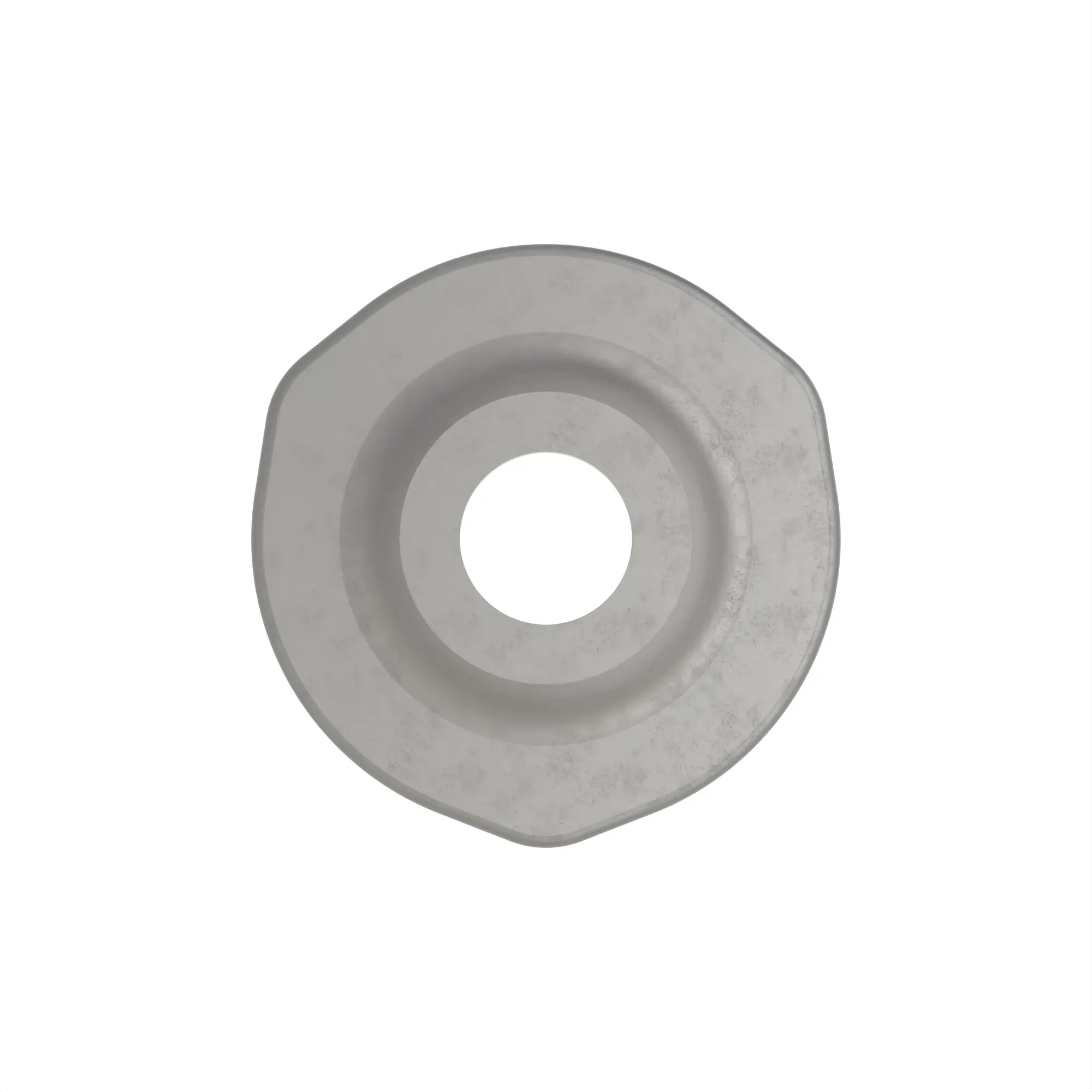

R109128: Axle Final Drive Planet Pinion Carrier
Part Number: R109128
Parts Tier: Original
Product Dimensions
Weight
30.69 lb
Height
10.4 in
Length
5.3 in
For the most accurate fit and confidence, please select the equipment you are shopping for. Parts can be used across a number of different models, the models shown here indicate general fit of the part.
360DC
460DC
524 P
524K
524K-II
524L
540E
540G-II
540G-III
540H
544 G
544 P
544J
544K
544K-II
544L
548E
548G-II
548G-III
548H
624J
640E
640G
640H
643D
643H
643J
648E
648G
648H
710D
740
748E
748G-II
748G-III
843H
843J
Return Information
Return Items identified as ‘Eligible for Return’ are eligible
for refund within 30 days of invoicing. Returned Items must be
returned in new condition and in its original packaging with
all paperwork including manuals, assembly instructions and
your packing slip. Parts must be returned to the seller listed
on your e-commerce invoice. Return eligibility & processing
will be verified by the dealer at time of return. View Return Policy for complete information.
Generally, parts purchased from Shop.Deere.com are covered by the John Deere Parts Warranty, covering defects in material and workmanship, for a minimum period of 6 months from receipt. For complete warranty information, please contact your local authorized John Deere dealer.
