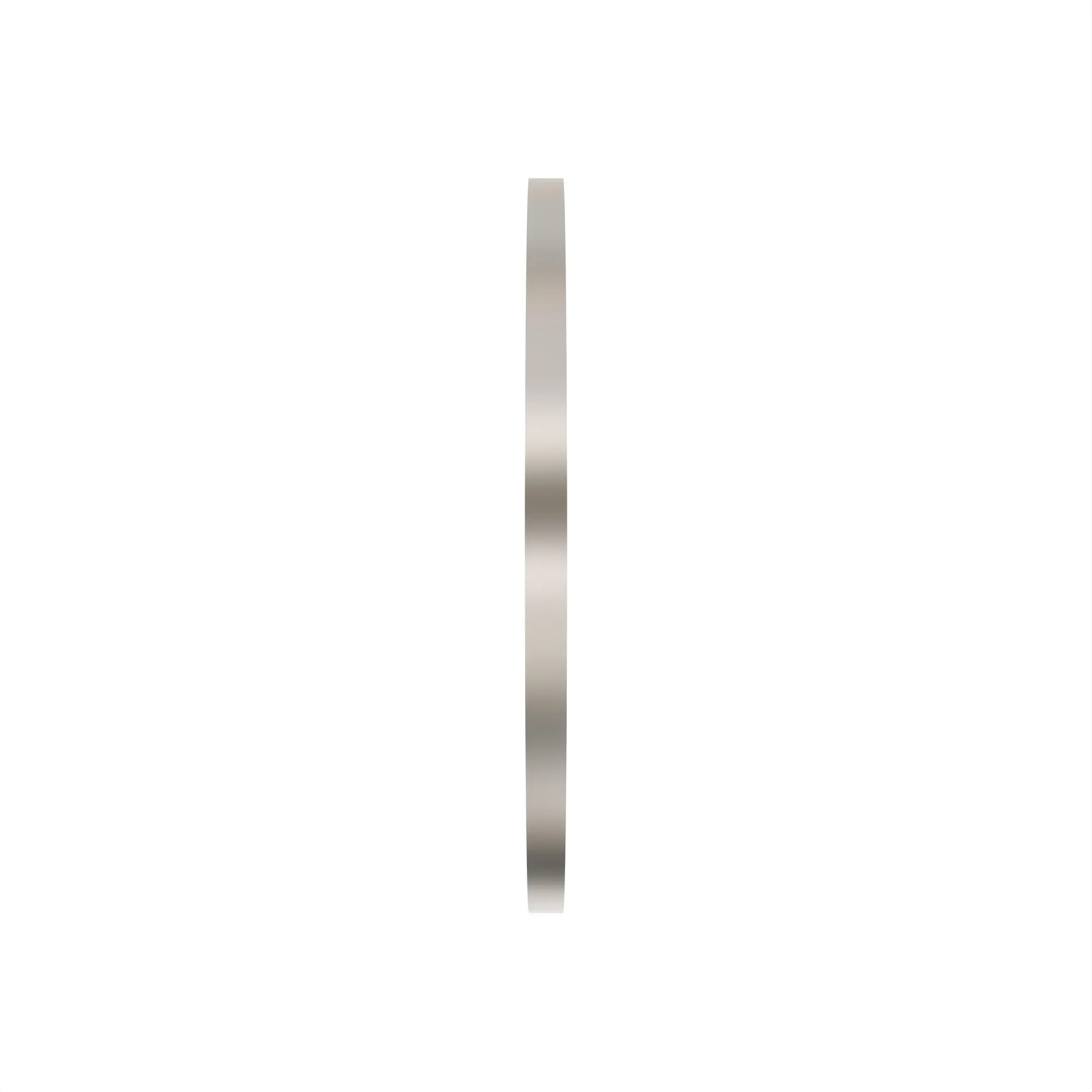

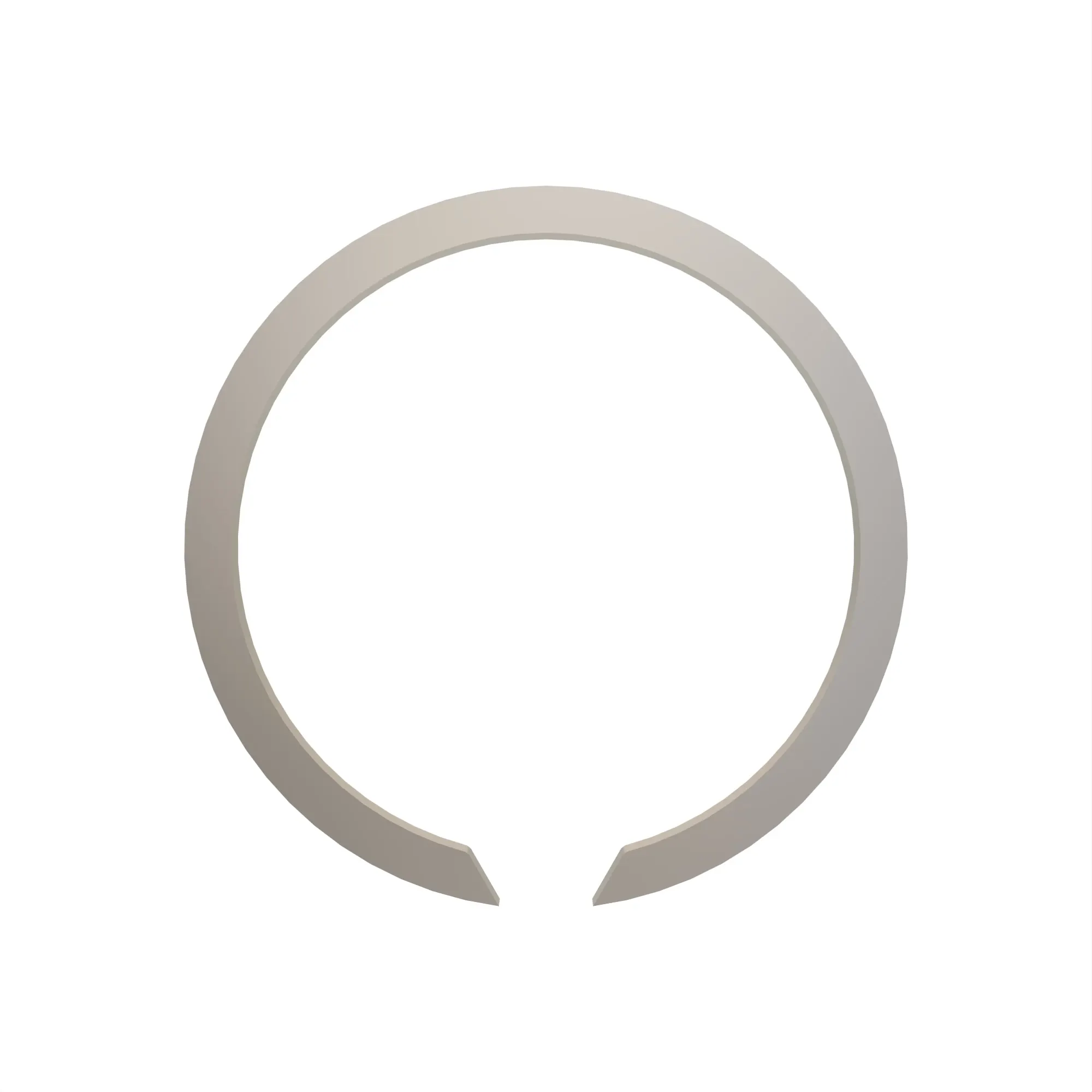

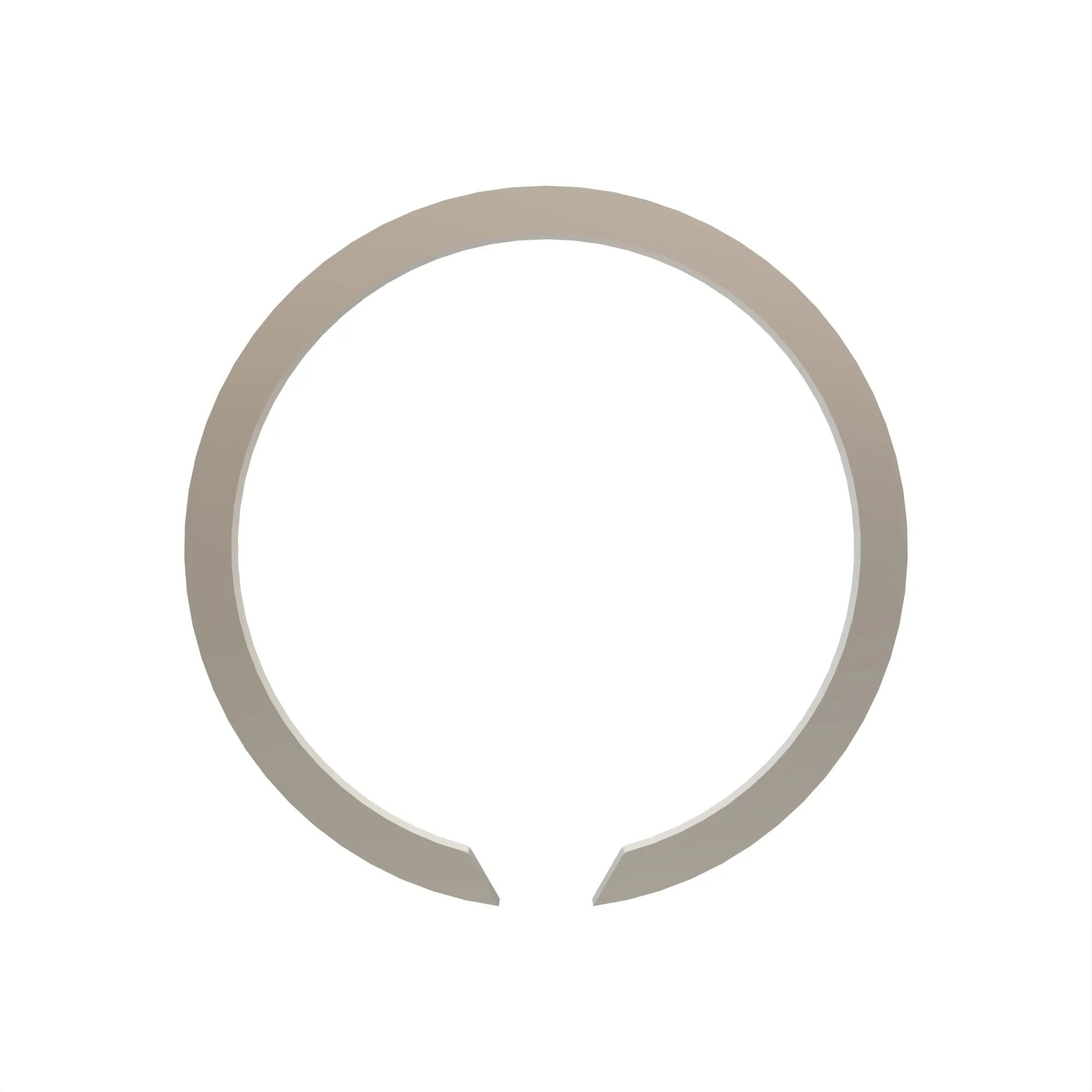

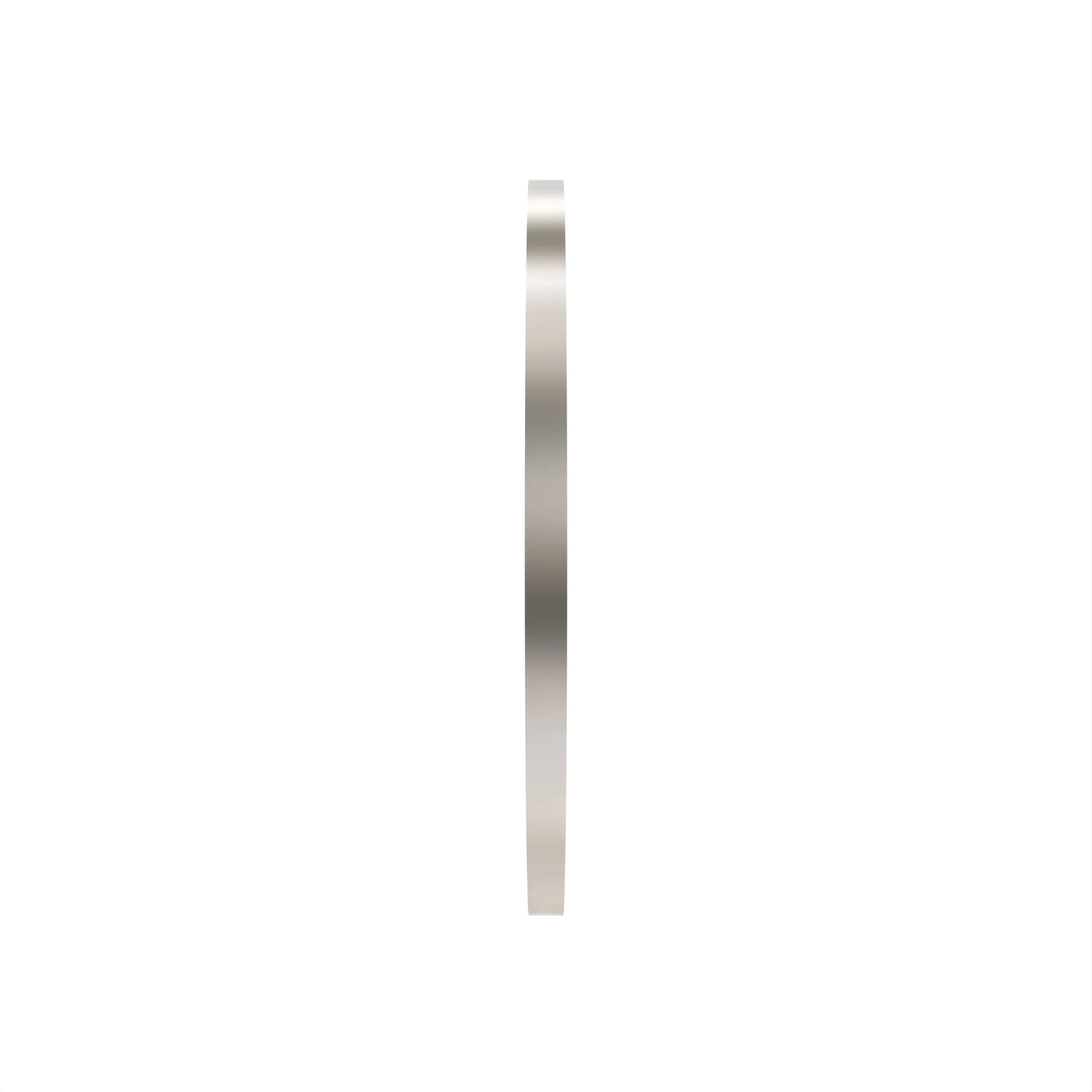

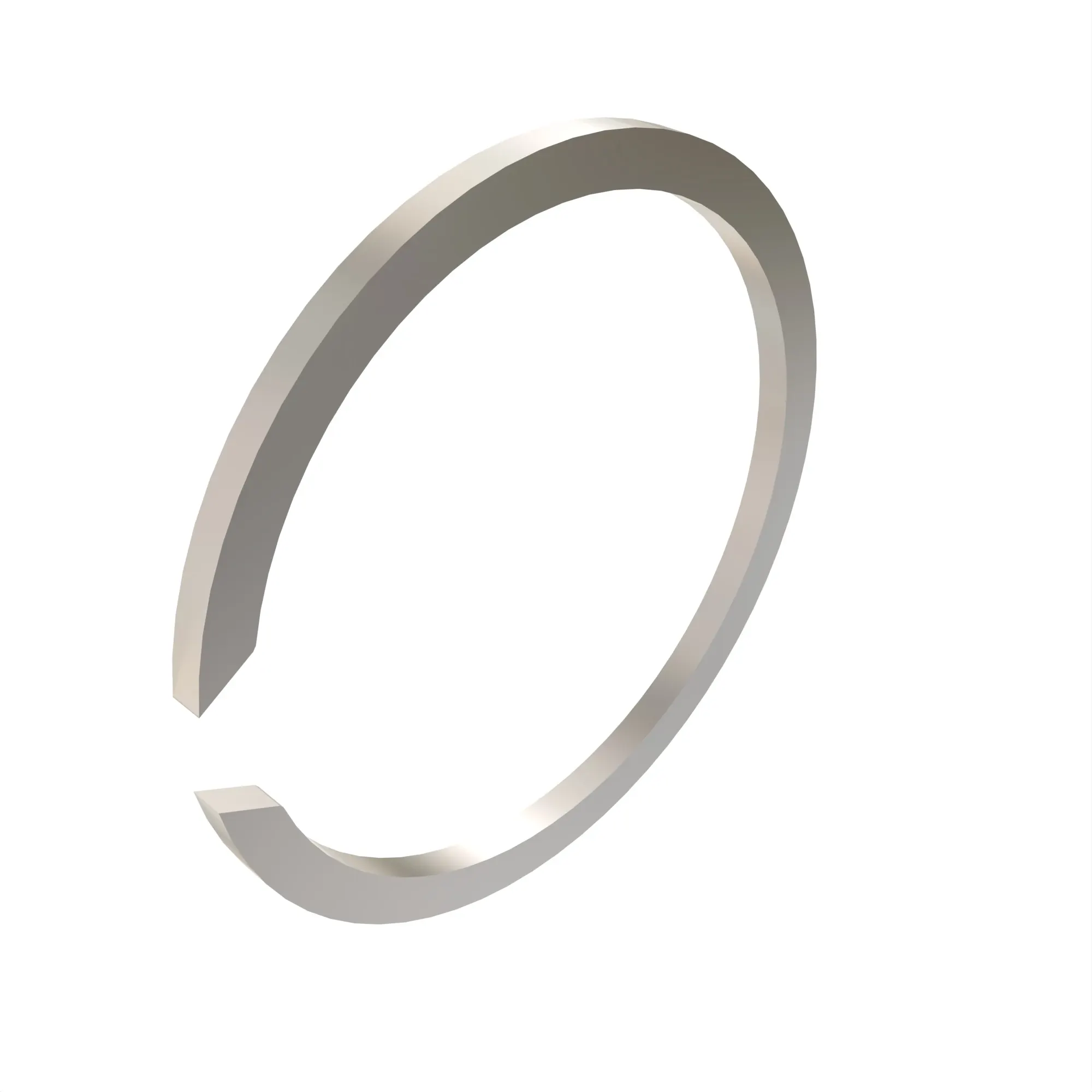

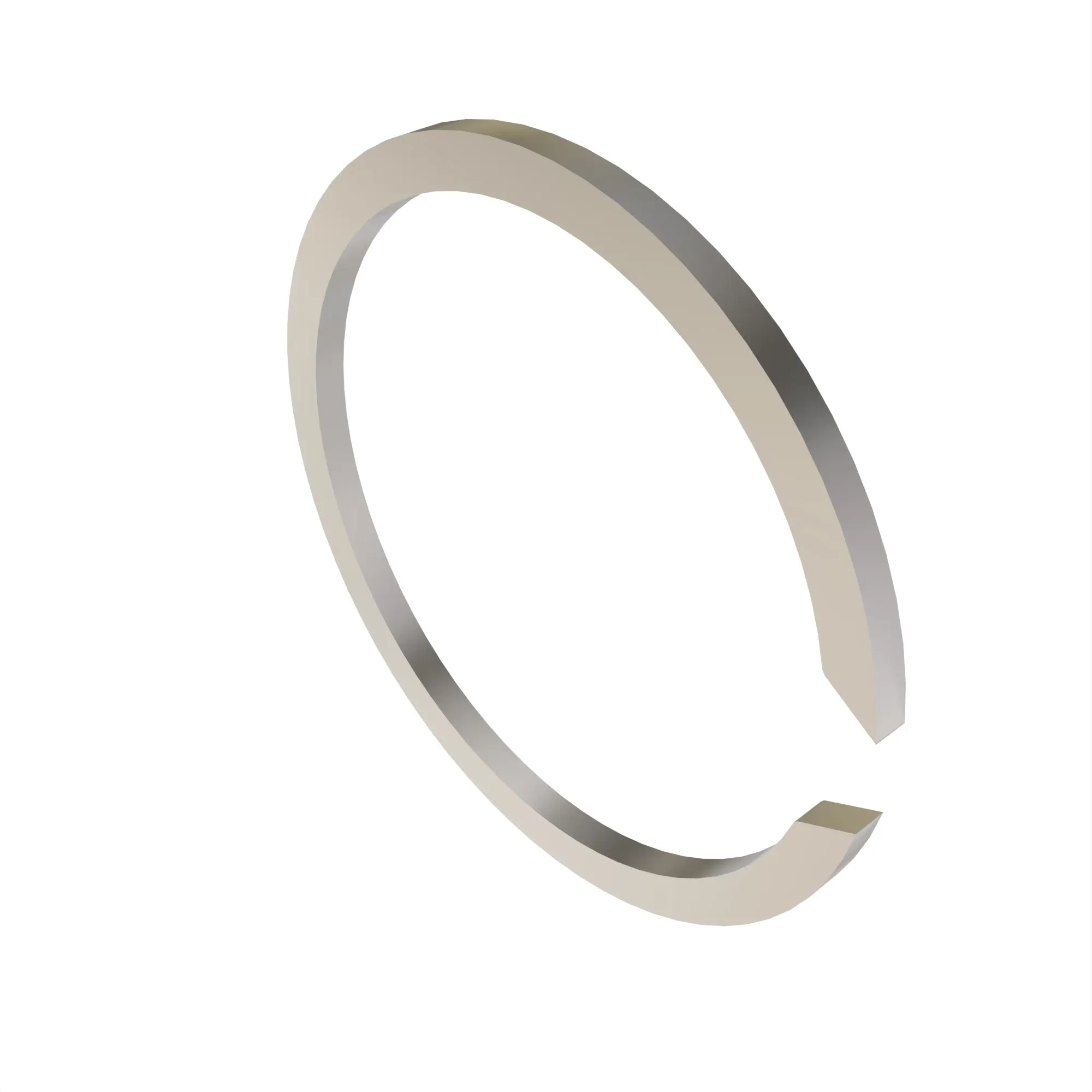

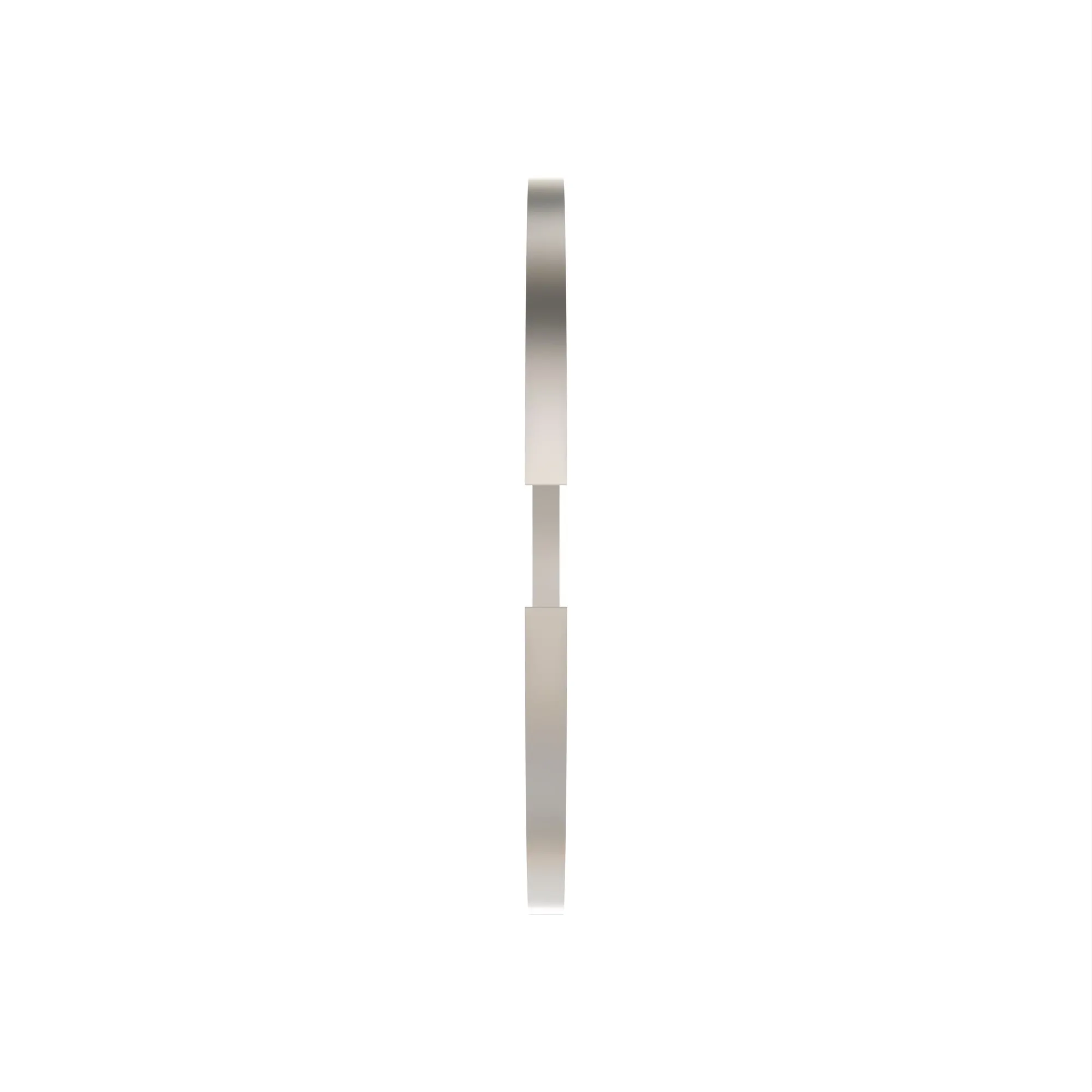

R100506: External Snap Ring

Name: R100506: External Snap Ring
Brand: John Deere

Part Number: R100506

The right parts for your machine, every time

External Snap Ring designed to securely hold components onto a shaft or in a housing
Key specs: 4.75 mm radial width, 9.50 mm free gap, 3.31 mm width, fits 63.55 mm shaft diameter, 60.87 mm groove diameter
Made from high quality general steel for durability and strength
Heat treated finish enhances resistance to wear and corrosion

WARNING/ADVERTENCIA -Cancer and Reproductive Harm/Cáncer y Daño Reproductivo. www.p65warnings.ca.gov

Product Dimensions

Weight

0.05 lb

Height

2.7 in

Length

0.15 in

For the most accurate fit and confidence, please select the equipment you are shopping for. Parts can be used across a number of different models, the models shown here indicate general fit of the part.

8560
8570
8760
8770
8870
8960
8970
9100
9120
9200
9200 SCRAPER
9220
9230
9300
9300 SCRAPER
9300T
9320
9320T
9320T SCRAPER
9330
9360R
9400
9400 SCRAPER
9400T
9410R
9420
9420T
9420T SCRAPER
9430
9460R
9520
9520T
9520T SCRAPER
9620
9620T
