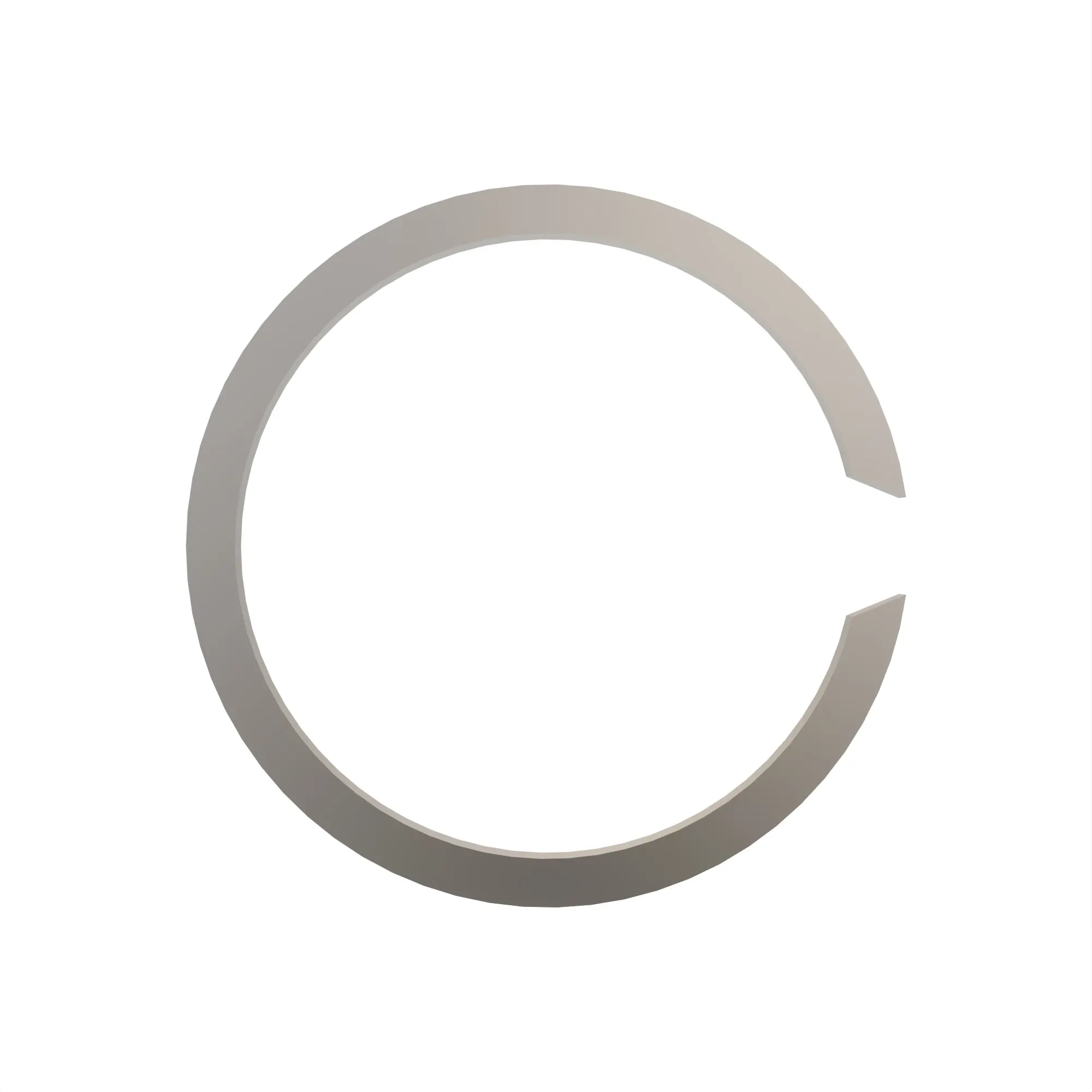

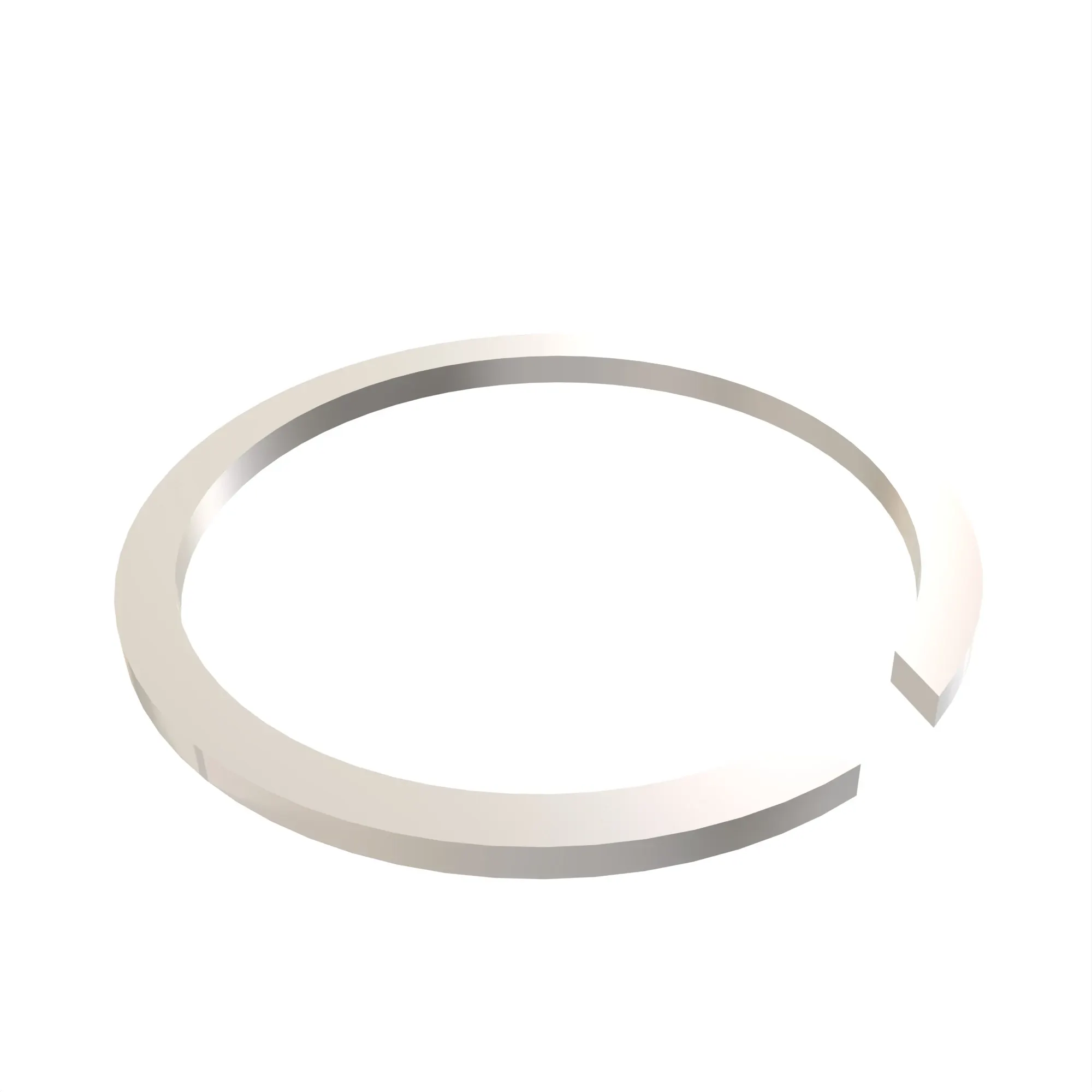

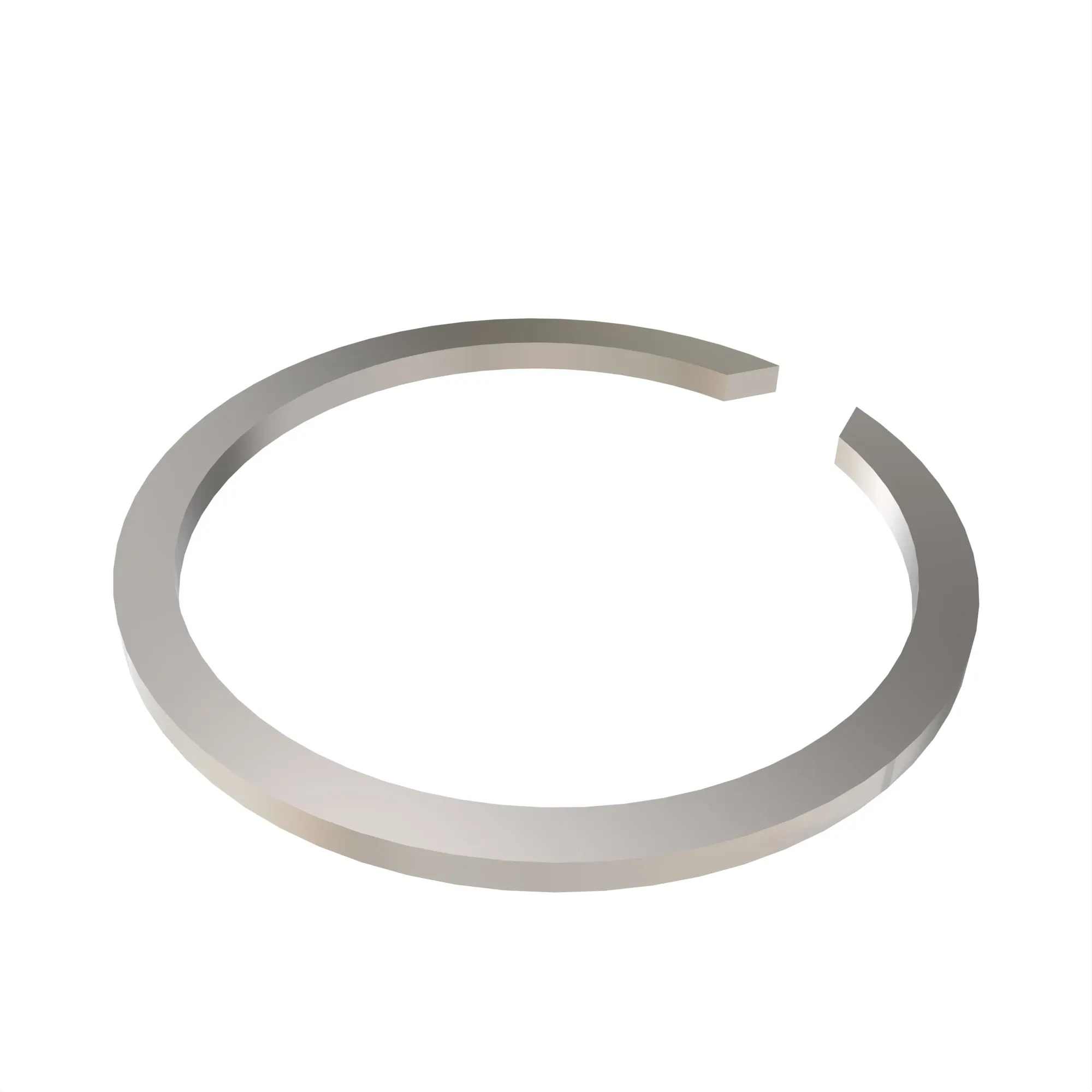

R100502: External Snap Ring

Name: R100502: External Snap Ring
Brand: John Deere

Part Number: R100502

The right parts for your machine, every time

External Snap Ring designed for securing components on shafts and in grooves
Key specs: Radial width of 4.75 mm (0.19 in), free gap of 9.50 mm (3/8 in), and shaft diameter of 63.55 mm (2 1/2 in)
Additional specs: Width of 3.01 mm (0.12 in) and groove diameter of 60.87 mm (2.4 in)
Made from high quality general steel
Features a durable heat-treated finish

WARNING/ADVERTENCIA -Cancer and Reproductive Harm/Cáncer y Daño Reproductivo. www.p65warnings.ca.gov

Product Dimensions

Weight

0.05 lb

Height

2.72 in

Length

0.12 in

For the most accurate fit and confidence, please select the equipment you are shopping for. Parts can be used across a number of different models, the models shown here indicate general fit of the part.

6140J
6140R
6145J
6150J
6150M
6150R
6150RH
6155J
6800
6810
6820
6830
6900
6910
6910S
6920
6920S
6930
7200
7210
7330
7400
7405
7410
7420
7425
7500
7505
7510
7515
7520
7525
8560
8570
8760
8770
8870
8960
8970
9100
9120
9200
9200 SCRAPER
9220
9230
9300
9300 SCRAPER
9300T
9320
9320T
9320T SCRAPER
9330
9360R
9400
9400 SCRAPER
9400T
9410R
9420
9420T
9420T SCRAPER
9430
9460R
9520
9520T
9520T SCRAPER
9620
9620T
