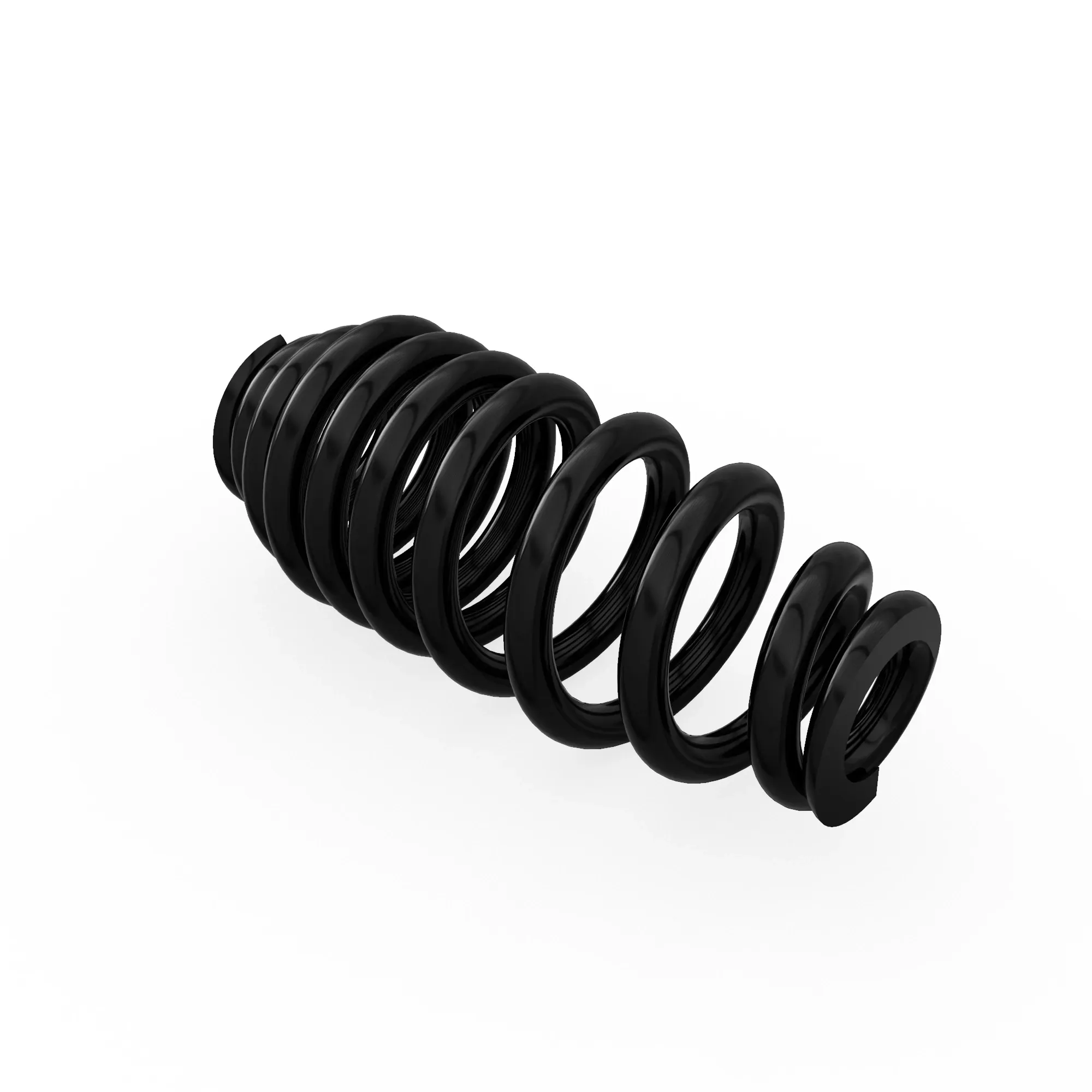

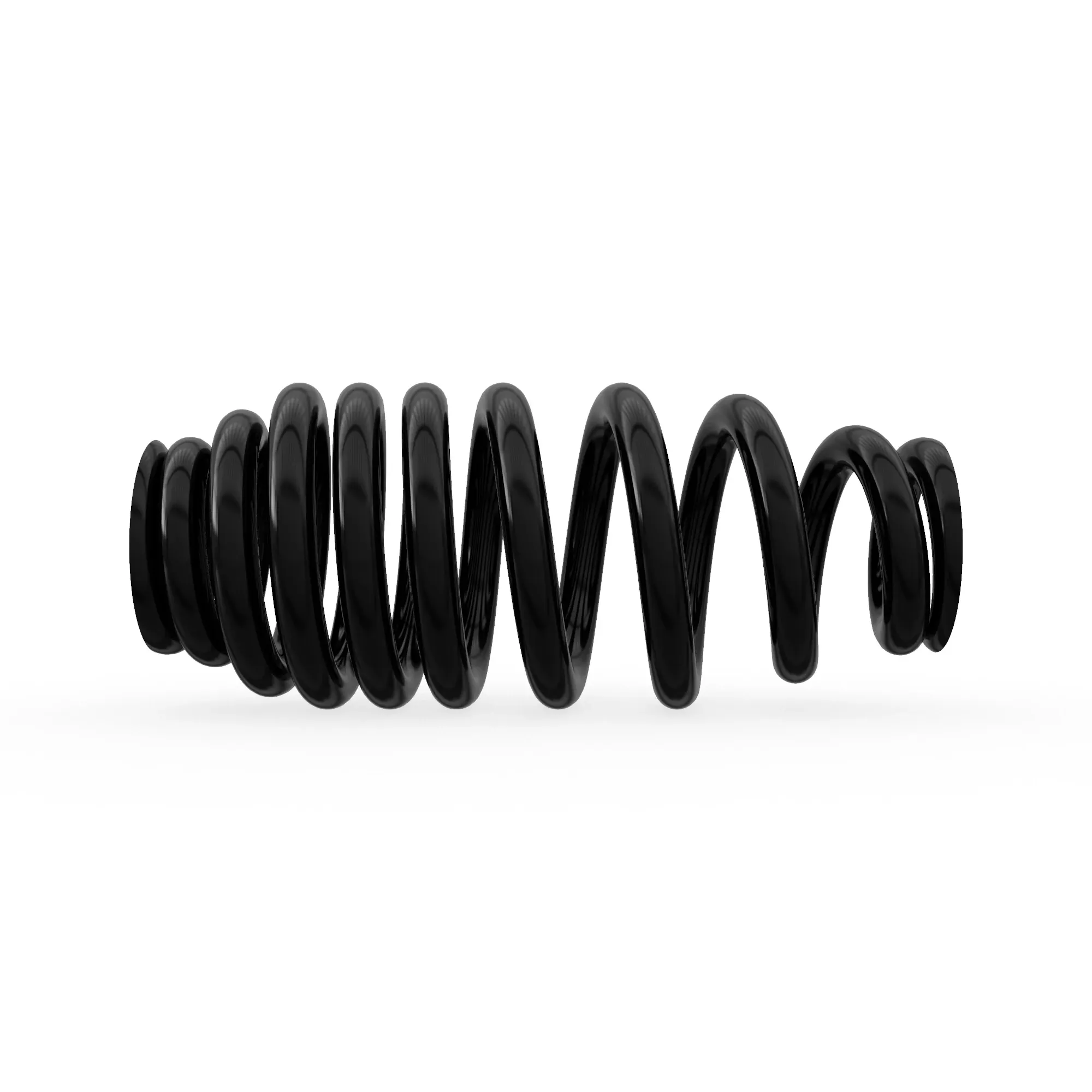

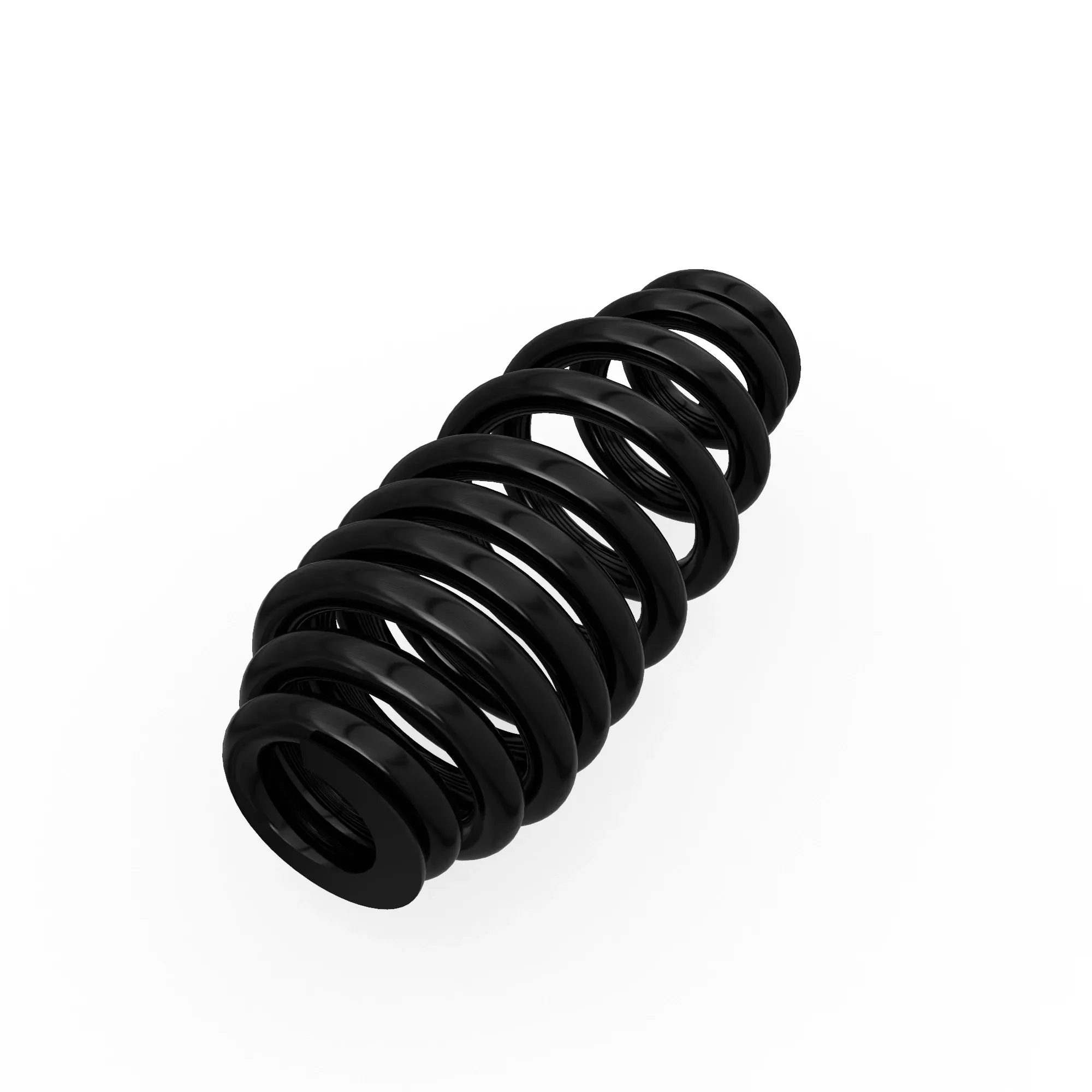

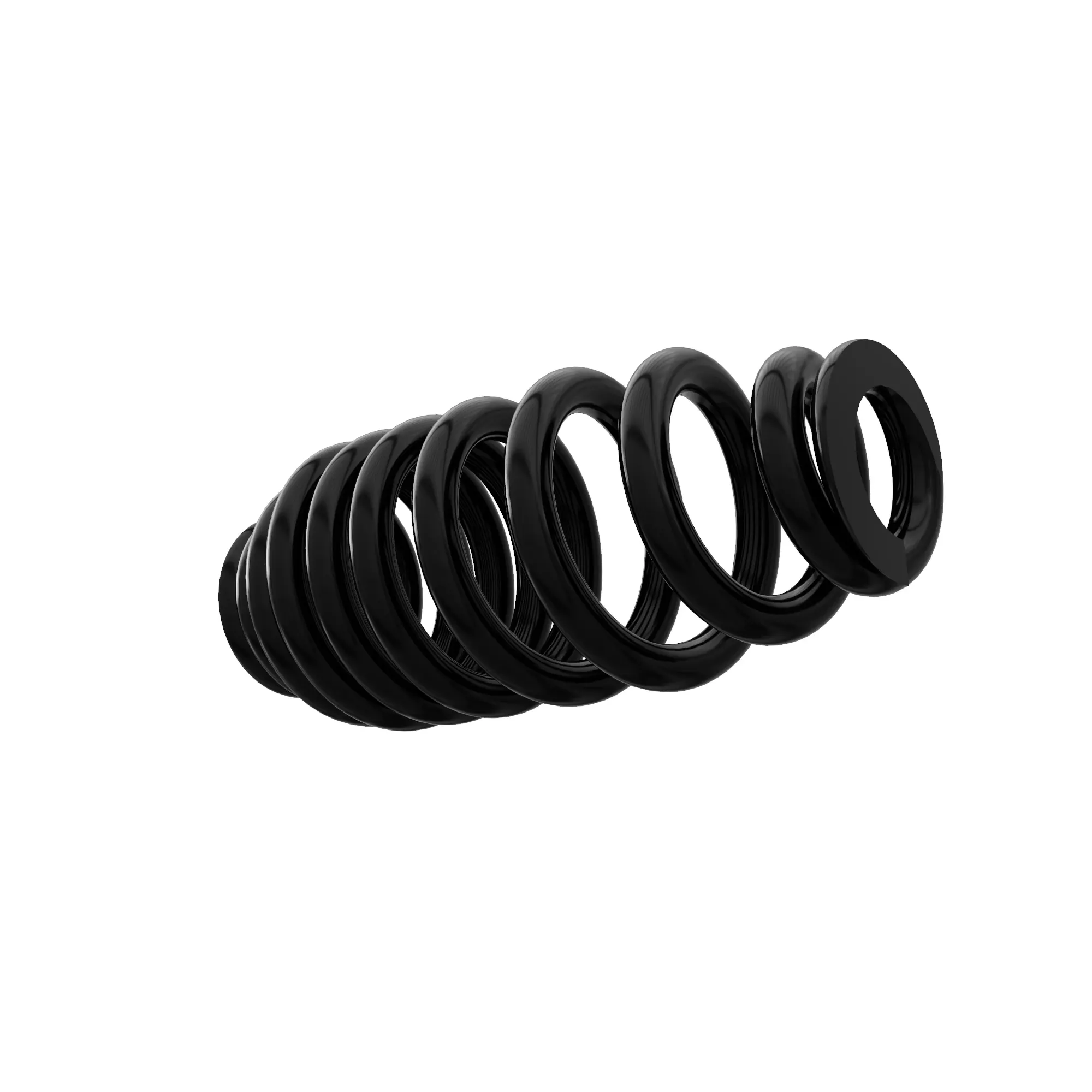

N236952: Compression Spring

Part Number: N236952

Parts Tier: Original

  • High-performance compression spring designed to provide reliable force and flexibility in various mechanical applications
  • Features a wire diameter of 11.10 mm and an outer diameter of 80.87 mm, ideal for heavy-duty tasks requiring precise tension
  • Offers a spring rate of 59.54 mm and a free length of 217.68 mm, ensuring optimal performance under load
  • Made from high quality steel for durability and long-lasting use

    Product Dimensions

    Weight
    3.41 lb
    Height
    3.5 in
    Length
    9 in

    Specifications

    Spring Rate
    59.543 N/mm
    Wire Diameter
    11.1 mm
    Total Coils
    11
    Spring Type
    Compression Spring
    Material
    Steel Alloy
    Outside Diameter
    80.874 mm
    Free Length
    217.678 mm
    Solid Length
    117.348 mm
