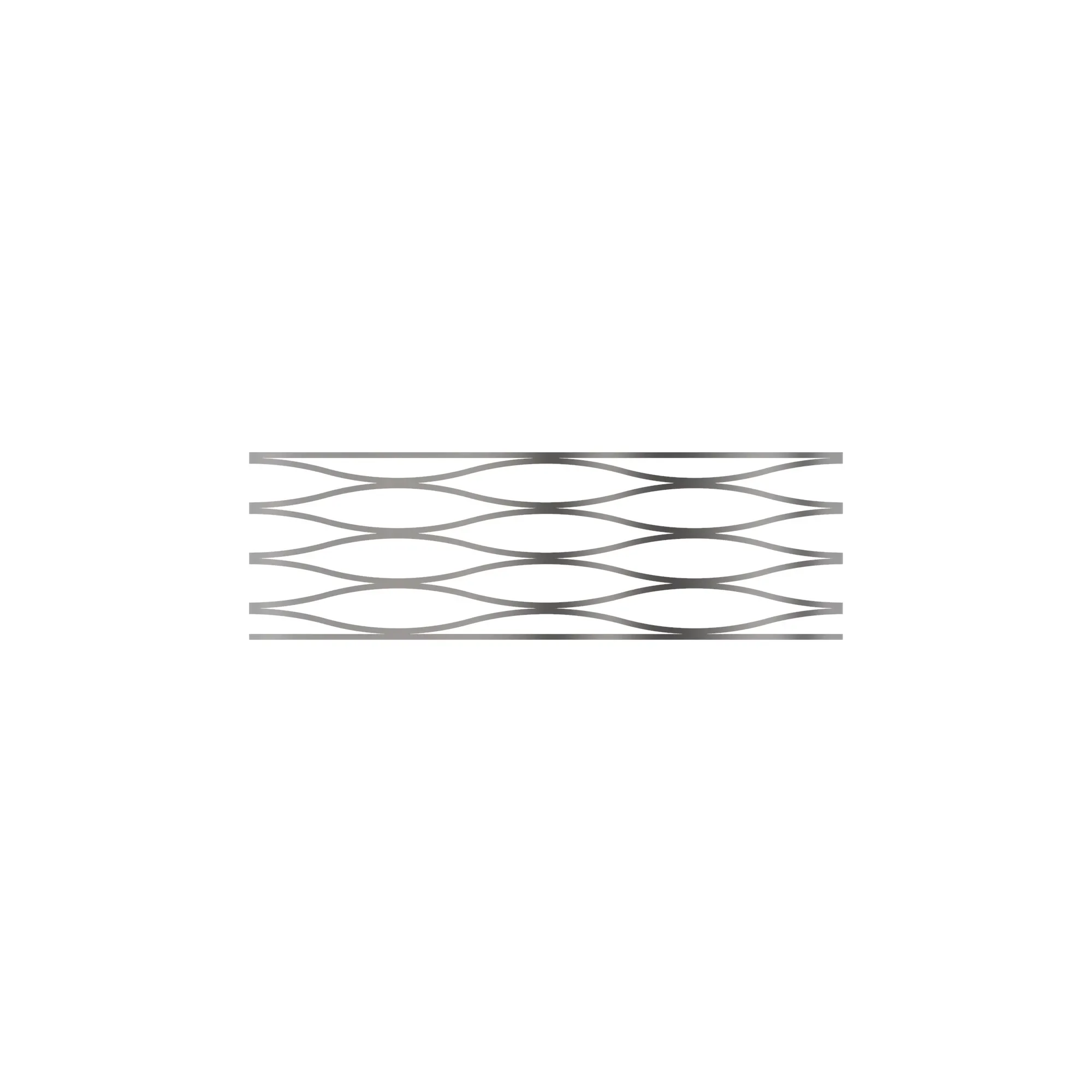

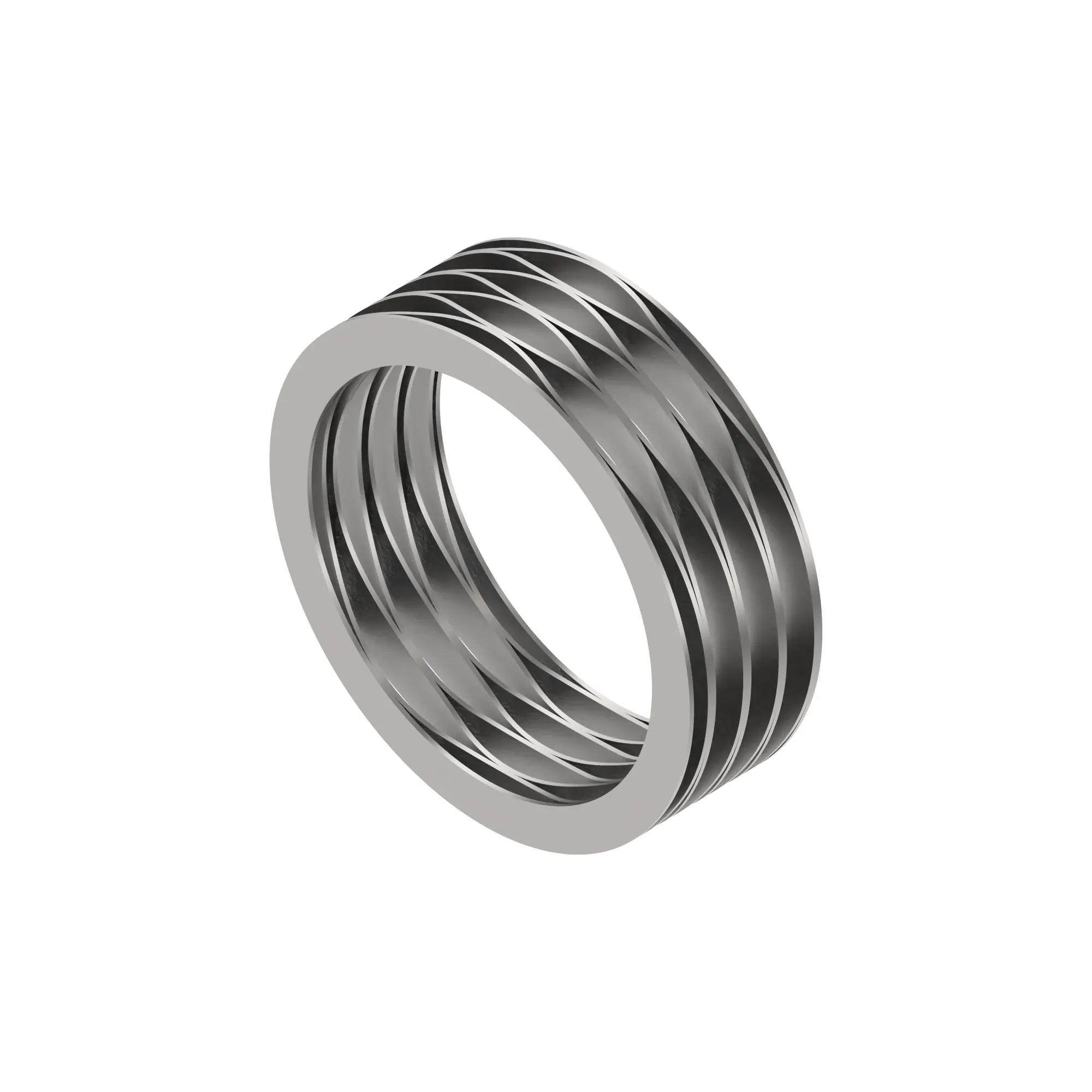

M174184: Wave Compression Spring

Part Number: M174184

This wave compression spring is designed to provide precise load handling and space-saving capabilities in various mechanical applications
Features a free height of 14.76 mm and an in bore diameter of 19.99 mm, ideal for compact spaces requiring efficient force management
Radial width of 1.80 mm and clear shaft diameter of 15.01 mm ensure compatibility with tight-fitting assemblies
Made from high quality steel for durability and reliable performance in demanding environments

Product Dimensions

Weight

0.01 lb

Height

0.8 in

Length

0.6 in

Specifications

Spring Rate

Wire Diameter

1.803 mm

Spring Type

Compression Spring (Wave)

Material

Steel Alloy

Outside Diameter

19.99 mm

Free Length

14.757 mm

Solid Length

6.325 mm

For the most accurate fit and confidence, please select the equipment you are shopping for. Parts can be used across a number of different models, the models shown here indicate general fit of the part.

625I
825 LONG CHASSIS
825 SHORT CHASSIS
835 SHORT CHASSIS
855 LONG CHASSIS
855 SHORT CHASSIS
865 SHORT CHASSIS
HPX 4X2
HPX 4X2 D
HPX 4X4
HPX 4X4 D
HPX 4X4 TRAIL
HPX615E
HPX815E
M-GATOR A3
RSX 850I
RSX860E
RSX860I
RSX860M
STRAIGHT BLADE
XUV 550
XUV 550 S4
XUV 845E
XUV 845M
XUV 845R
XUV 875M
XUV 875R
XUV560
XUV560 S4
XUV560E
XUV560E S4
XUV590E
XUV590E S4
XUV590I
XUV590I S4
XUV590M
XUV590M S4
XUV825E
XUV825I
XUV825M
XUV825M S4
XUV835E
XUV835M
XUV835R
XUV855D
XUV855E
XUV855M
XUV855M S4
XUV865E
XUV865M
XUV865R
