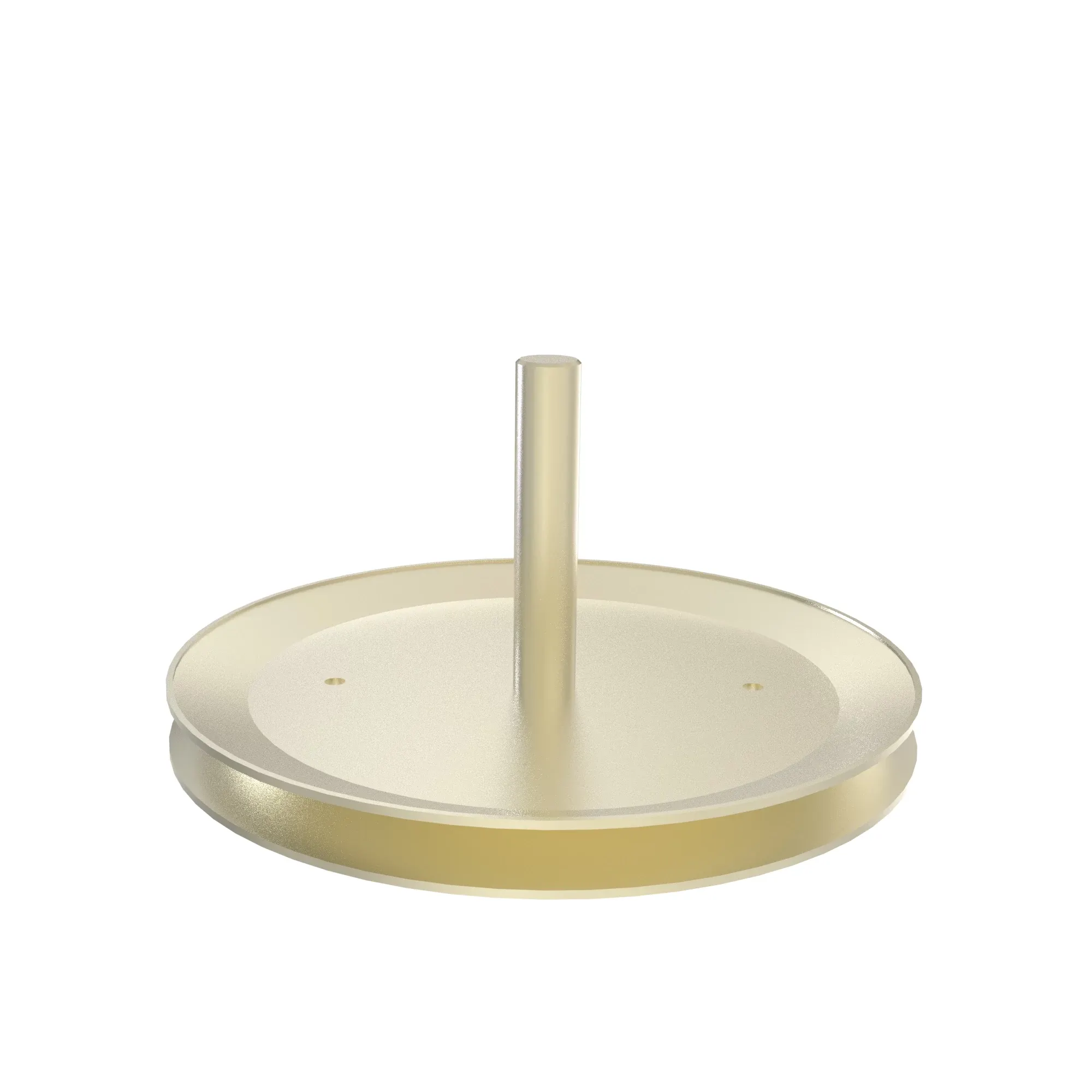

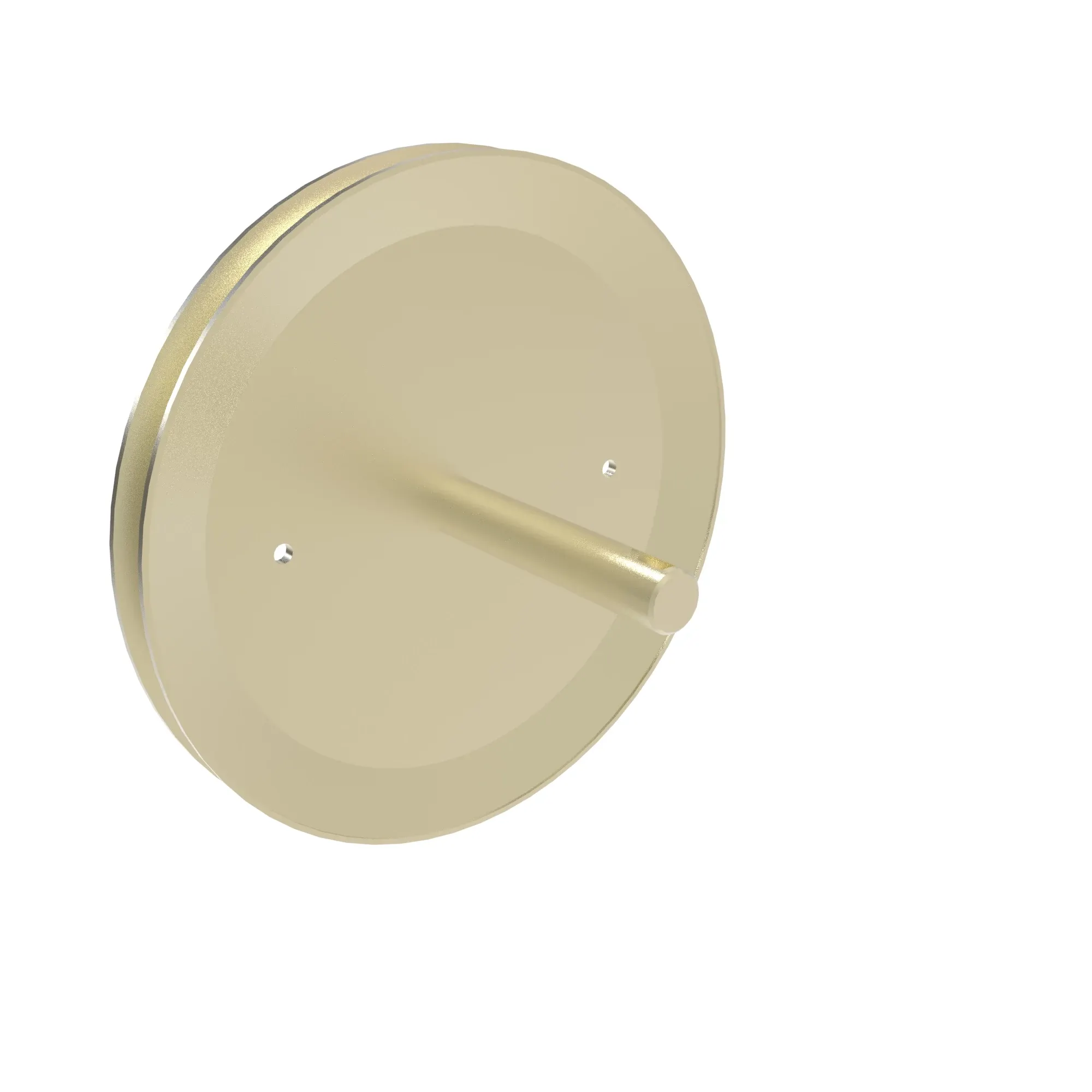

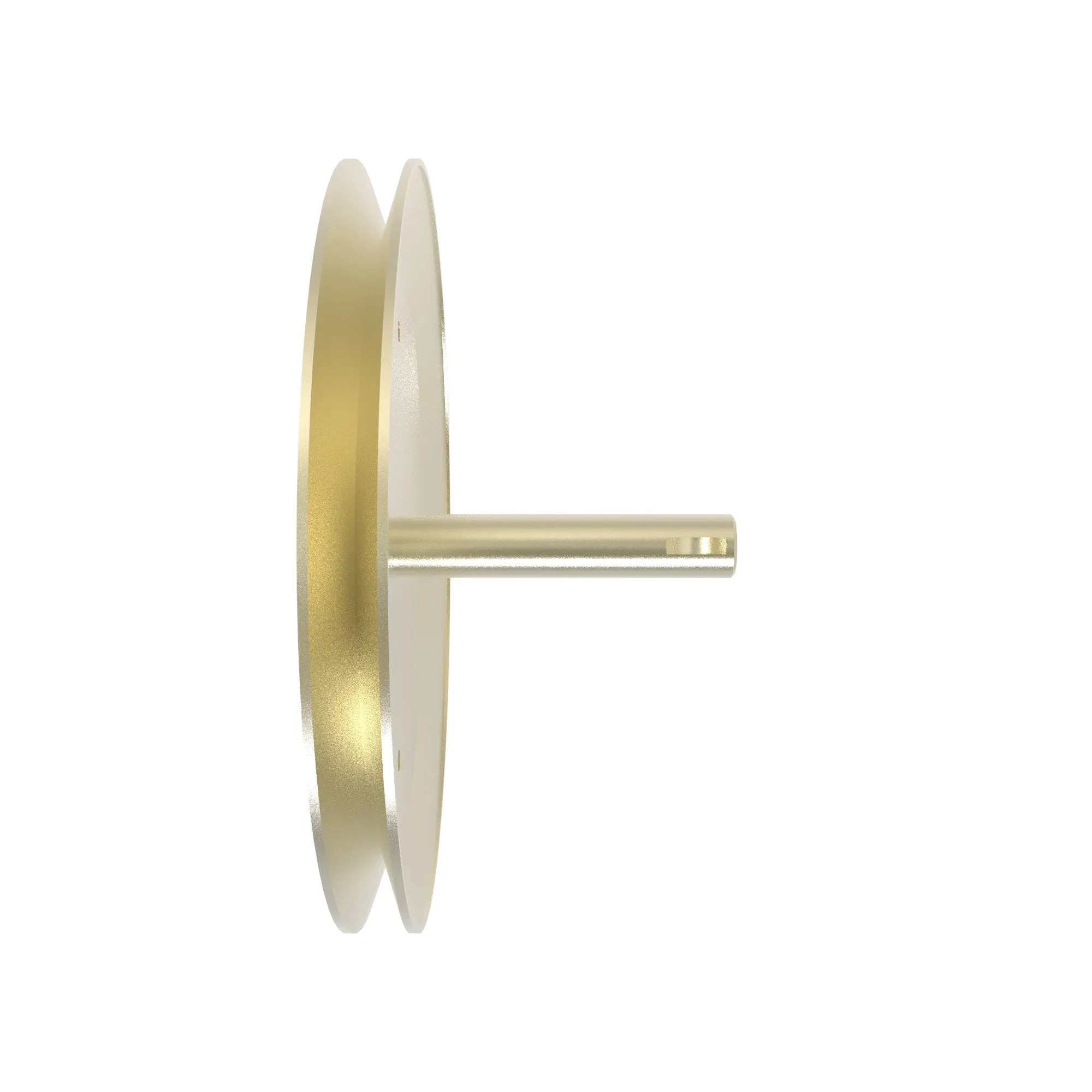

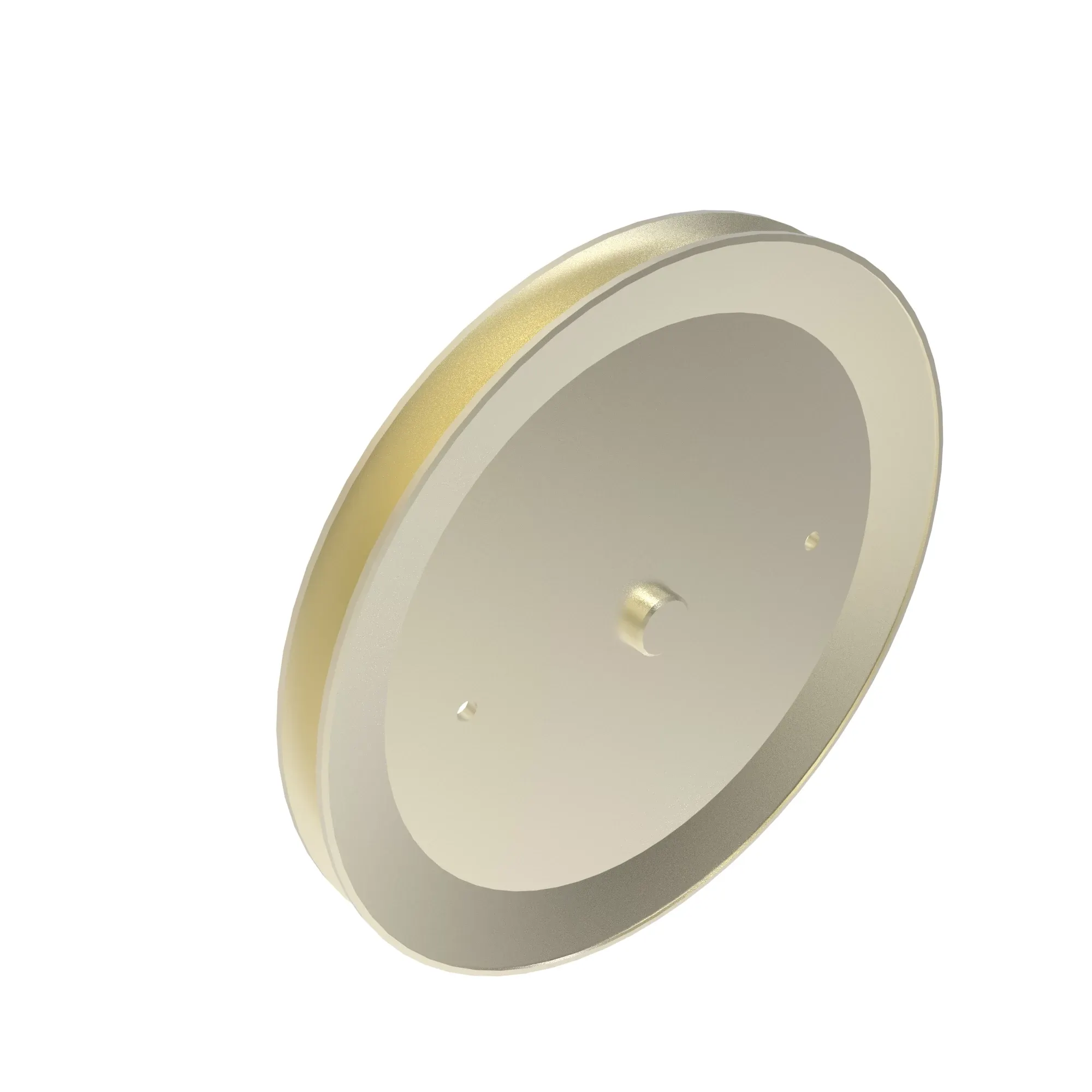

Name: M156399: Raw Weldment Sheave Assembly
Brand: John Deere

Product Dimensions

Weight

3.12 lb

Height

4.7 in

Length

8.8 in

Specifications

Groove Width

12.446 mm

Effective Diameter

222.45 mm

Bore Size

18.94 mm

For the most accurate fit and confidence, please select the equipment you are shopping for. Parts can be used across a number of different models, the models shown here indicate general fit of the part.

59 IN.
102
105
115
125
135
145
155C
190C
D100
D105
D110
D120
D125
D130
D140
D150
D155
D160
D170
G110
L100
L105
L107
L108
L110
L111
L118
L120
L130
LA100
LA105
LA110
LA115
LA120
LA125
LA130
LA135
LA140
LA145
LA150
LA155
LA165
LA175
S240
X110
X120
X125
X135R
X140
X145
X155R
X165
