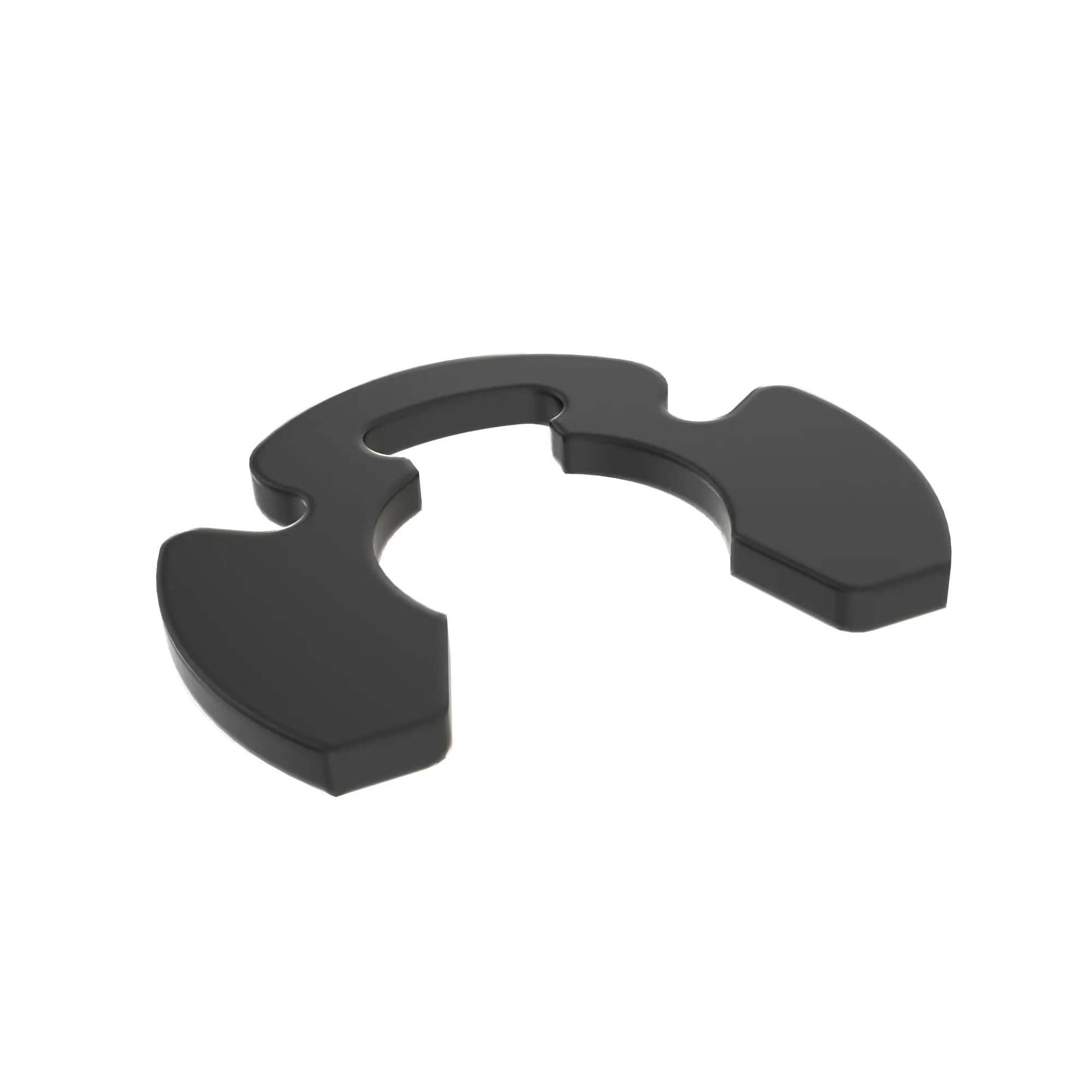

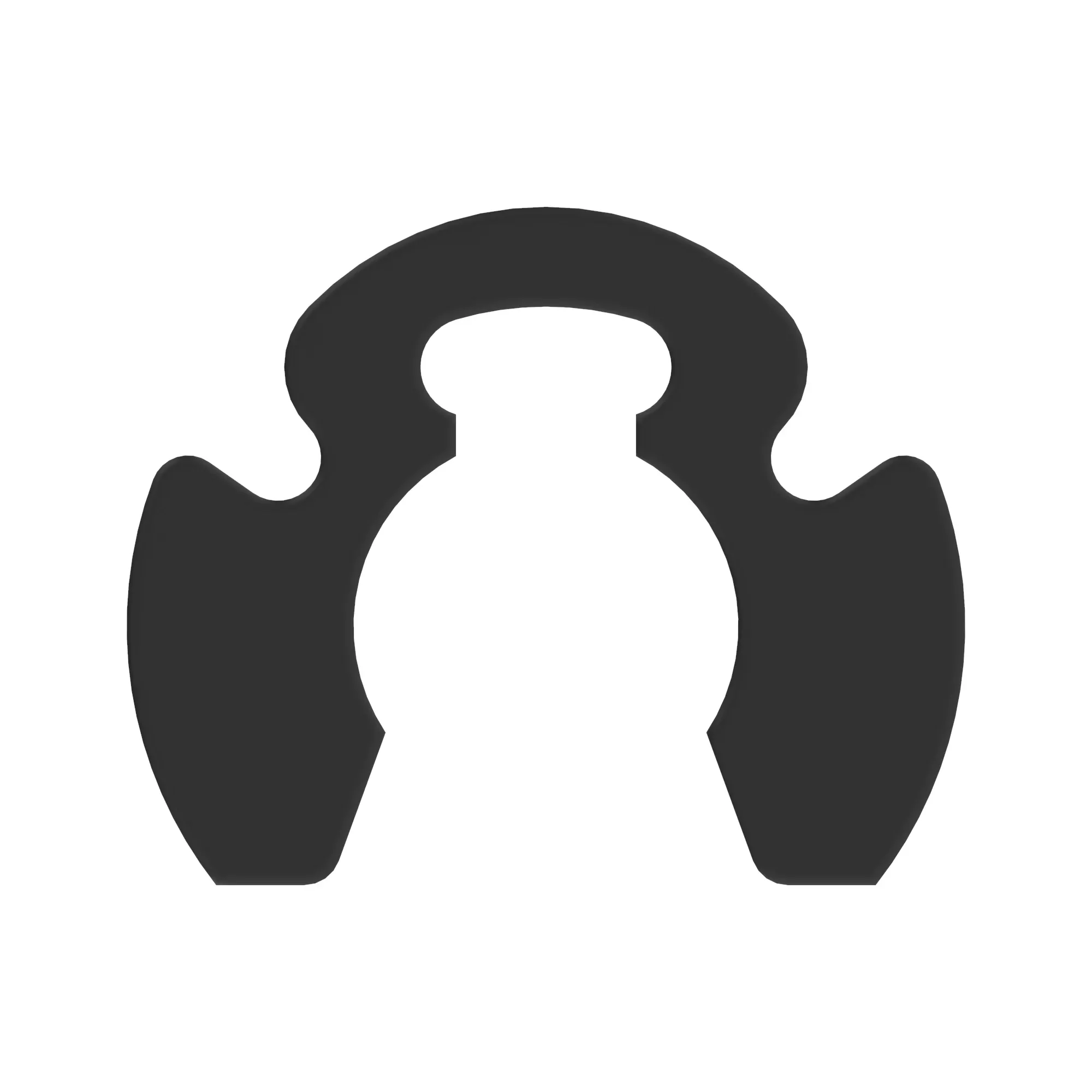

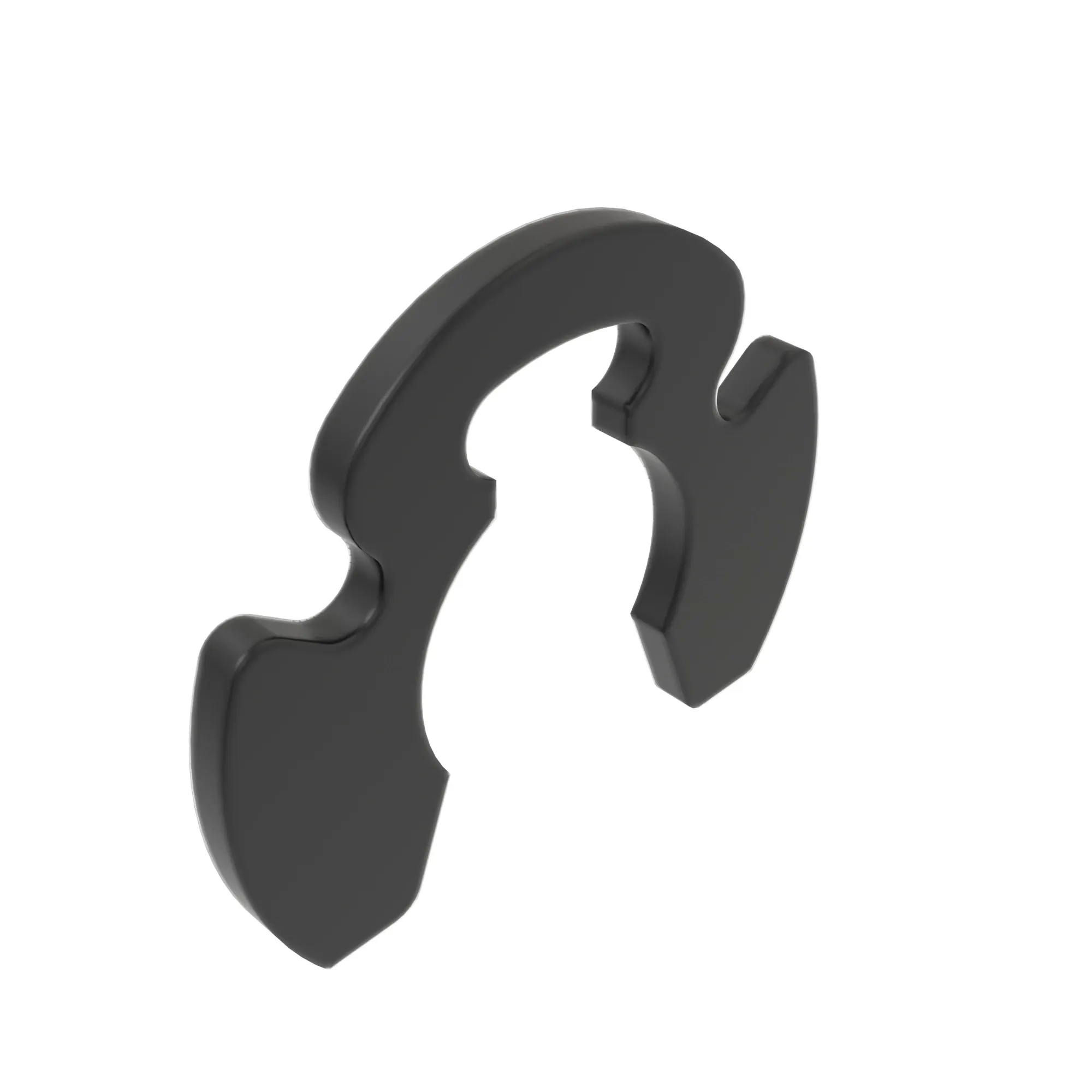

M154090: External Snap Ring

Part Number: M154090

Parts Tier: Original

External Snap Ring designed to secure components on a shaft, reducing lateral movement
Key specs: 1.07 mm width, fits 9.52 mm shaft diameter, 2.06 mm radial width, promoting a secure fit
Additional specs: Groove diameter of 8.41 mm, groove width of 1.17 mm, style A for versatile applications
Made from high quality general steel for durability and strength
Finished with phosphate coating for enhanced corrosion resistance and longevity

WARNING/ADVERTENCIA -Cancer and Reproductive Harm/Cáncer y Daño Reproductivo. www.p65warnings.ca.gov

Product Dimensions

Height

0.02 in

Width

0.75 in

Length

0.9 in

For the most accurate fit and confidence, please select the equipment you are shopping for. Parts can be used across a number of different models, the models shown here indicate general fit of the part.

524 P
544 P
624 P
625I
825 LONG CHASSIS
825 SHORT CHASSIS
855 LONG CHASSIS
855 SHORT CHASSIS
A2
HPX 4X2
HPX 4X2 D
HPX 4X4
HPX 4X4 D
HPX 4X4 TRAIL
HPX615E
HPX815E
M-GATOR A3
M-GATOR A3T
STRAIGHT BLADE
TURF TX 4X2
TX 4X2
XUV825E
XUV825I
XUV825M
XUV825M S4
XUV850D
XUV855D
XUV855E
XUV855M
XUV855M S4
