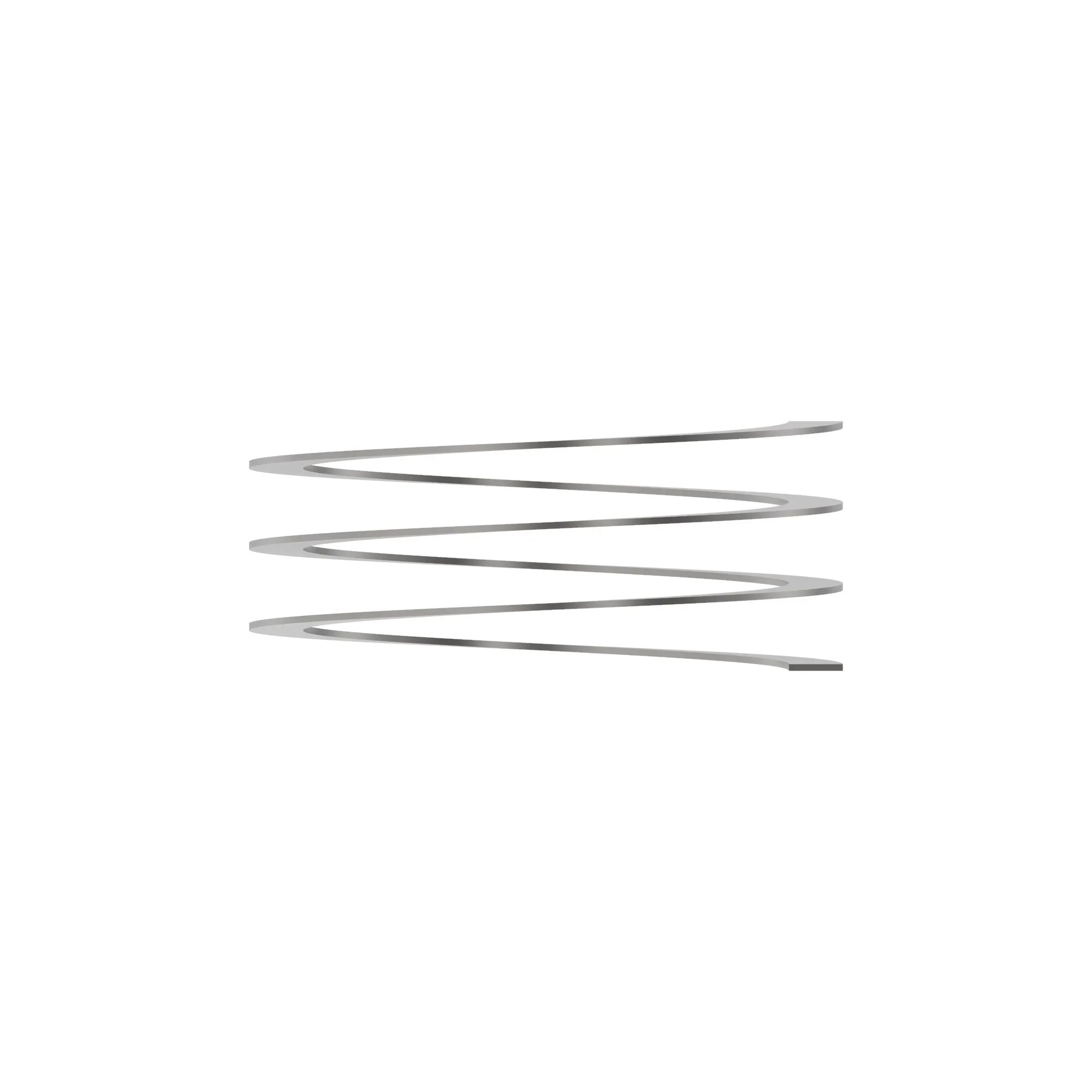

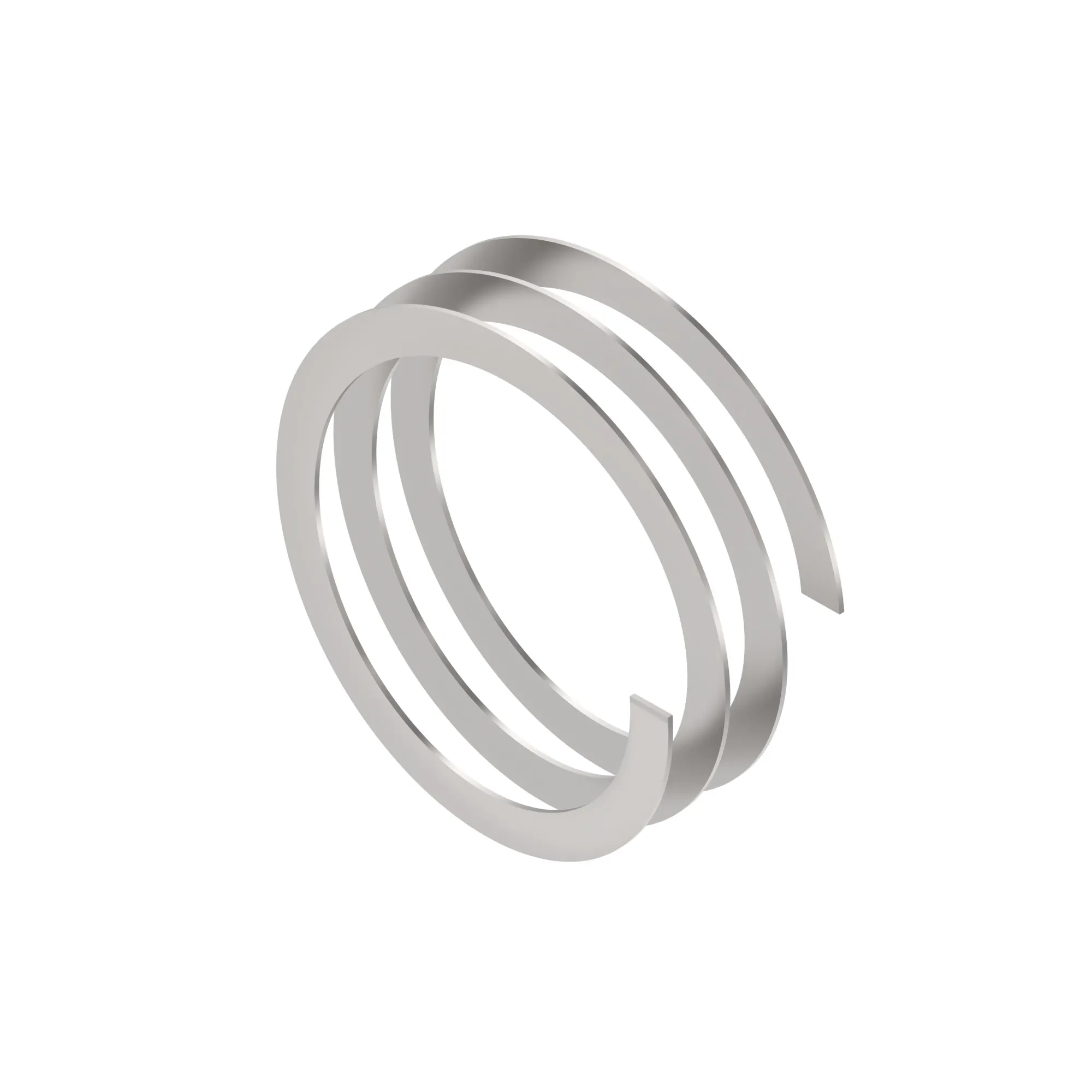

M147197: Wave Spring
Part Number: M147197
Parts Tier: Original
- Designed as a wave spring, this component is used to provide precise load and deflection in compact spaces, ideal for applications requiring high force in limited axial space
- Features a free height of 10.16 mm and an outer diameter of 28.58 mm, making it suitable for tight bore applications
- Includes a radial width of 2.39 mm and a material thickness of 0.30 mm, ensuring durability and consistent performance under load
- Made from high quality stainless steel, offering excellent corrosion resistance and longevity in various environments
Product Dimensions
Weight
0.01 lb
Height
1.1 in
Length
0.4 in
Specifications
Spring Rate
9.807 N/mm
Wire Diameter
2.388 mm
Spring Type
Compression Spring (Wave)
Material
Steel Alloy
Outside Diameter
28.575 mm
Free Length
10.16 mm
Solid Length
4.724 mm
