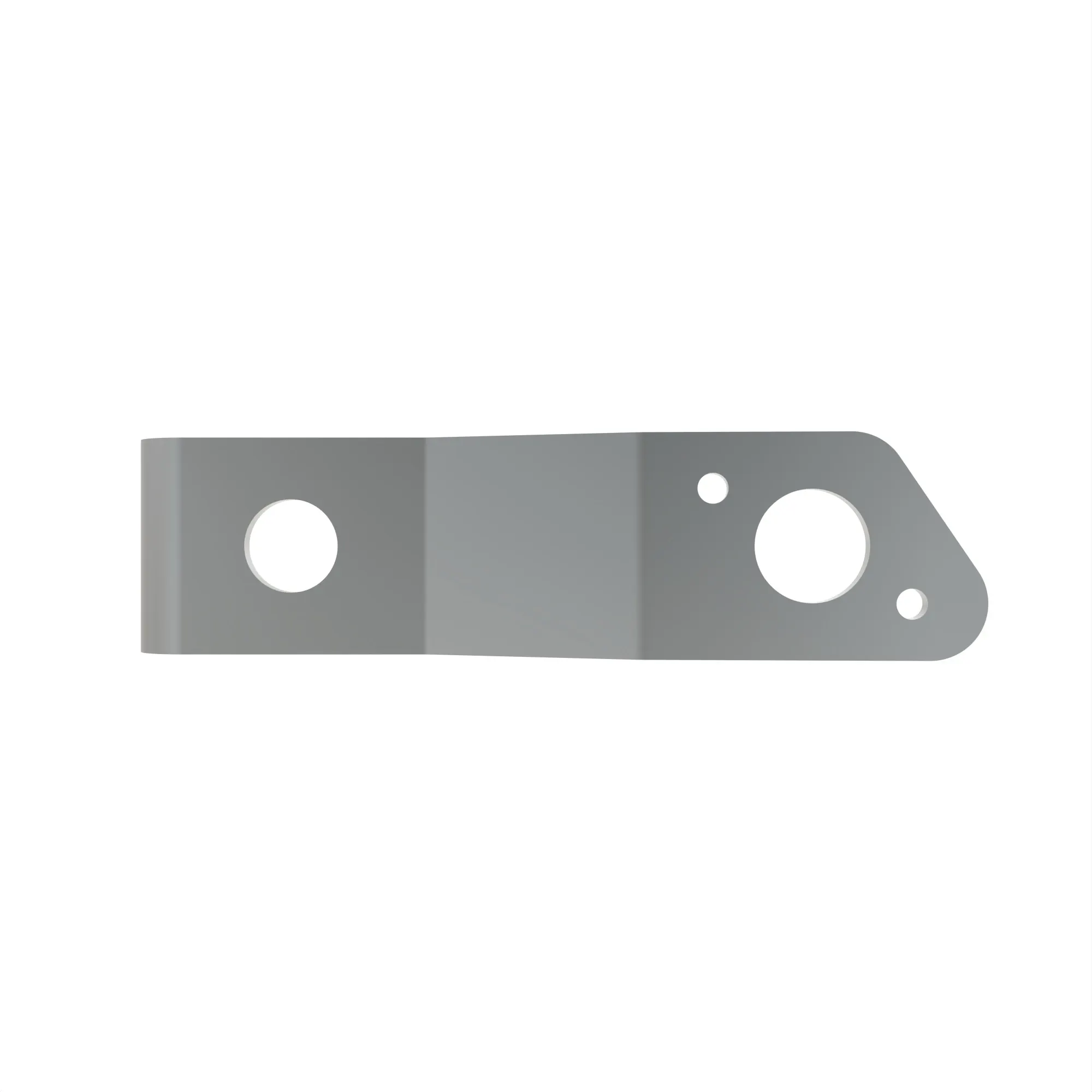

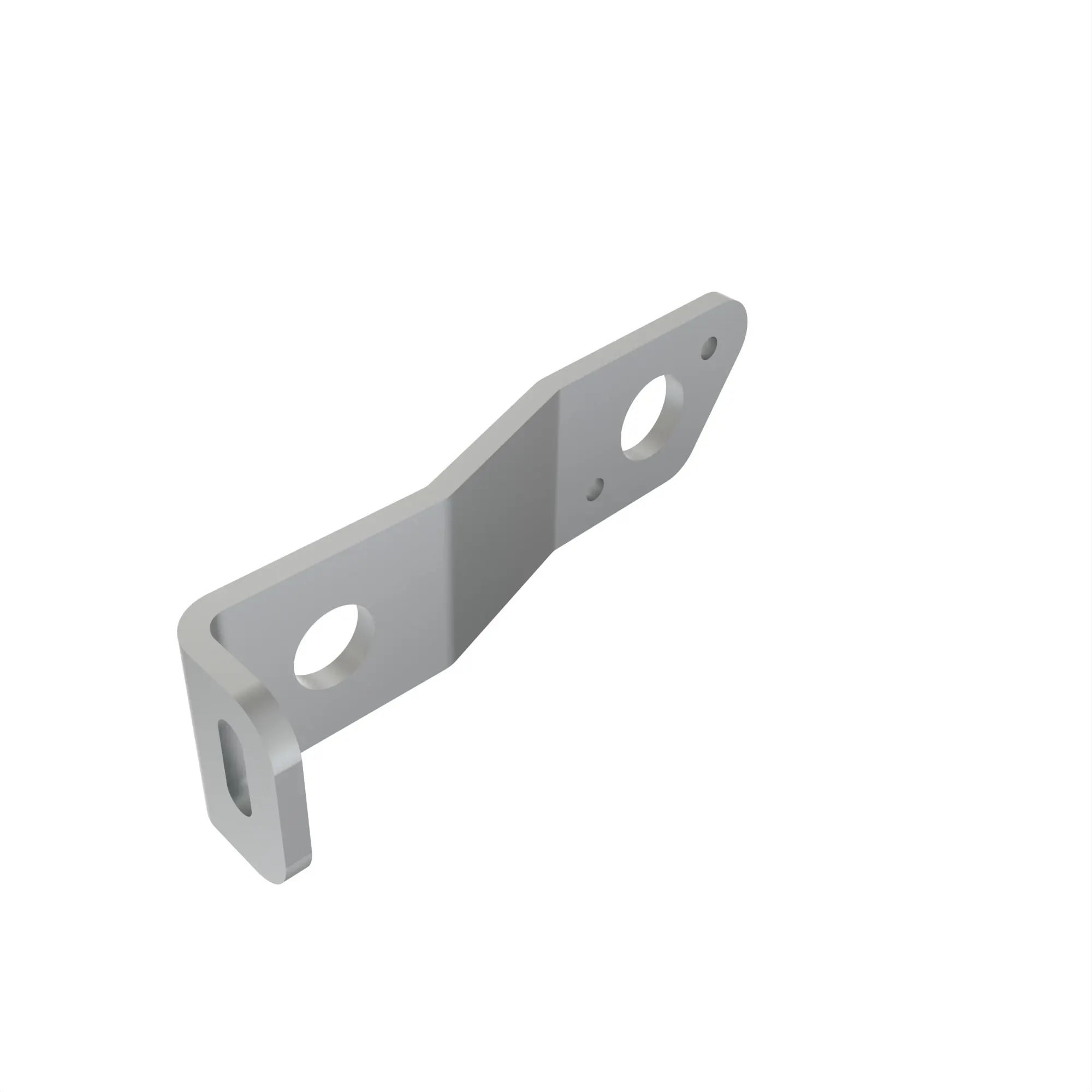

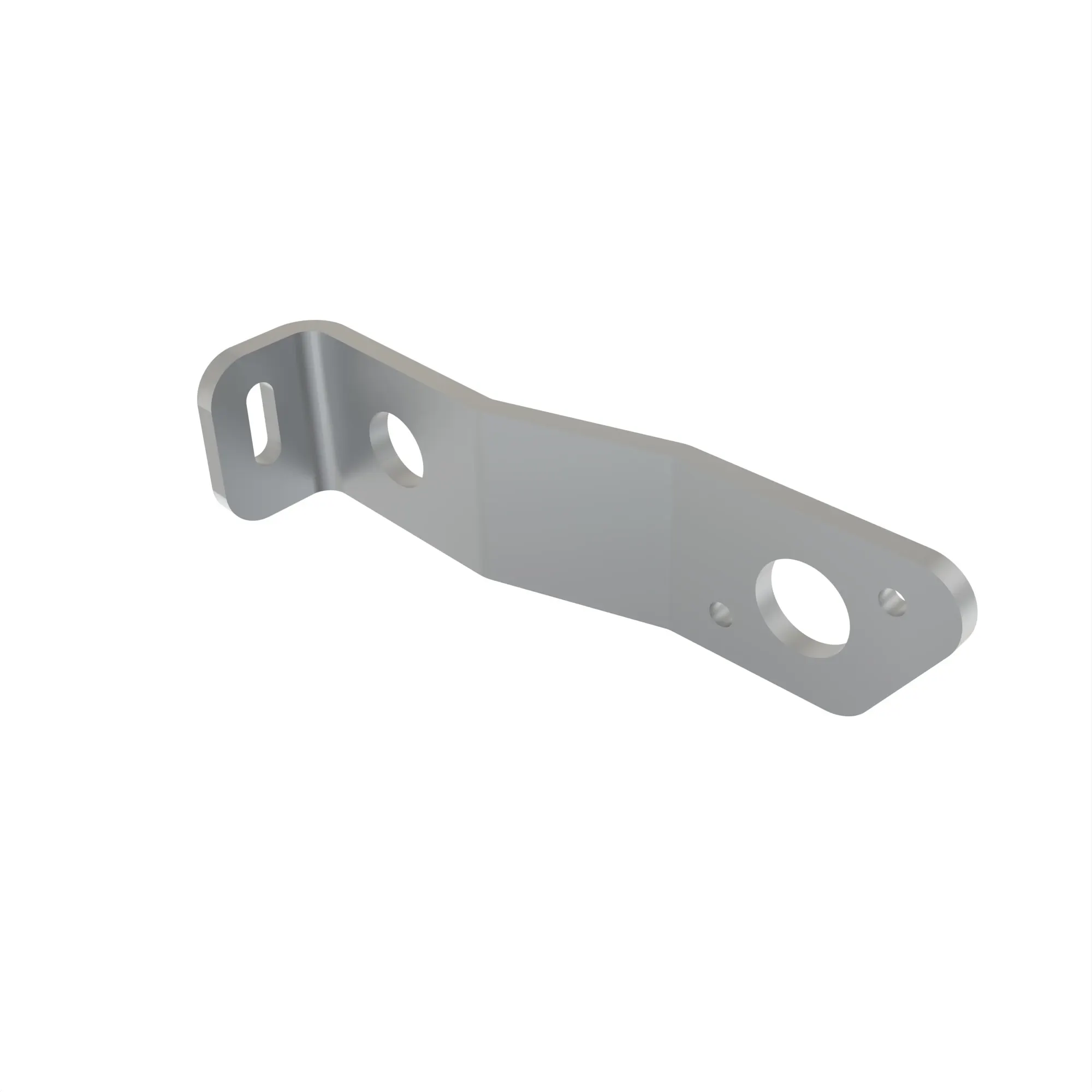

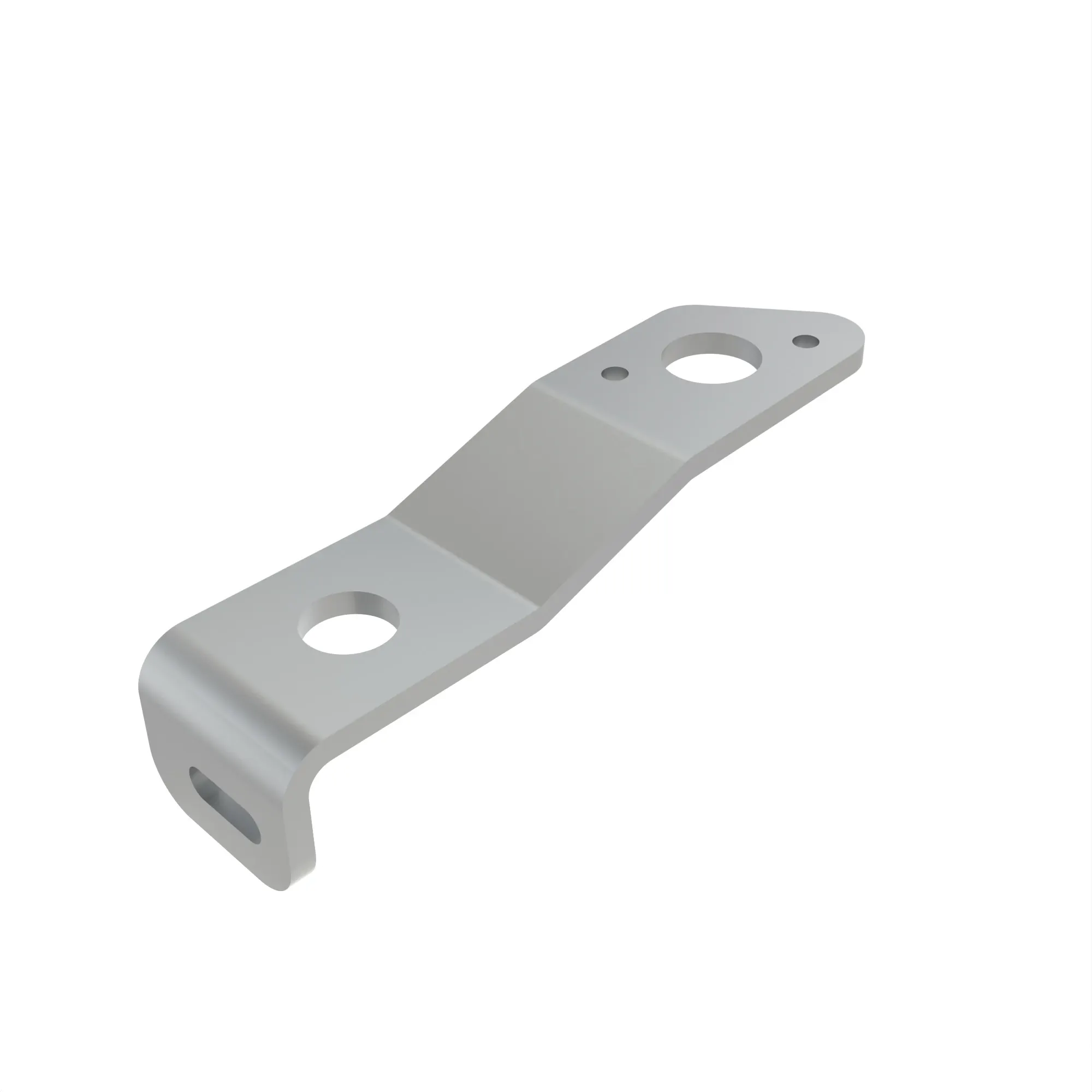

M138190: Arm

Part Number: M138190

Parts Tier: Original

The genuine John Deere arm transfers motion within the linkage, helping keep the connected components correctly positioned.
Precise geometry helps maintain accurate movement so the linked parts respond consistently to operator input.
A robust design supports smooth, repeatable motion under normal operating loads.
Made from steel to withstand demanding operating loads for dependable, long-lasting service.

Product Details

Product Dimensions

Weight

0.54 lb

Height

1.1 in

Width

1.6 in

Length

6.3 in

Compatible Equipment

For the most accurate fit and confidence, please select the equipment you are shopping for. Parts can be used across a number of different models, the models shown here indicate general fit of the part.

54
325
335
345
1948GV
1948HV
2148HV
GX255
GX325
GX335
GX345
GX355
LX280
LX289
