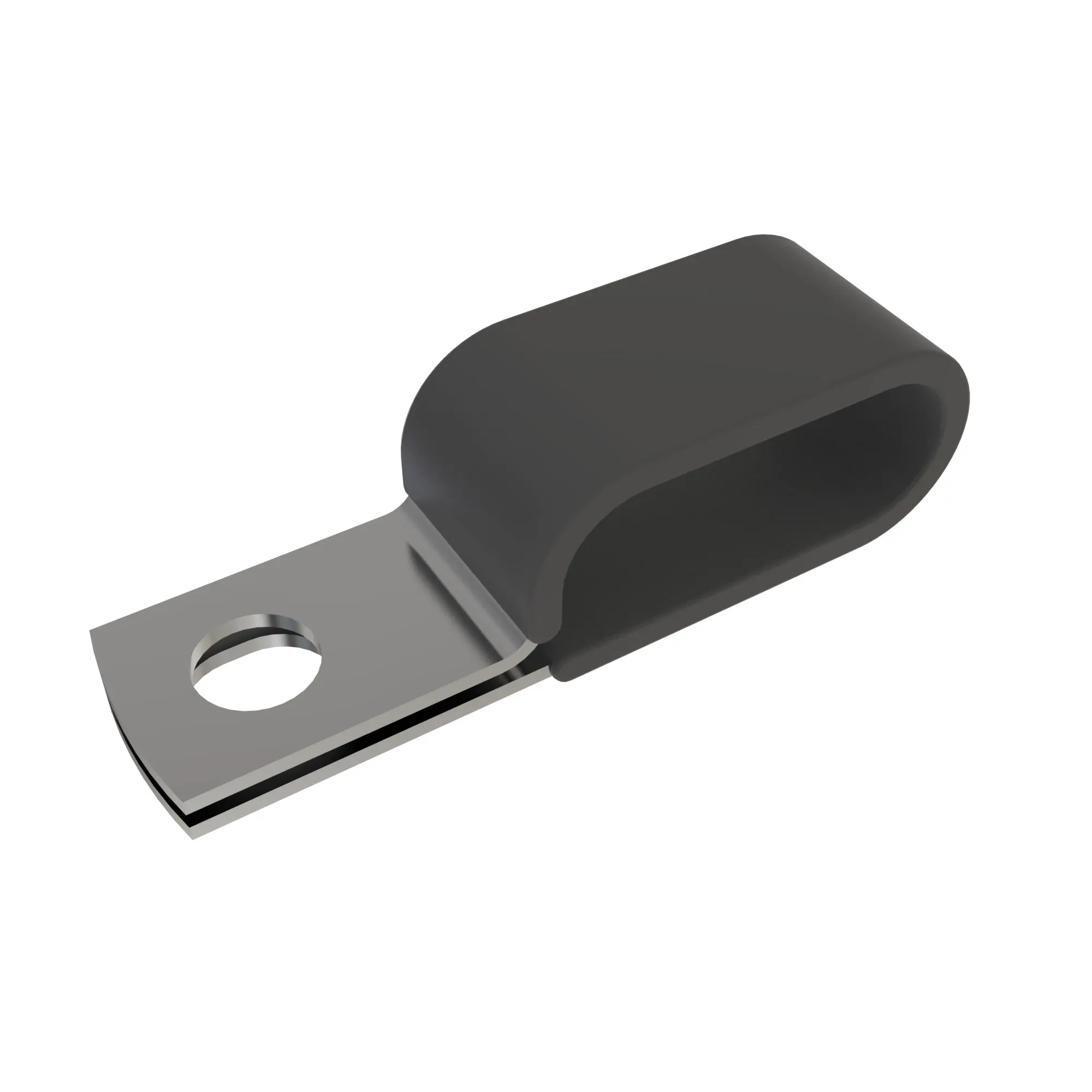

HXE74356: Bolt-On Clamp

Part Number: HXE74356

Parts Tier: Original

Designed as a Bolt-On Clamp, this product securely fastens components in machinery, ensuring stability and precision in various applications
Key specifications include a 20 mm width and 14.50 mm diameter, with a hole shape type R, ideal for robust and reliable fastening solutions
Additional specifications feature a 29 mm length center-to-center and 1.50 mm thickness, with a hole diameter of 10.30 mm, enhancing its versatility in different setups
Made from high quality steel, ensuring durability and strength for long-lasting performance
Features a grip length rubber or plastic coated finish, providing enhanced grip and protection against wear and tear

Product Dimensions

Weight

0.11 lb

Height

0.8 in

Width

3.5 in

Length

5.5 in

For the most accurate fit and confidence, please select the equipment you are shopping for. Parts can be used across a number of different models, the models shown here indicate general fit of the part.

8100
8200
8300
8400
8500
8600
8700
8800
9470 STS
9500
9570 STS
9600
9650 STS
9670 STS
9700
9750 STS
9770 STS
9800
9900
F8 100
F8 200
F8 300
F8 400
F8 500
F8 600
F9 500
F9 600
F9 700
F9 900
F9 1000
S7 600
S7 700
S7 800
S7 850
S7 900
S540
S550
S660
S670
S680
S690
S760
S770
W440
