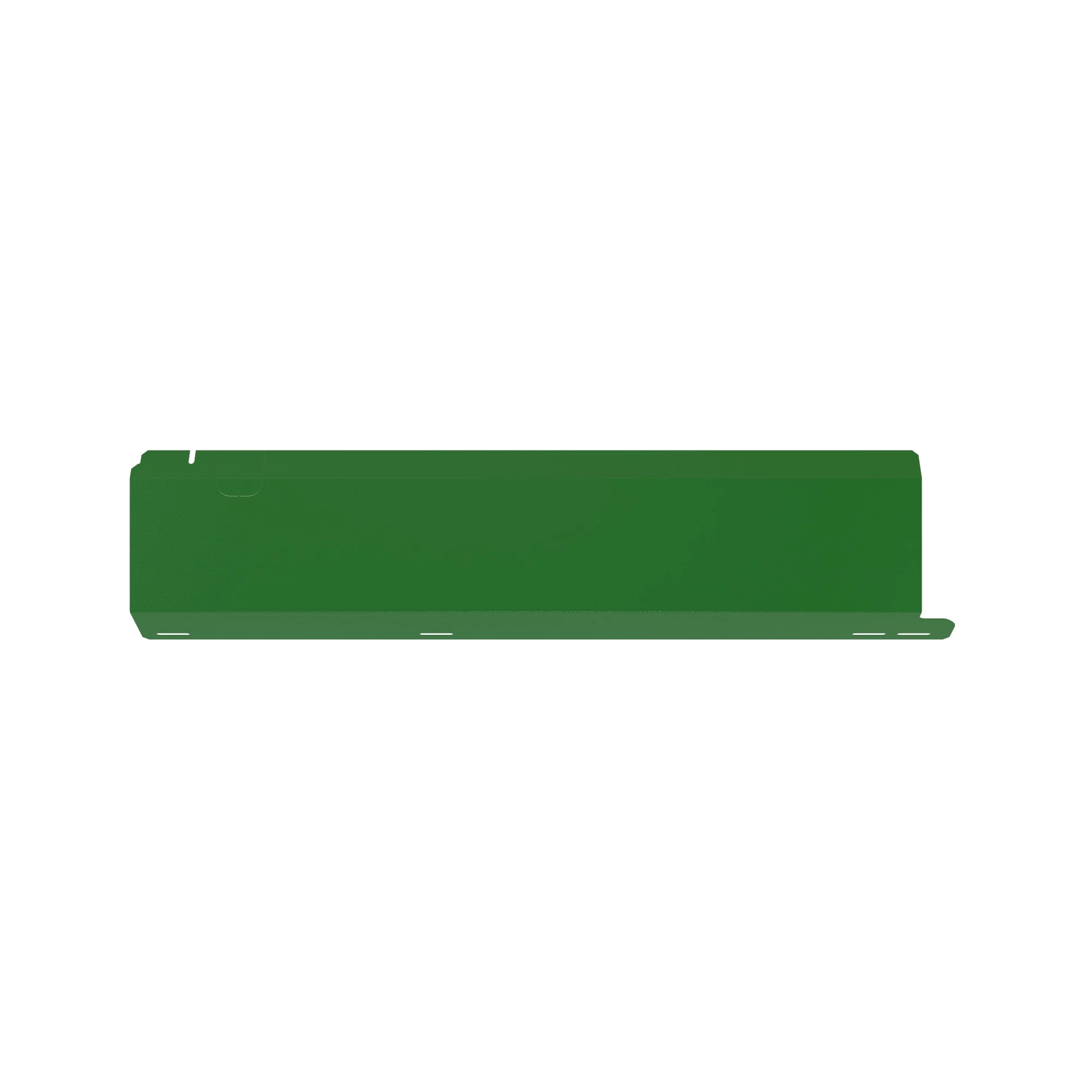

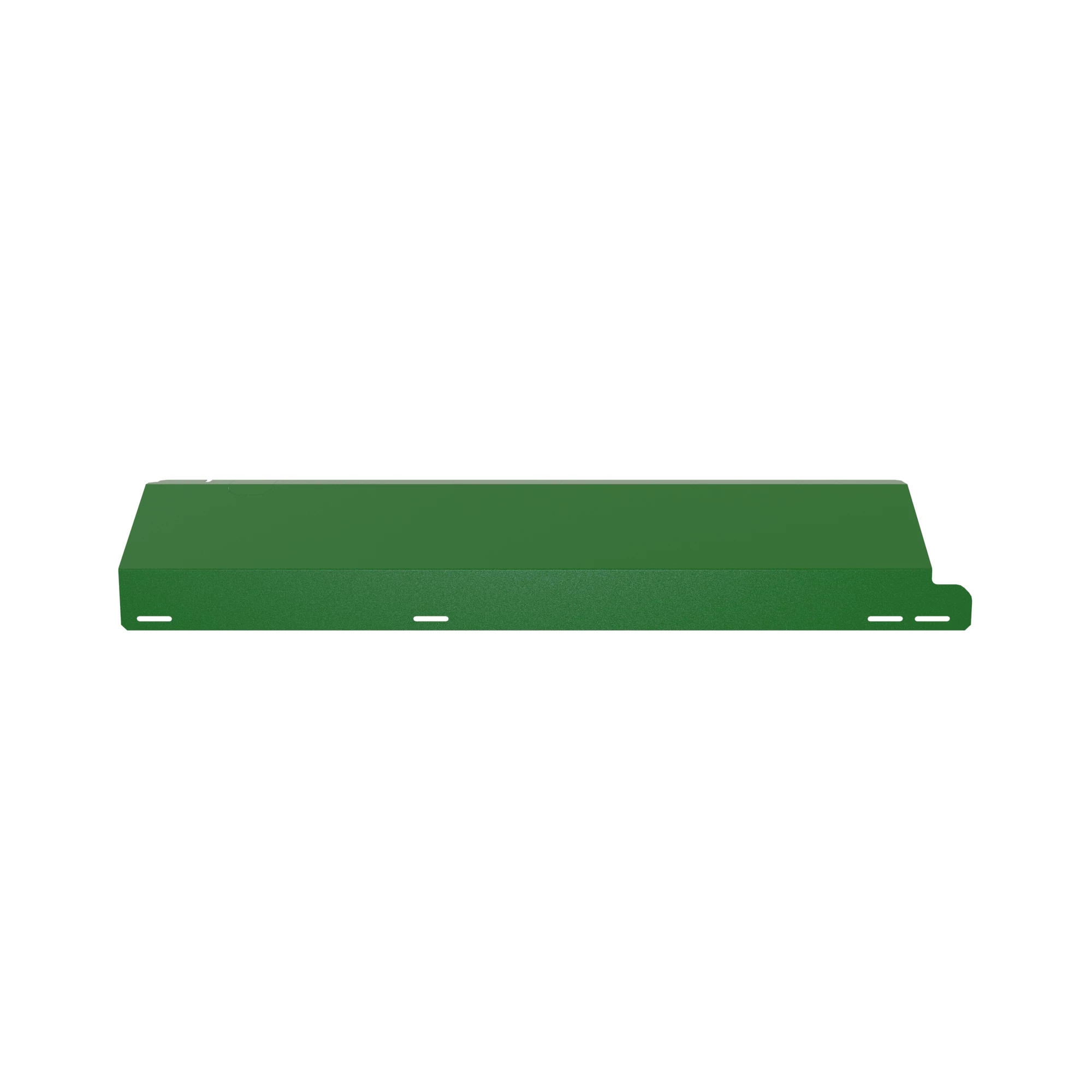

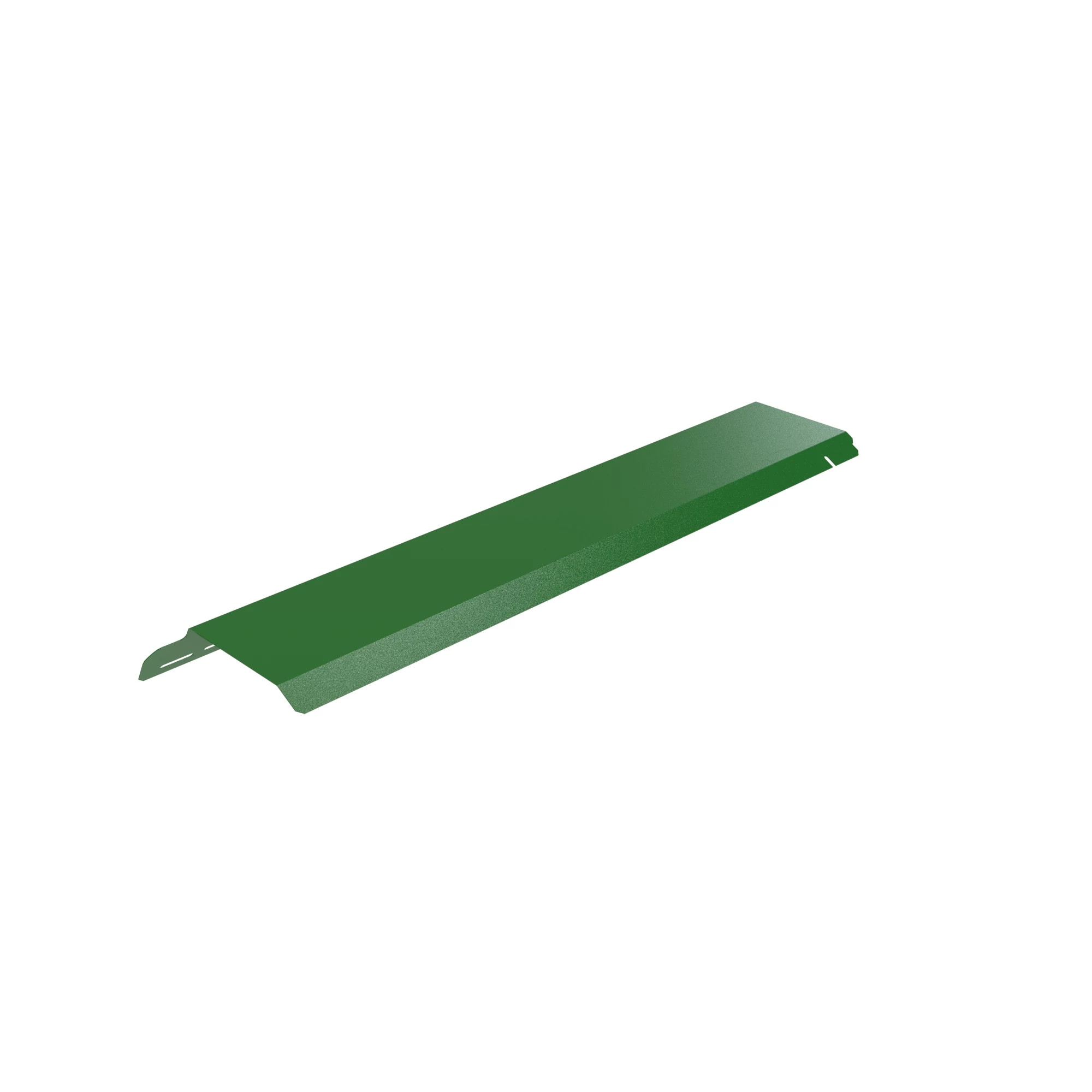

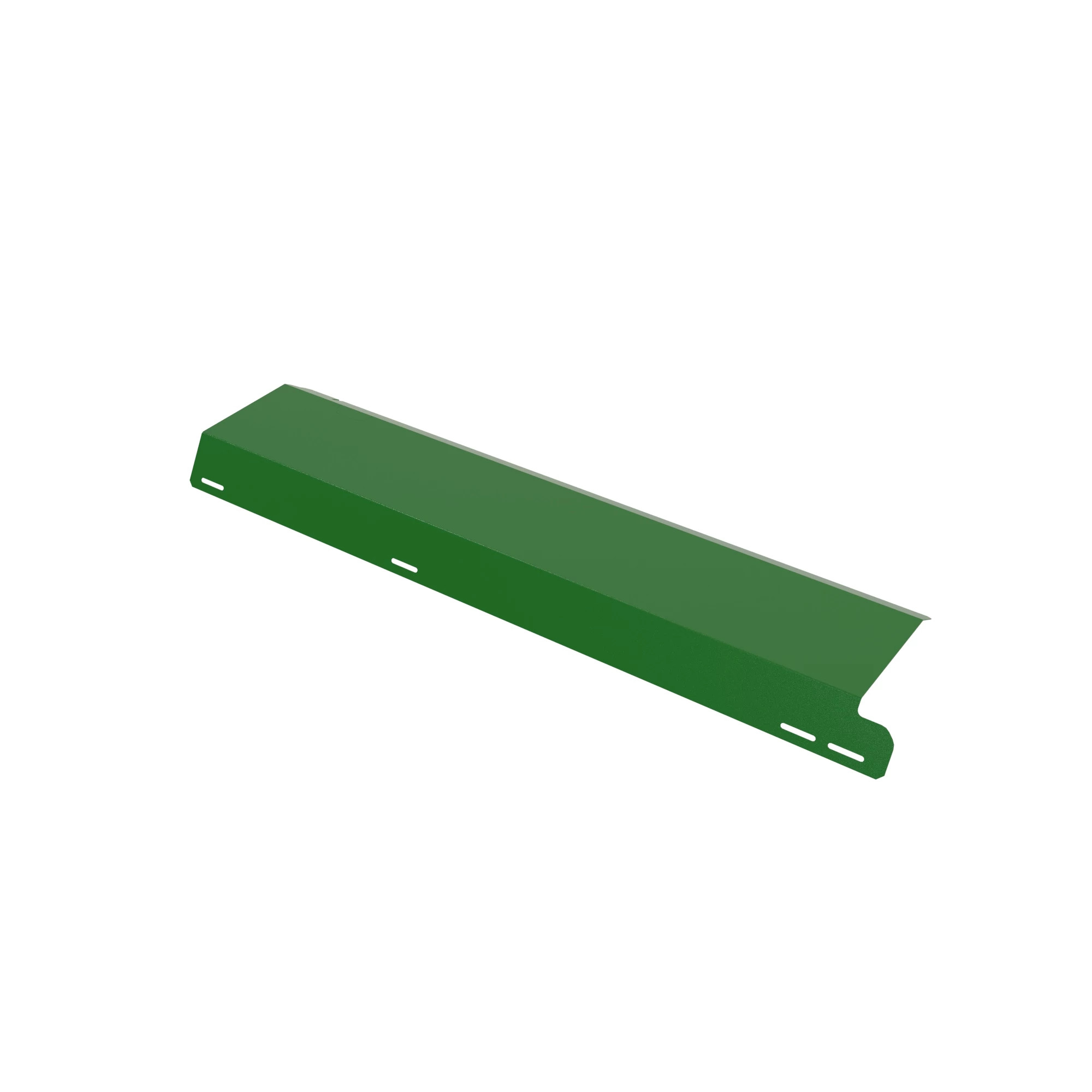

HXE71020: Hydraulic Line Shield, Left Side

Part Number: HXE71020

Parts Tier: Original

John Deere hydraulic line shield left side protects hydraulic lines by covering exposed areas on the left side of compatible equipment
Coverage provided by this shield helps protect hydraulic lines from debris and external impact during operation
Impact-resistant build allows this shield to absorb and deflect force, supporting durability in demanding applications
Left-side mounting fit ensures this shield aligns with designated installation points for reliable coverage
Sheet metal coverage reduces exposure of hydraulic lines to potential damage, supporting long-term component integrity

Product Dimensions

Weight

14 lb

Height

3.7 in

Width

13.5 in

Length

57 in

For the most accurate fit and confidence, please select the equipment you are shopping for. Parts can be used across a number of different models, the models shown here indicate general fit of the part.

S5 500
S7 600
S7 700
S7 800
S7 850
S7 900
S540
S550
S650
S660
S660 PRECISION UPGRADES
S670
S670 PRECISION UPGRADES
S670H
S680
S680 PRECISION UPGRADES
S680H
S685
S685H
S690
S690 PRECISION UPGRADES
S690H
S760
S760 PRECISION UPGRADES
S770
S770 PRECISION UPGRADES
S780
S780 PRECISION UPGRADES
S785
S790
S790 PRECISION UPGRADES
