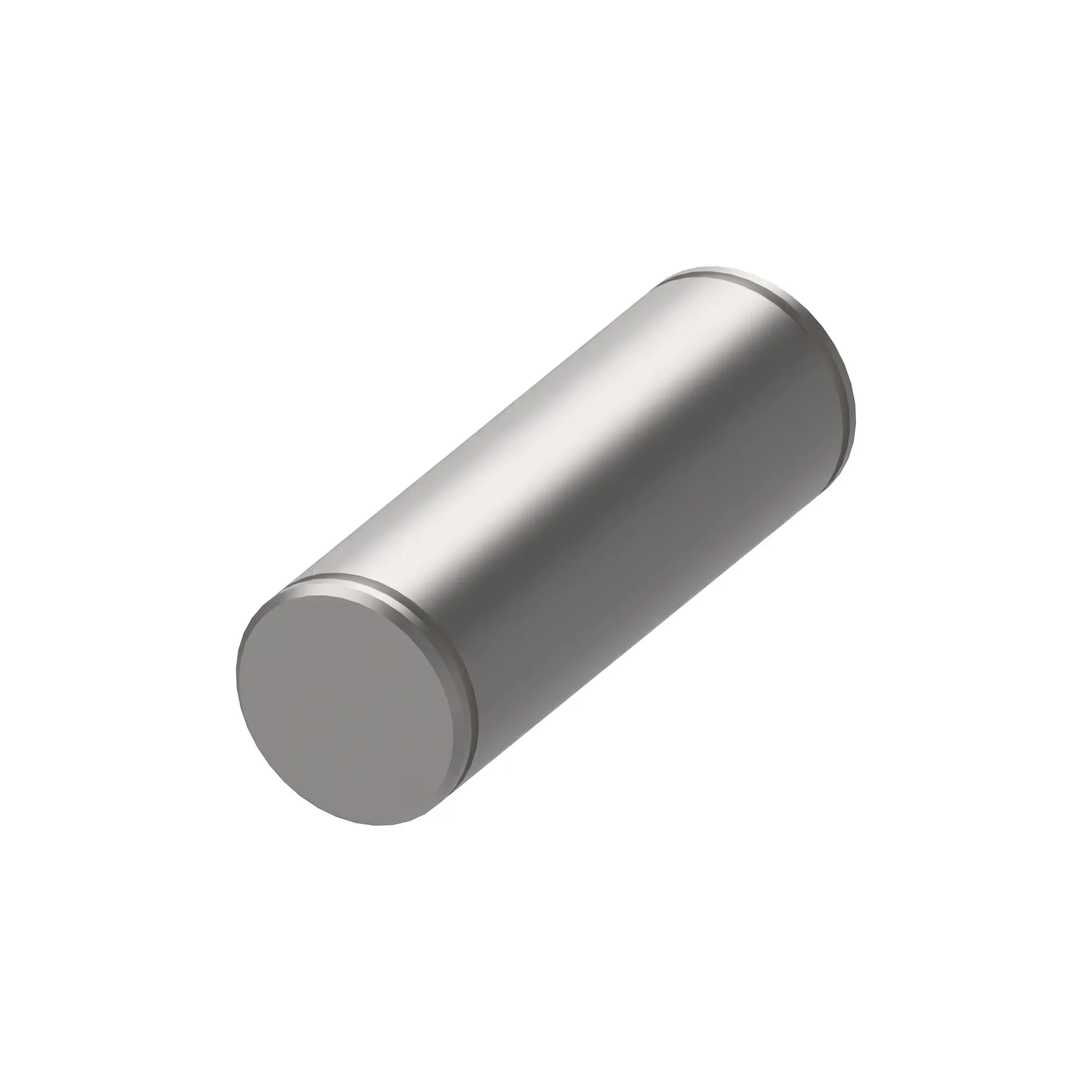

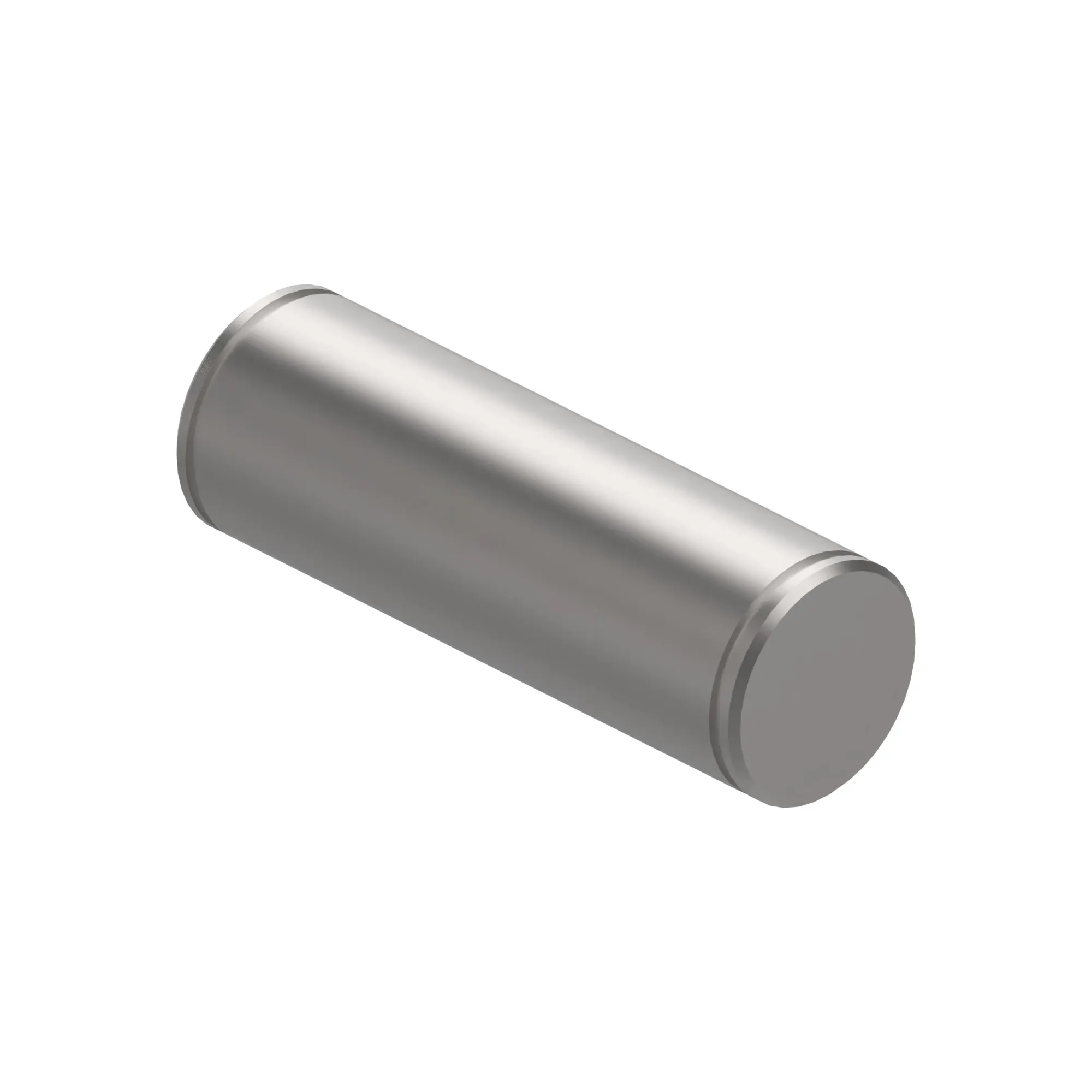

HXE40603: Steel Circular Groove Pin

Part Number: HXE40603

Parts Tier: Original

Durable pin designed for secure fastening and alignment in various machinery applications
Key specifications: 30 mm diameter, 90 mm length, groove located at 4 mm, 28.60 mm groove diameter, and 1.60 mm groove width
Additional specs: 45-degree chamfer, 82 mm distance between grooves, ensuring precise fit and function
Made from high quality general steel for enhanced strength and durability
Finished with a zinc coating for superior corrosion resistance and longevity

Specifications

Chamfer Degree

Length

90 mm

Material

Steel

Body Diameter

30 mm

For the most accurate fit and confidence, please select the equipment you are shopping for. Parts can be used across a number of different models, the models shown here indicate general fit of the part.

S670
S670 PRECISION UPGRADES
S670H
S680
S680 PRECISION UPGRADES
S680H
S685
S685H
S690
S690 PRECISION UPGRADES
S690H
S770
S770 PRECISION UPGRADES
S780
S780 PRECISION UPGRADES
S785
S790
S790 PRECISION UPGRADES
T550
T560
T660
T670
W540
W550
W650
W660
