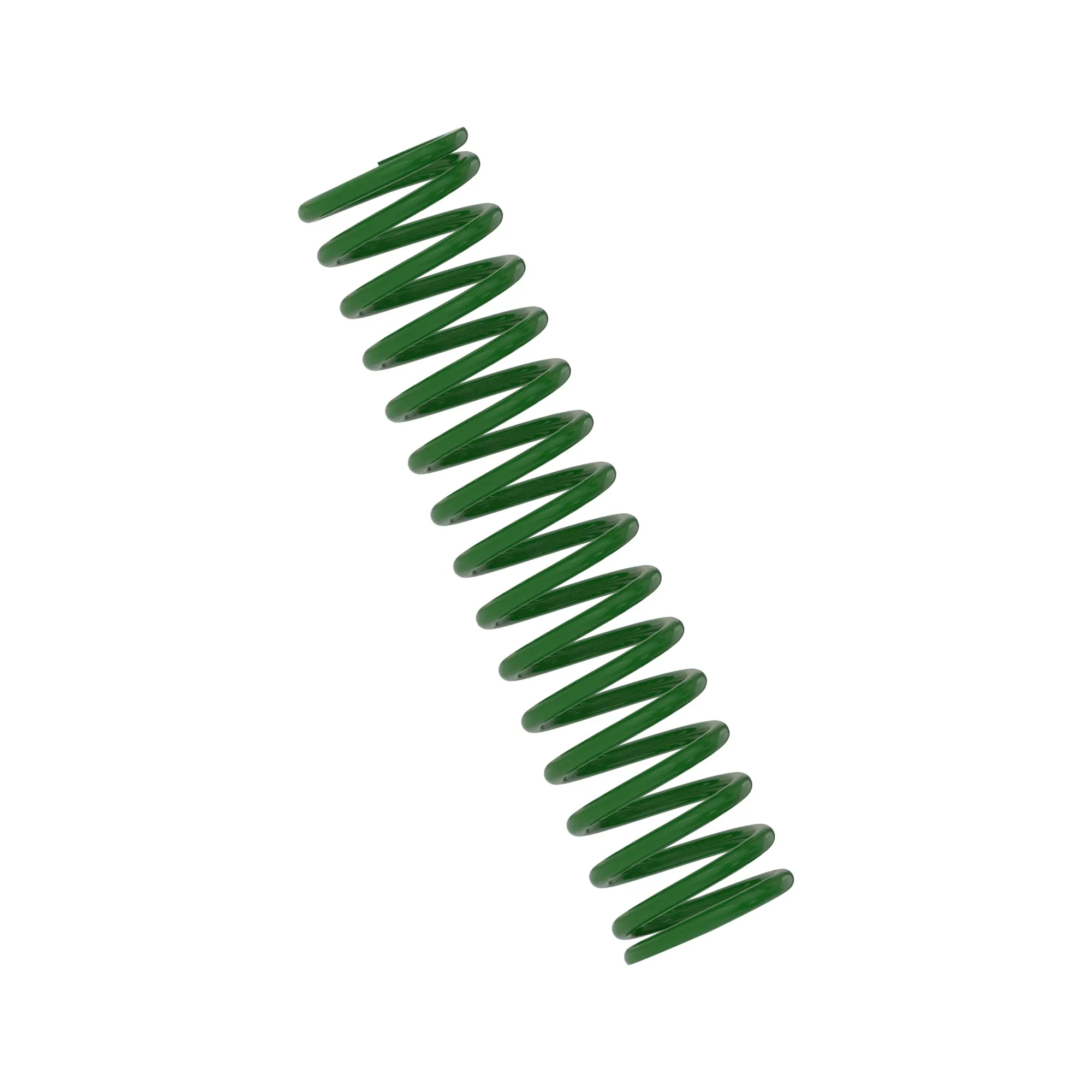

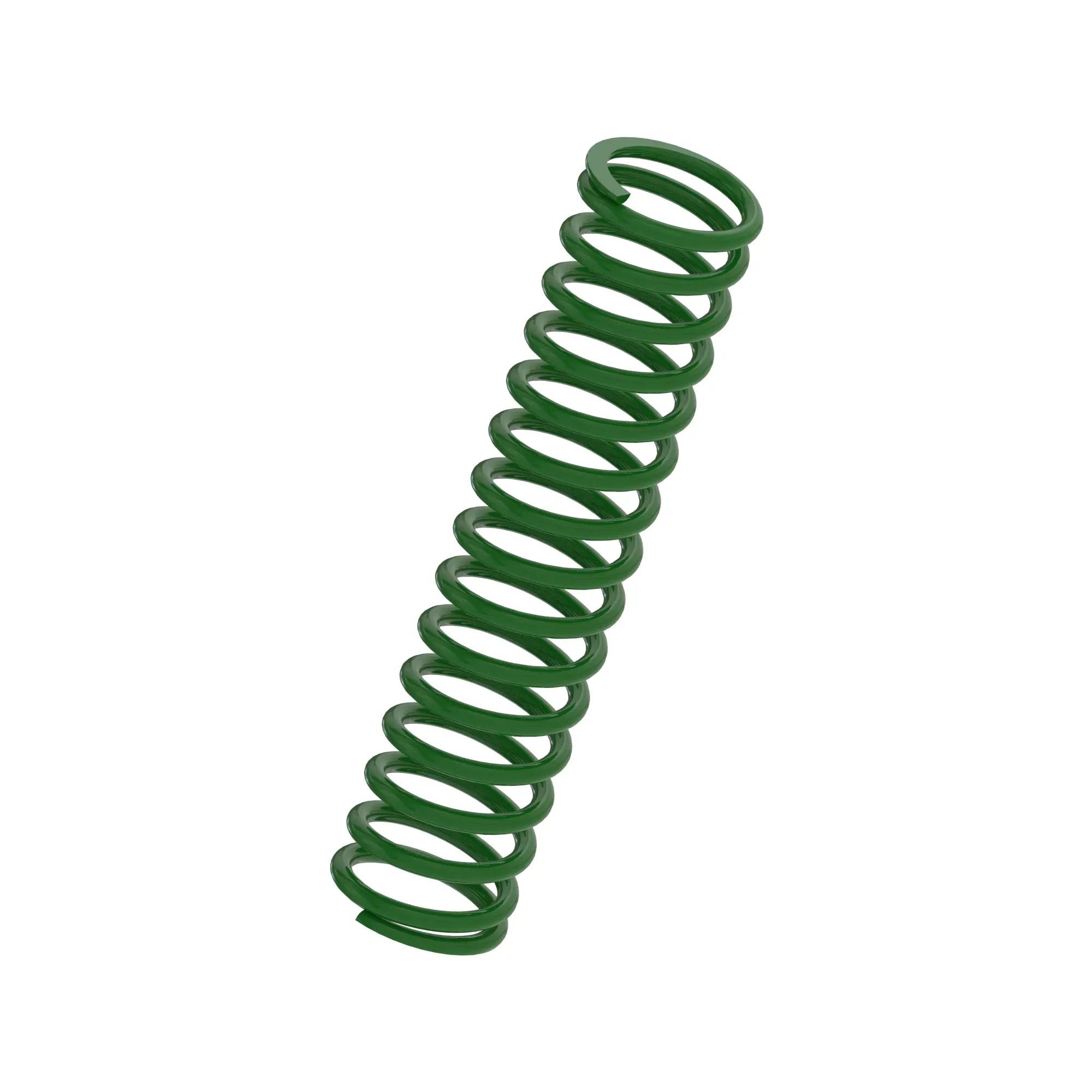

HXE38002: Compression Spring

Part Number: HXE38002

Parts Tier: Original

This compression spring is designed to absorb and store energy, providing reliable performance in various mechanical applications
Features a wire diameter of 3.43 mm and an outer diameter of 23.04 mm, ideal for use in systems requiring precise load handling
Offers a spring rate of 5.28 mm and a free length of 132.10 mm, ensuring optimal compression and extension for diverse applications
Made from high quality steel, ensuring durability and long-lasting performance
Finished with a painted coating for enhanced protection against corrosion and wear

Product Dimensions

Weight

0.21 lb

Height

1.2 in

Length

5.2 in

Specifications

Spring Rate

5.28 N/mm

Wire Diameter

3.43 mm

Total Coils

Spring Type

Compression Spring

Material

Steel Alloy

Outside Diameter

23.04 mm

Free Length

132.1 mm

Solid Length

54.88 mm

For the most accurate fit and confidence, please select the equipment you are shopping for. Parts can be used across a number of different models, the models shown here indicate general fit of the part.

S4 300
S4 400
S430
S440
S650
S660
S660 PRECISION UPGRADES
S670
S670 PRECISION UPGRADES
S670H
S680
S680 PRECISION UPGRADES
S680H
S685
S685H
S690
S690 PRECISION UPGRADES
S690H
S760
S760 PRECISION UPGRADES
S770
S770 PRECISION UPGRADES
S780
S780 PRECISION UPGRADES
S785
S790
S790 PRECISION UPGRADES
