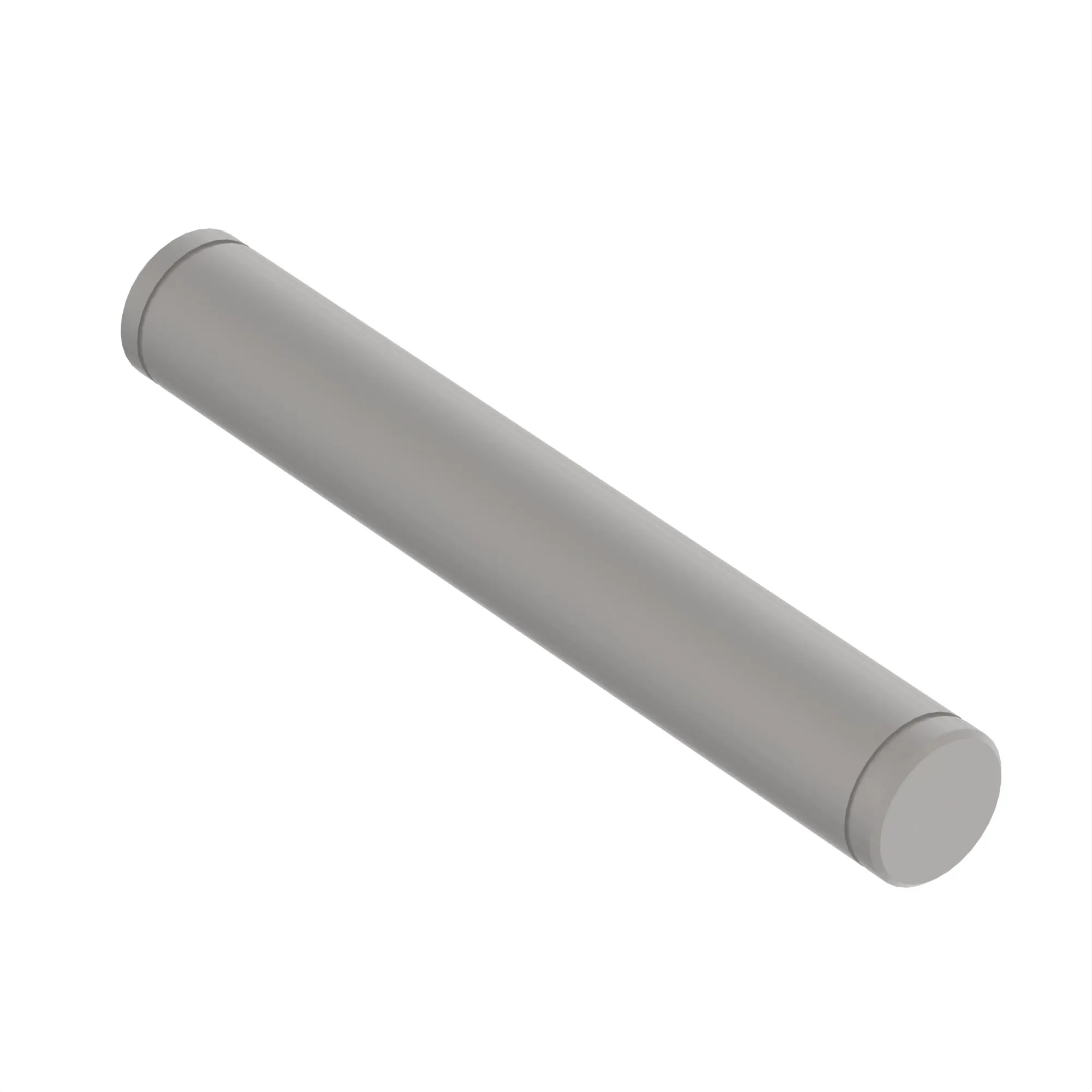

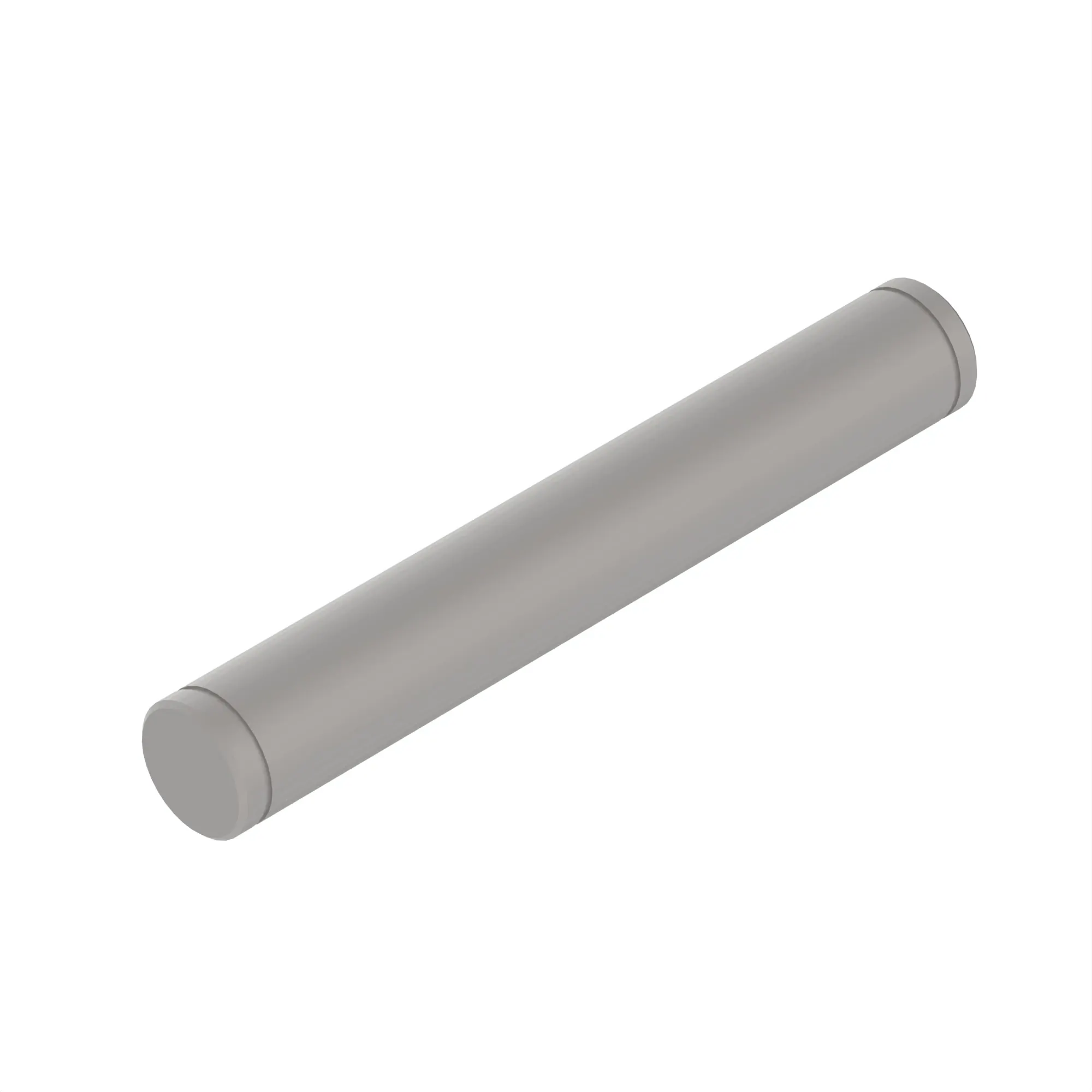

HXE27188: Circular Groove Pin

Part Number: HXE27188

Parts Tier: Original

Precision-engineered pin designed for secure fastening and alignment in various machinery applications
Key specs: 25 mm diameter, 170 mm length, 6.30 mm groove location, 1.30 mm groove width, 23.90 mm groove diameter
Additional specs: 157.40 mm between grooves, 45-degree chamfer for easy insertion and removal
Made from high-quality general steel for durability and strength
Zinc finish for enhanced corrosion resistance and longevity

Product Dimensions

Weight

1.45 lb

Height

1 in

Width

3 in

Length

9 in

For the most accurate fit and confidence, please select the equipment you are shopping for. Parts can be used across a number of different models, the models shown here indicate general fit of the part.

S670
S670 PRECISION UPGRADES
S670H
S680
S680 PRECISION UPGRADES
S680H
S685
S685H
S690
S690 PRECISION UPGRADES
S690H
S770
S770 PRECISION UPGRADES
S780
S780 PRECISION UPGRADES
S785
S790
S790 PRECISION UPGRADES
T550
T560
T660
T670
W540
W550
W650
W660
