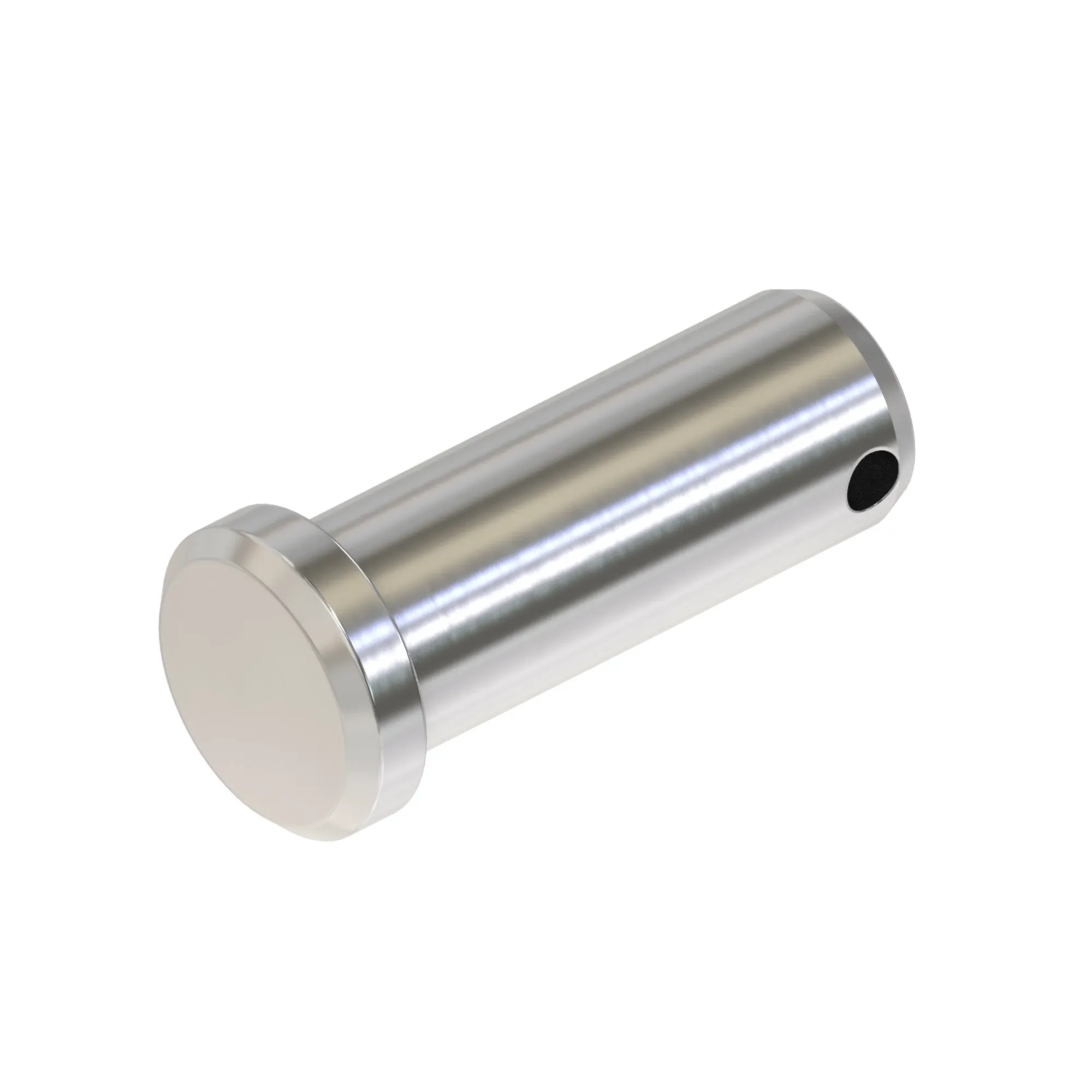

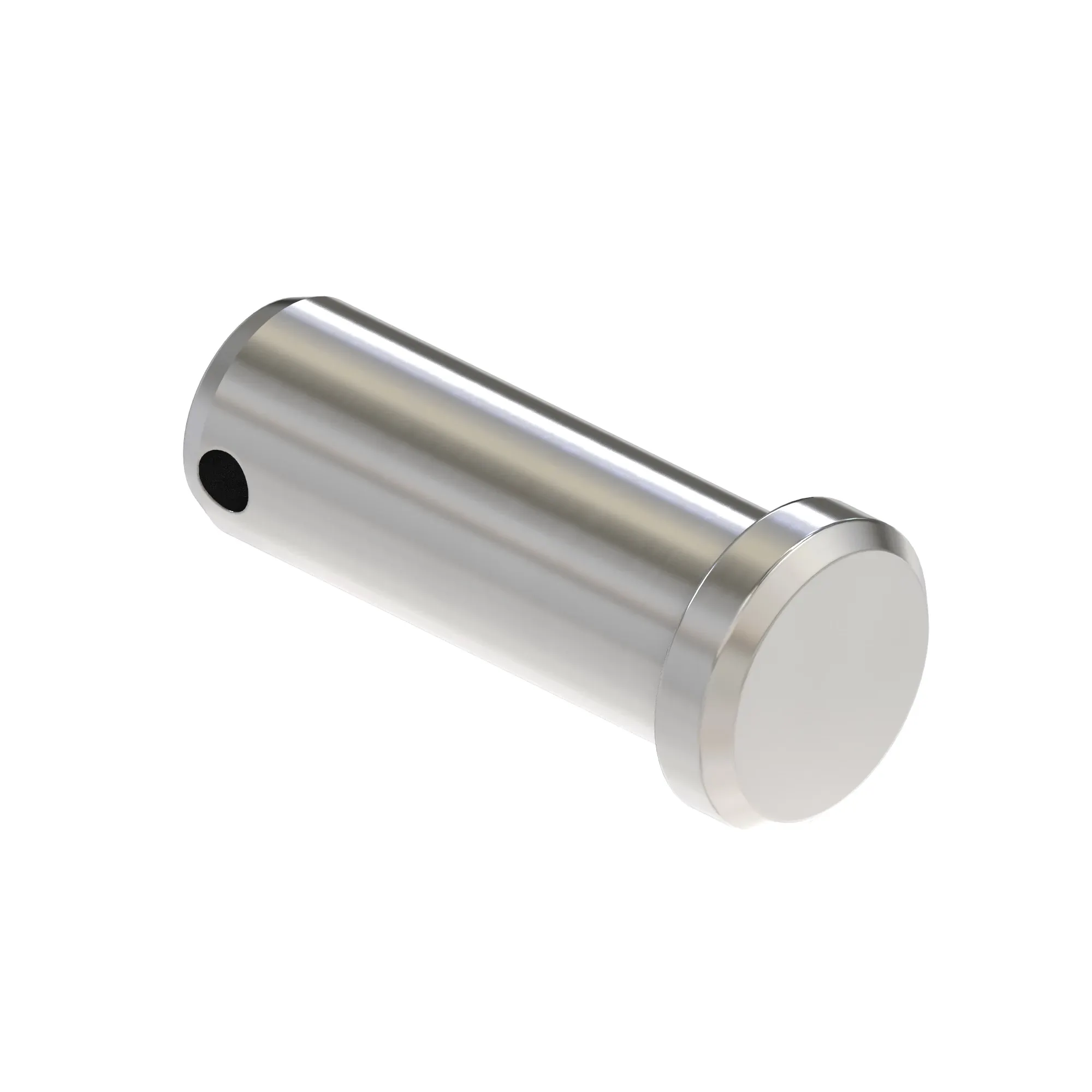

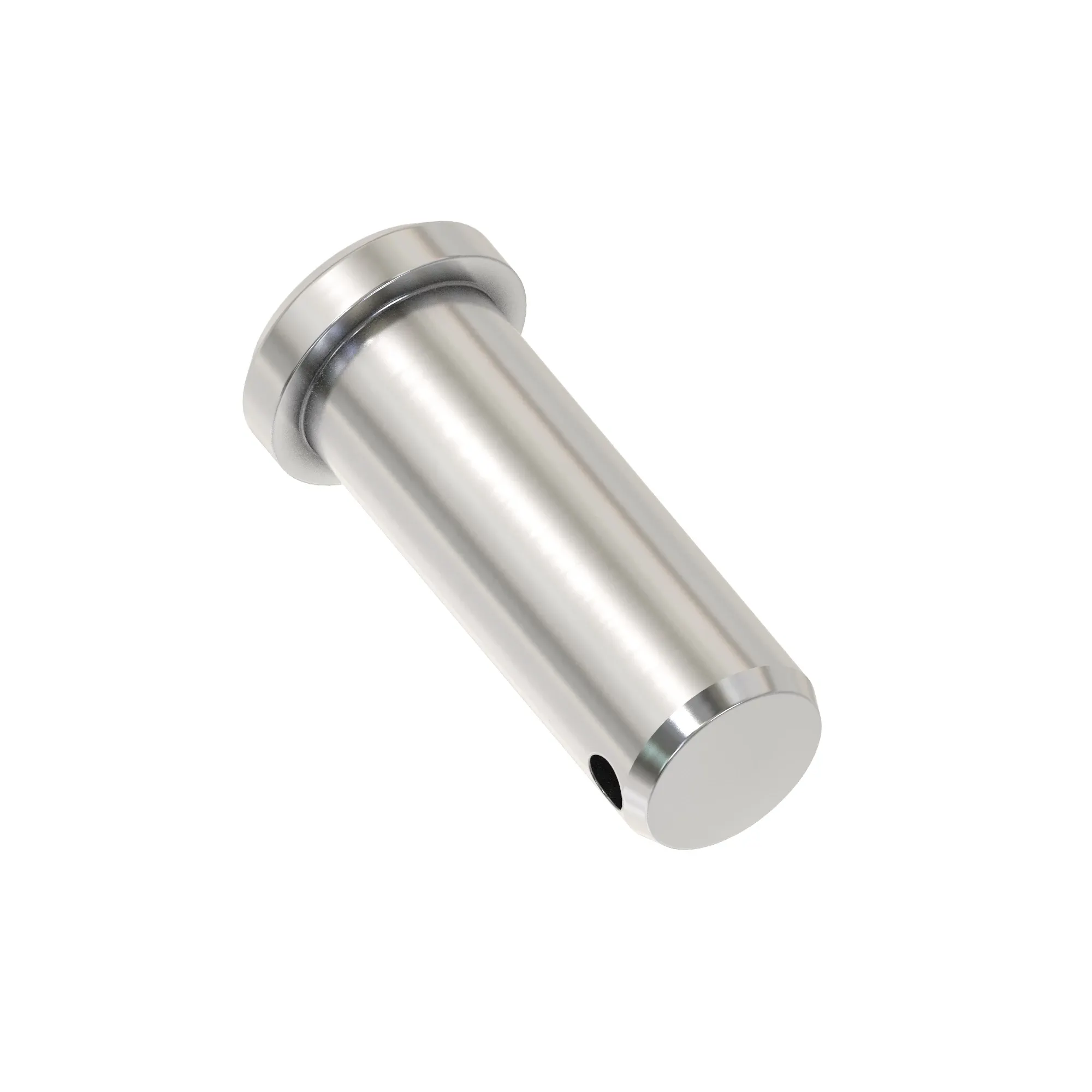

HXE22418: Cylinder Rear Pin Fastener

Part Number: HXE22418

Parts Tier: Original

Designed for secure fastening, this rear pin fastener is ideal for use in various machinery applications, ensuring stability and reliability
Features a 25 mm diameter and 85 mm length, with a 5 mm hole diameter, perfect for precise and secure connections in mechanical assemblies
Additional specifications include a head diameter of 31.40 mm and a head height of 5 mm, providing robust support and easy installation
Made from high-quality alloy steel, ensuring durability and strength for demanding applications
Finished with heat treatment and plating for enhanced resistance to wear and corrosion

Product Dimensions

Weight

0.76 lb

Height

1.25 in

Length

3.5 in

Specifications

Thread Size

0.984 in

For the most accurate fit and confidence, please select the equipment you are shopping for. Parts can be used across a number of different models, the models shown here indicate general fit of the part.

9670 STS
9770 STS
9870 STS
S7 600
S7 700
S7 800
S7 850
S7 900
S660
S660 PRECISION UPGRADES
S670
S670 PRECISION UPGRADES
S670H
S680
S680 PRECISION UPGRADES
S680H
S685
S685H
S690
S690 PRECISION UPGRADES
S690H
S760
S760 PRECISION UPGRADES
S770
S770 PRECISION UPGRADES
S780
S780 PRECISION UPGRADES
S785
S790
S790 PRECISION UPGRADES
T5 400
T5 500
T5 600
T5 700
T6 500
T6 600
T6 700
T6 800
T6 PRECISION UPGRADES
X9 1000
X9 1000 PRECISION UPGRADES
X9 1100
X9 1100 PRECISION UPGRADES
