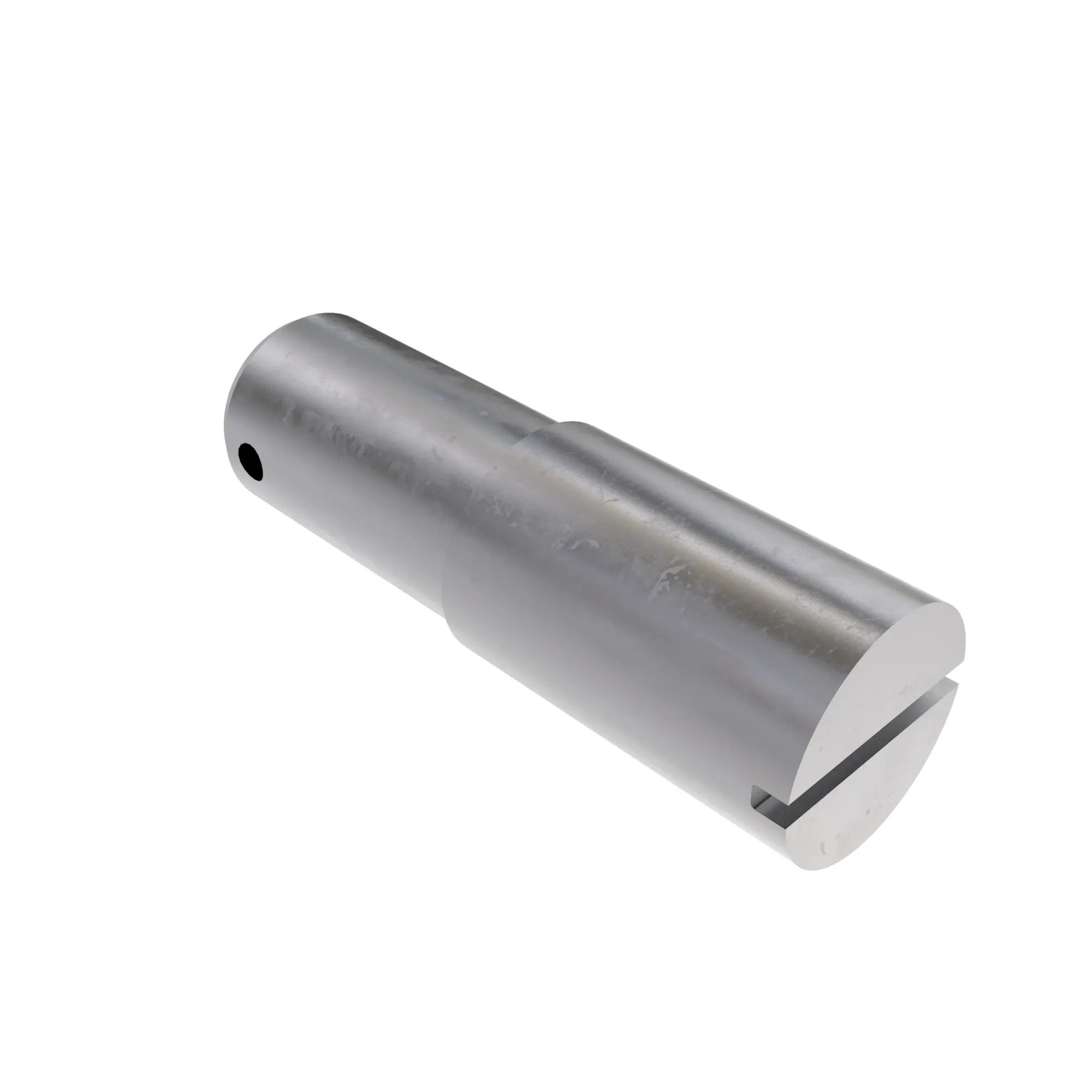

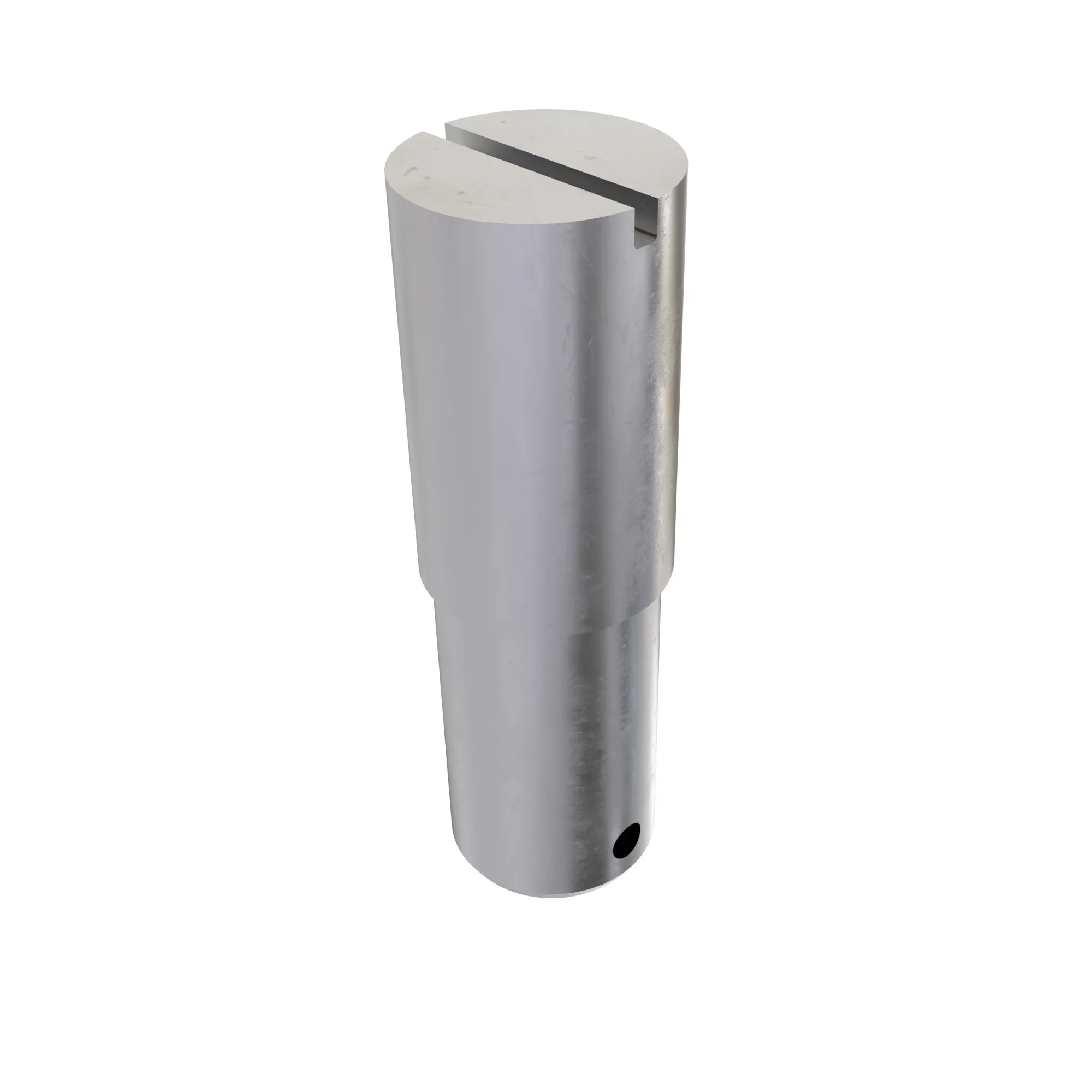

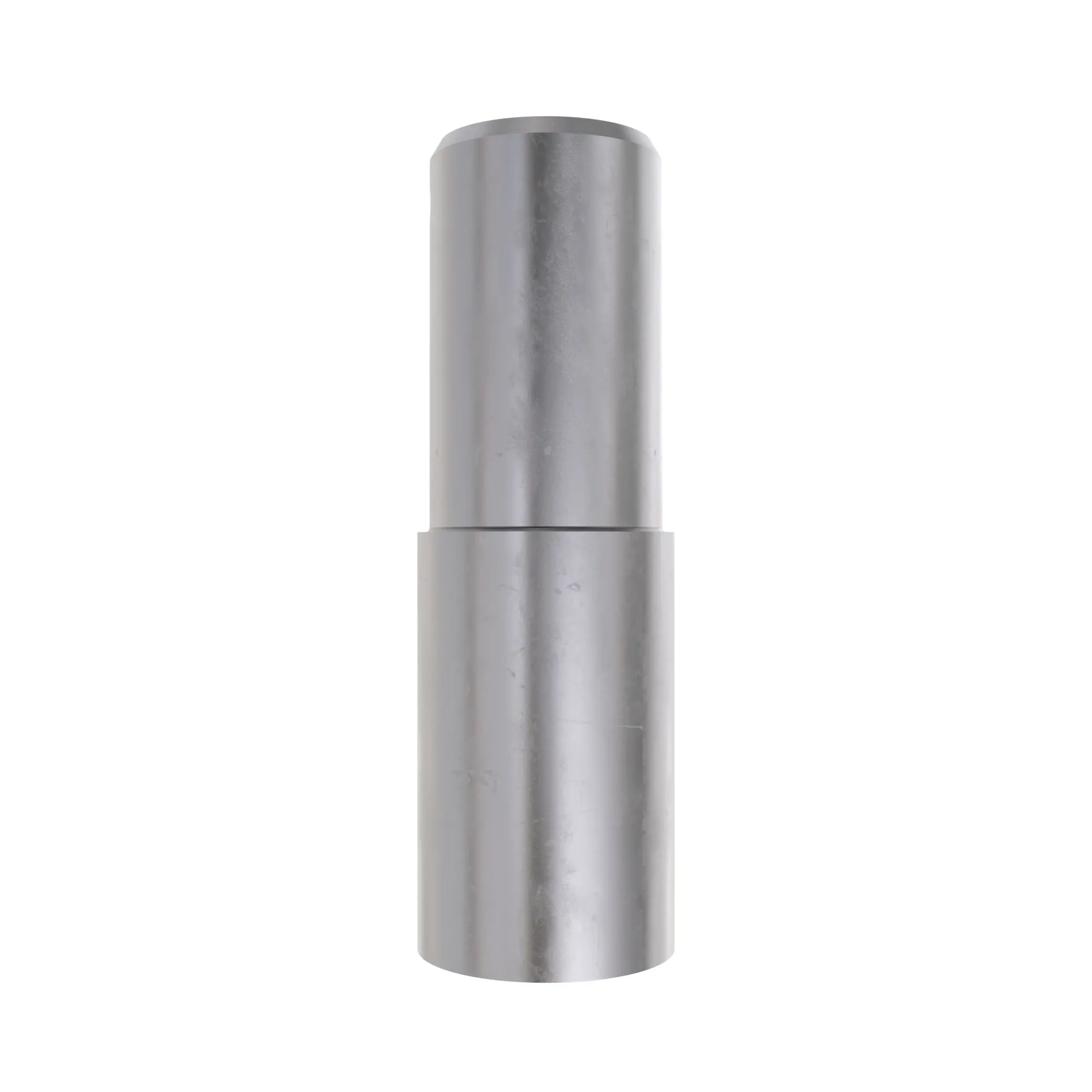

HXE18847: Cylinder Front Stud, 1" X 3-1/2"

Part Number: HXE18847

Parts Tier: Original

Designed for securing components, this front stud is essential for maintaining stability and alignment in machinery applications
Features a total length of 89 mm (3 1/2 in) with a UNF pitch, making it suitable for precise and secure fastening tasks
Includes a thread size of 25.40 mm (1.0 in) and a body length of 46 mm (1.81 in) for enhanced durability and performance
Made from high quality alloy steel for general use, ensuring strength and longevity in demanding environments
Comes with a heat treated and plated finish for added resistance to wear and corrosion

Product Dimensions

Weight

0.85 lb

Height

1.1 in

Length

3.5 in

Specifications

Thread Size or Diameter

25 mm

For the most accurate fit and confidence, please select the equipment you are shopping for. Parts can be used across a number of different models, the models shown here indicate general fit of the part.

9670 STS
9770 STS
9870 STS
S7 600
S7 700
S7 800
S7 900
S660
S660 PRECISION UPGRADES
S670
S670 PRECISION UPGRADES
S670H
S680
S680 PRECISION UPGRADES
S680H
S685
S685H
S690
S690 PRECISION UPGRADES
S690H
S760
S760 PRECISION UPGRADES
S770
S770 PRECISION UPGRADES
S780
S780 PRECISION UPGRADES
S785
S790
S790 PRECISION UPGRADES
