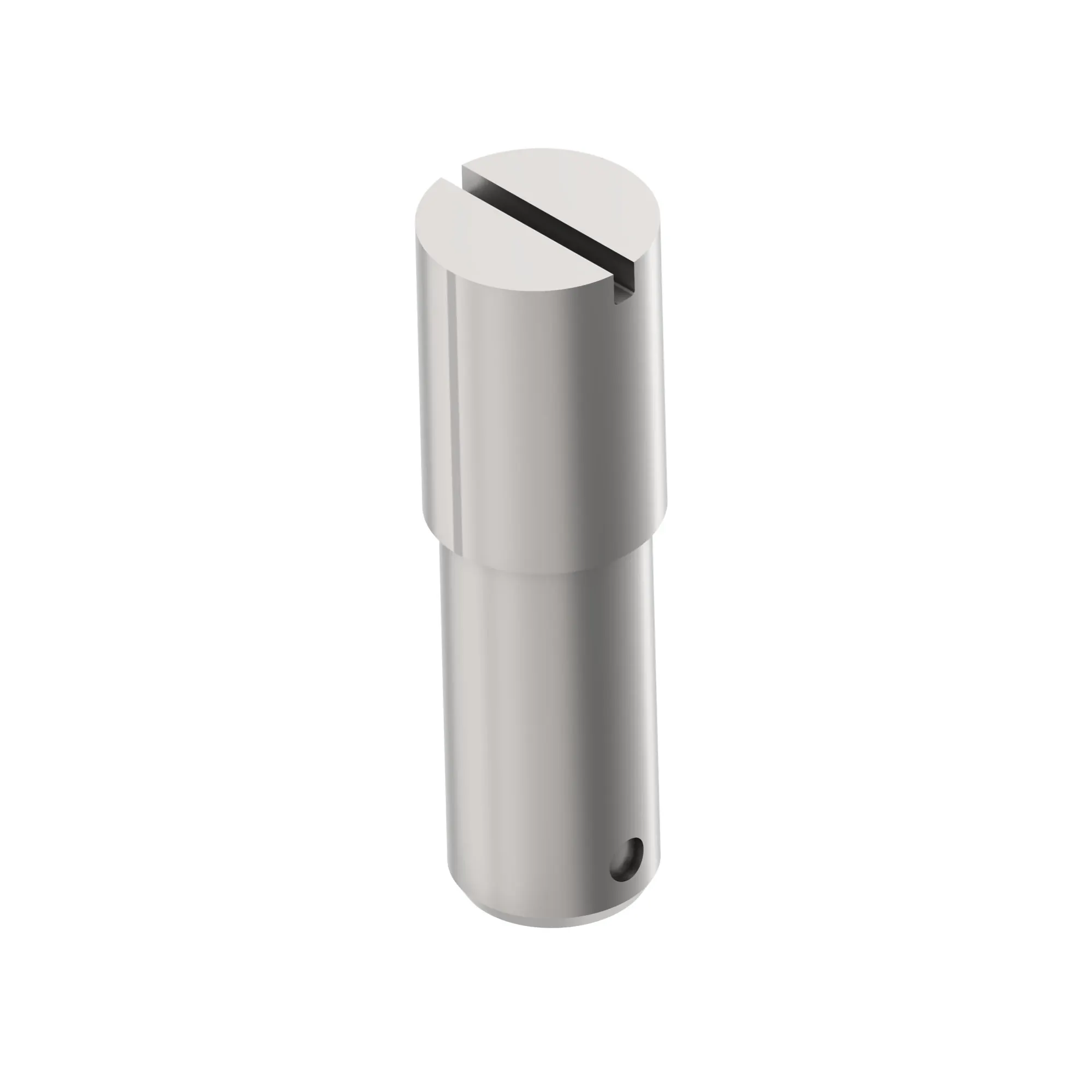

HXE18846: Cylinder Front Stud, 7/8" X 3.27"

Part Number: HXE18846

Parts Tier: Original

This product is a Cylinder Front Stud designed for securing components in mechanical assemblies
Features a total length of 83 mm (3.27 in) and a UNF pitch, ideal for precise mechanical applications
Includes a thread size of 22.23 mm (7/8 in) and a body length of 36 mm (1.42 in) for robust fitting
Made from high quality alloy steel for enhanced durability and performance
Finished with heat treatment and plating for increased resistance to wear and corrosion

Product Dimensions

Weight

0.59 lb

Height

1.1 in

Length

3.3 in

Specifications

Thread Size or Diameter

22 mm

For the most accurate fit and confidence, please select the equipment you are shopping for. Parts can be used across a number of different models, the models shown here indicate general fit of the part.

9670 STS
9770 STS
9870 STS
S7 600
S7 700
S7 800
S7 850
S7 900
S660
S660 PRECISION UPGRADES
S670
S670 PRECISION UPGRADES
S670H
S680
S680 PRECISION UPGRADES
S680H
S685
S685H
S690
S690 PRECISION UPGRADES
S690H
S760
S760 PRECISION UPGRADES
S770
S770 PRECISION UPGRADES
S780
S780 PRECISION UPGRADES
S785
S790
S790 PRECISION UPGRADES
