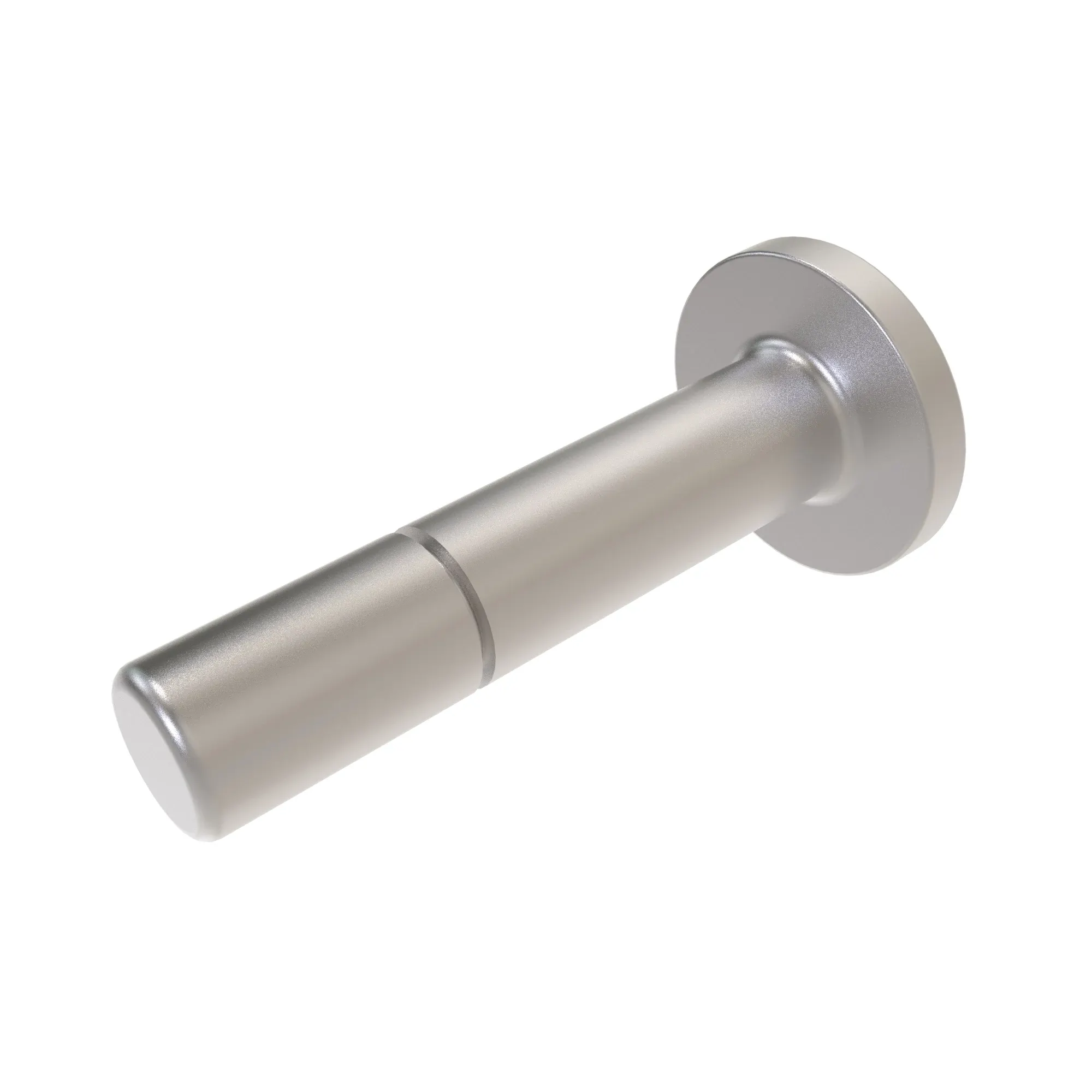

HXE180296: Guide Pin

Part Number: HXE180296

Parts Tier: Original

High-quality pin designed for secure fastening and alignment in various applications
Key specs: 8.90 mm diameter, 41 mm length, 25.23 mm head to groove, 15 mm groove location, 6.70 mm groove diameter
Additional specs: 0.77 mm groove width, 0.5 chamfer degree for precise fit and function
Made from high quality general steel for durability and strength
Zinc finish for enhanced corrosion resistance and longevity

Product Dimensions

Weight

0.06 lb

Height

0.8 in

Length

1.8 in
