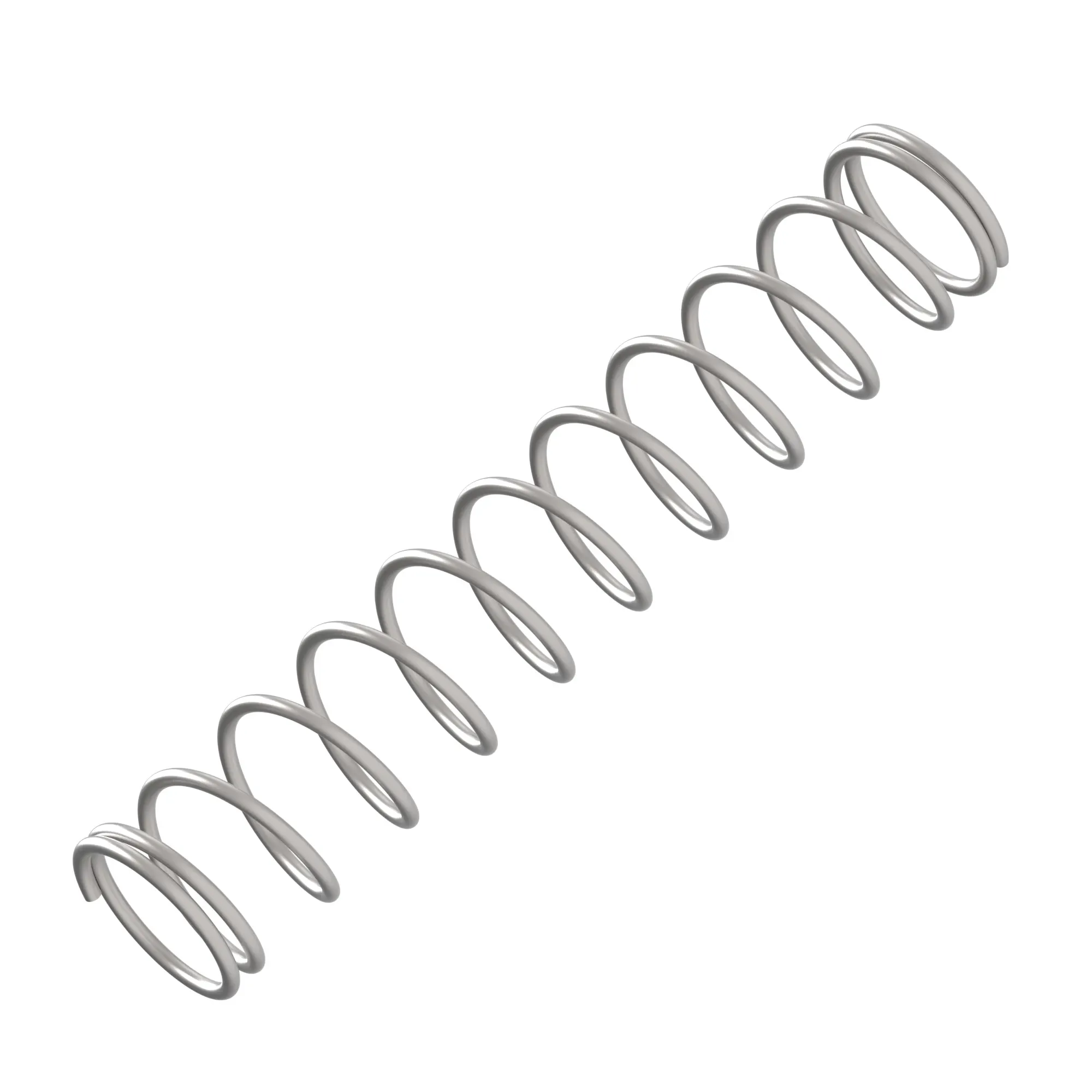

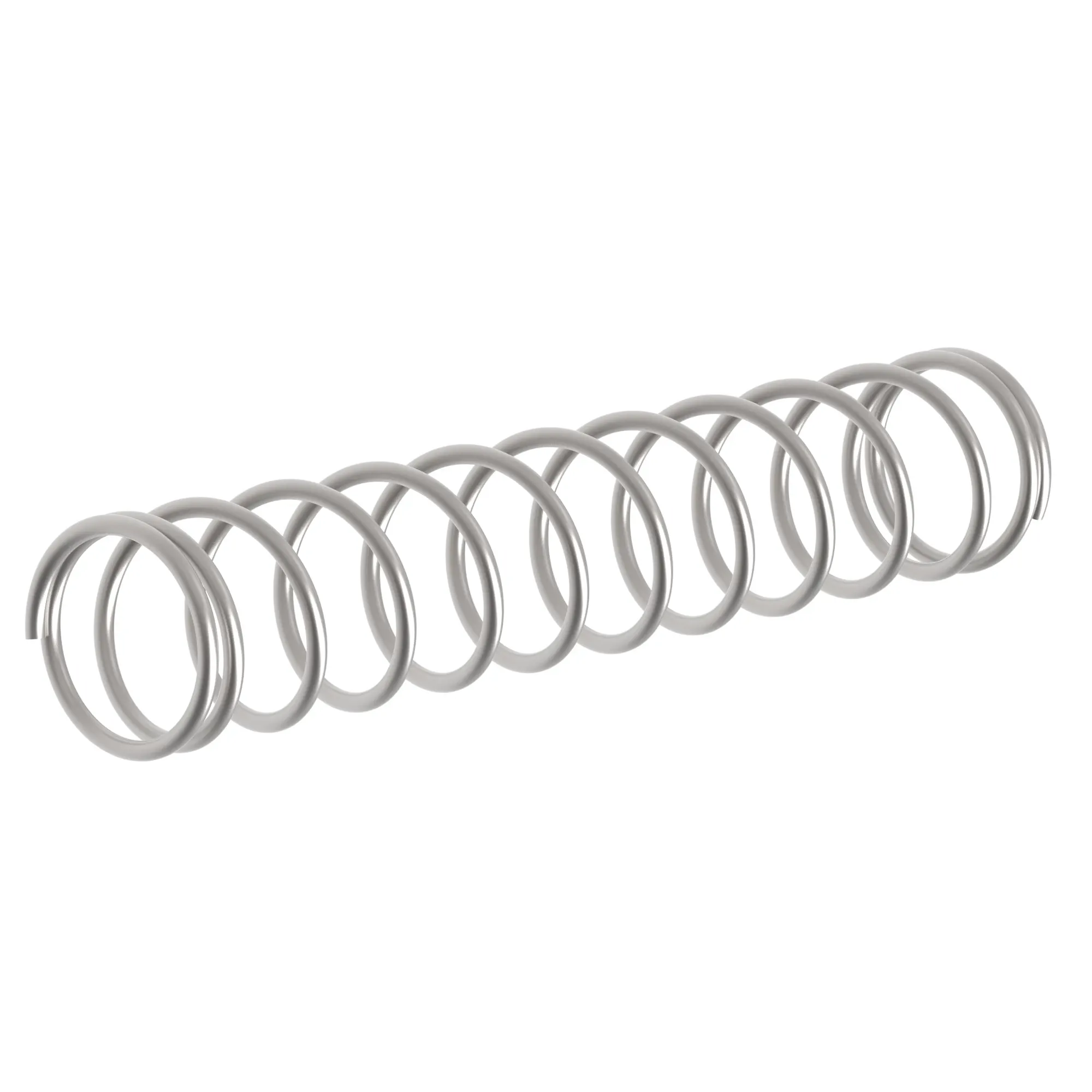

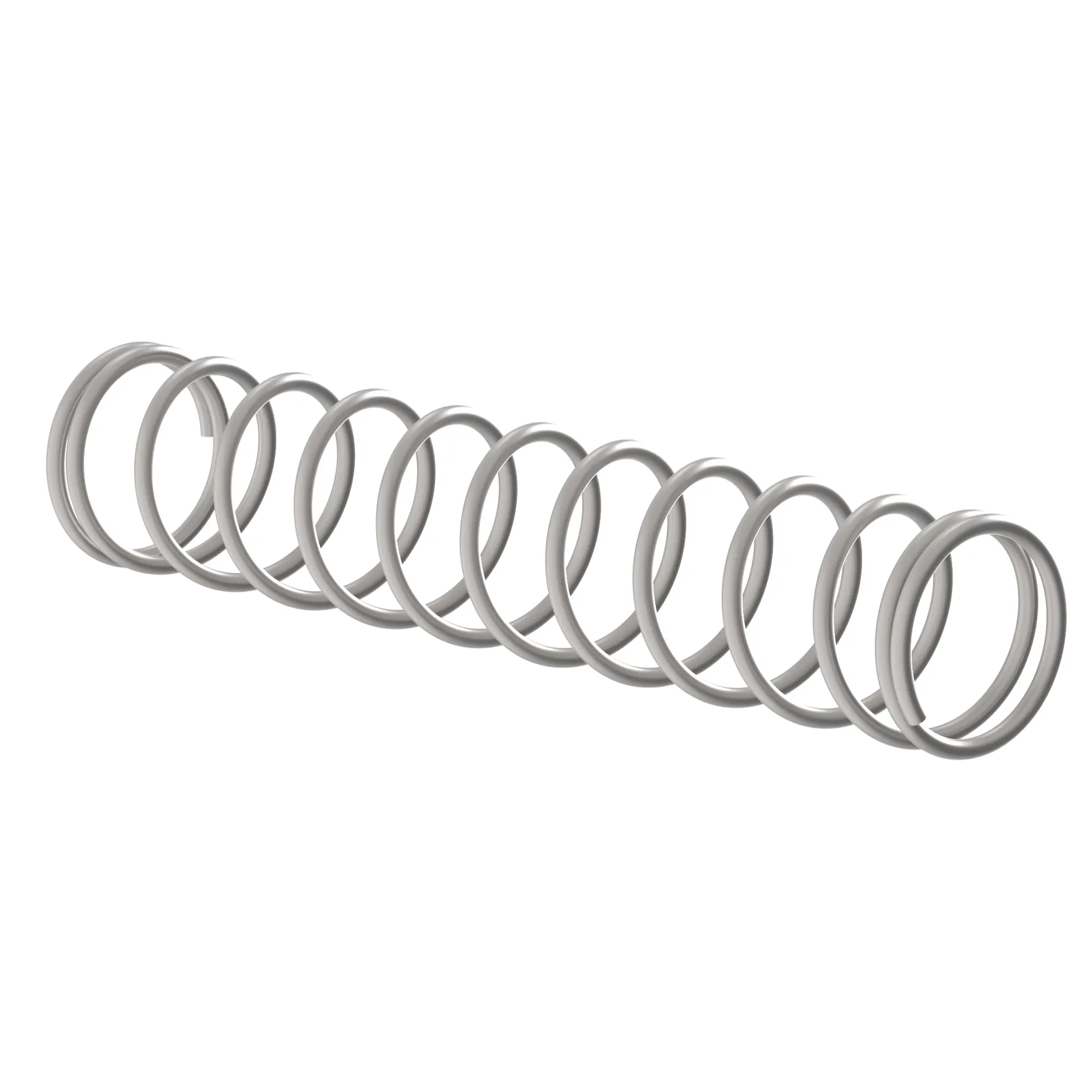

HXE147425: Compression Spring

Part Number: HXE147425

Parts Tier: Original

Compression spring designed to absorb and store energy, providing resistance and returning to its original shape when the load is removed
Features a wire diameter of 1.45 mm and an outer diameter of 17.25 mm, ideal for applications requiring precise tension and compression
Offers a free length of 93.25 mm and a solid length of 19.70 mm, ensuring optimal performance in various mechanical assemblies
Made from high quality steel for durability and reliability in demanding environments
Finished with a zinc coating to enhance corrosion resistance and extend the lifespan of the spring

Product Dimensions

Weight

0.02 lb

Height

0.8 in

Length

3.7 in

Specifications

Spring Rate

1 N/mm

Wire Diameter

1.45 mm

Total Coils

12.59

Spring Type

Compression Spring

Material

Stainless Steel

Outside Diameter

17.25 mm

Free Length

93.25 mm

Solid Length

19.7 mm

For the most accurate fit and confidence, please select the equipment you are shopping for. Parts can be used across a number of different models, the models shown here indicate general fit of the part.

C6R
C6R PRECISION UPGRADES
C8R
C8R PRECISION UPGRADES
C12F
C12F PRECISION UPGRADES
C12R
C12R PRECISION UPGRADES
C16F
C16F PRECISION UPGRADES
C16R
C16R PRECISION UPGRADES
C18F
C18F PRECISION UPGRADES
C18R
C18R PRECISION UPGRADES
CF 8
CF 12
CF 16
CF 18
CR 6
CR 8
CR 12
CR 16
CR 18
