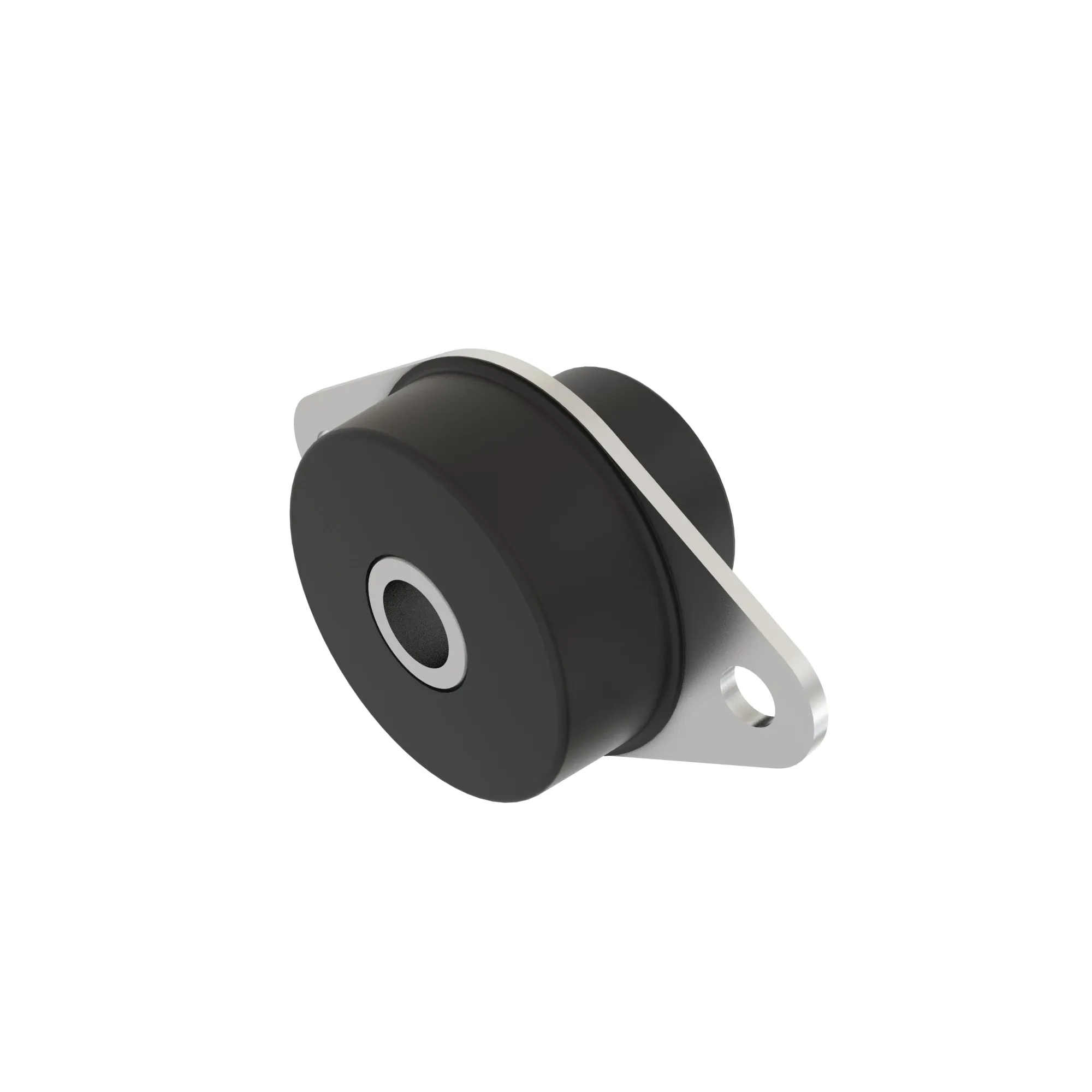

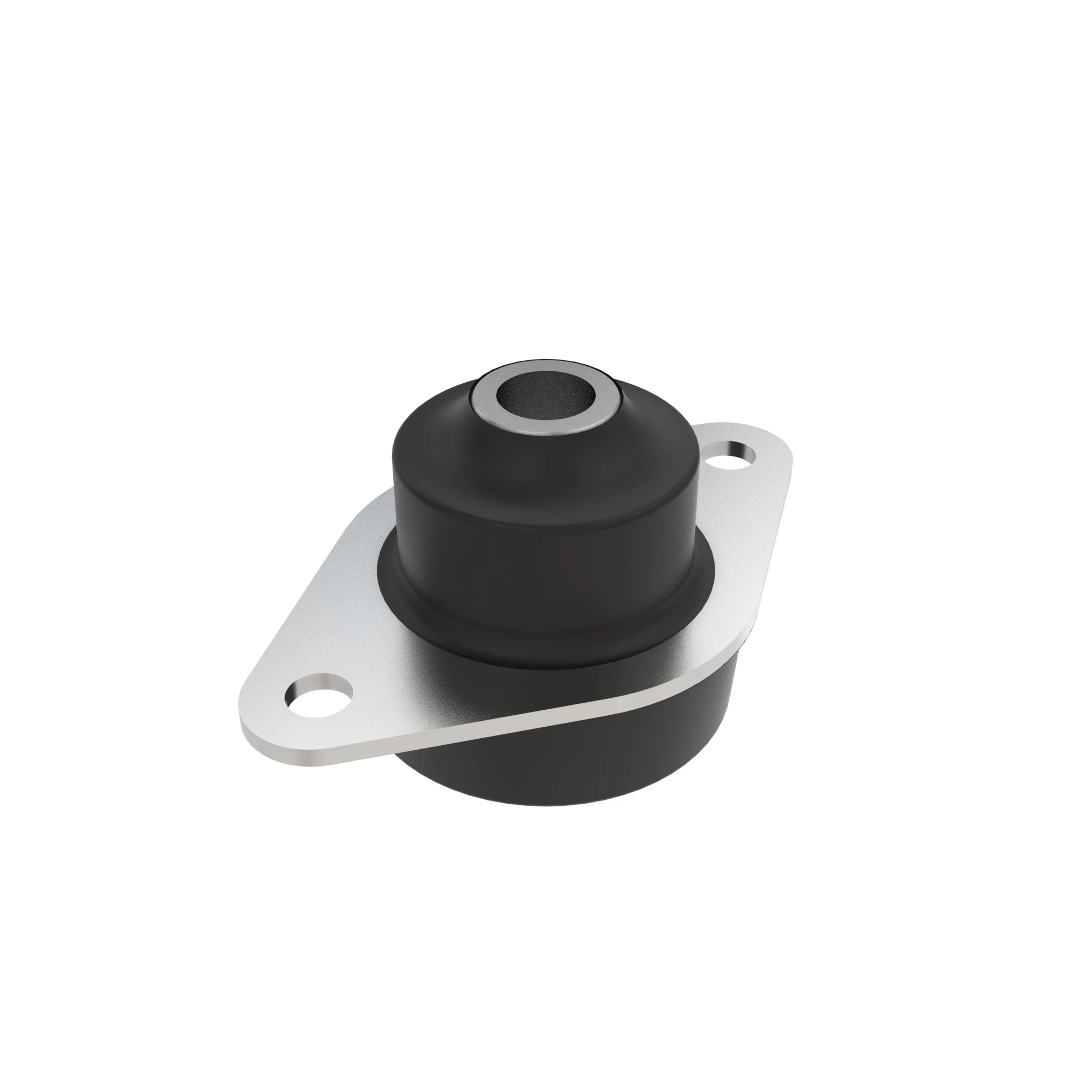

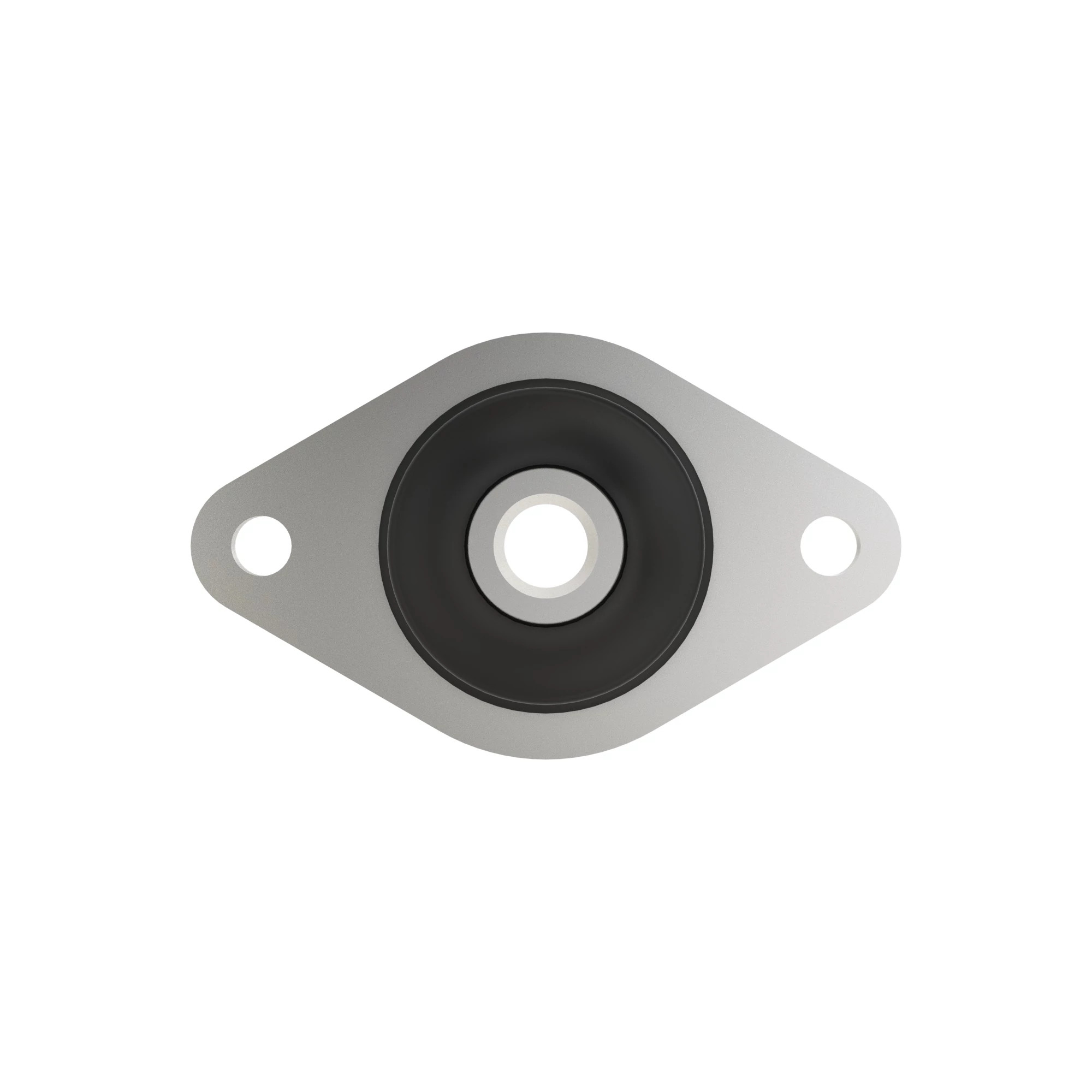

Name: HXE135625: Bottom Isolator
Brand: John Deere

Product Dimensions

Weight

1.814 lb

Height

3.2 in

Width

3.9 in

Length

6.5 in

General Details

Hole Spacing

127 mm

Outside Diameter

64.8 mm

Hole Size

13.5 mm

Thickness

4.8 mm

Inside Diameter

20.5 mm

For the most accurate fit and confidence, please select the equipment you are shopping for. Parts can be used across a number of different models, the models shown here indicate general fit of the part.

CP550
CP570
CP770
CS770
W200M
W235M
W235R
W260M
W260R
X9 1000
X9 1000 PRECISION UPGRADES
X9 1100
X9 1100 PRECISION UPGRADES
