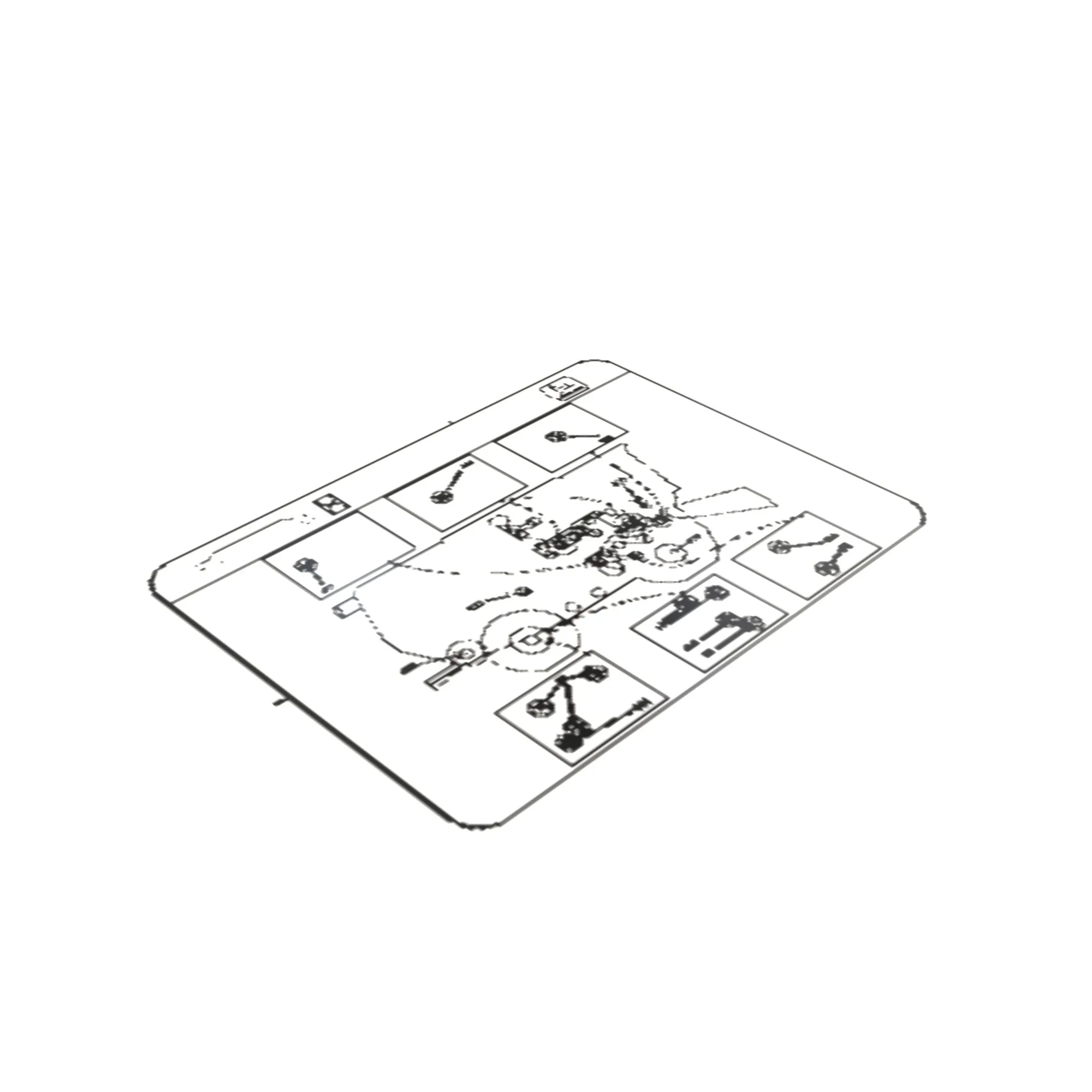

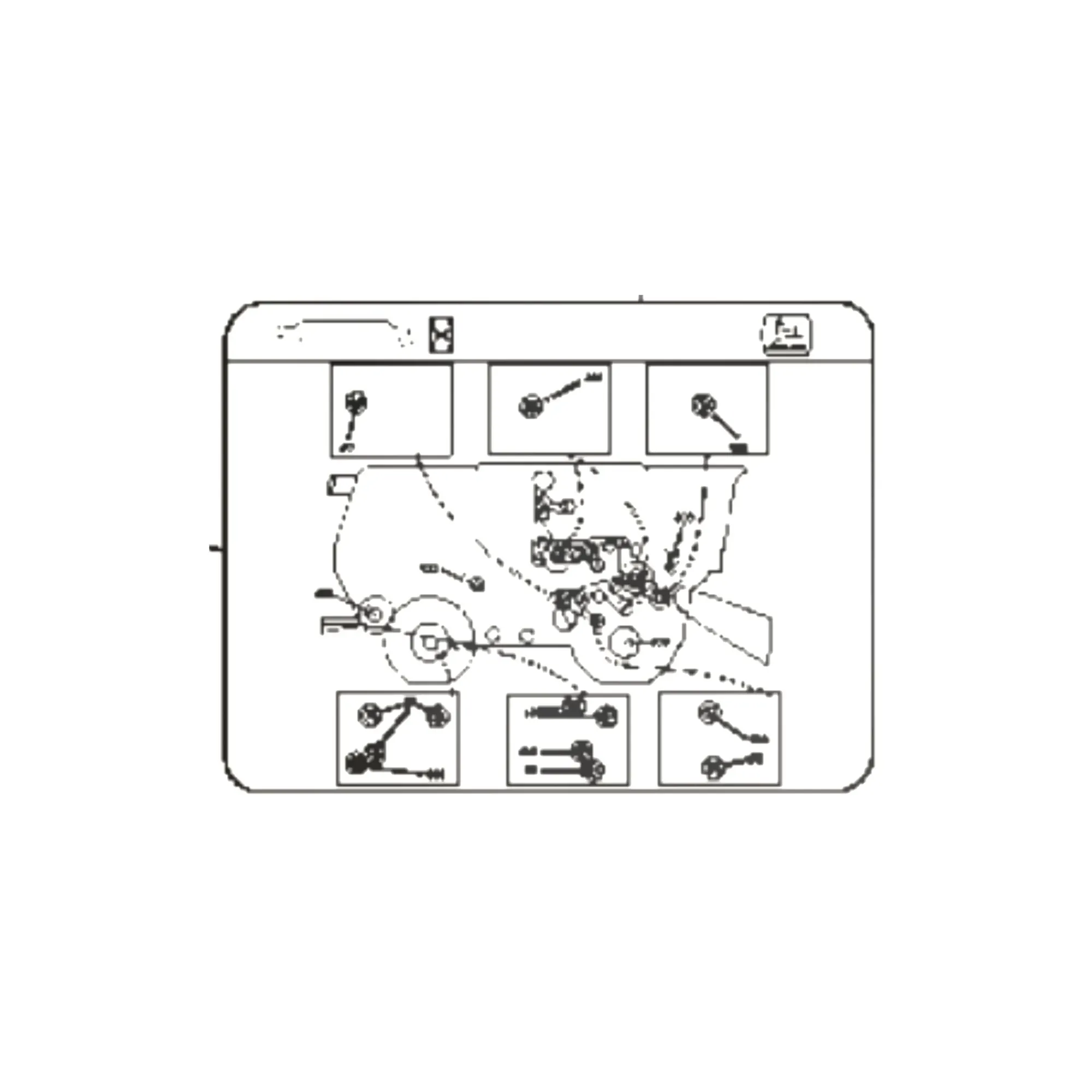

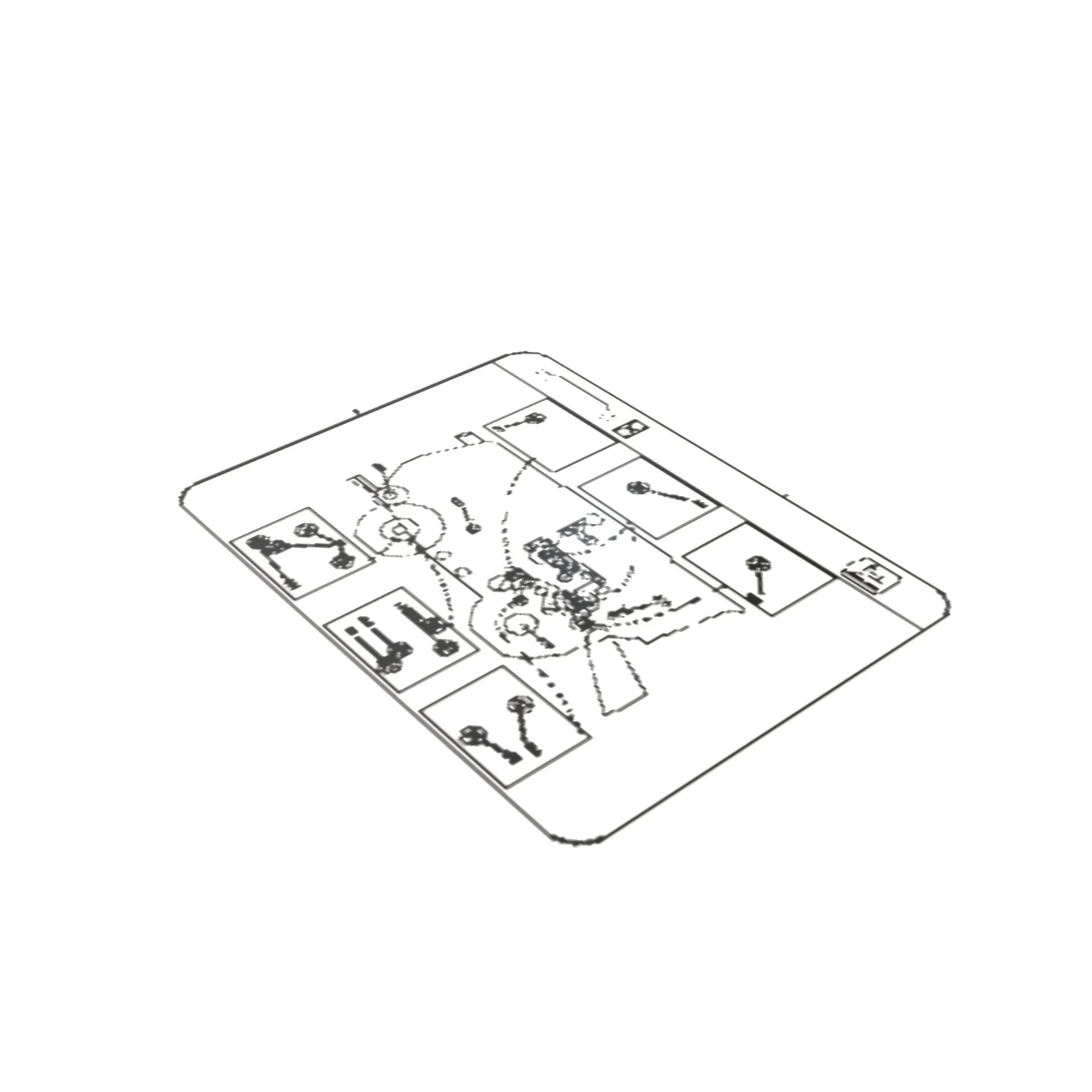

H232474: Lube Chart Label, Right Side
Part Number: H232474
Parts Tier: Original
Product Dimensions
Weight
0.03 lb
Height
0.01 in
Width
8.1 in
Length
10.7 in
For the most accurate fit and confidence, please select the equipment you are shopping for. Parts can be used across a number of different models, the models shown here indicate general fit of the part.
9470 STS
9560 STS
9570 STS
9650 STS
9660 STS
9670 STS
9750 STS
9760 STS
9770 STS
9860 STS
9870 STS
9880 STS
S5 500
S540
S550
S560
S690
