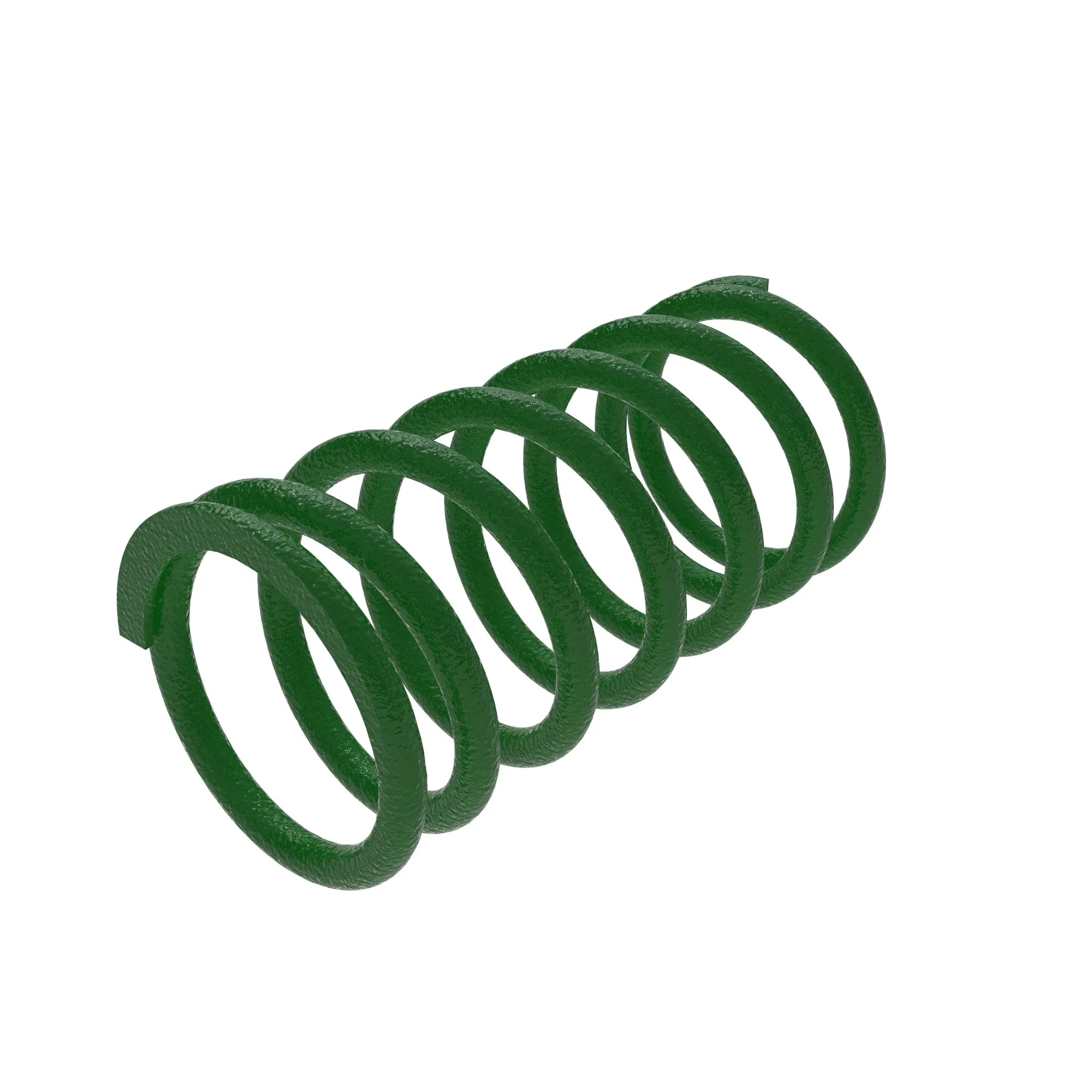

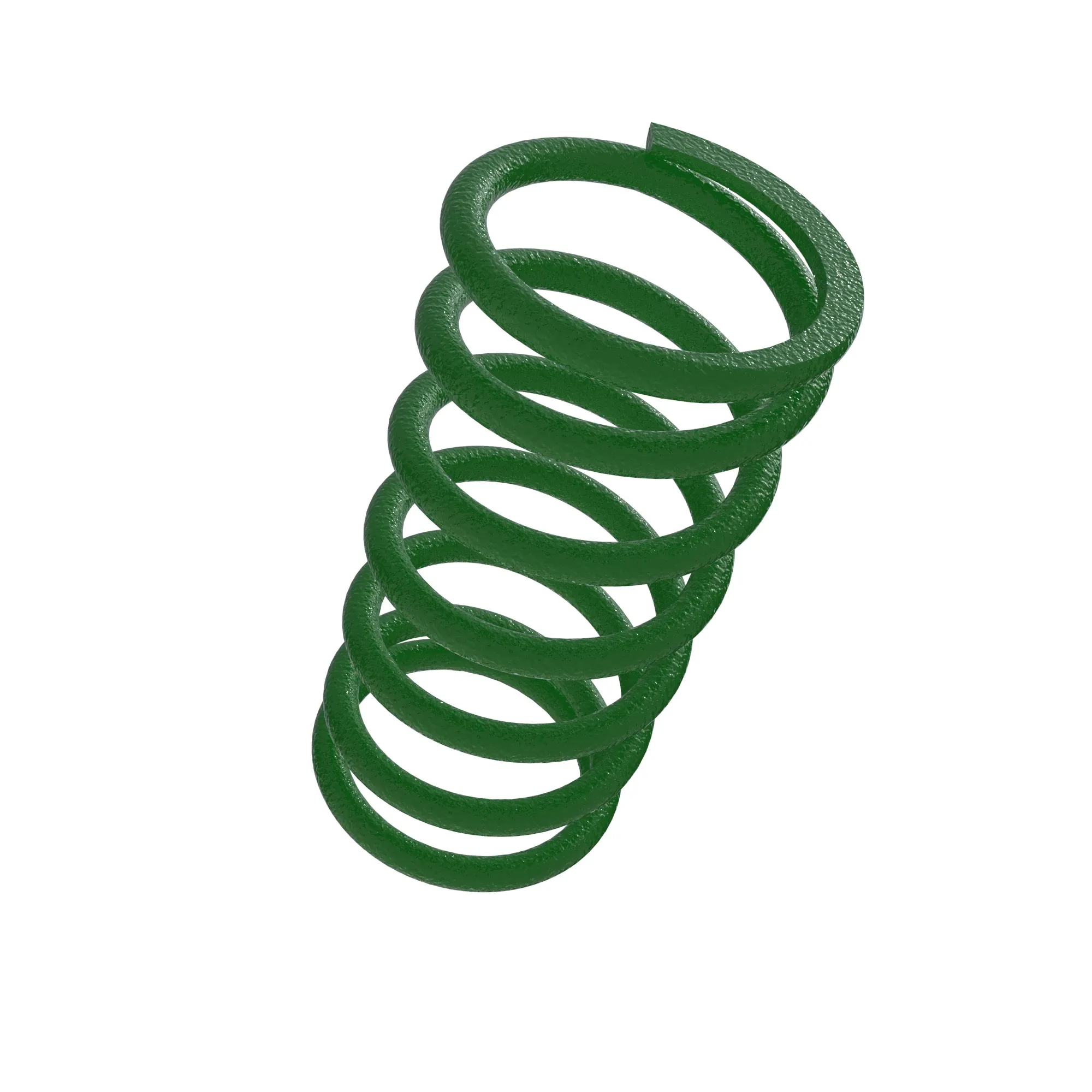

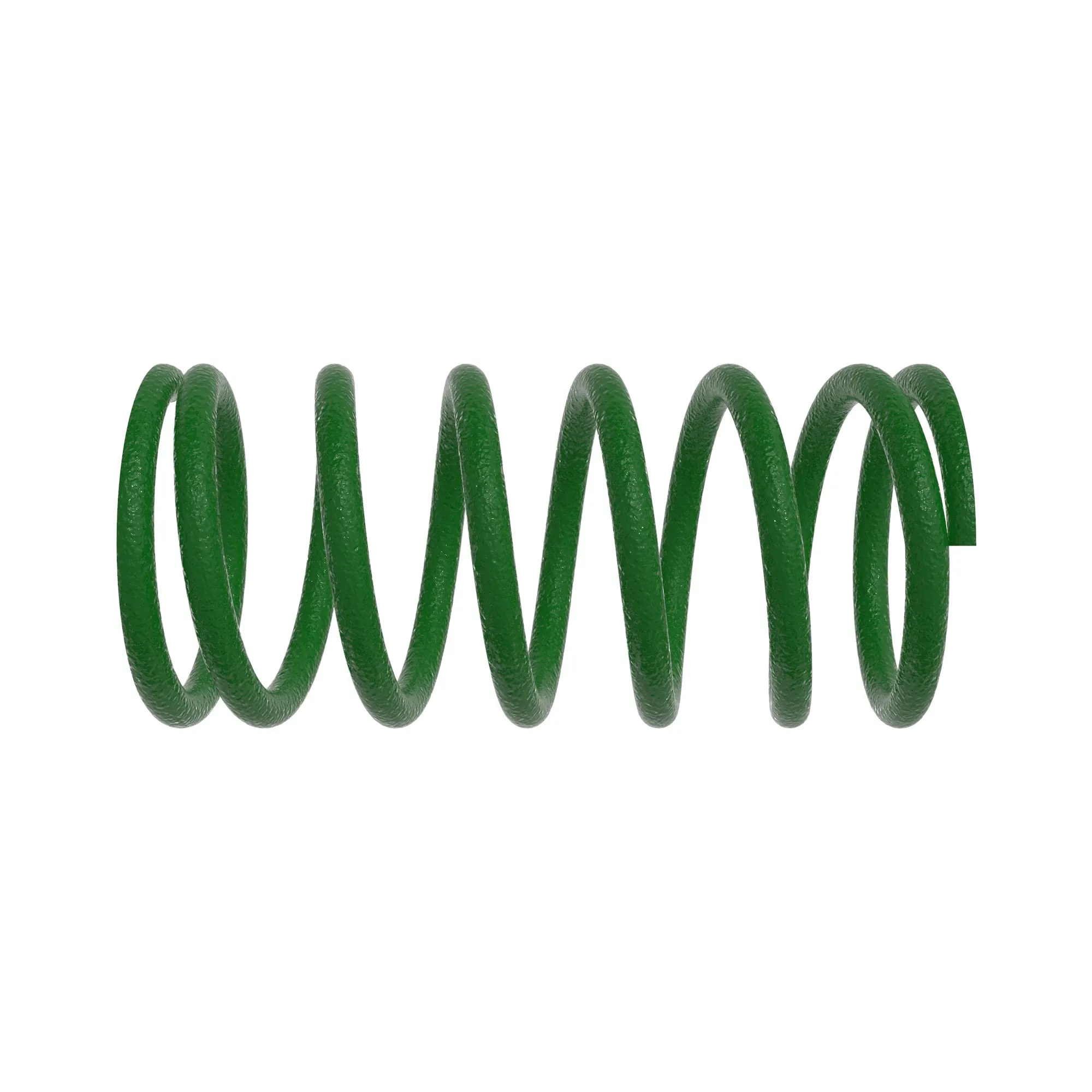

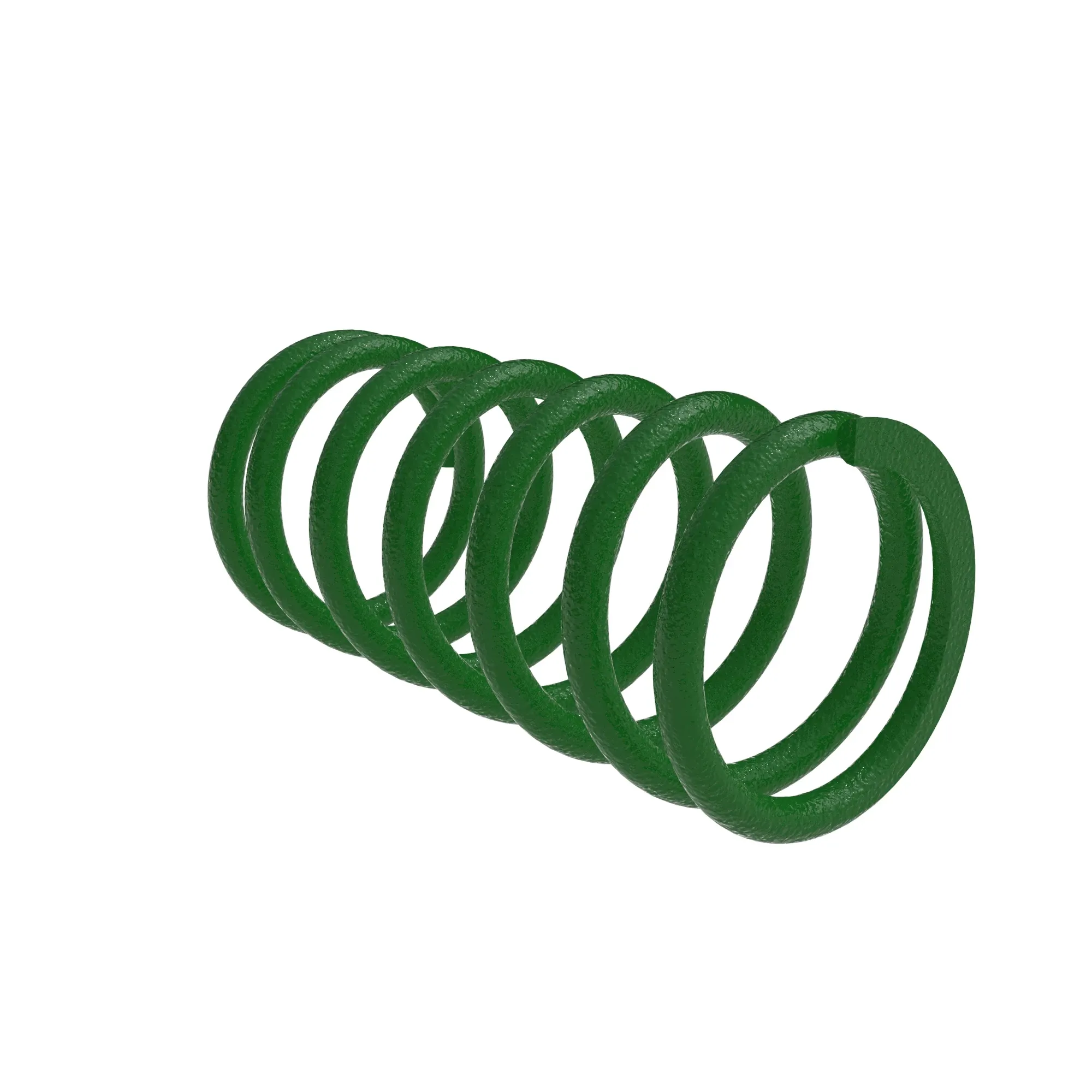

H207813: Compression Spring

Part Number: H207813

Parts Tier: Original

Compression spring designed for absorbing and storing energy, providing resistance to compressive forces in various machinery applications
Features a wire diameter of 14.27 mm and a spring rate of 45.70 mm, ideal for heavy-duty operations requiring precise force control
Outer diameter of 134 mm and a free length of 280 mm, ensuring optimal performance in equipment with specific dimensional requirements
Made from high quality steel for durability and long-lasting performance in demanding environments
Painted finish enhances resistance to corrosion and wear, extending the lifespan of the spring in harsh conditions

Product Dimensions

Weight

7.11 lb

Height

5.5 in

Length

11 in

Specifications

Spring Rate

45.7

Wire Diameter

14.275 mm

Total Coils

Material

Steel Alloy

Outside Diameter

134 mm

Free Length

280 mm

Solid Length

103.5 mm

For the most accurate fit and confidence, please select the equipment you are shopping for. Parts can be used across a number of different models, the models shown here indicate general fit of the part.

9560 STS
9750 STS
9770 STS
9860 STS
9870 STS
9880 STS
S7 700
S7 800
S7 850
S7 900
S670
S670 PRECISION UPGRADES
S670H
S680
S680 PRECISION UPGRADES
S680H
S685
S685H
S690
S690 PRECISION UPGRADES
S690H
S770
S780
S780 PRECISION UPGRADES
S785
S790
S790 PRECISION UPGRADES
X9 1000
X9 1000 PRECISION UPGRADES
X9 1100
X9 1100 PRECISION UPGRADES
