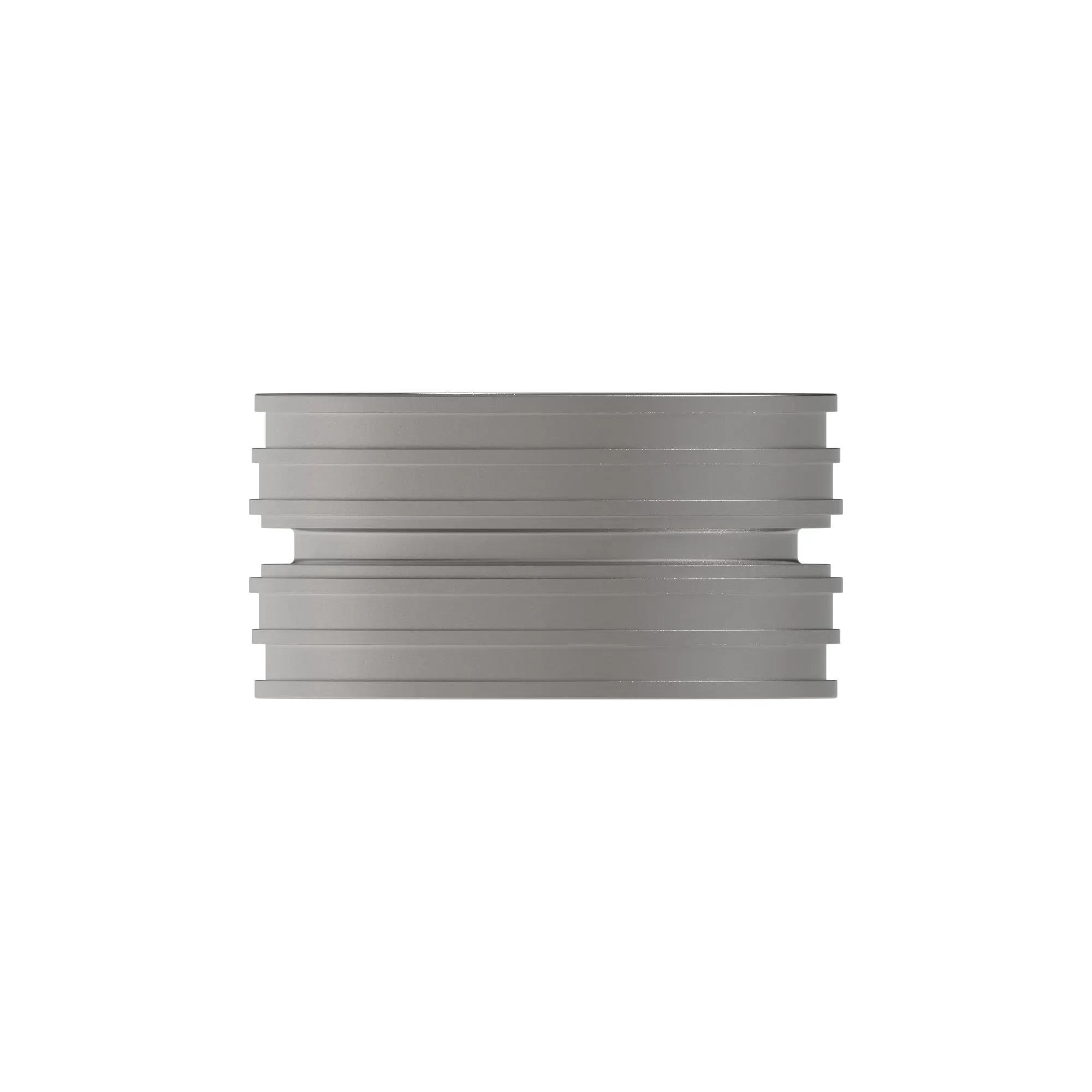

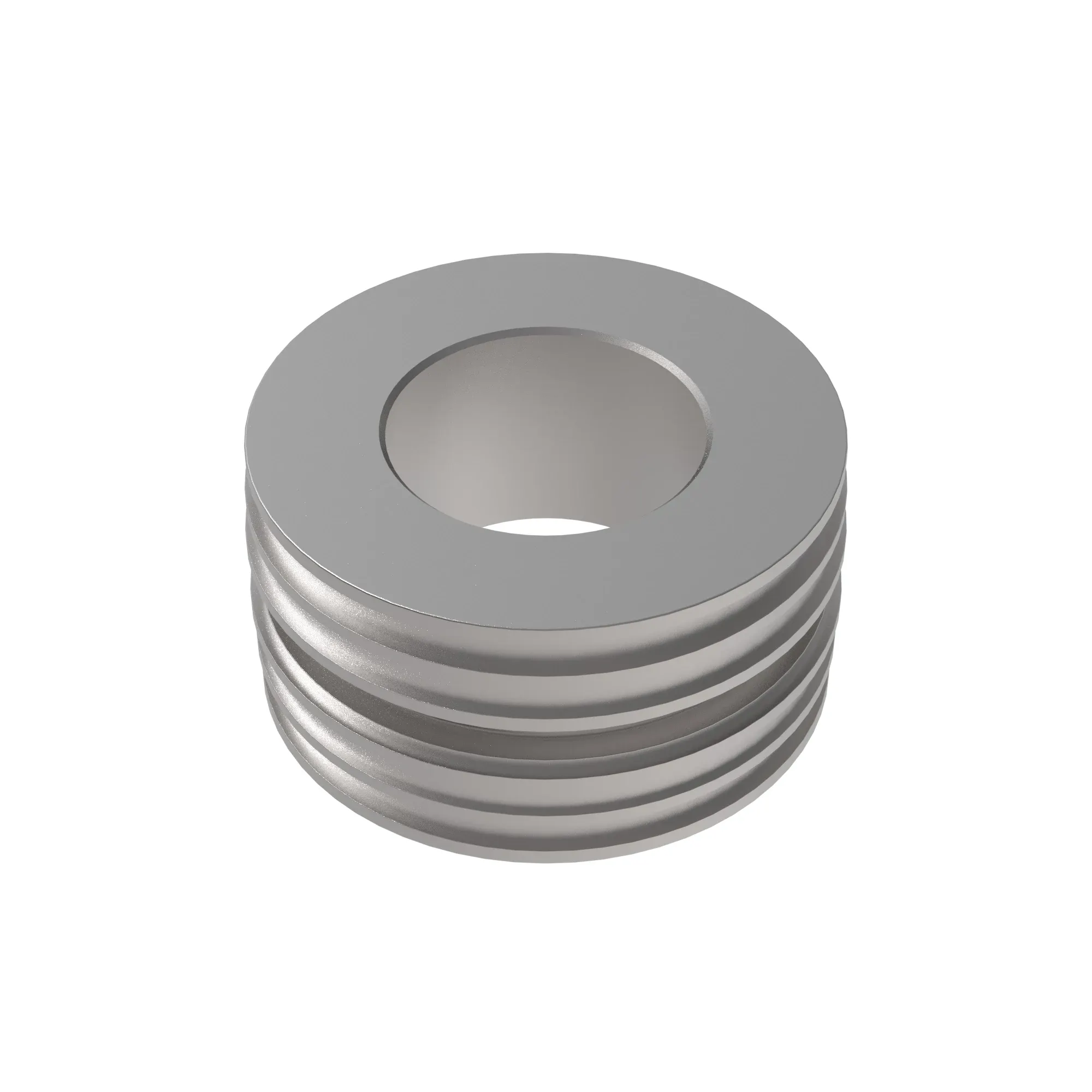

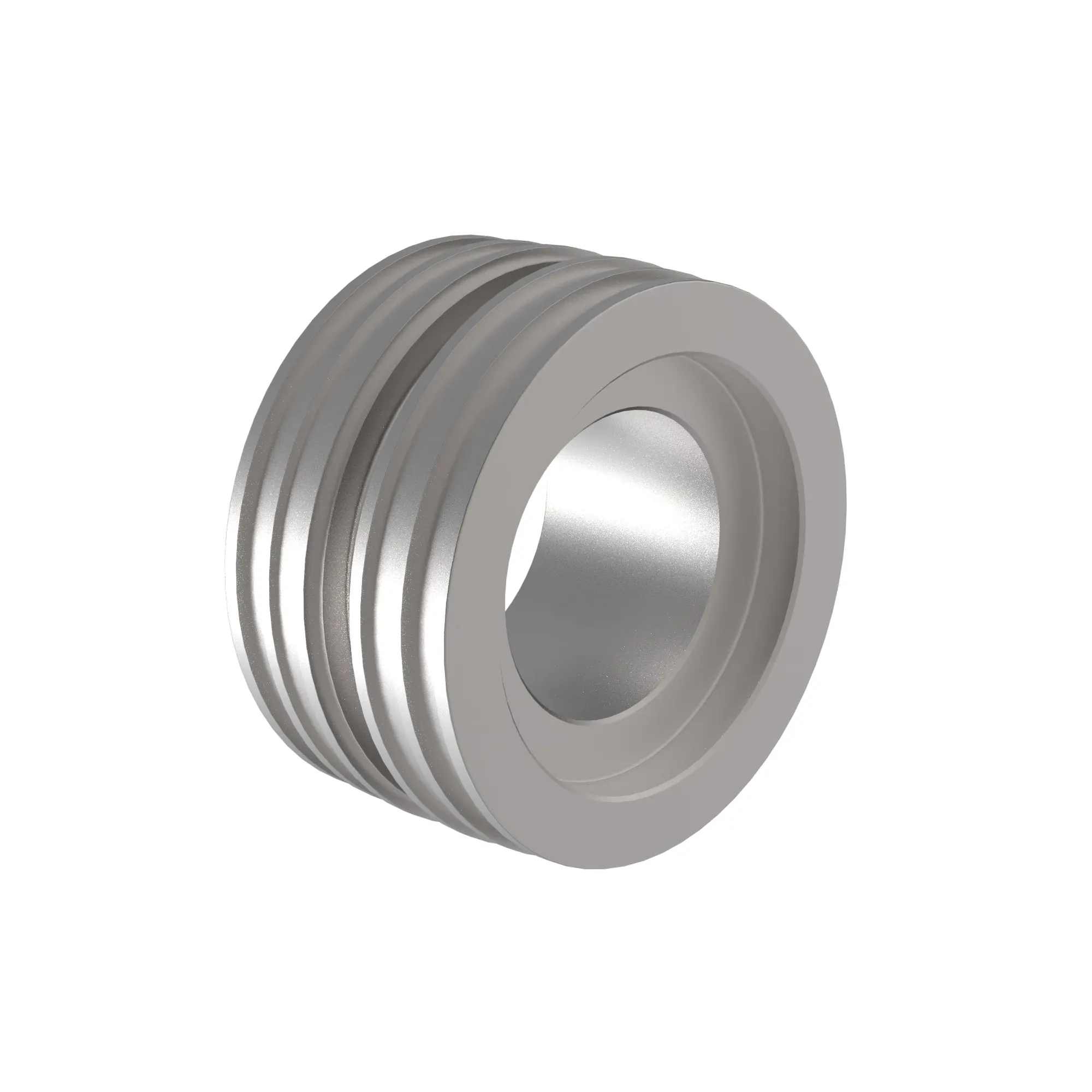

Name: H178697: Arm Cylinder Piston
Brand: John Deere

Product Dimensions

Weight

9.1 lb

Height

5.3 in

Length

2.8 in

For the most accurate fit and confidence, please select the equipment you are shopping for. Parts can be used across a number of different models, the models shown here indicate general fit of the part.

200C
803MH
853M
853MH
859M
859MH
859ML
903KH
903MH
909KH
909MH
953K
953M
953MH
953ML
959K
959M
959MH
959ML
2054
