H176250: Groove Pin

Name: H176250: Groove Pin
Brand: John Deere

Part Number: H176250

The right parts for your machine, every time

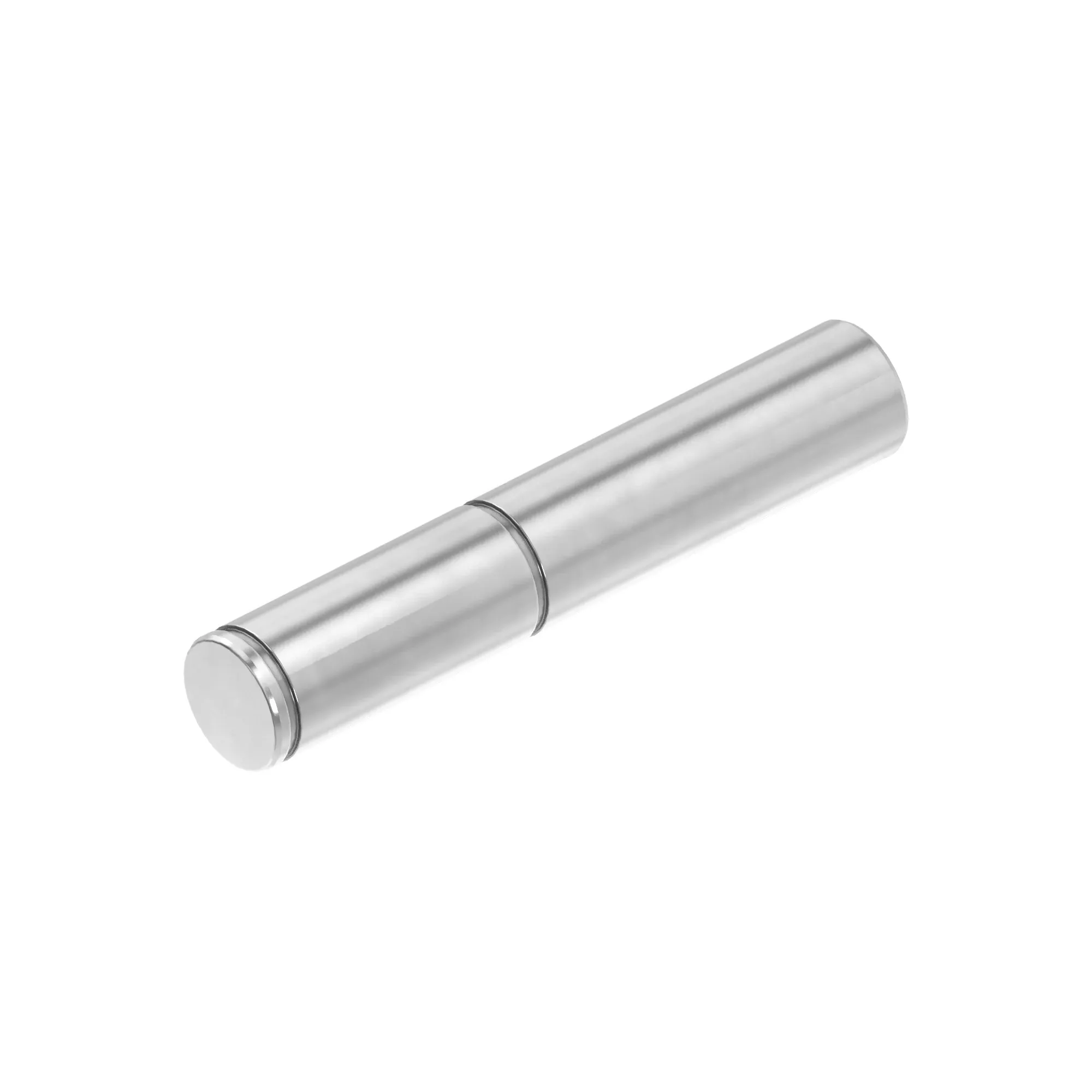

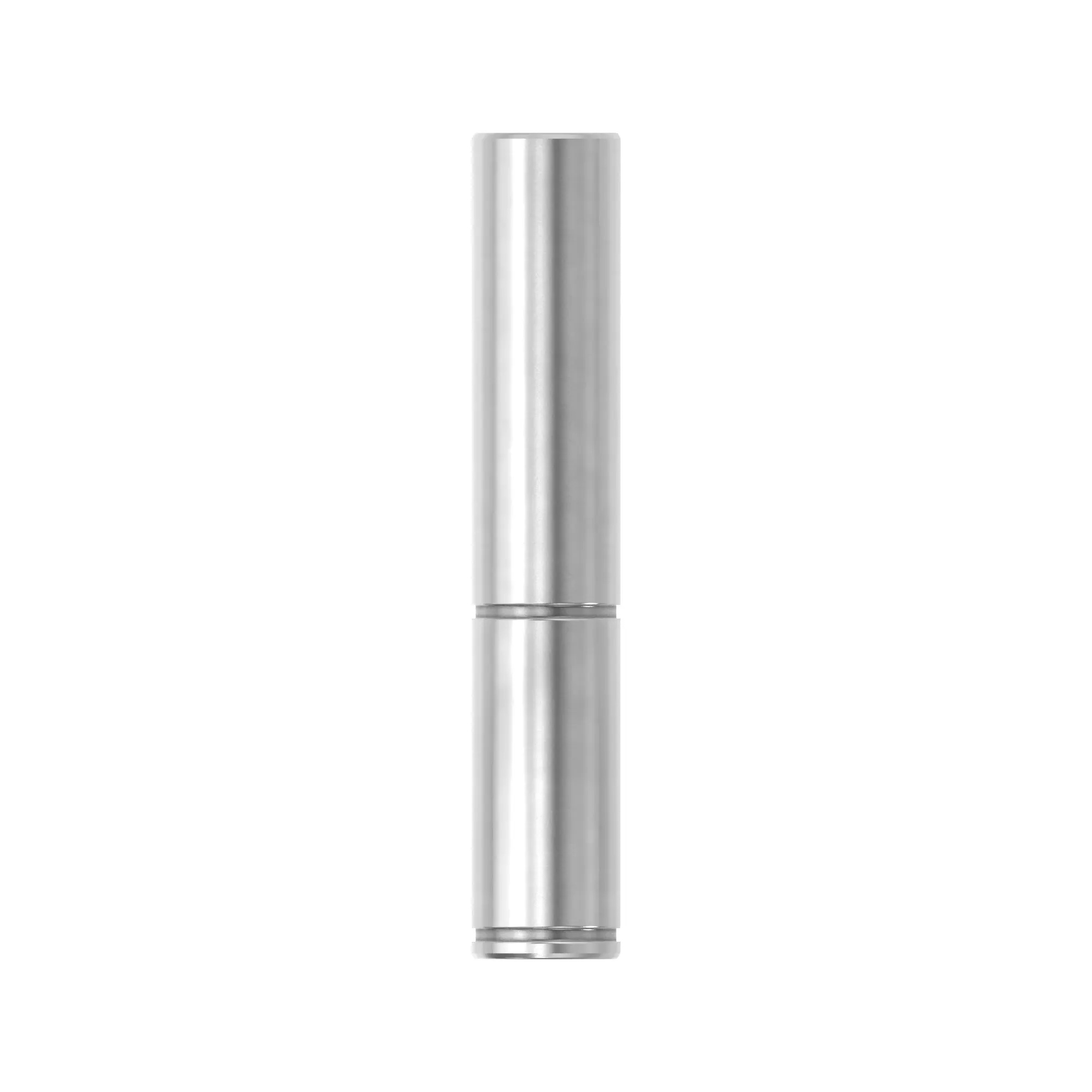

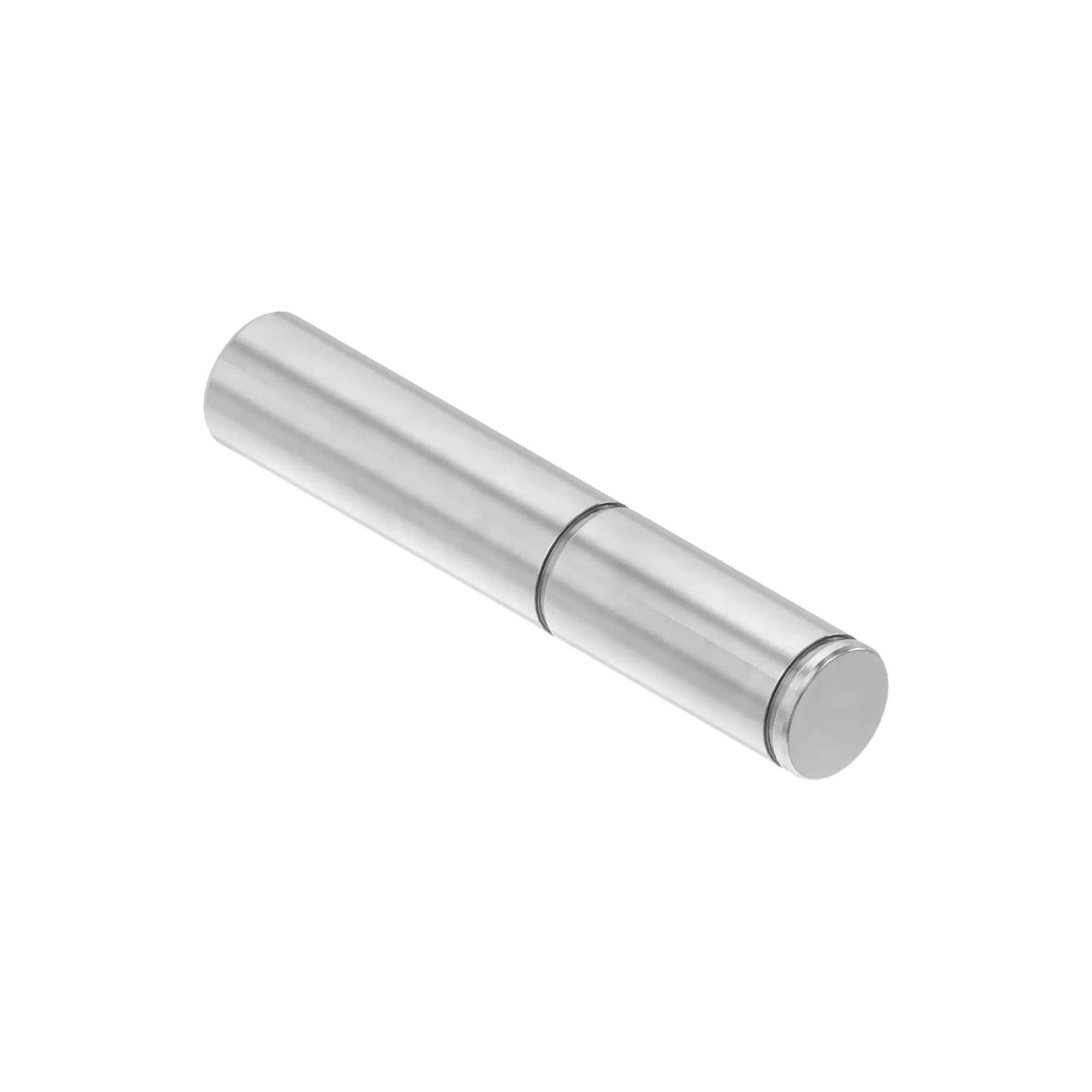

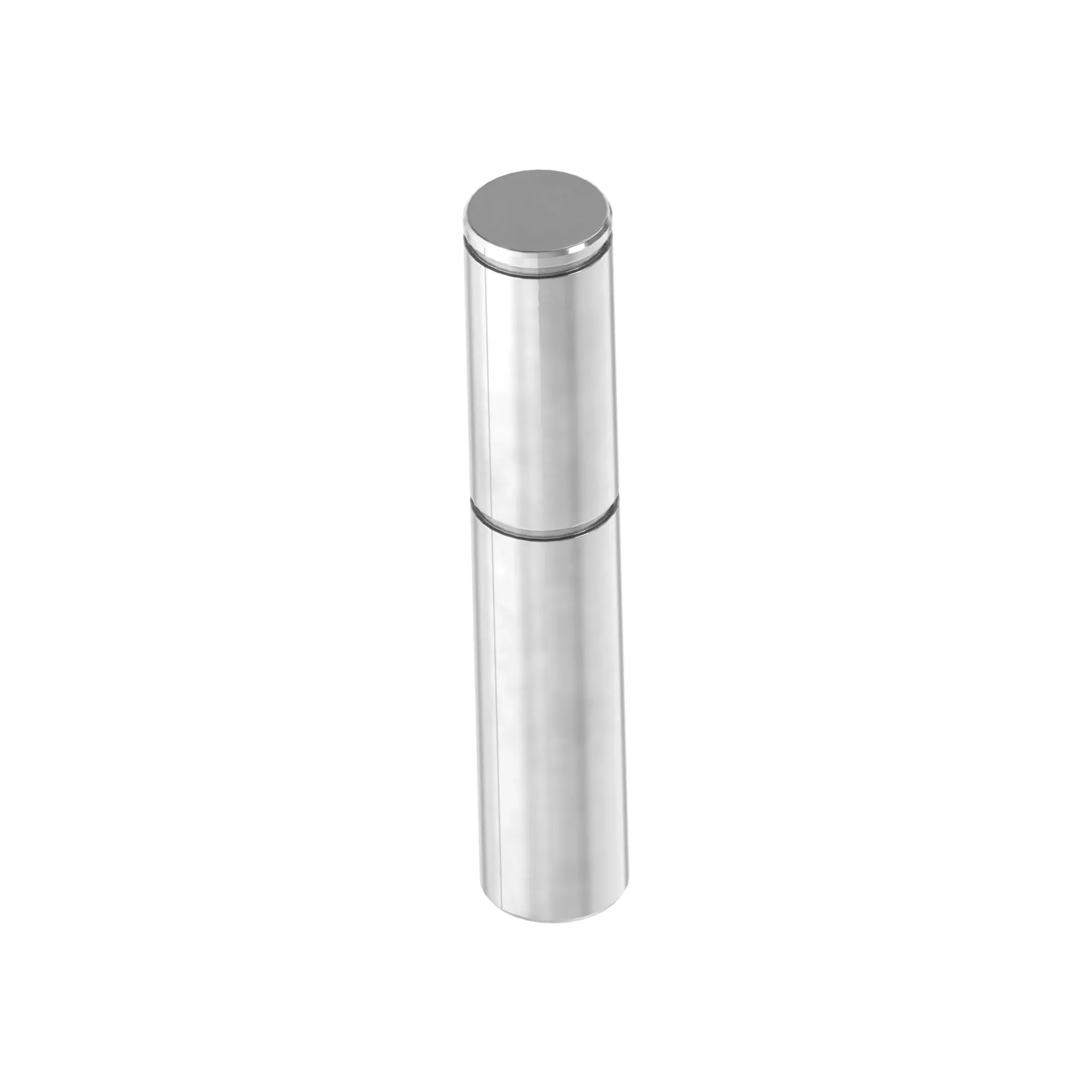

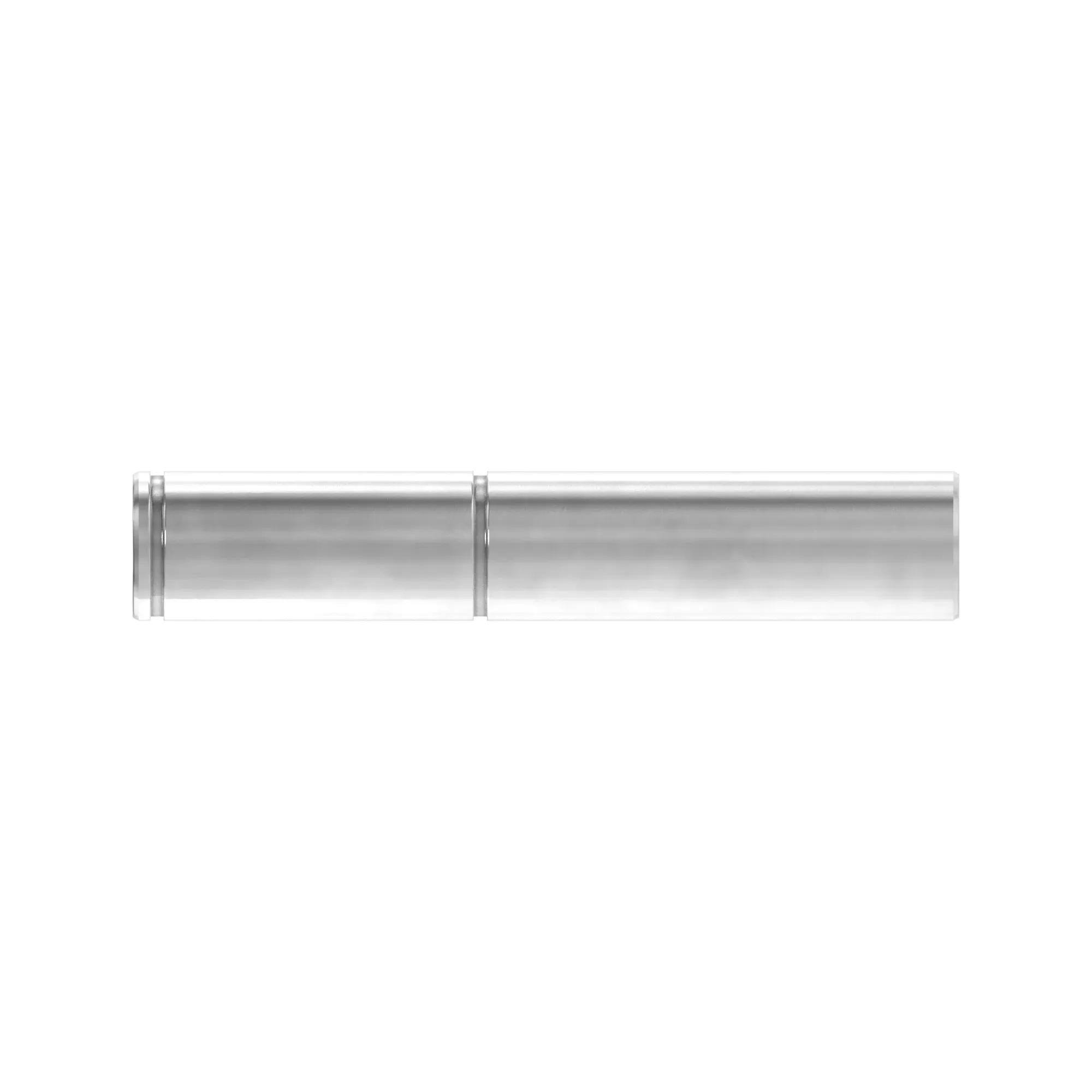

Precision-engineered groove pin designed for secure fastening and alignment in various mechanical applications
Key specs: 25.40 mm (1.0 in) diameter, 140 mm (5 1/2 in) length, 23.90 mm (0.94 in) groove diameter, ideal for robust mechanical assemblies
Additional specs: 5.25 mm (0.21 in) groove location, 2.25 mm (0.09 in) groove width, 30-degree chamfer, 52.50 mm (2.07 in) between grooves
Made from high quality general steel for durability and strength
Features a heat-treated finish for enhanced wear resistance and longevity

Product Dimensions

Weight

1.22 lb

Height

1 in

Length

5.5 in

For the most accurate fit and confidence, please select the equipment you are shopping for. Parts can be used across a number of different models, the models shown here indicate general fit of the part.

7660
7760
9450
9470 STS
9540
9550
9560
9560 STS
9570 STS
9580
9640
9650
9650 STS
9660
9660 STS
9660 WTS
9670
9670 STS
9680
9750 STS
9760 STS
9770 STS
9780
9860 STS
9870 STS
9880 STS
C670
CP690
CS690
S5 500
S540
S550
S560
S650
S660
S660 PRECISION UPGRADES
S670
S670 PRECISION UPGRADES
S670H
S680
S680 PRECISION UPGRADES
S680H
S685
S685H
S690
S690 PRECISION UPGRADES
S690H
S760
S760 PRECISION UPGRADES
S770
S770 PRECISION UPGRADES
S780
S780 PRECISION UPGRADES
S785
S790
S790 PRECISION UPGRADES
T5 400
T5 500
T5 600
T5 700
T6 500
T6 600
T6 700
T6 800
T550
T560
T660
T670
W540
W550
W650
W660
