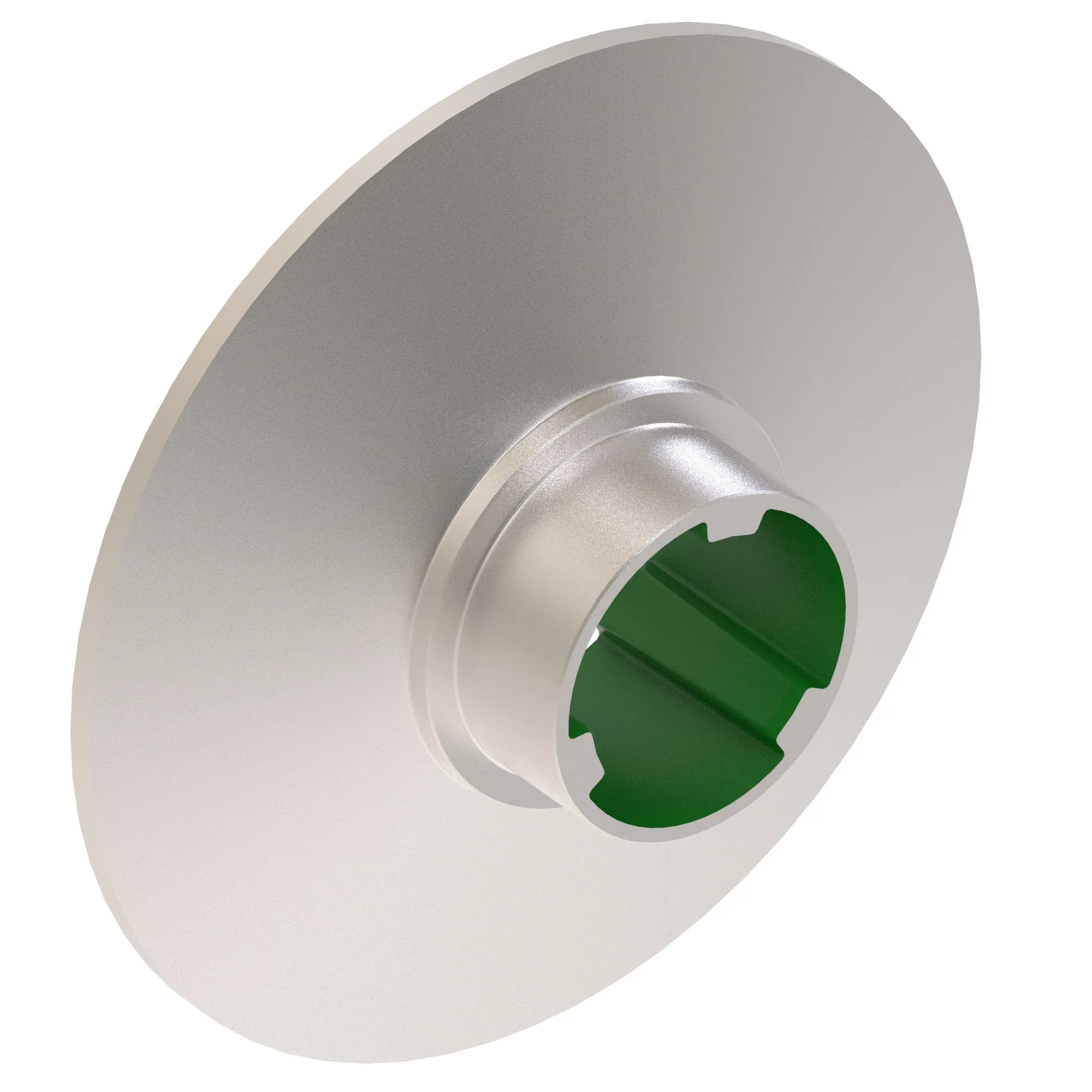

H156321: Half-Sheave Pulley

Part Number: H156321

Parts Tier: Original

John Deere half-sheave pulley transmits rotational motion between shafts using a belt, supporting power transfer within belt-driven systems
A grooved rim profile on this pulley helps seat the belt securely for controlled engagement and efficient operation
Integration of this pulley into compatible belt-driven assemblies supports reliable motion transfer across machinery systems
Guided belt routing and tension management features help simplify installation and support consistent performance in service routines
Standard duty construction offers durability and resists wear, helping this pulley maintain performance through repeated use cycles

Product Dimensions

Weight

38.28 lb

Height

16.9 in

Length

9 in

Specifications

Effective Diameter

425 mm

Bore Size

101.981 mm

For the most accurate fit and confidence, please select the equipment you are shopping for. Parts can be used across a number of different models, the models shown here indicate general fit of the part.

9470 STS
9560 STS
9570 STS
9650 STS
9660 STS
9670 STS
9750 STS
9760 STS
9780
9860 STS
9880 STS
CTS
S5 500
S7 600
S7 700
S540
S550
S560
S650
S660
S660 PRECISION UPGRADES
S670
S670 PRECISION UPGRADES
S670H
S760
S760 PRECISION UPGRADES
S770
S770 PRECISION UPGRADES
