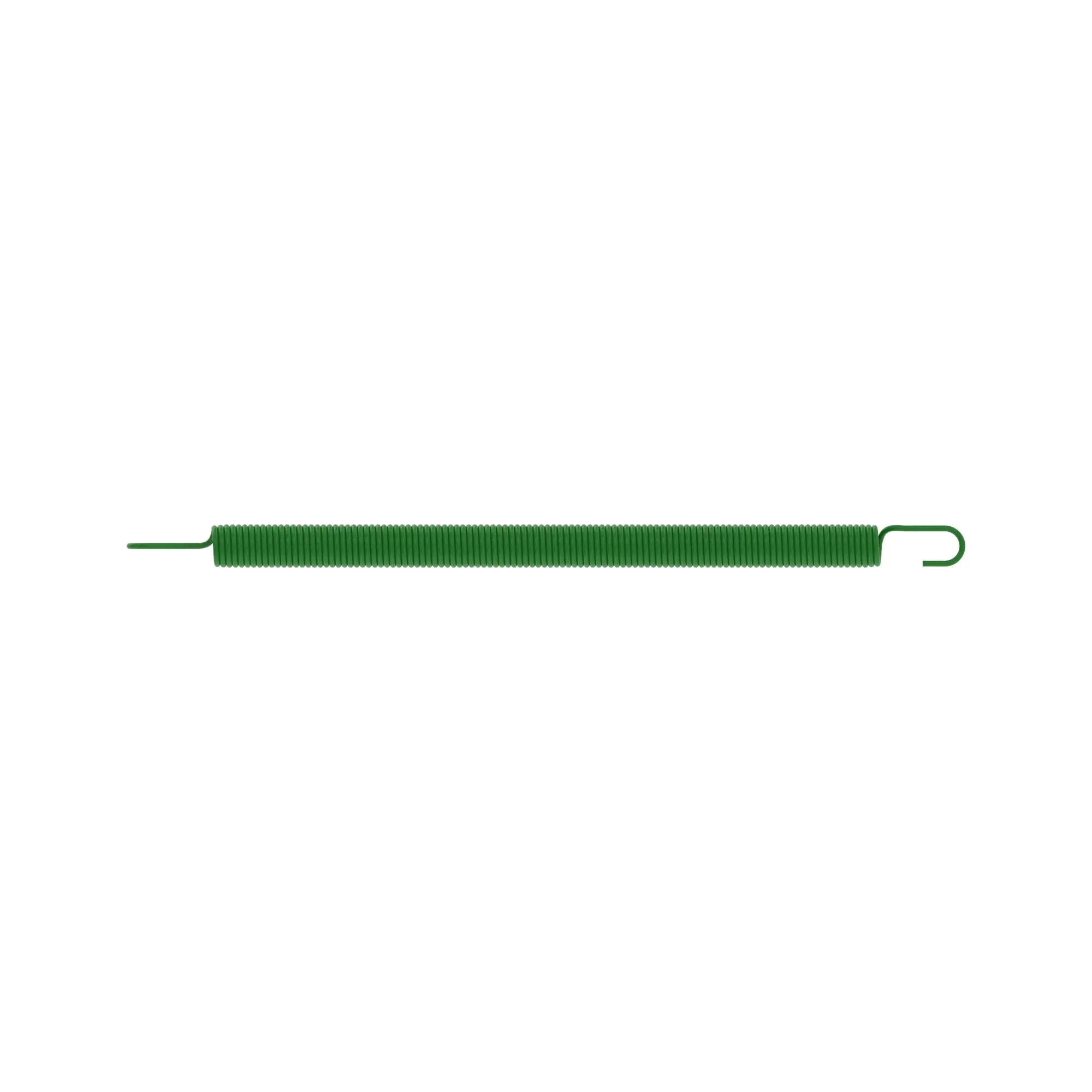

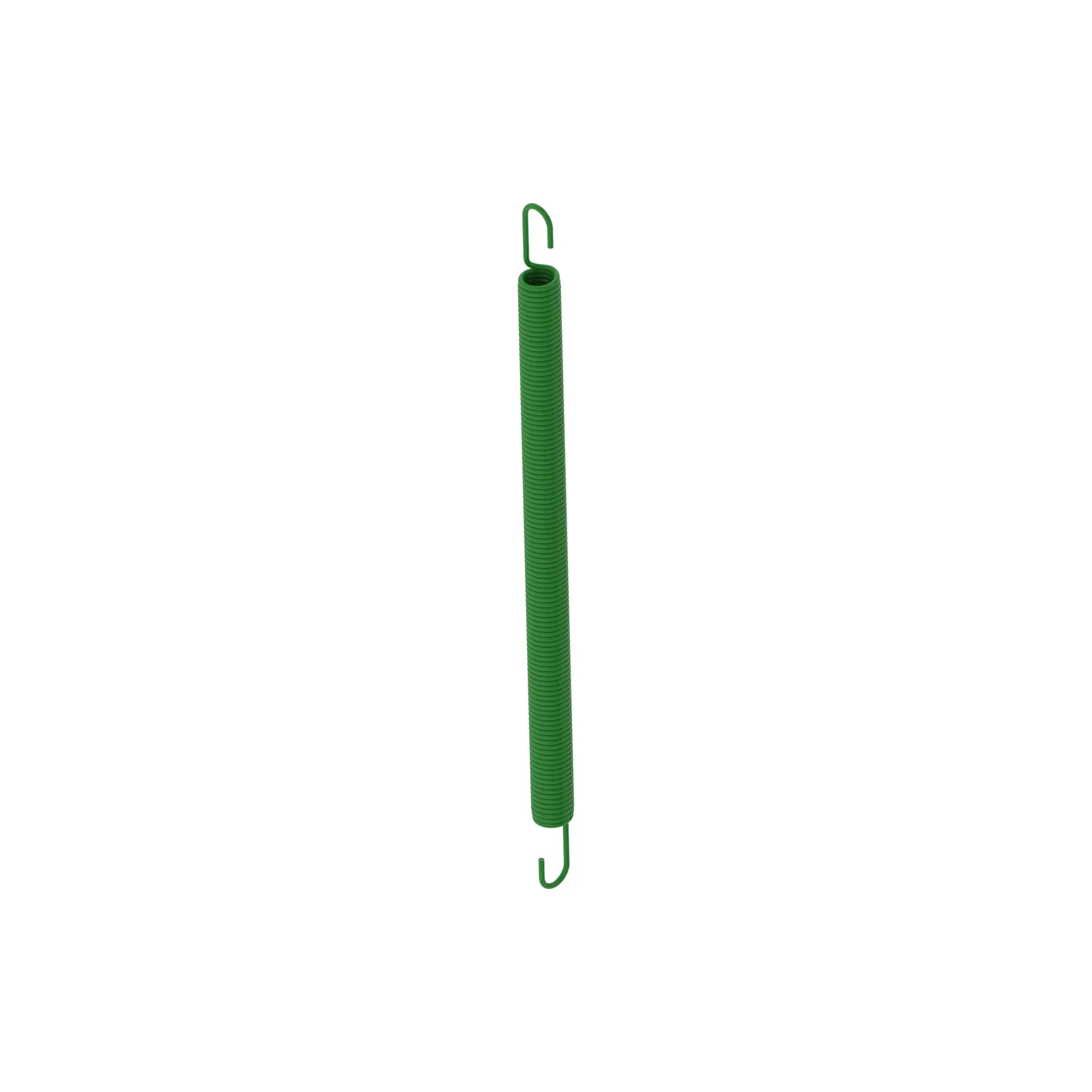

The extension spring is designed to absorb and store energy, providing tension for various applications in machinery and equipment
Features a 2.08 mm wire diameter and 15.50 mm outer diameter, ideal for precise tension needs with a free length of 284 mm
Equipped with 03/03 type ends, offering an initial tension of 15 mm and a spring rate of 0.82 mm for optimal performance
Made from high quality steel for durability and long-lasting use
Finished with a painted coating to resist corrosion and enhance longevity
Product Dimensions
Weight
0.3 lb
Height
0.6 in
Length
11.4 in
Volume
0.052 gal
Specifications
Spring Rate
0.82 N/mm
End Type
03/03
Wire Diameter
2.08 mm
Total Coils
110
Spring Type
Extension Spring
Material
Stainless Steel
Outside Diameter
15.5 mm
Free Length
284 mm
For the most accurate fit and confidence, please select the equipment you are shopping for. Parts can be used across a number of different models, the models shown here indicate general fit of the part.
9400
9410
9500
9510
9600
9610
9976
9986
9996
CTS
CTS II
S4 300
S4 400
S430
S440
