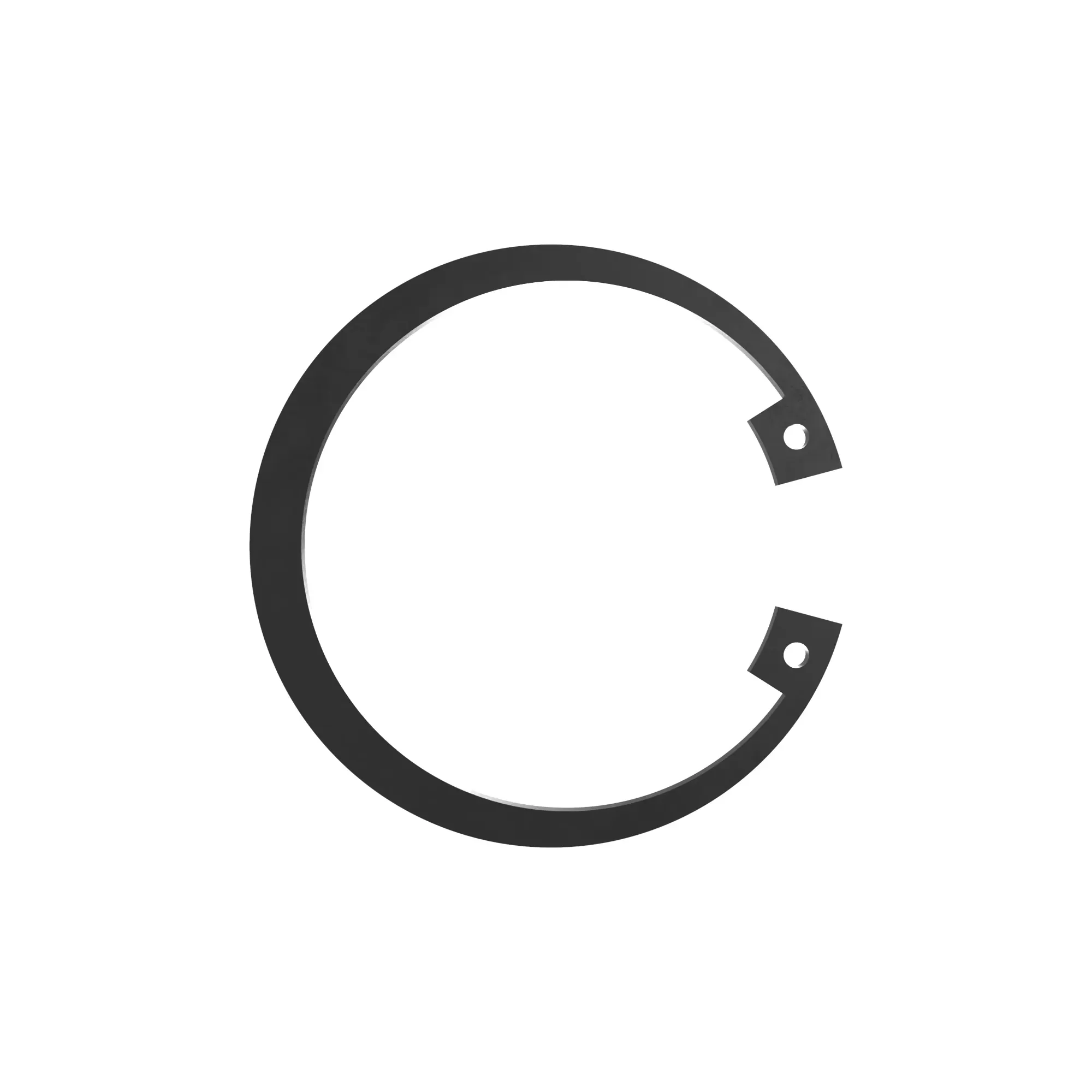

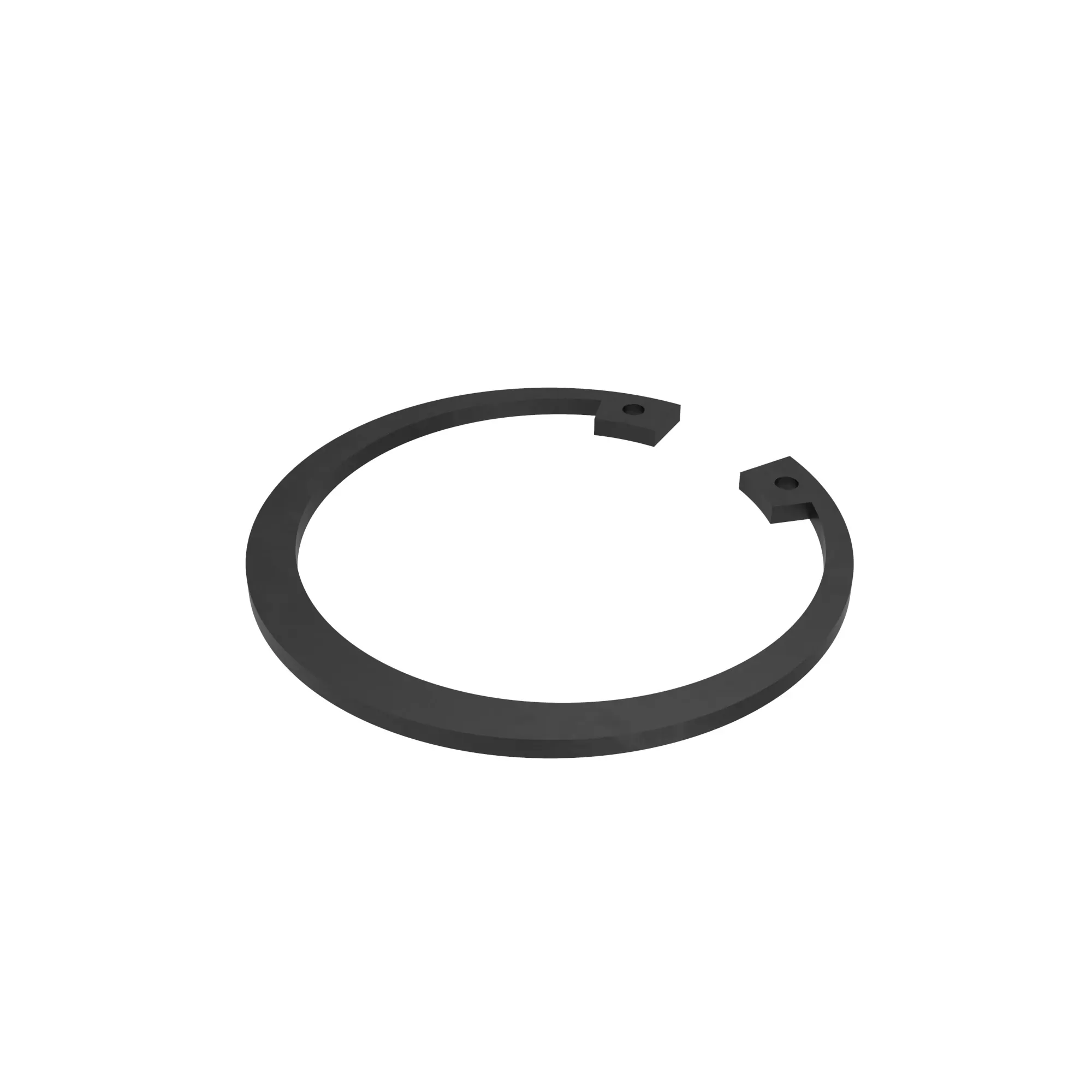

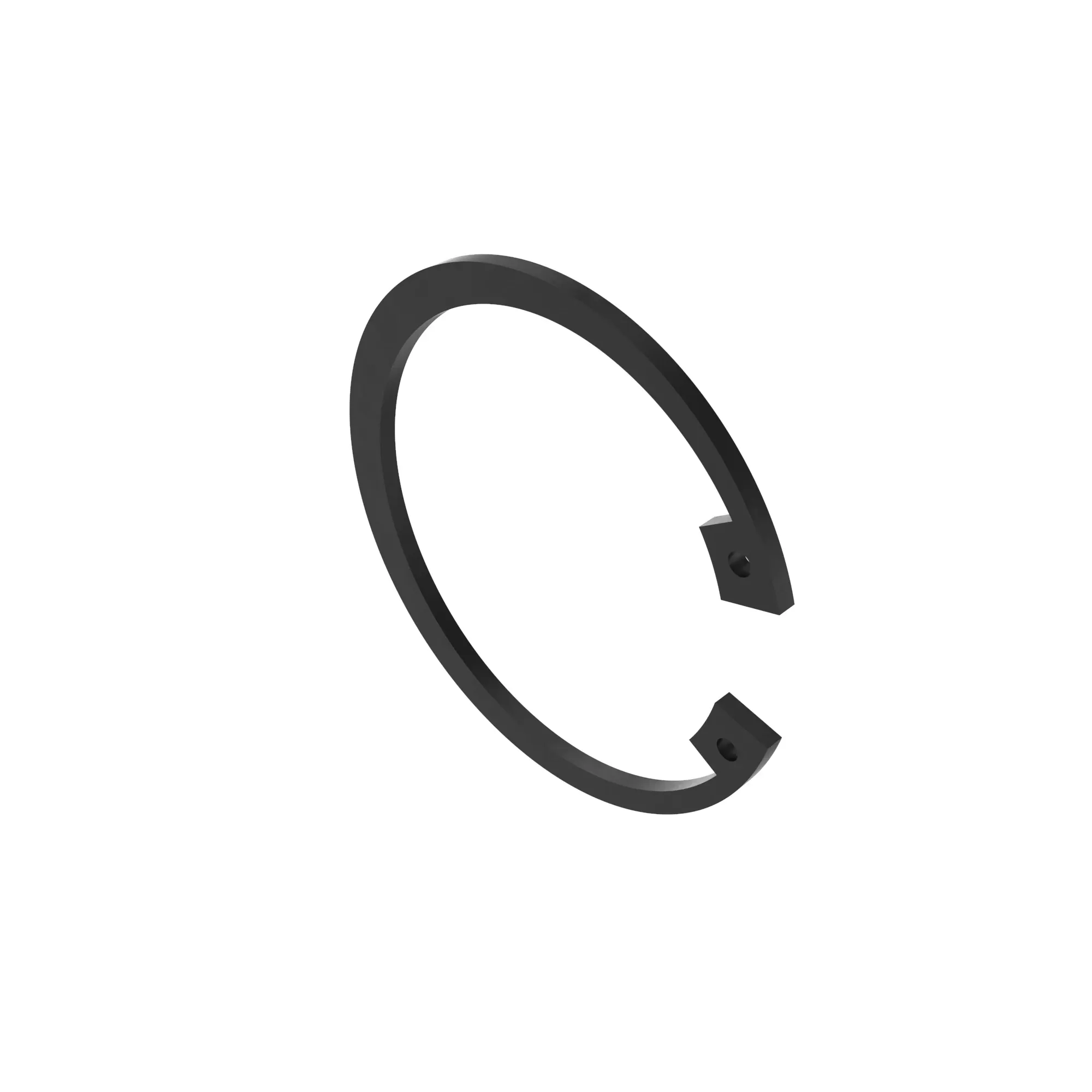

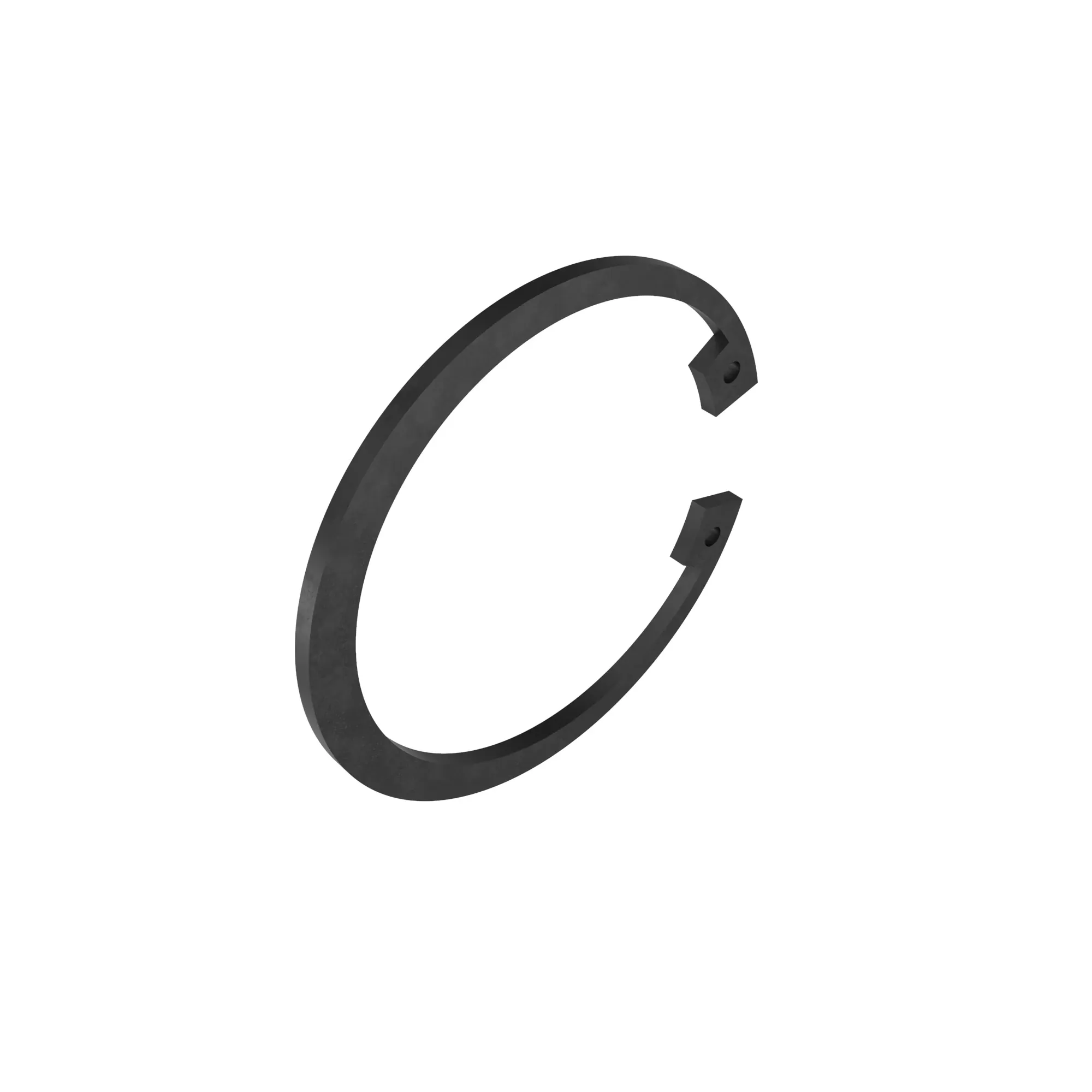

H135292: Internal Snap Ring

Part Number: H135292

Parts Tier: Original

Designed as an Internal Snap Ring, ideal for securing components within a bore
Features a free outer diameter of 24.41 mm (0.96 in) and a bore diameter of 22 mm (0.87 in), ensuring a precise fit
Includes a groove diameter of 23.37 mm (0.92 in) and a groove width of 1.17 mm (0.05 in) for optimal stability
Made from high quality general steel, offering durability and strength

WARNING/ADVERTENCIA -Cancer and Reproductive Harm/Cáncer y Daño Reproductivo. www.p65warnings.ca.gov

Product Dimensions

Height

1 in

Length

0.02 in

For the most accurate fit and confidence, please select the equipment you are shopping for. Parts can be used across a number of different models, the models shown here indicate general fit of the part.

9400
9410
9450
9500
9501
9510
9540
9550
9560
9580
9600
9610
9640
9650
9660
9660 WTS
9670
9680
9780
C670
CTS
CTS II
S4 300
S4 400
S5 300
S5 400
S430
S440
T5 400
T5 500
T5 600
T5 700
T5 PRECISION UPGRADES
T6 500
T6 600
T6 700
T6 800
T6 PRECISION UPGRADES
T550
T560
T660
T670
W540
W550
W650
W660
