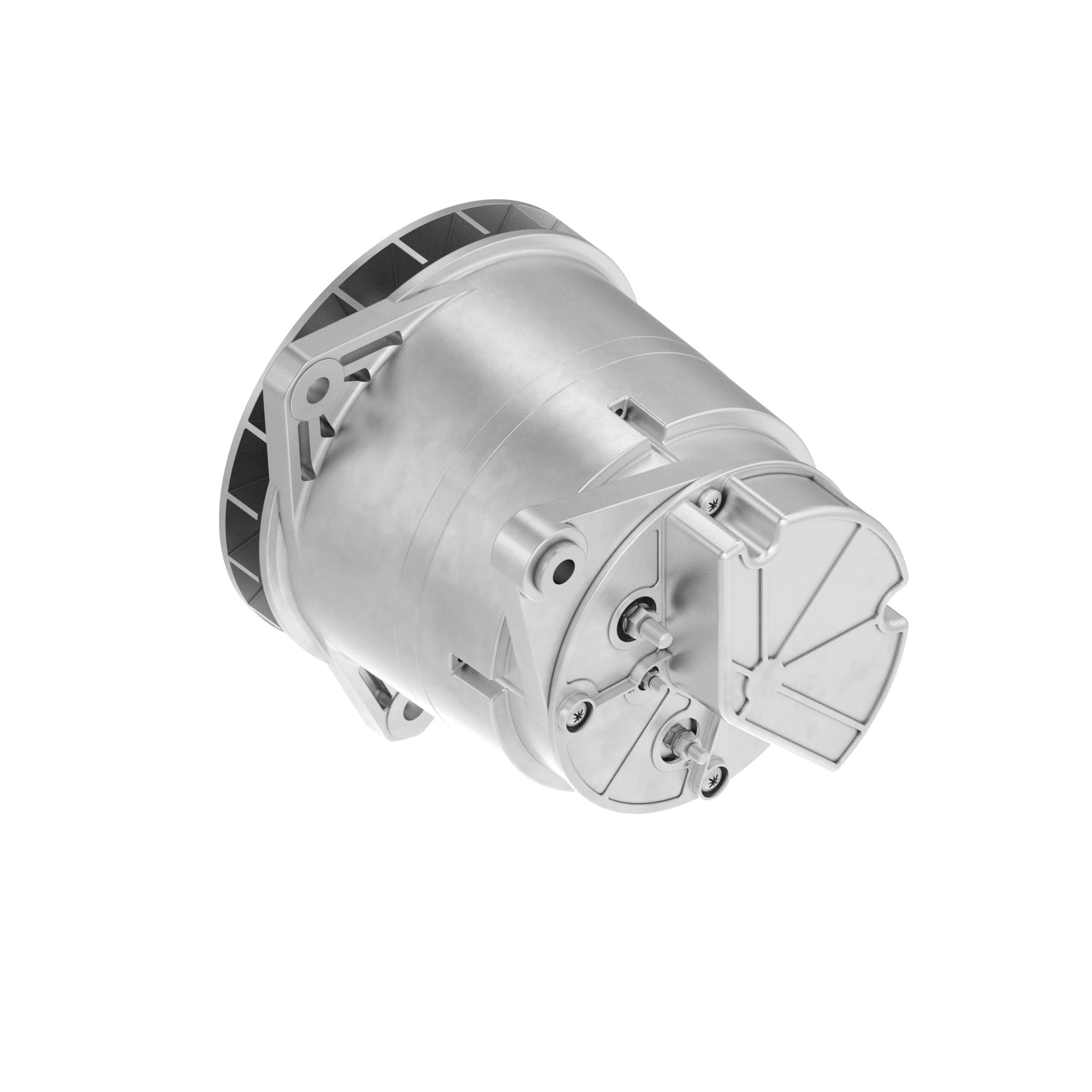

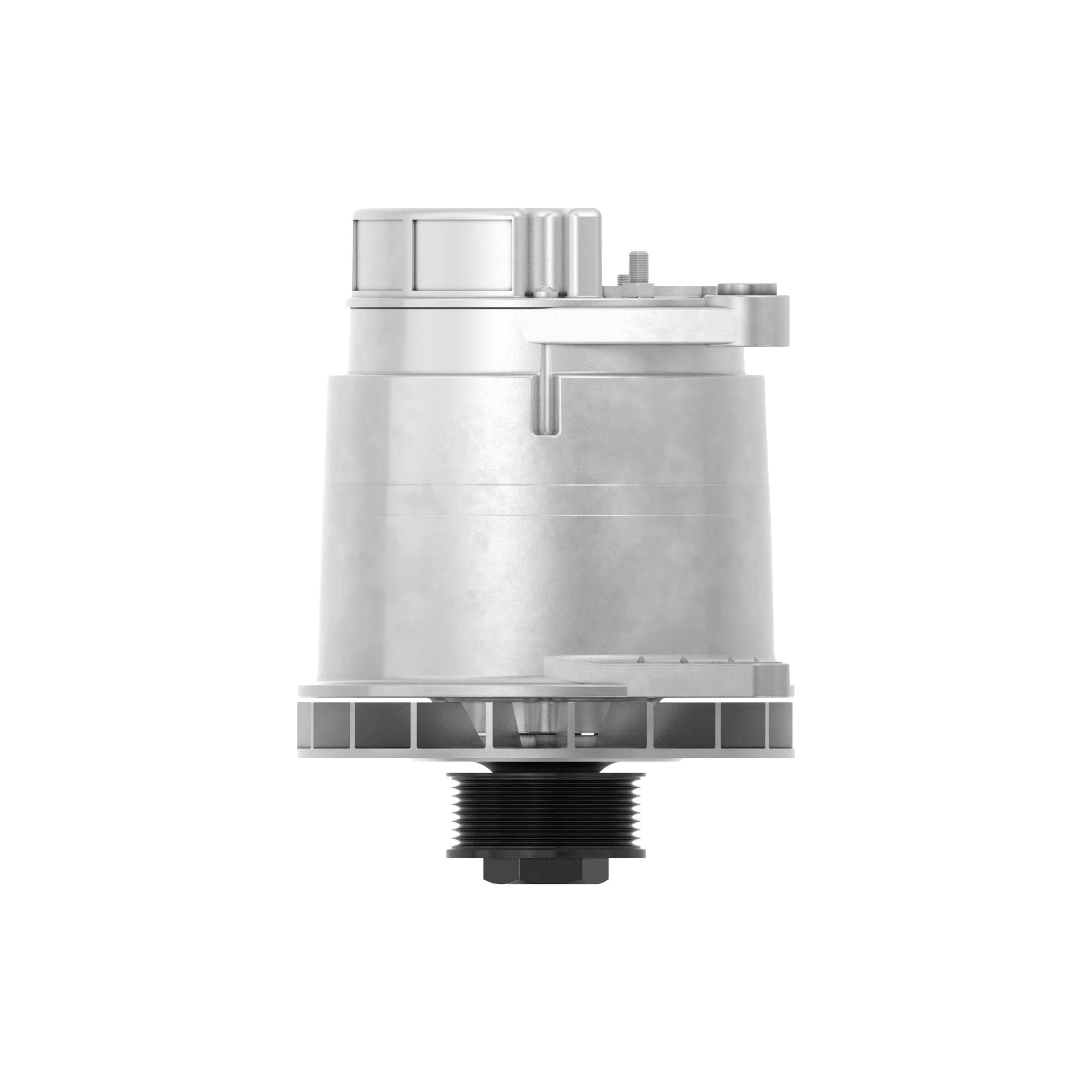

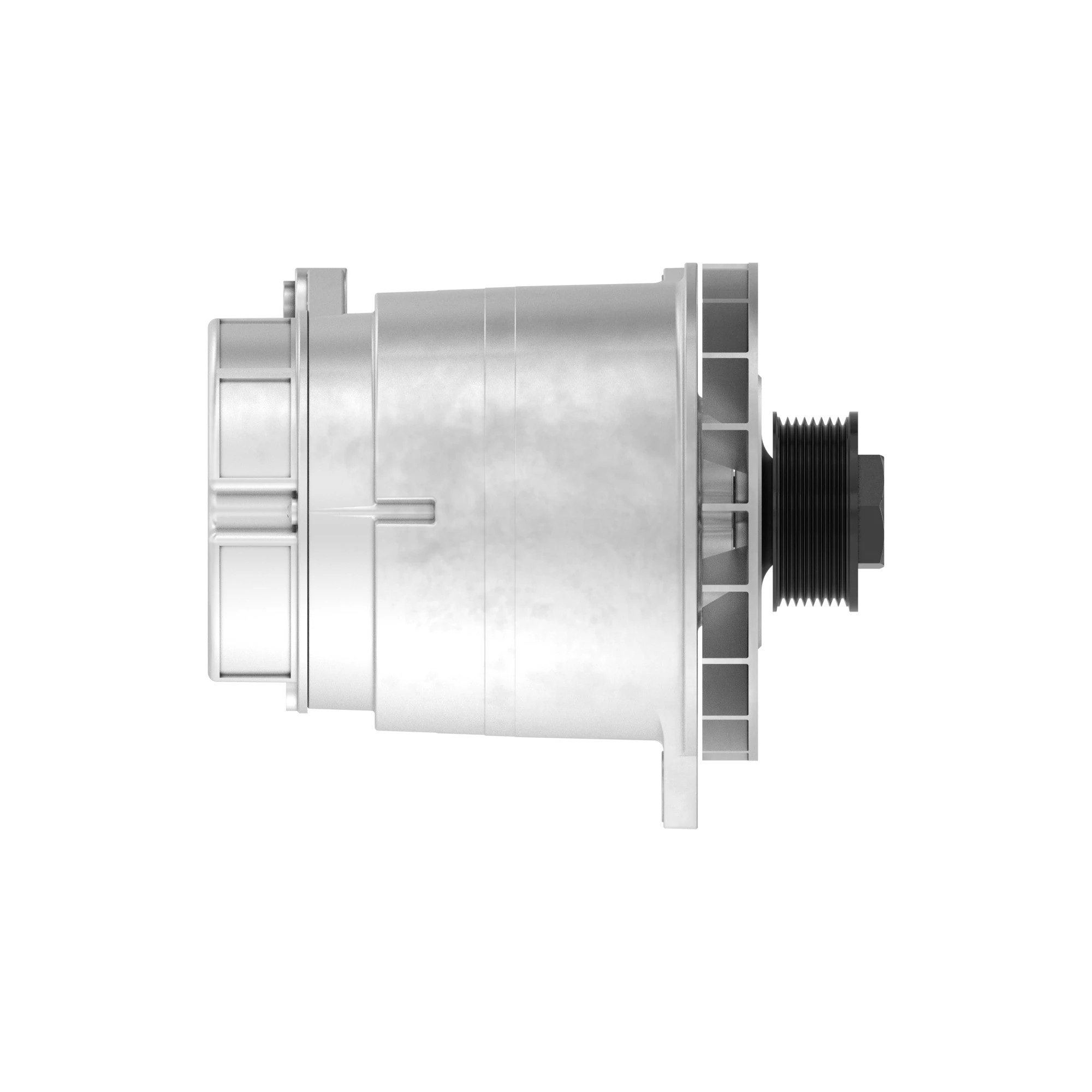

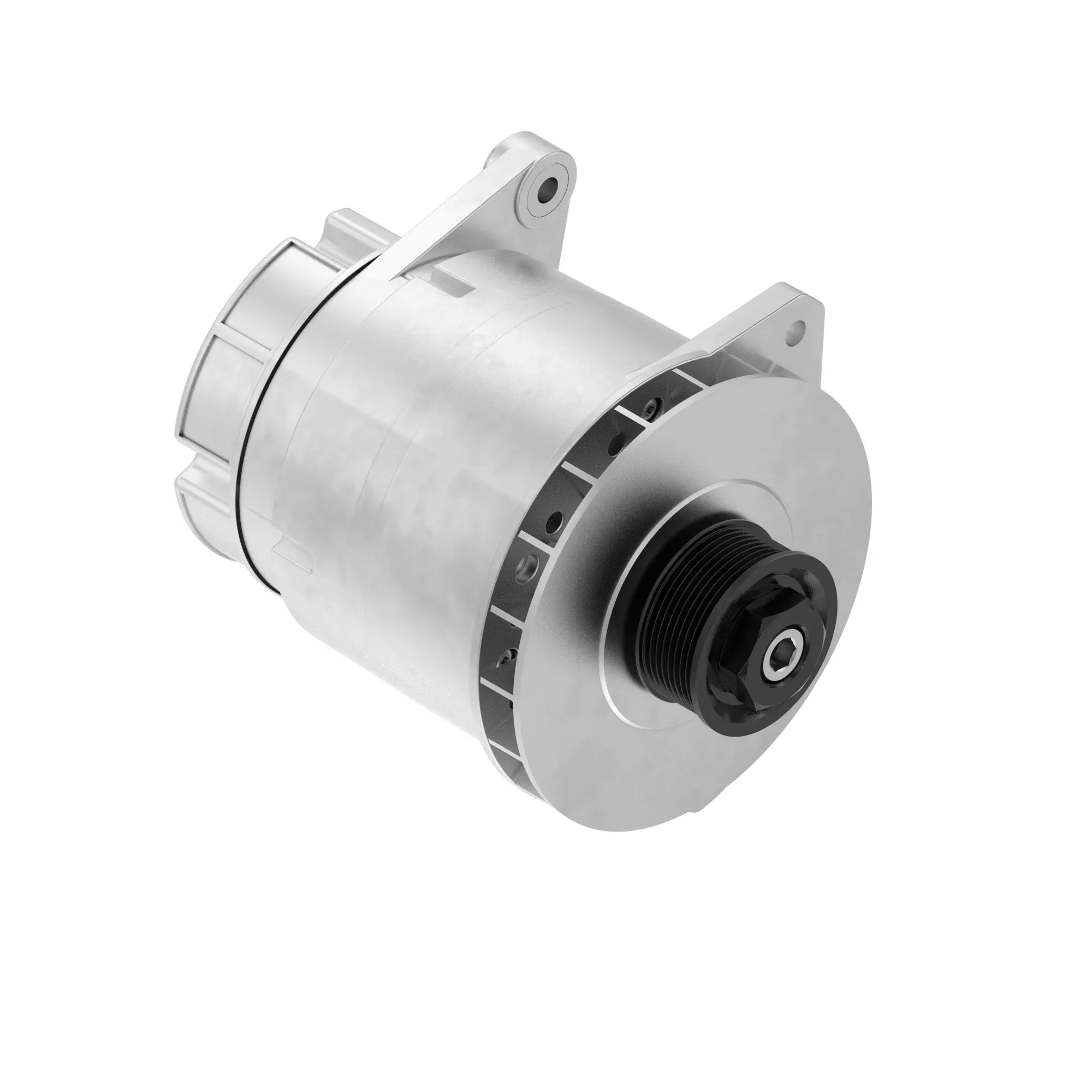

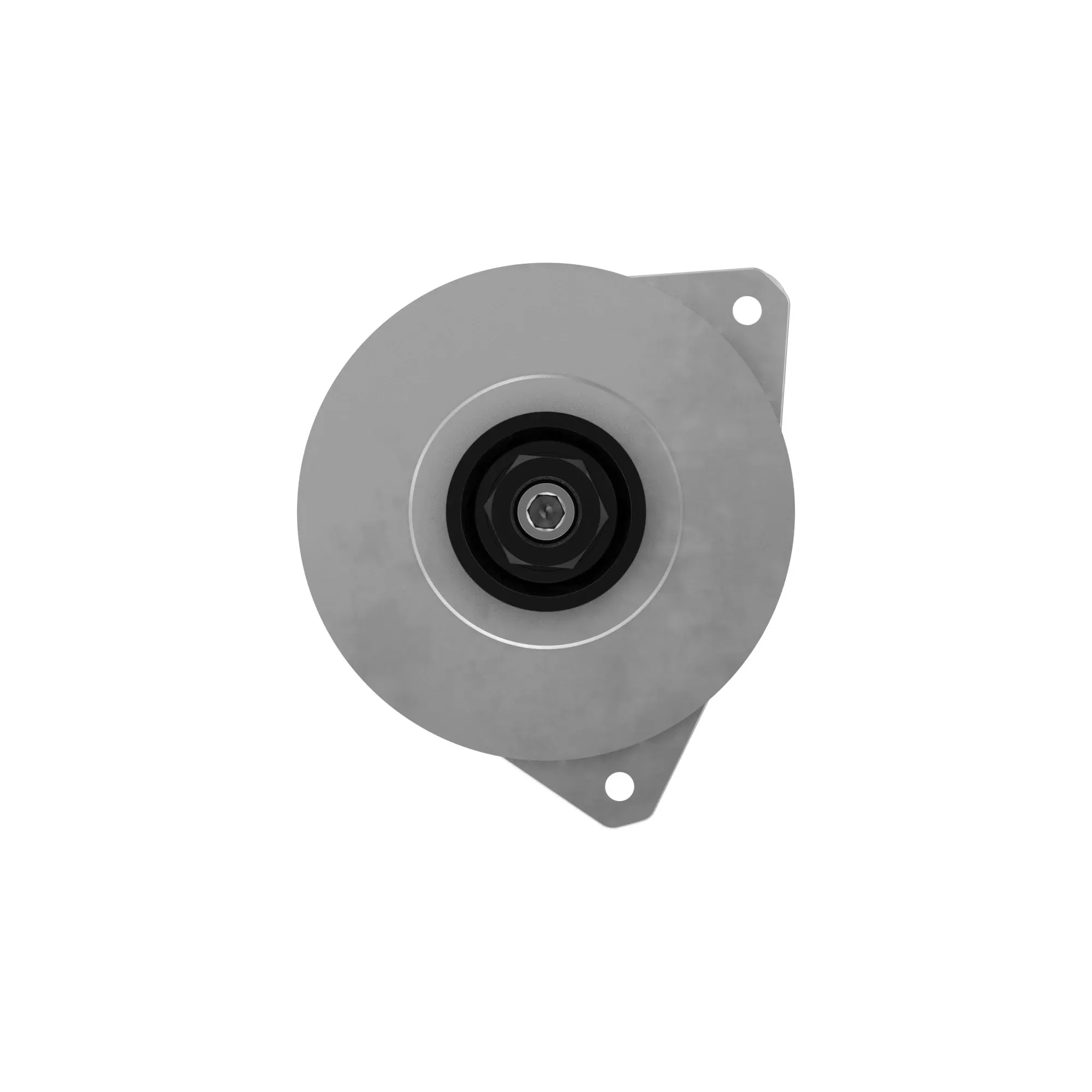

DZ117503: Alternator, 24 Volt, 190 Amp

Part Number: DZ117503

Parts Tier: Original

John Deere Alternator generates electrical power from engine rotation to support equipment operation needs
Designed with an external fan that helps improve cooling, keeps output steady, and may help extend alternator life
Built with a closed frame that helps block dust and dirt, which may extend service life and improve reliability
Designed with an enclosed brush that shields parts from dirt, may reduce wear, and can help lower maintenance needs

Product Dimensions

Weight

22.096 lb

Height

7 in

Width

9.5 in

Length

12 in

Specifications

Frame Style

Closed

Amperes

190 amp

Voltage

28 V

Brush Style

Enclosed

Fan Type

External

For the most accurate fit and confidence, please select the equipment you are shopping for. Parts can be used across a number of different models, the models shown here indicate general fit of the part.

4045AFM85
4045DF120
4045DF150
4045DF270
4045DF271
4045DFM50
4045DFM70
4045HF120
4045HF120R02
4045HF150
4045HF275
4045HF285
4045HF475
4045HF485
4045HFG85
4045TF120
4045TF150
4045TF220
4045TF250
4045TF270
4045TF271
4045TF275
4045TFM50
4045TFM75
4045TFS70
6068AFM75
6068AFM85
6068DF150
6068HF120
6068HF150
6068HF250
6068HF275
6068HF285
6068HF475
6068HF485
6068HFG85
6068SFM50
6068SFM75
6068SFM85
6068TF150
6068TF220
6068TF250
6068TF275
6068TFM50
6068TFM75
6068TFM76
6081HF070
6090HF485
6125HF070
6135HF485

Return Information

Return Items identified as ‘Eligible for Return’ are eligible for refund within 30 days of invoicing. Returned Items must be returned in new condition and in its original packaging with all paperwork including manuals, assembly instructions and your packing slip. Parts must be returned to the seller listed on your e-commerce invoice. Return eligibility & processing will be verified by the dealer at time of return. View Return Policy for complete information.

Core Return Information

This part is eligible for a Refundable Core Charge. A Core is an item that allows the manufacturer to Rebuild a part using the core and other new replacement parts. Recycling cores & rebuilding these products reduces waste and supports the overall sustainability of our environment. When the old part is returned to your John Deere dealer, they will refund you the appropriate core charge associated with this part. View Core Return Policy for complete information.
