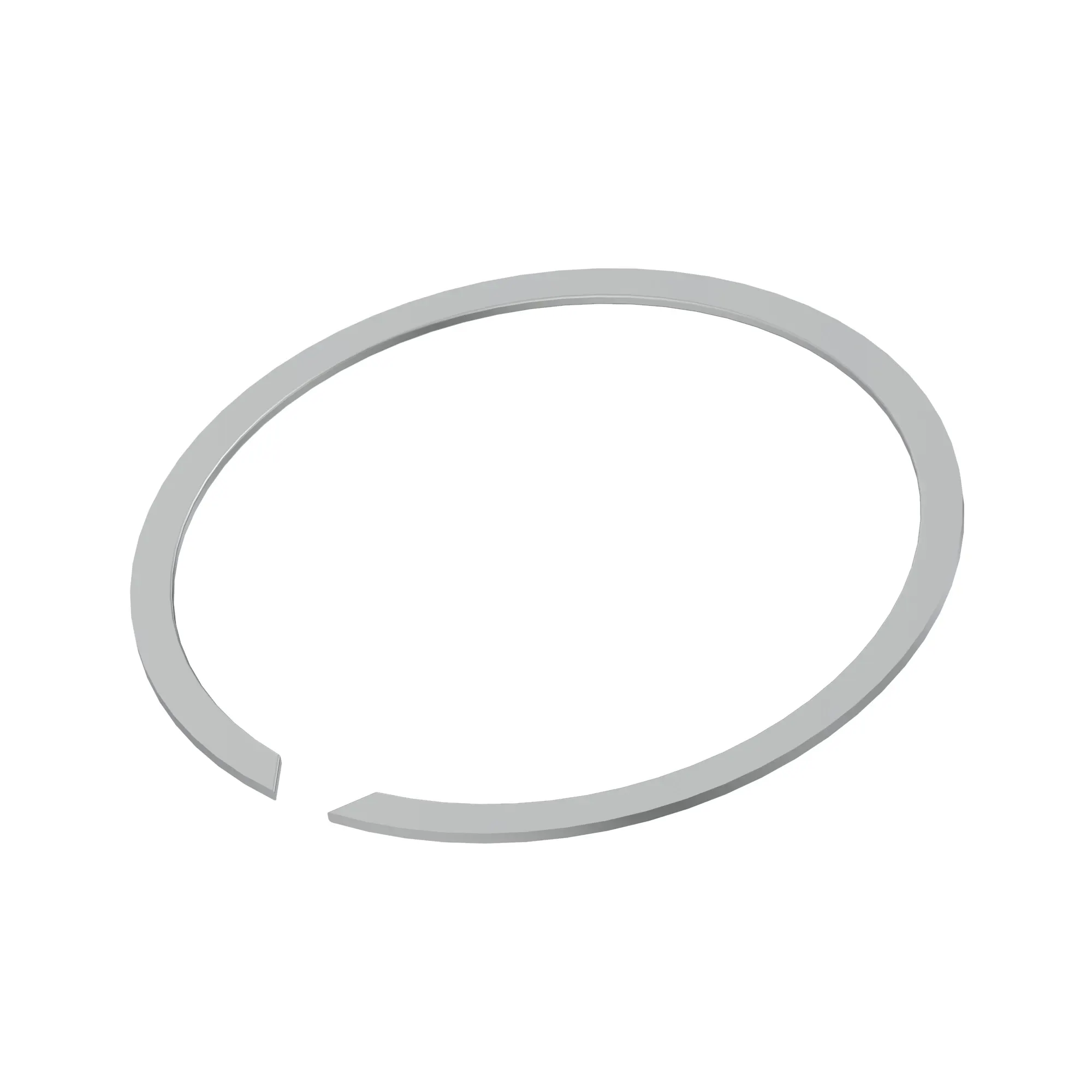

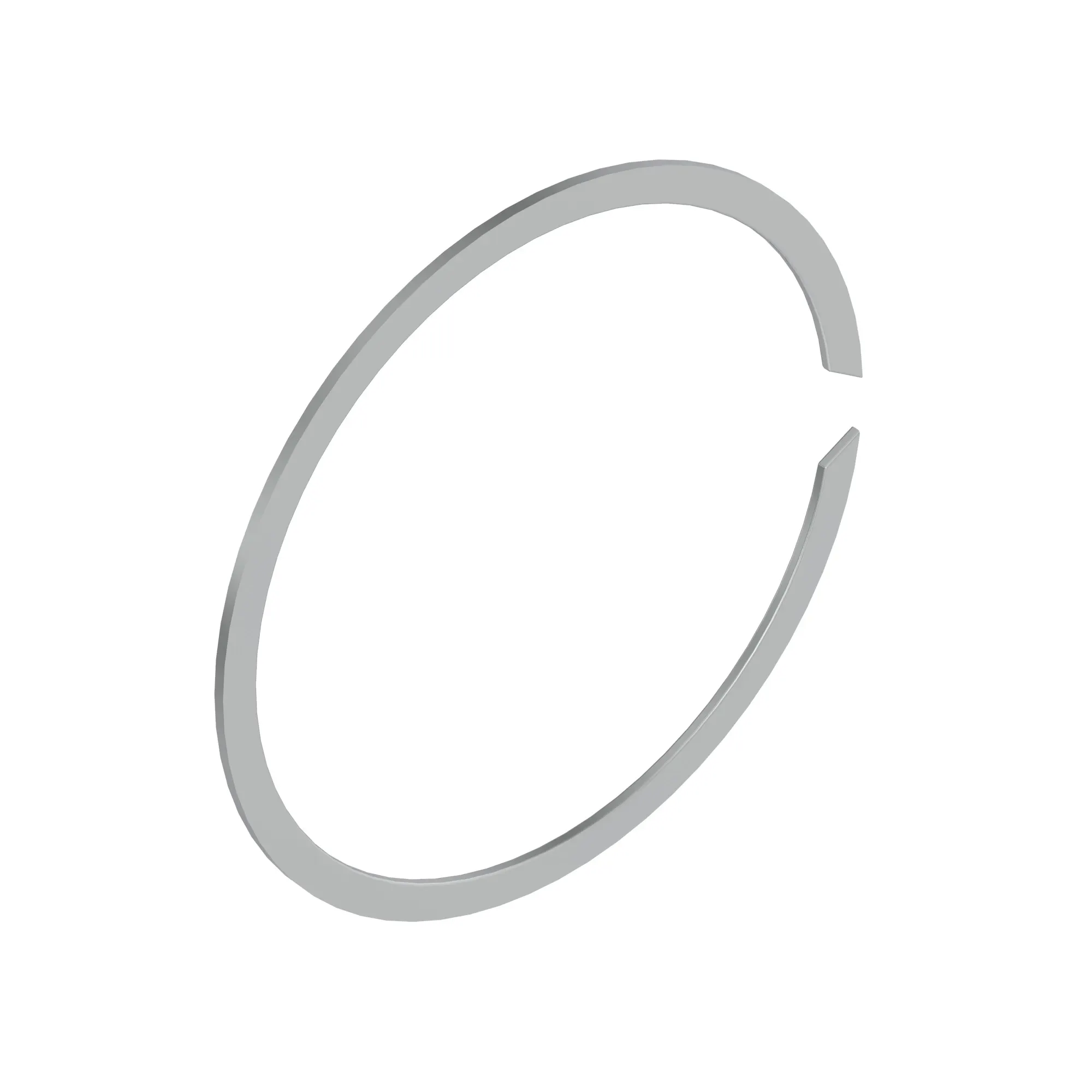

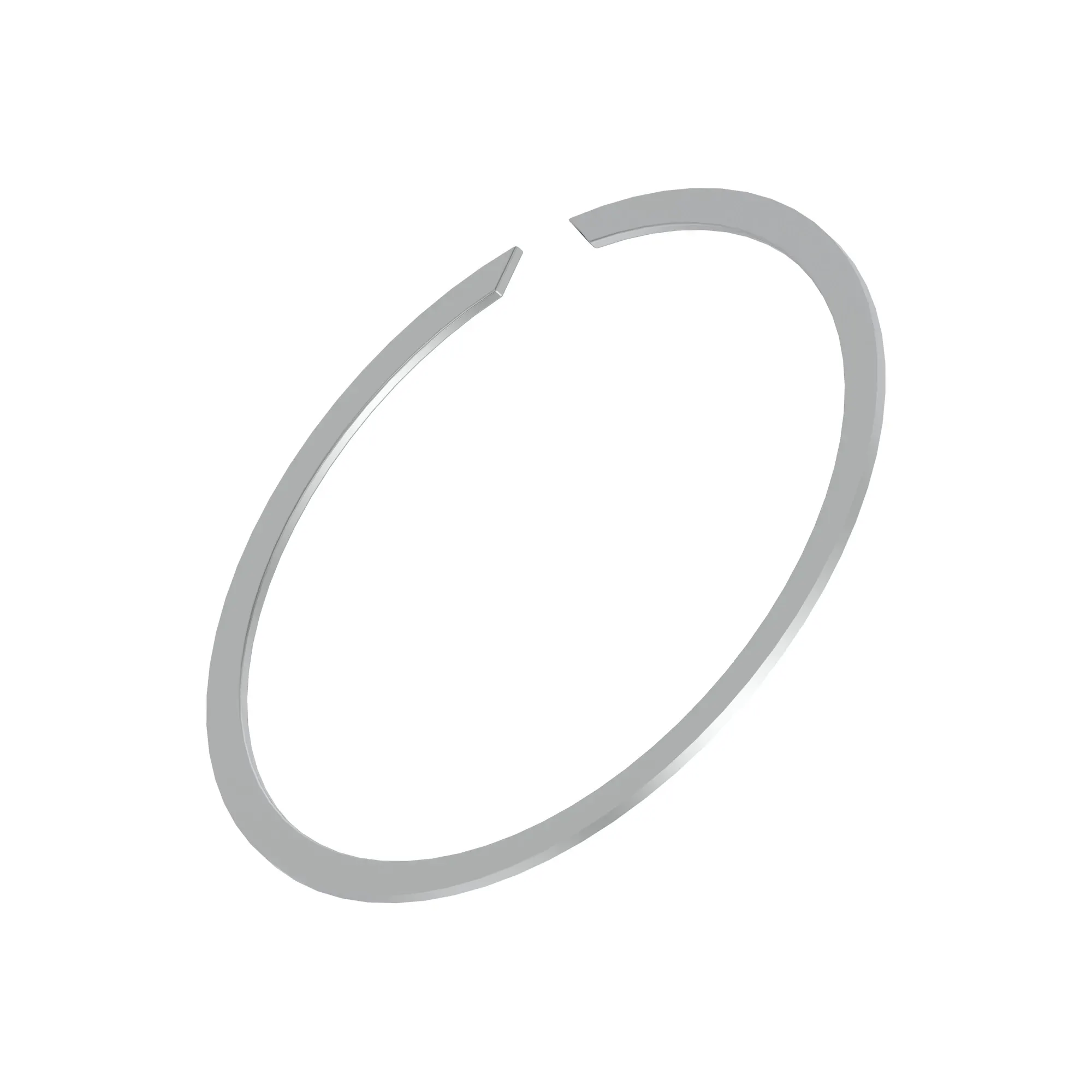

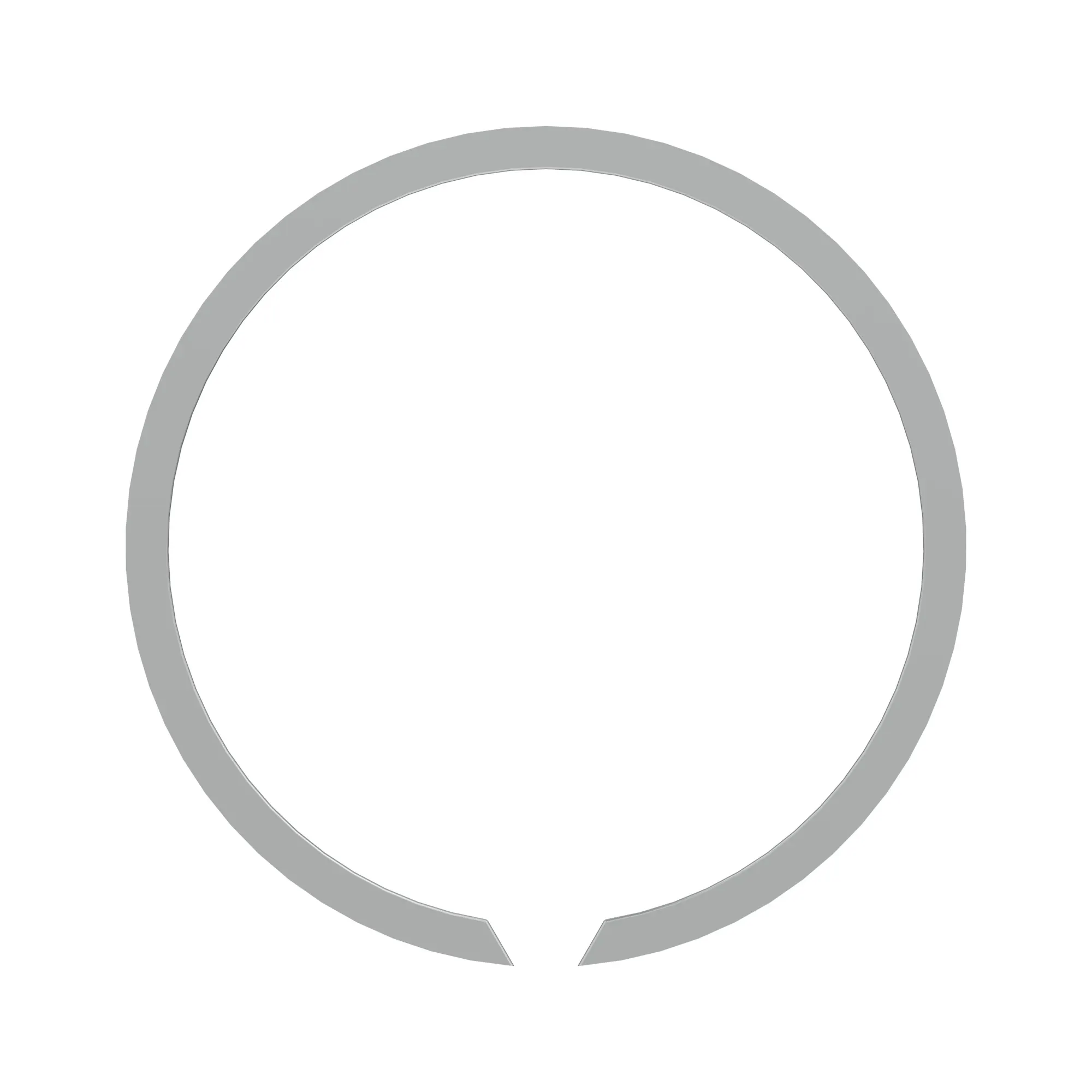

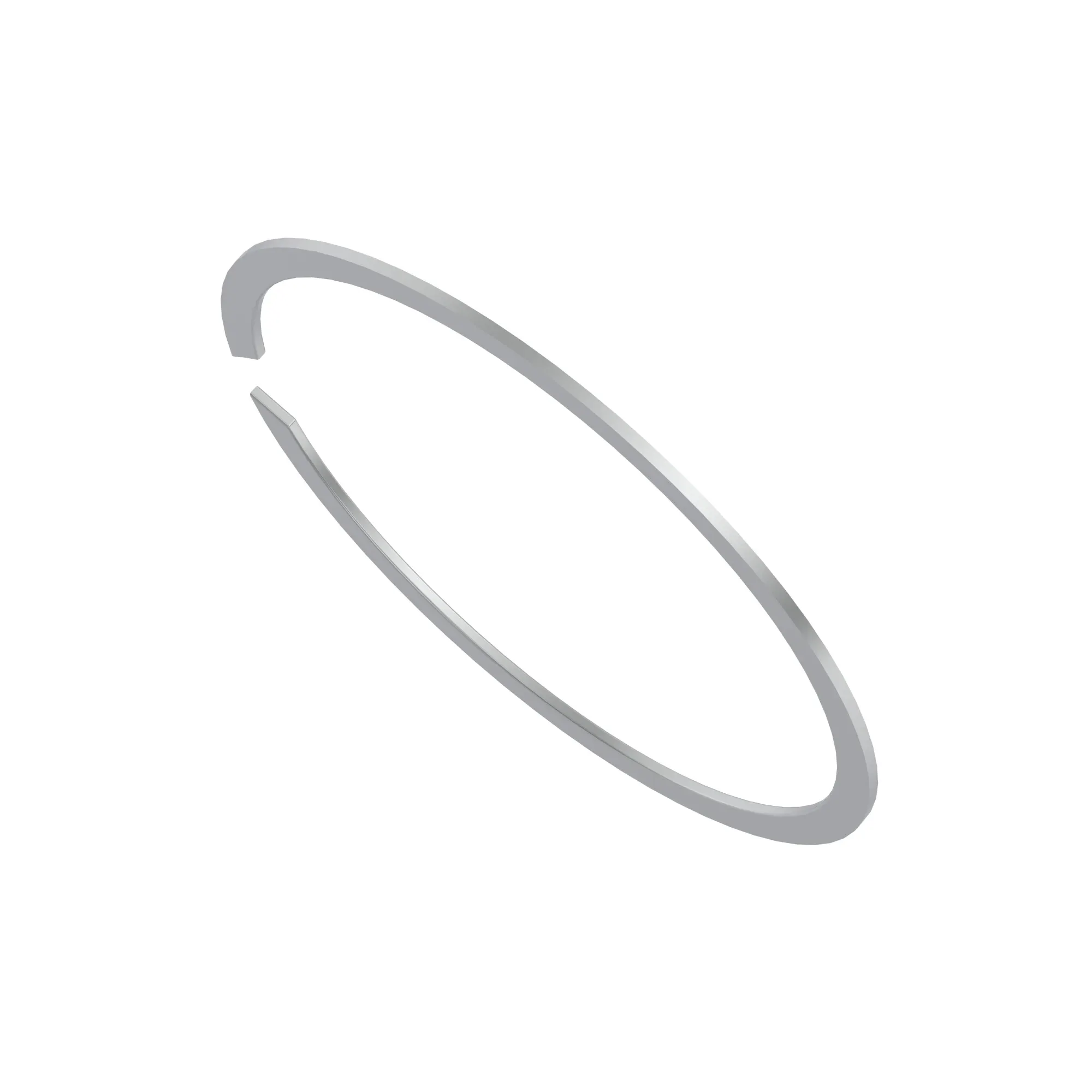

DZ105396: External Snap Ring

Part Number: DZ105396

Parts Tier: Original

Versatile external snap ring designed to securely hold components onto a shaft or in a bore
Key specifications: 6.35 mm (1/4 in) radial width, 9.50 mm (3/8 in) free gap, and 2 mm (0.08 in) width for precise fitting
Fits shafts with a diameter of 120.02 mm (4.73 in) and grooves with a diameter of 113.52 mm (4.47 in)
Made from high quality general steel for durability and strength

WARNING/ADVERTENCIA -Cancer and Reproductive Harm/Cáncer y Daño Reproductivo. www.p65warnings.ca.gov

Product Dimensions

Weight

0.08 lb

Height

5 in

Length

0.1 in

For the most accurate fit and confidence, please select the equipment you are shopping for. Parts can be used across a number of different models, the models shown here indicate general fit of the part.

800R
4940
6090CG550
6090CI550
6090CI551
6090CP550
6090HFC09
6090HFG06
6090HFG09
6090HI550
6090WG502
8235R
8245R
8260R
8270R
8285R
8295R
8310R
8310RT
8320R
8320RT
8335R
8335RT
8345R
8345RT
8360R
8360RT
8370R
8370RT
8400R
9360R
9370R
F4365
F4365/800R PRECISION UPGRADES
S650
S660
S660 PRECISION UPGRADES
S670
S670 PRECISION UPGRADES
S670H
S760
S760 PRECISION UPGRADES
S770
S770 PRECISION UPGRADES
T560
T660
T670
W650
W660
