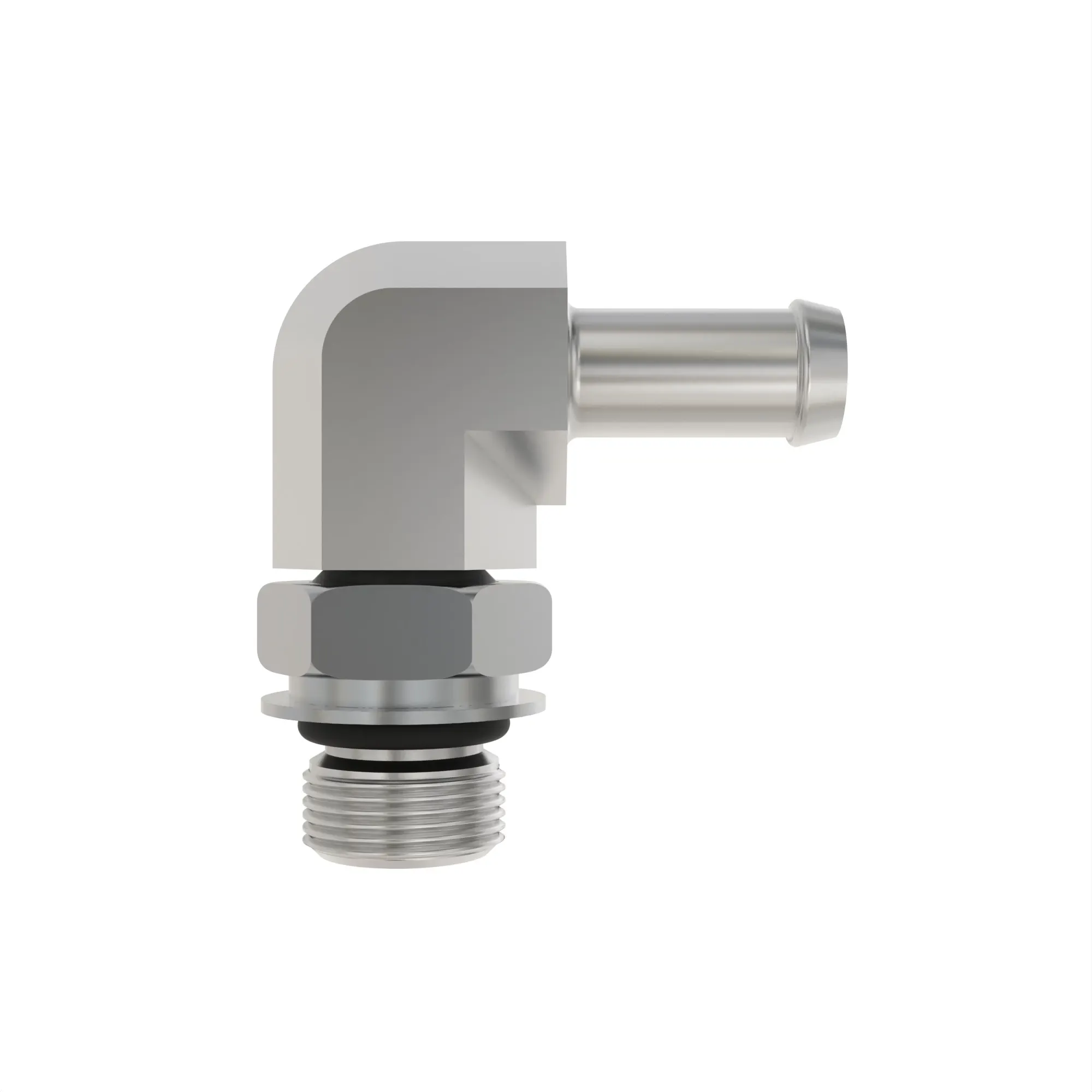

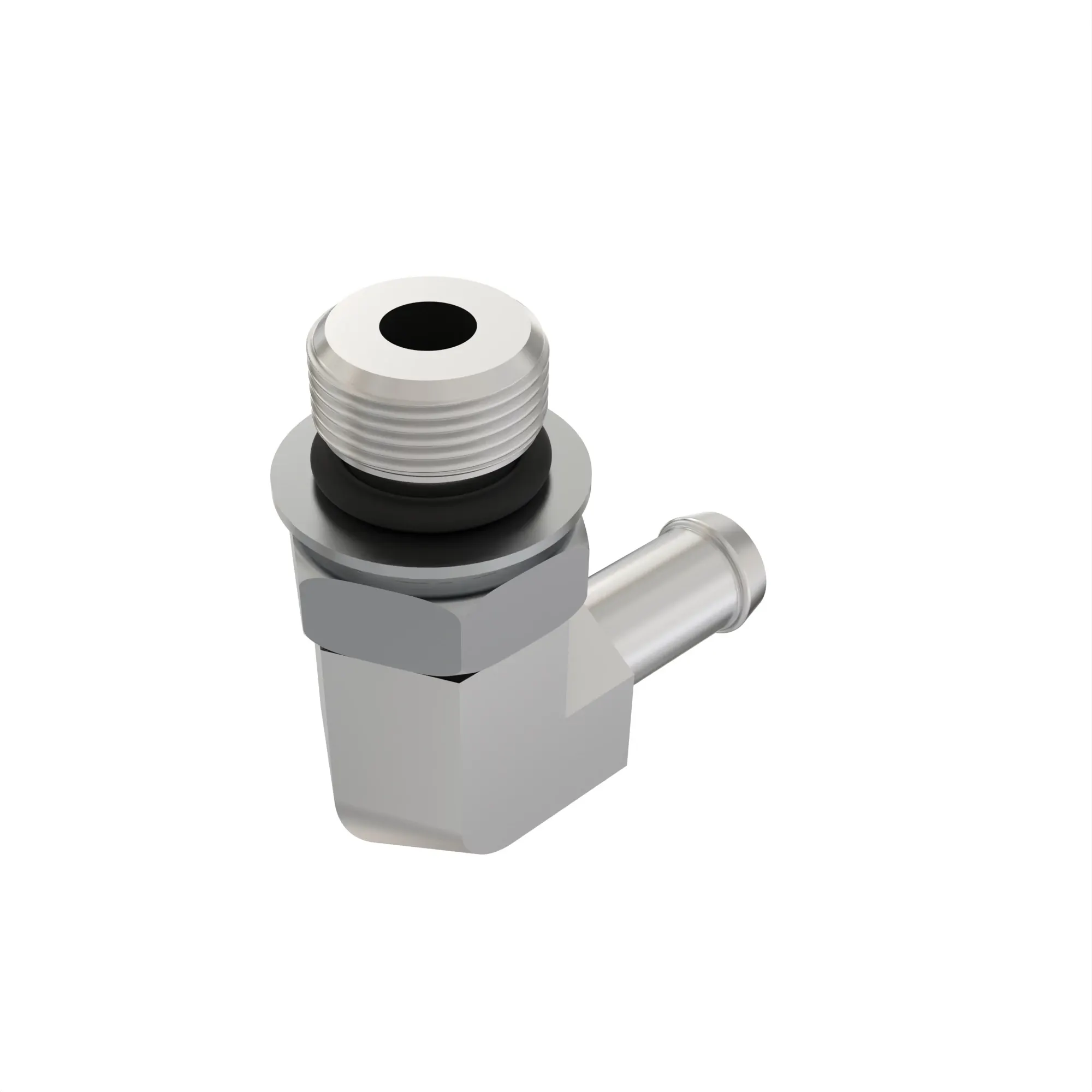

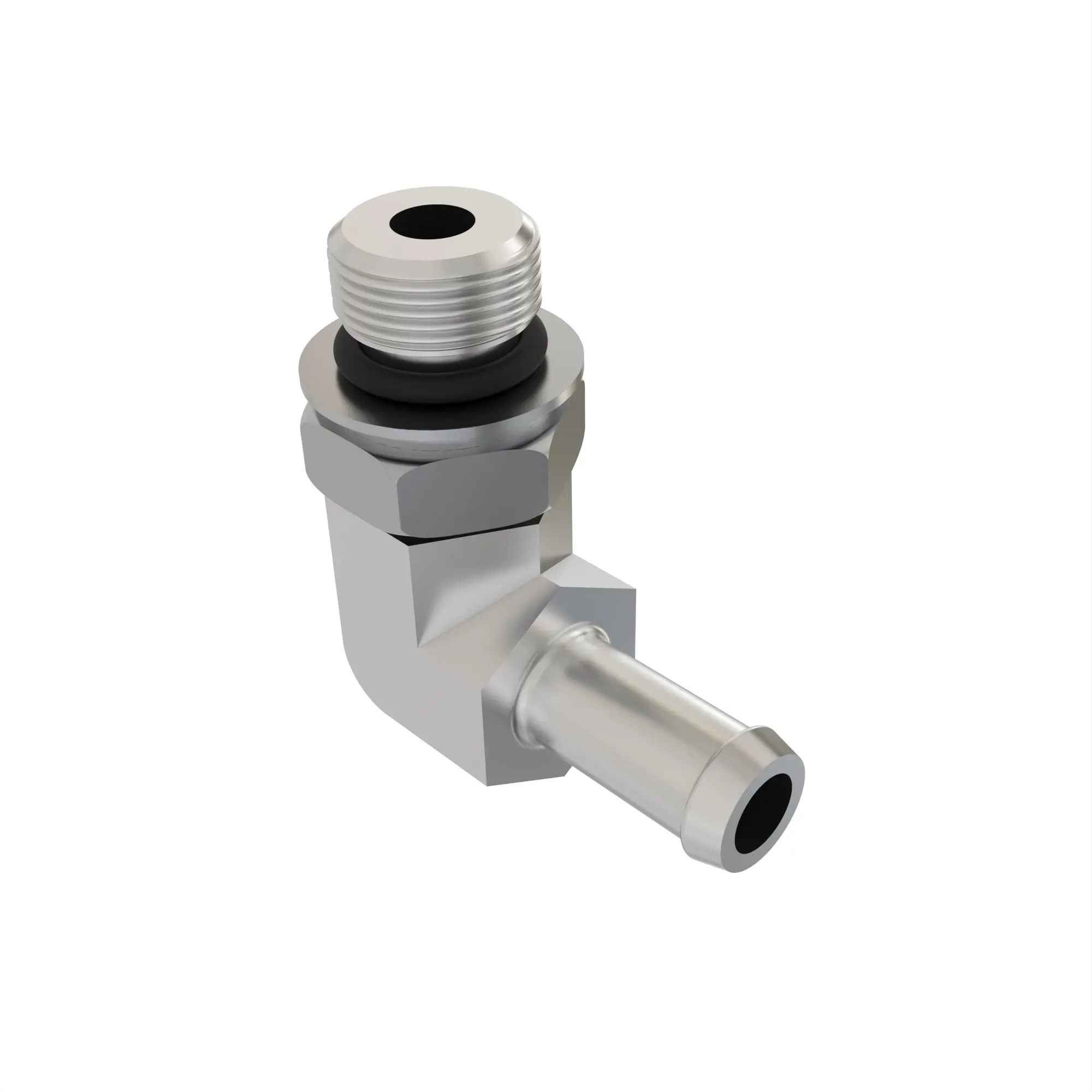

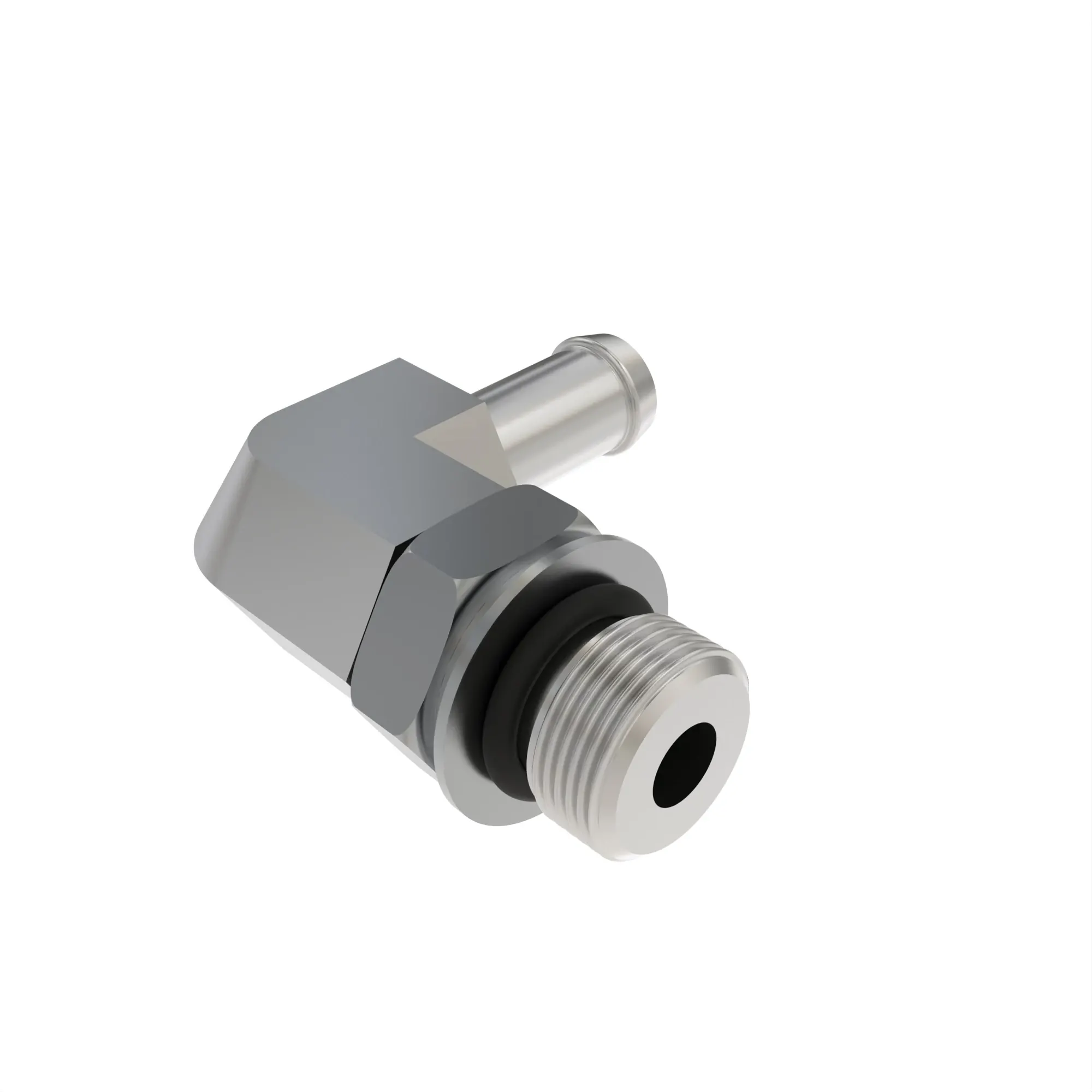

Name: DZ10328: 90 Degree Elbow Fitting
Brand: John Deere

Product Dimensions

Weight

0.17 lb

Height

0.9 in

Width

1.7 in

Length

1.8 in

Specifications

Thread Size

14 mm

Tube/Hose Inner Diameter (ID)

9.525 mm

Thread Type Code

Metric Port Stud Thread

For the most accurate fit and confidence, please select the equipment you are shopping for. Parts can be used across a number of different models, the models shown here indicate general fit of the part.

9R 390
9R 440
9R 490
9R 490 SCRAPER
9R 540
9R 540 SCRAPER
9R 590
9R 590 SCRAPER
9R 640
9R 640 SCRAPER
9RX 490
9RX 490 SCRAPER
9RX 540
9RX 540 SCRAPER
9RX 590
9RX 590 SCRAPER
9RX 640
40I
50I
210 P
210L
310 P
310L
310SL
310SL HL
315 P
315SL
320 P
410 P
410L
450 P
4045HLV72
4045HP551
5075M
5085M
5090M
5090R
5095M
5100M
5100MH
5100ML
5100R
5105M
5105MH
5105ML
5115M
5115ML
5115R
5115RH
5120M
5120ML
5125M
5125ML
5125R
5130M
5130ML
6068HP550
6105E
6120E
6120EH
6135E

Return Information

Return Items identified as ‘Eligible for Return’ are eligible for refund within 30 days of invoicing. Returned Items must be returned in new condition and in its original packaging with all paperwork including manuals, assembly instructions and your packing slip. Parts must be returned to the seller listed on your e-commerce invoice. Return eligibility & processing will be verified by the dealer at time of return. View Return Policy for complete information.

Generally, parts purchased from Shop.Deere.com are covered by the John Deere Parts Warranty, covering defects in material and workmanship, for a minimum period of 6 months from receipt. For complete warranty information, please contact your local authorized John Deere dealer.
