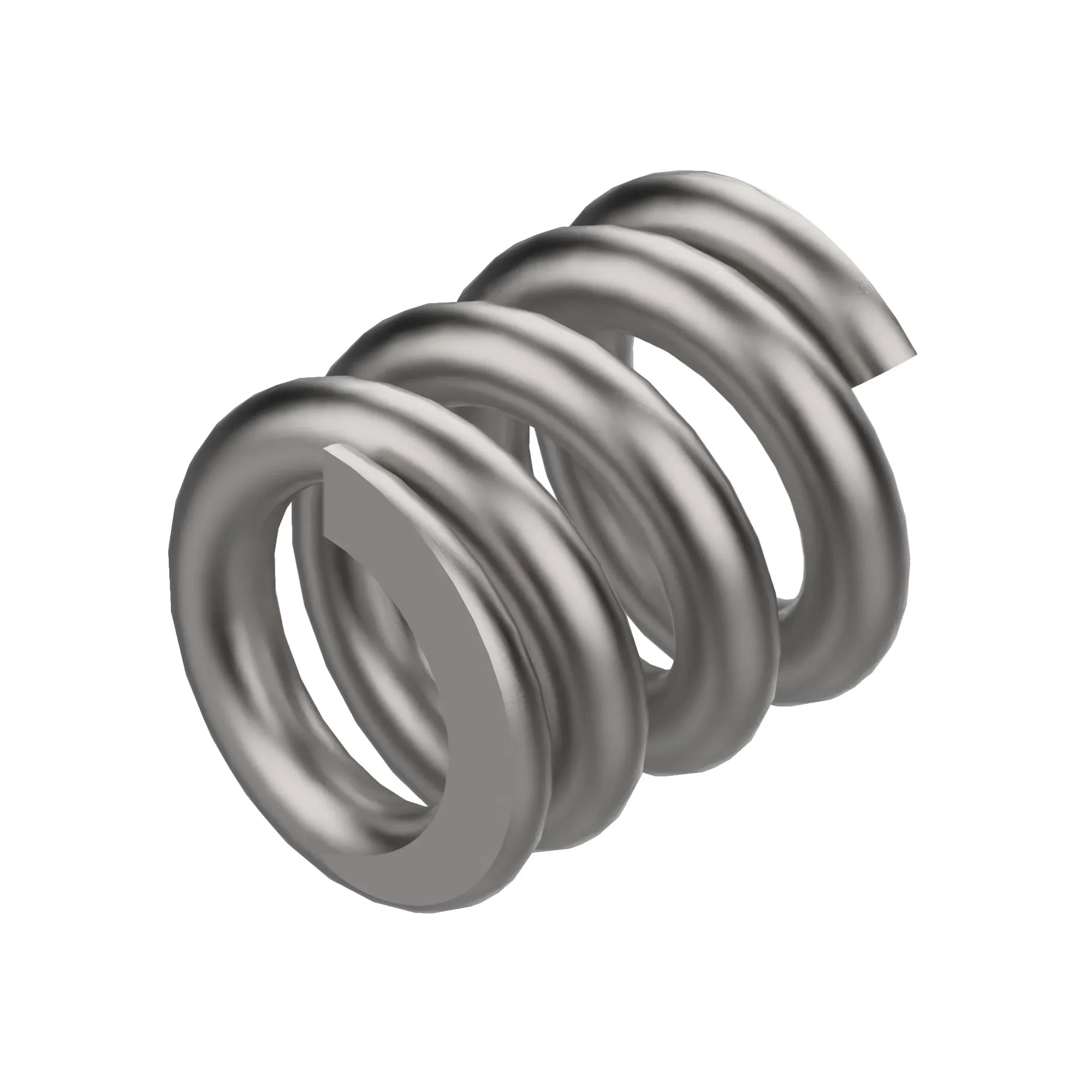

DX13685: Squared and Ground Ends Compression Spring

Part Number: DX13685

Parts Tier: Original

High-performance compression spring designed to absorb and store energy, providing reliable force in various mechanical applications
Features a 16 mm (5/8 in) wire diameter and 83 mm (3.27 in) outer diameter, ideal for heavy-duty tasks requiring robust support
Offers a free length of 94 mm (3.7 in) and a solid length of 71 mm (2.8 in) for versatile use in compact spaces
Made from high-quality alloy steel for enhanced durability and strength
Finished with a heat-treated process to ensure long-lasting performance and resistance to wear

Specifications

Spring Rate

Wire Diameter

16 mm

Total Coils

4.5

Spring Type

Compression Spring

Material

Steel Alloy

Outside Diameter

83 mm

Free Length

94 mm

Solid Length

71 mm
