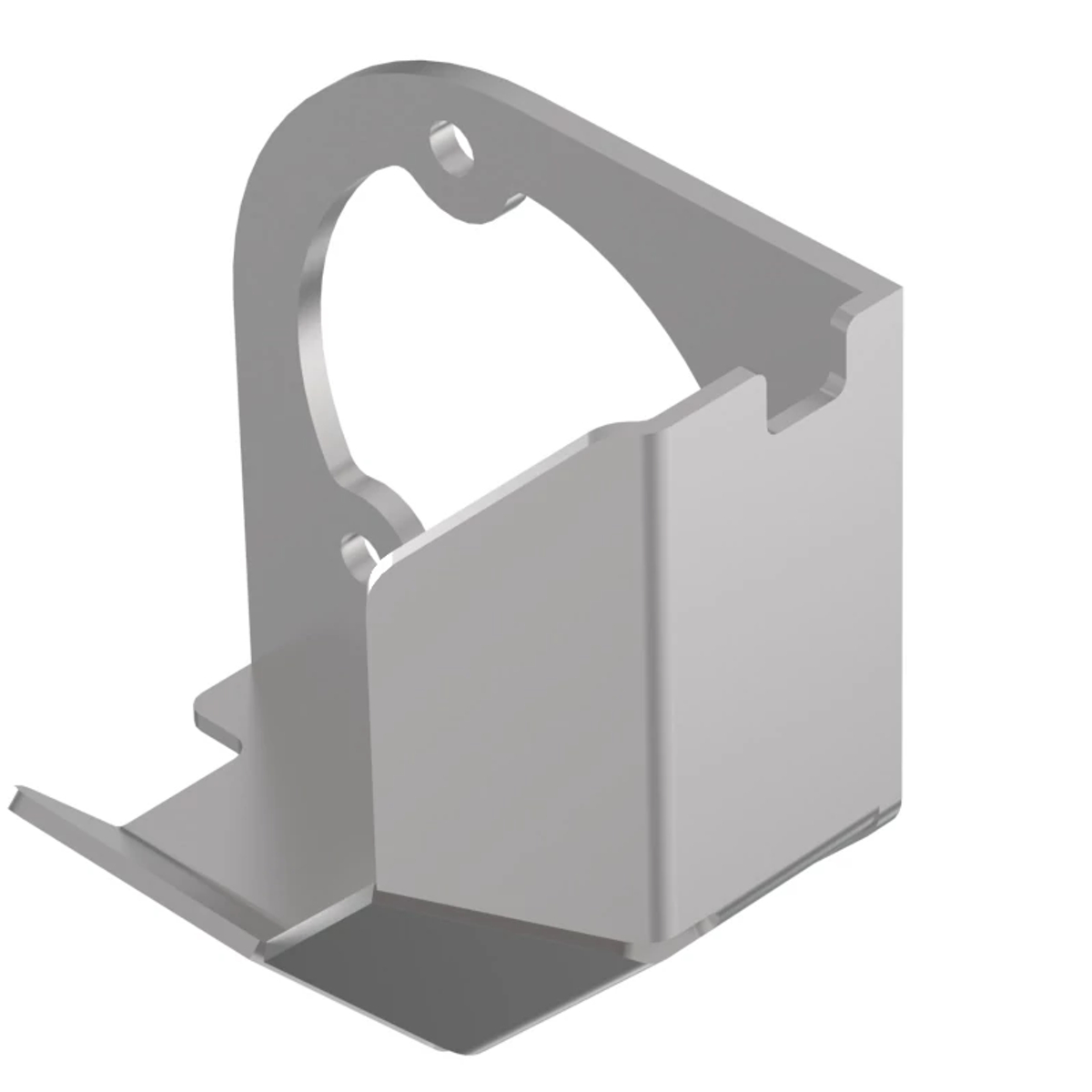

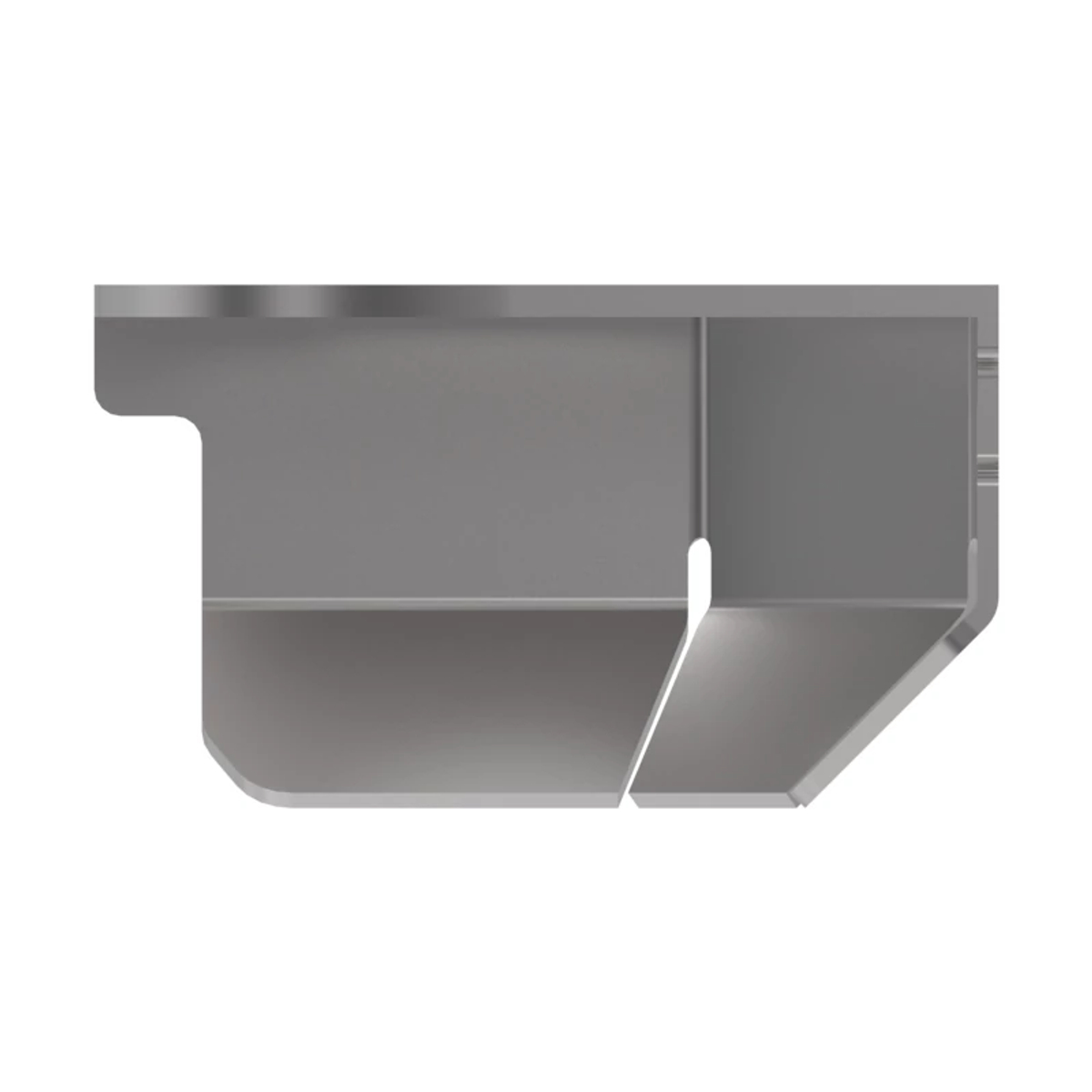

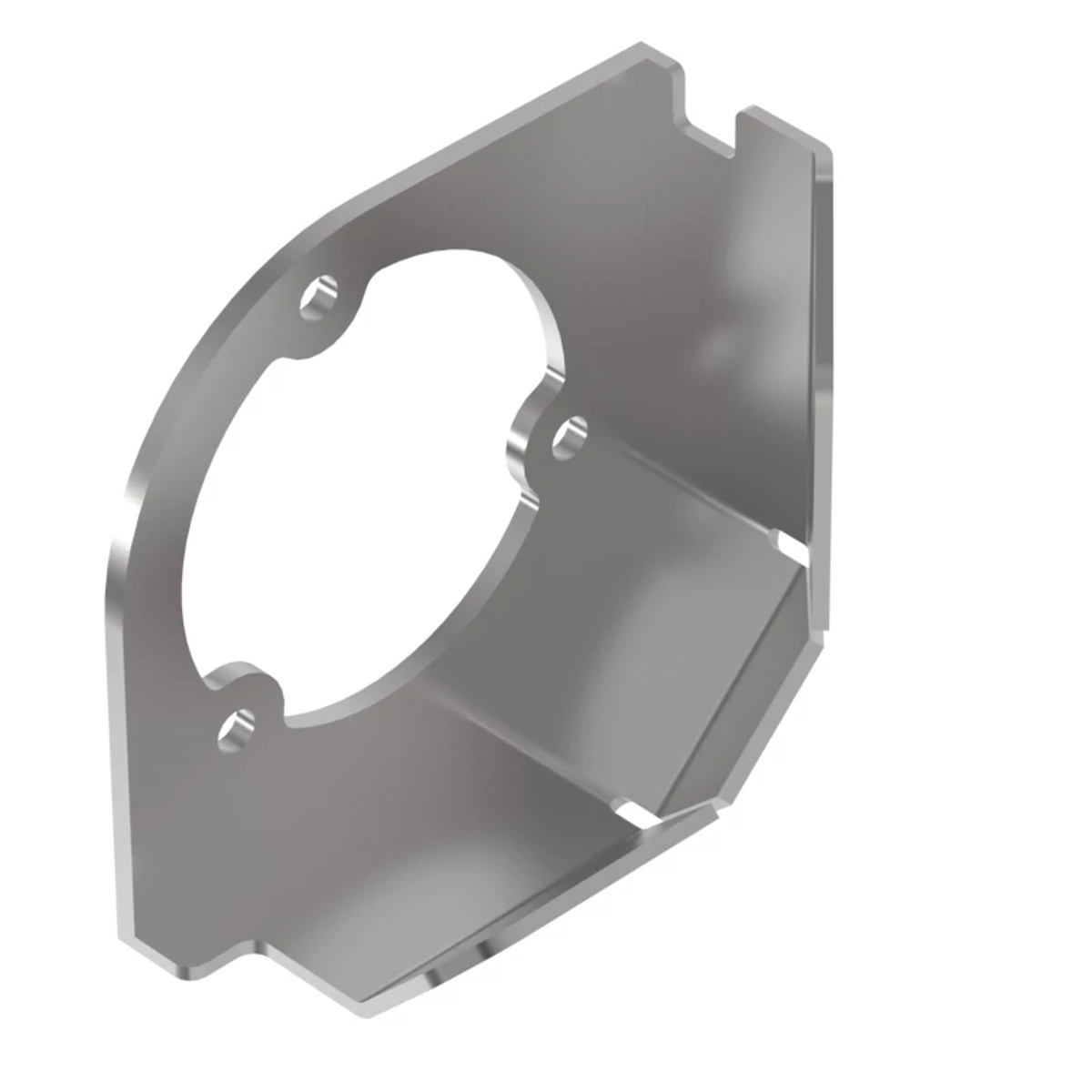

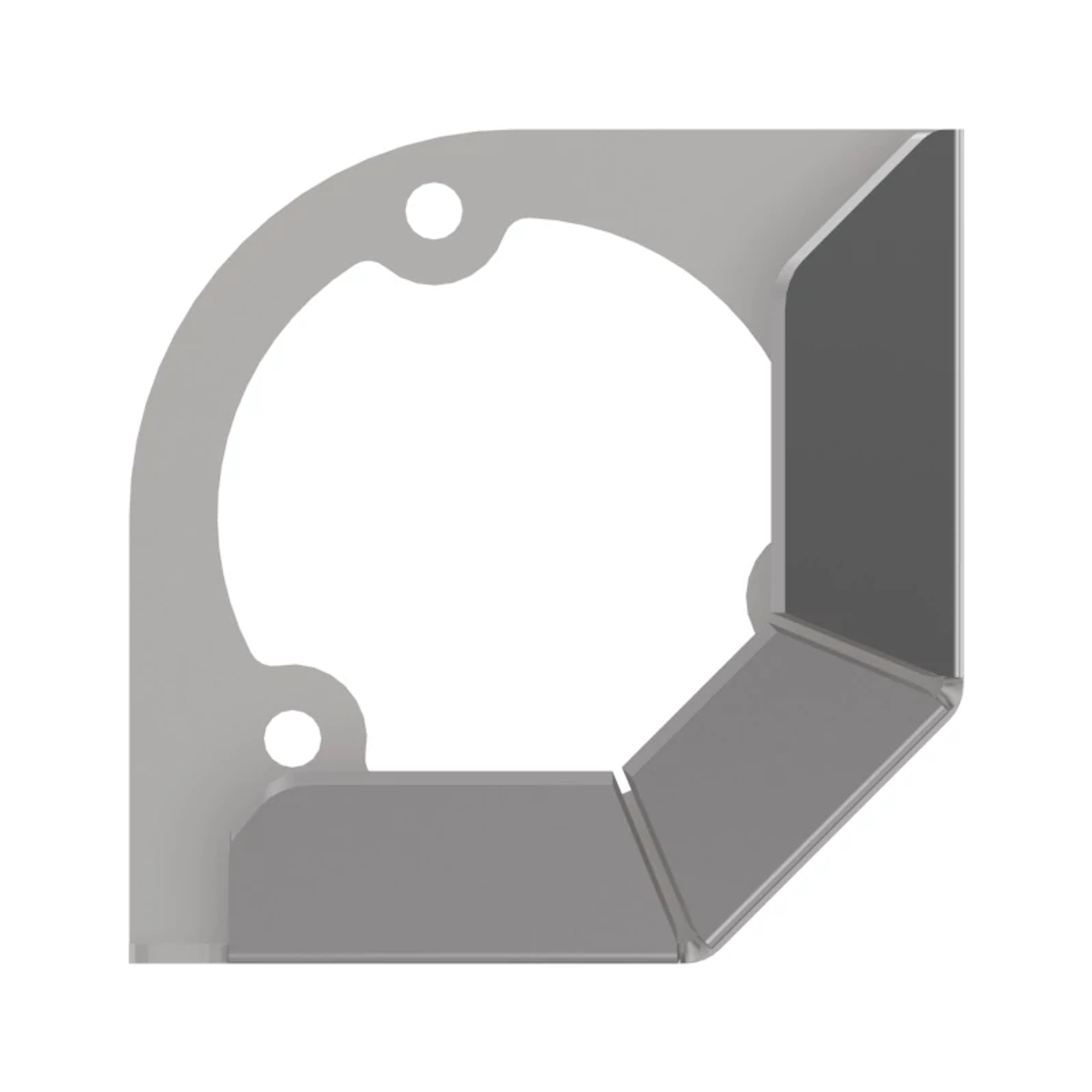

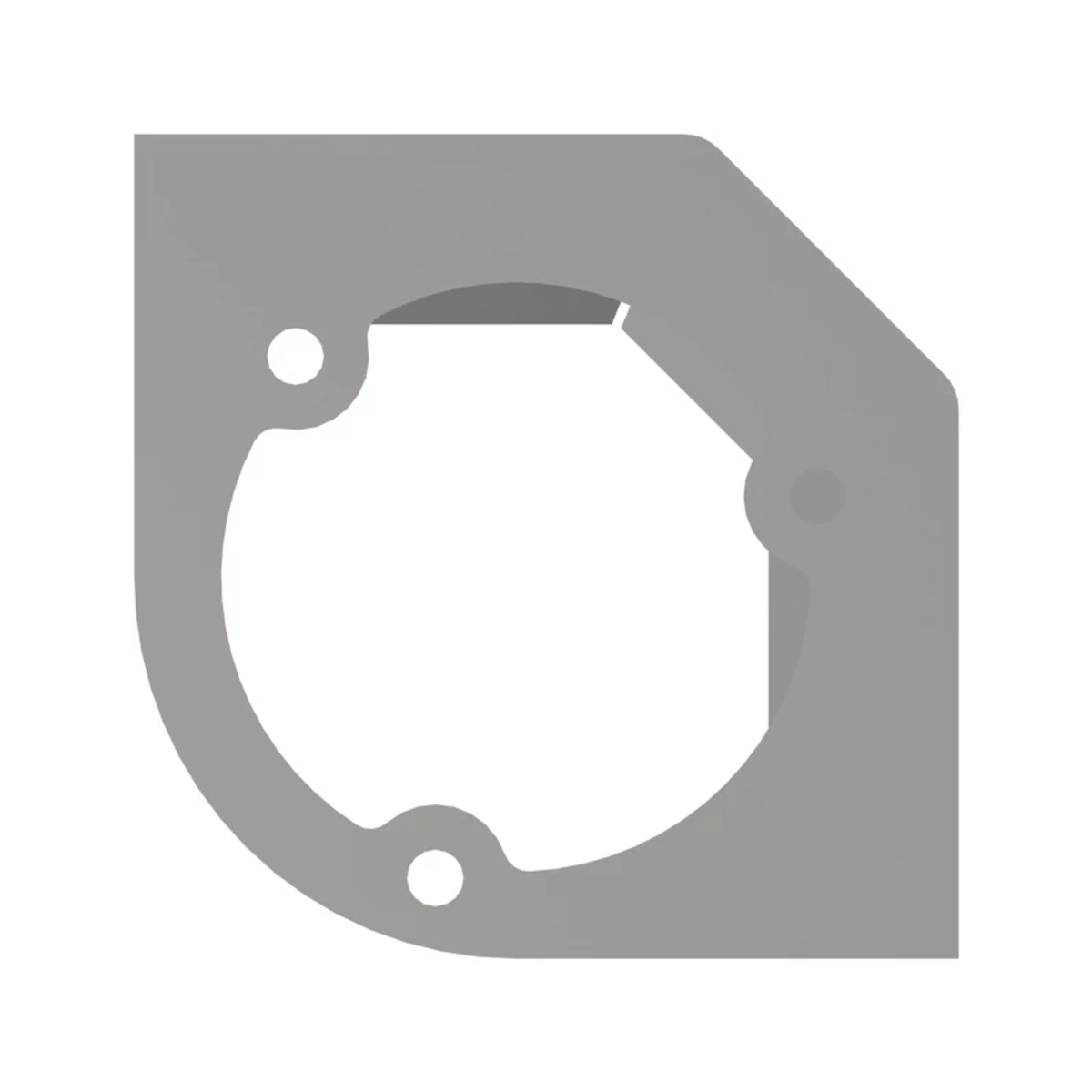

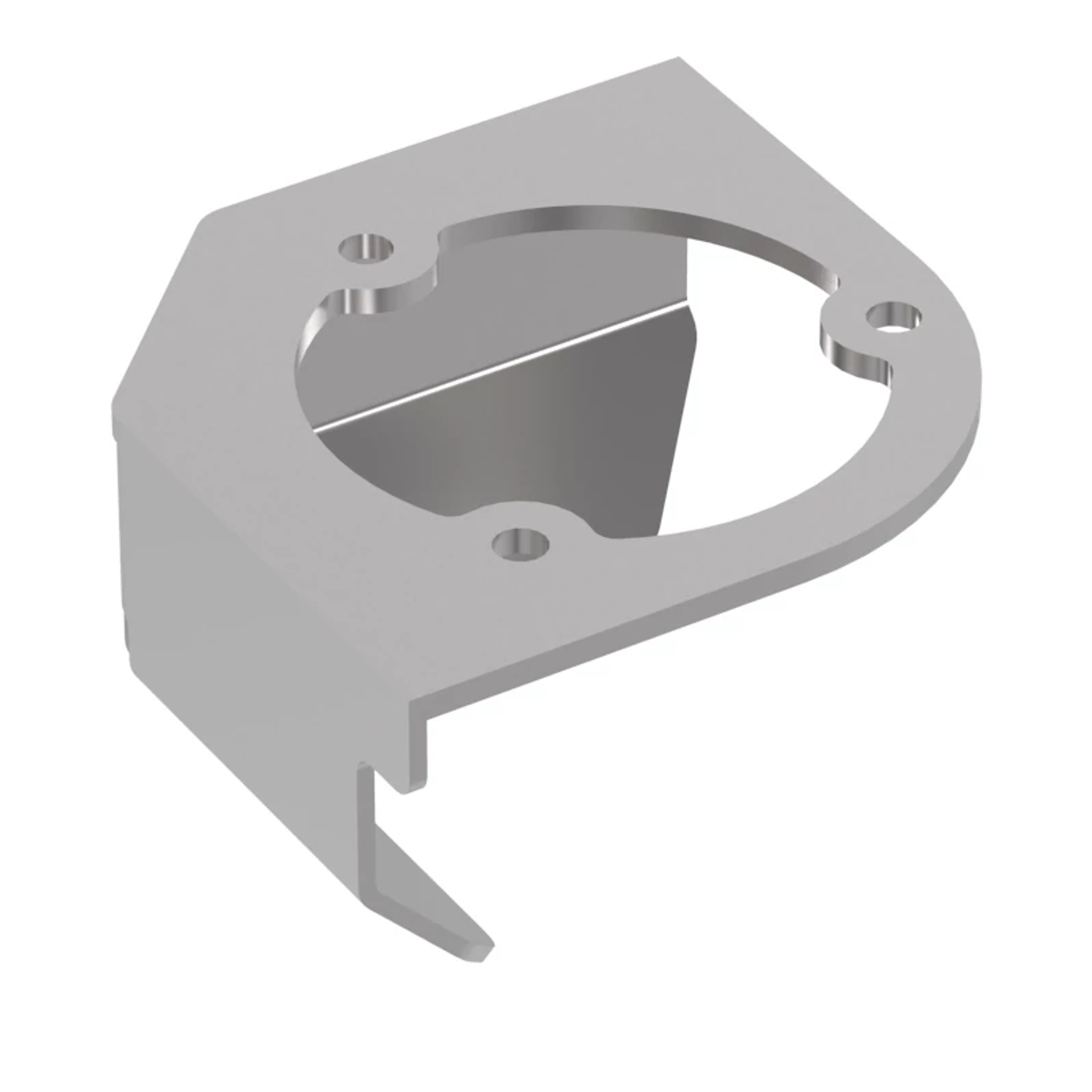

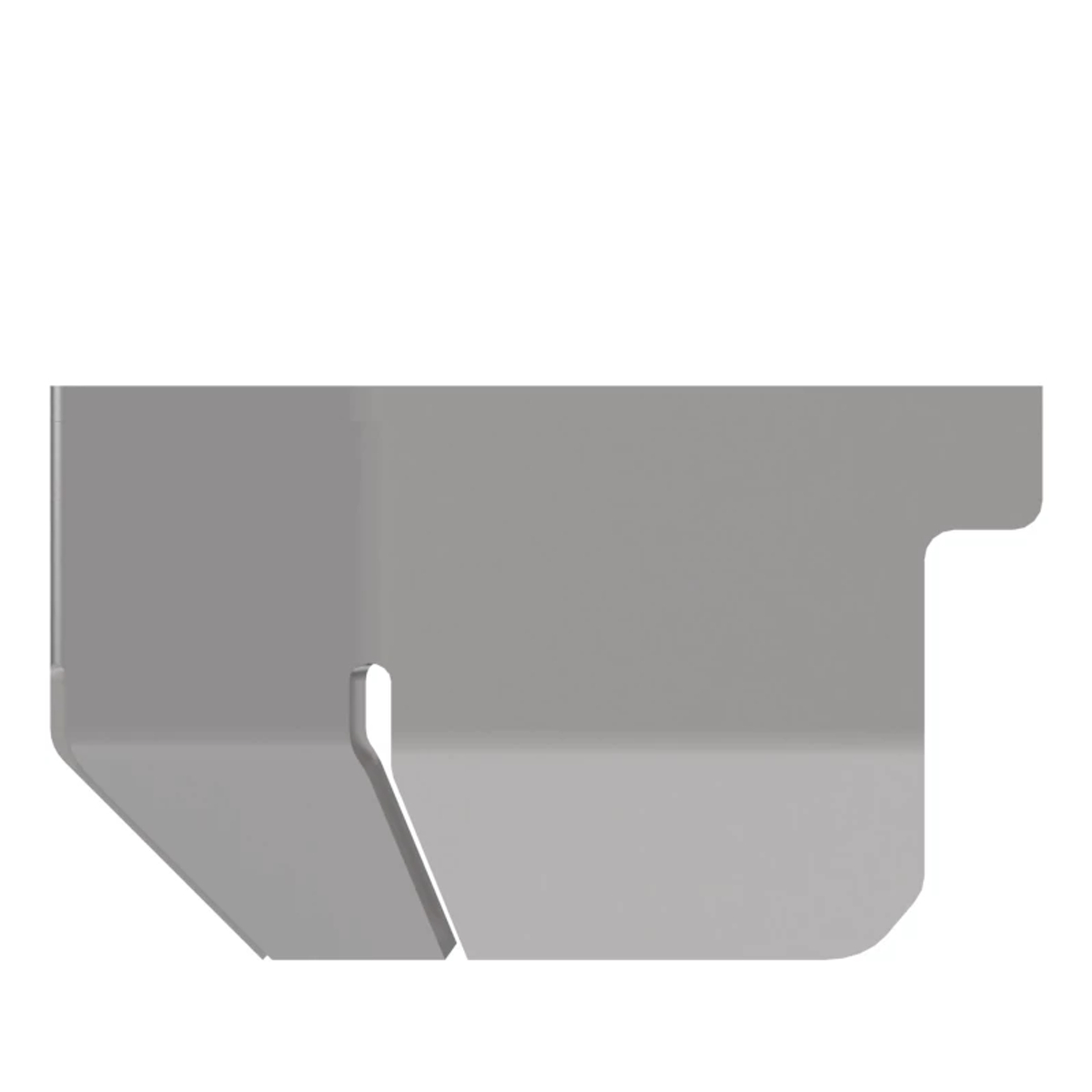

AZ103401: Vertical Auger Lower Gear Case Shield

Part Number: AZ103401

Parts Tier: Original

John Deere vertical auger lower gear case shield protects the gear case from debris and impact during operation in compatible machinery applications
Impact-resistant build allows this shield to absorb and deflect force, supporting continued coverage of the gear case area under challenging use conditions
Protection from damage helps this shield reduce exposure of the gear case to debris, supporting long-term durability of internal components
Corrosion-resistant surface treatment helps this shield withstand environmental exposure and maintain its protective qualities over time
Lower position fitment allows this shield to cover the vertical auger gear case area as intended for correct installation location

WARNING/ADVERTENCIA -Cancer and Reproductive Harm/Cáncer y Daño Reproductivo. www.p65warnings.ca.gov

Product Details

Product Dimensions

Weight

3.68 lb

Height

7.1 in

Width

7.1 in

Length

7.2 in

Compatible Equipment

For the most accurate fit and confidence, please select the equipment you are shopping for. Parts can be used across a number of different models, the models shown here indicate general fit of the part.

9470 STS
9500
9540
9560
9570 STS
9580
9640
9650 STS
9660 WTS
9670
9670 STS
9680
9750 STS
9770 STS
9780
9870 STS
C670
S5 500
S7 600
S7 700
S7 800
S7 850
S7 900
S540
S550
S560
S650
S660
S660 PRECISION UPGRADES
S670
S670 PRECISION UPGRADES
S670H
S680
S680 PRECISION UPGRADES
S680H
S685
S685H
S690
S690 PRECISION UPGRADES
S690H
S760
S760 PRECISION UPGRADES
S770
S770 PRECISION UPGRADES
S780
S780 PRECISION UPGRADES
S785
S790
S790 PRECISION UPGRADES
T5 400
T5 500
T5 PRECISION UPGRADES
T6 500
T6 600
T6 PRECISION UPGRADES
T550
T560
T660
T670
W540
W550
W650
W660
