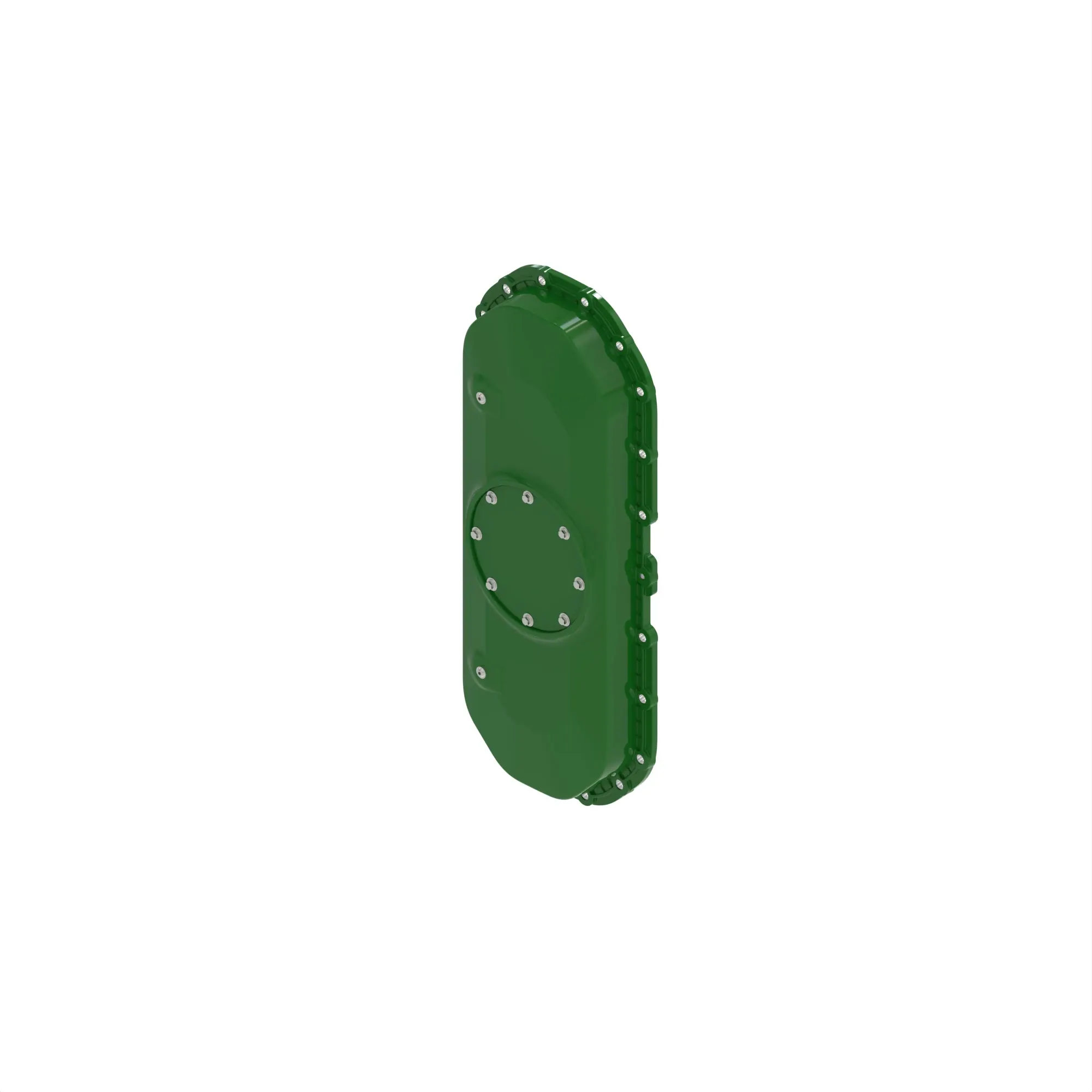

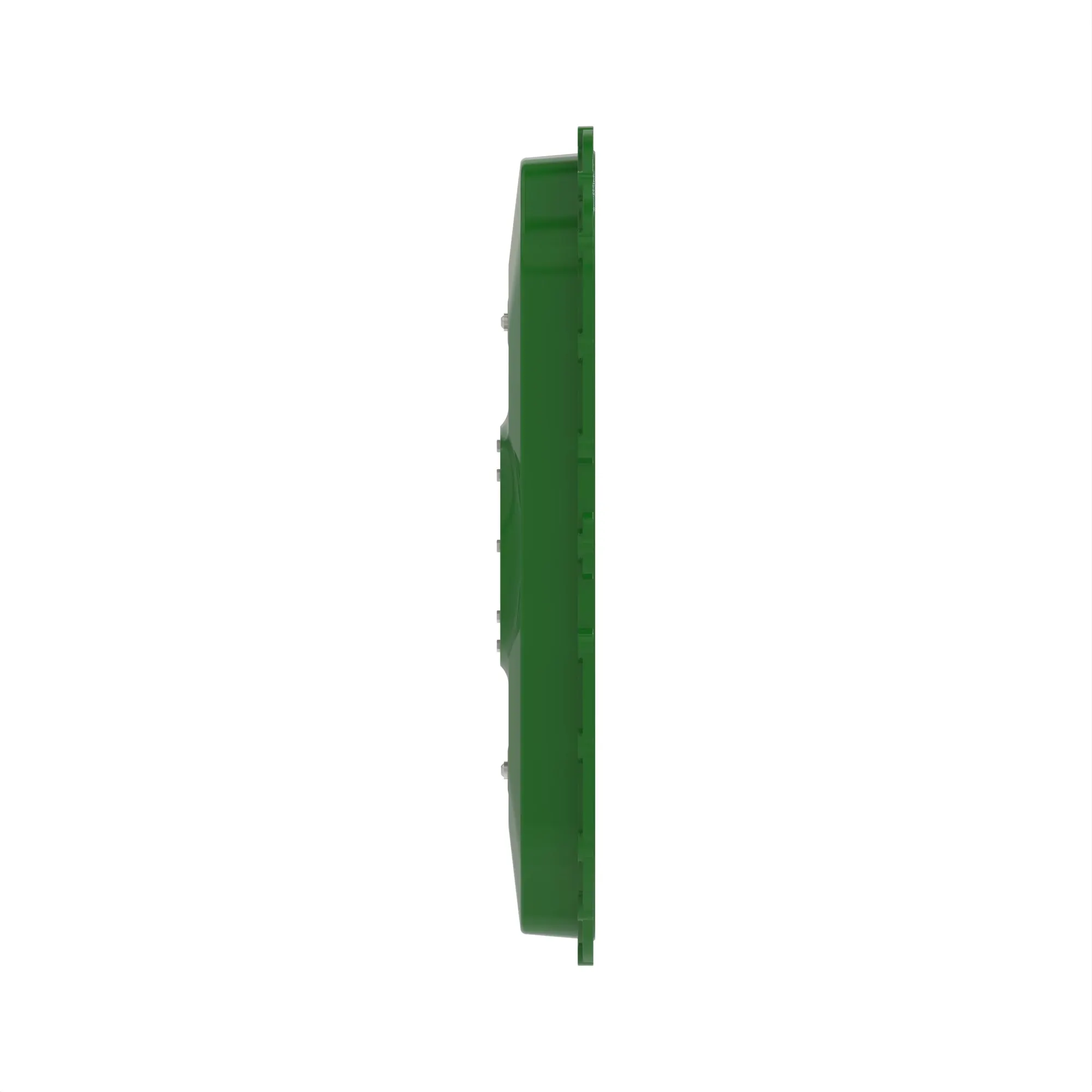

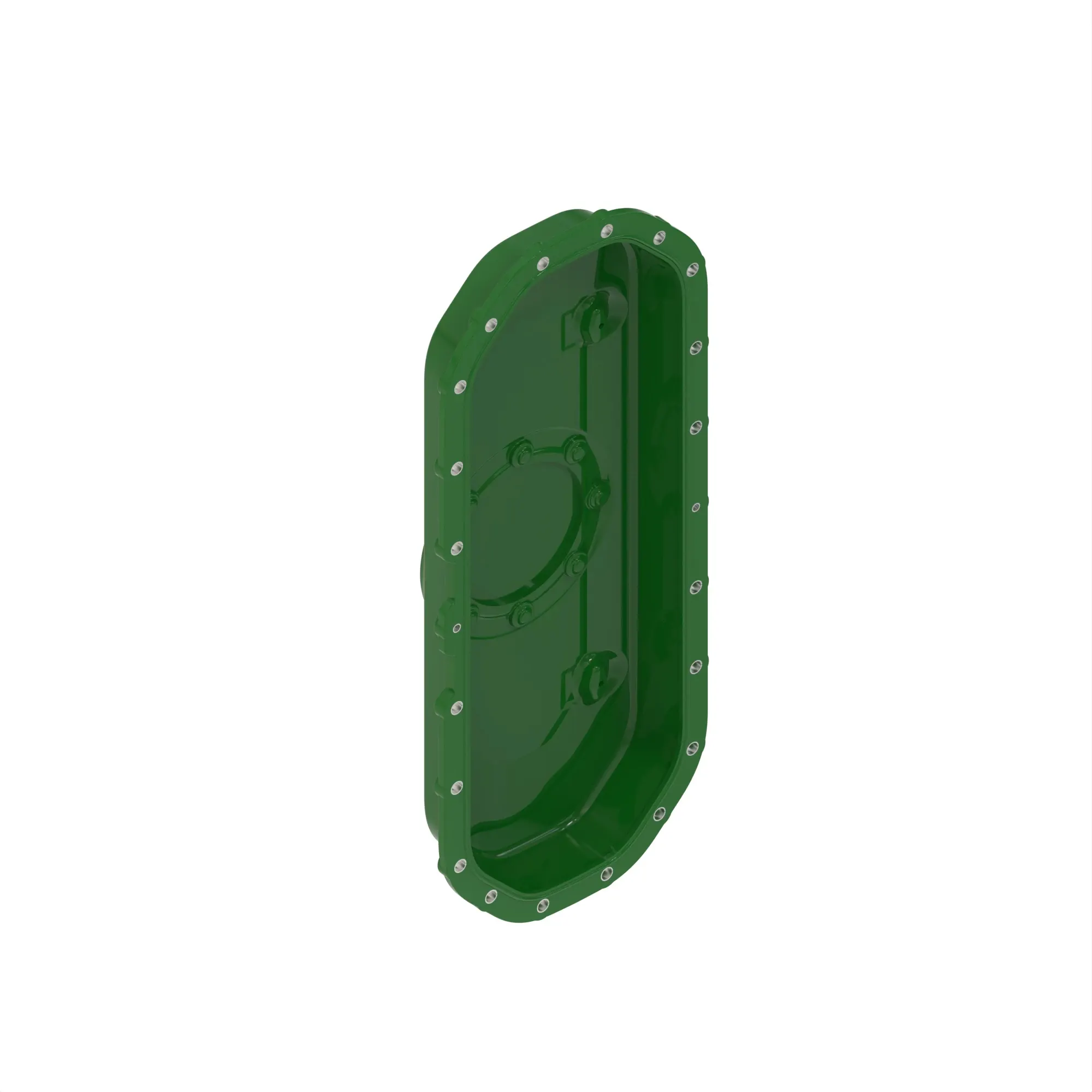

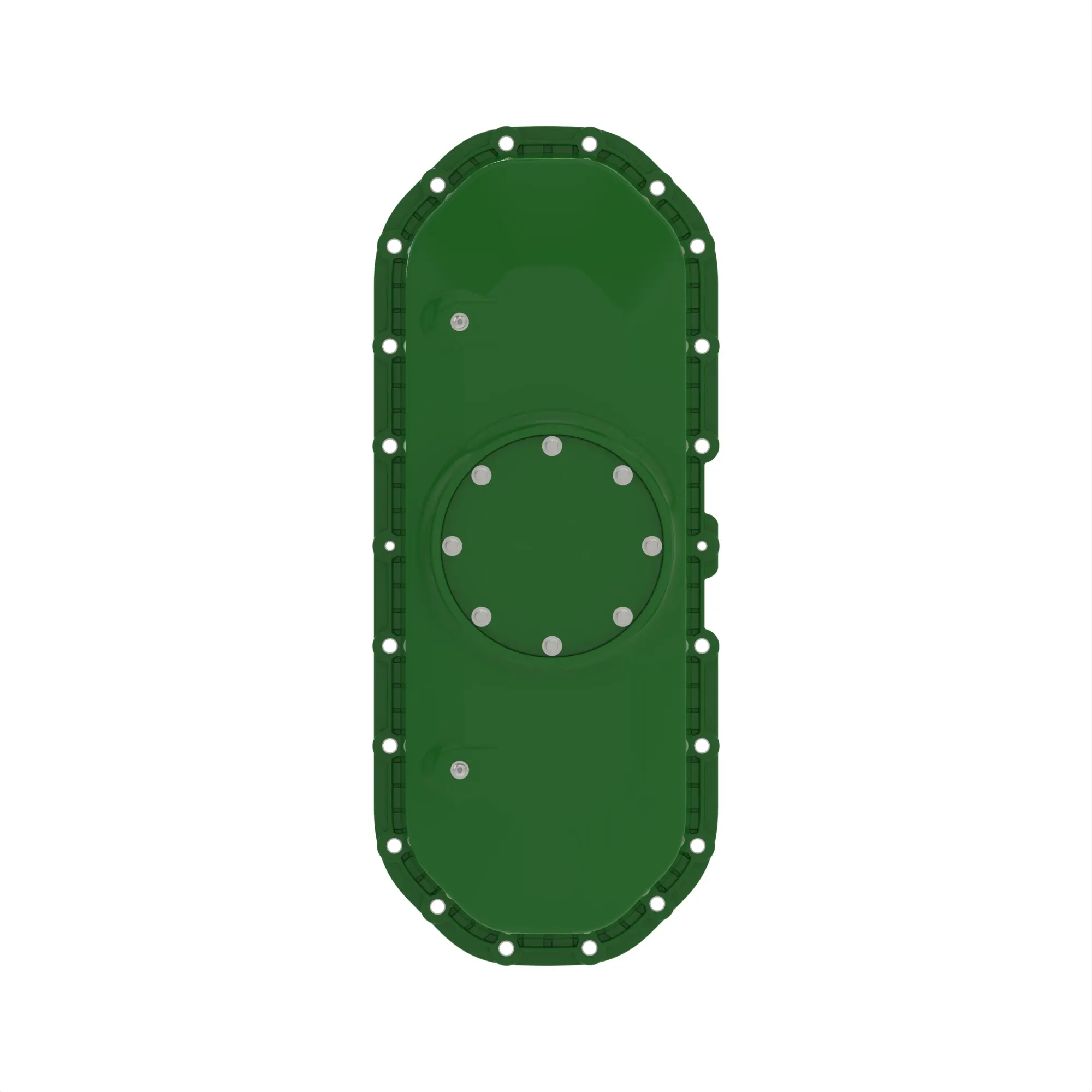

Name: AXE77193: Engine Oil Pan
Brand: John Deere

Product Dimensions

Weight

14.029 lb

Height

5 in

Width

16 in

Length

39.5 in

For the most accurate fit and confidence, please select the equipment you are shopping for. Parts can be used across a number of different models, the models shown here indicate general fit of the part.

C6R
C6R PRECISION UPGRADES
C8F
C8F PRECISION UPGRADES
C8R
C8R PRECISION UPGRADES
C12F
C12F PRECISION UPGRADES
C12R
C12R PRECISION UPGRADES
C16F
C16F PRECISION UPGRADES
C16R
C16R PRECISION UPGRADES
C18F
C18F PRECISION UPGRADES
C18R
C18R PRECISION UPGRADES
CF 8
CF 12
CF 16
CF 18
CF 27
CR 6
CR 8
CR 12
CR 16
CR 18
