Original

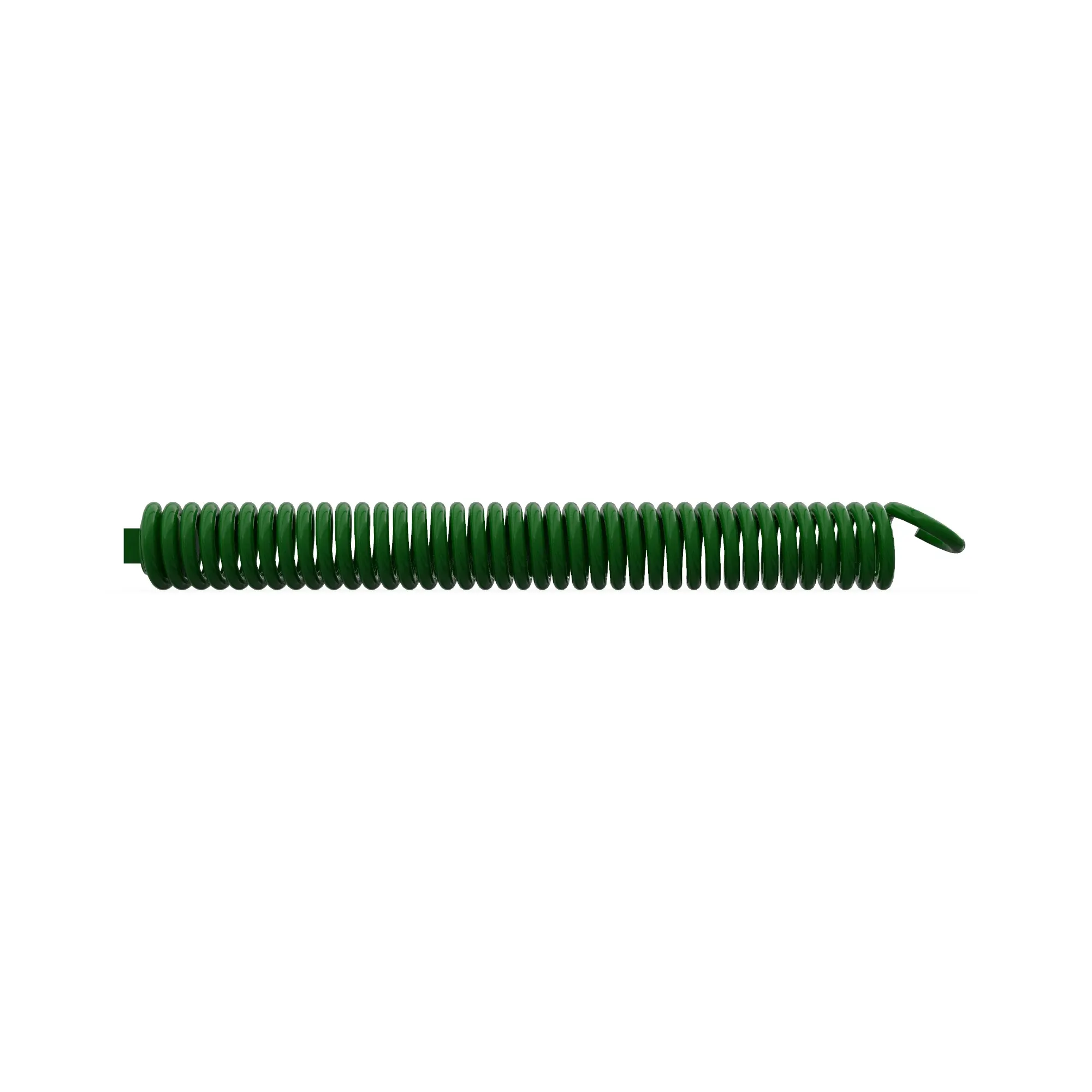

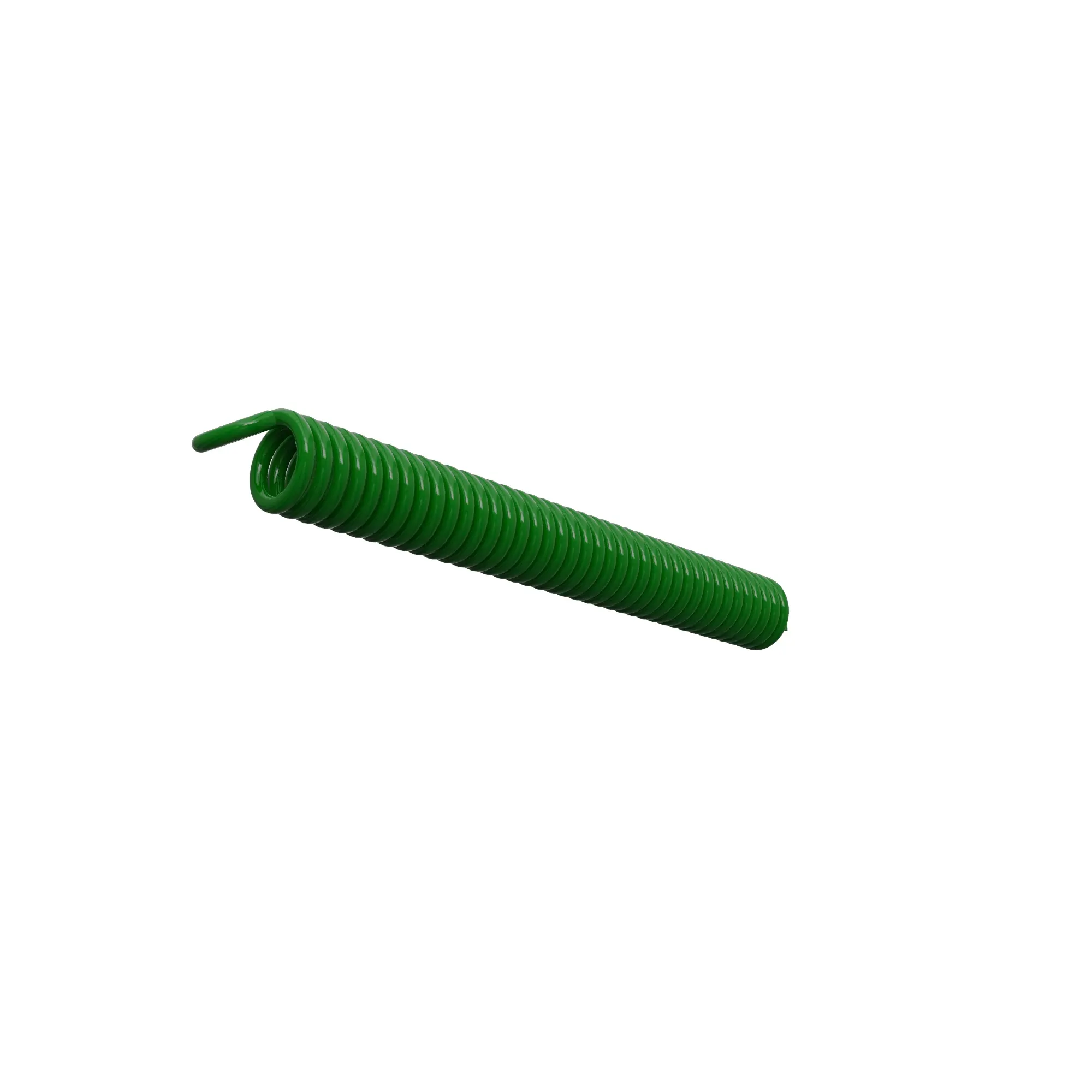

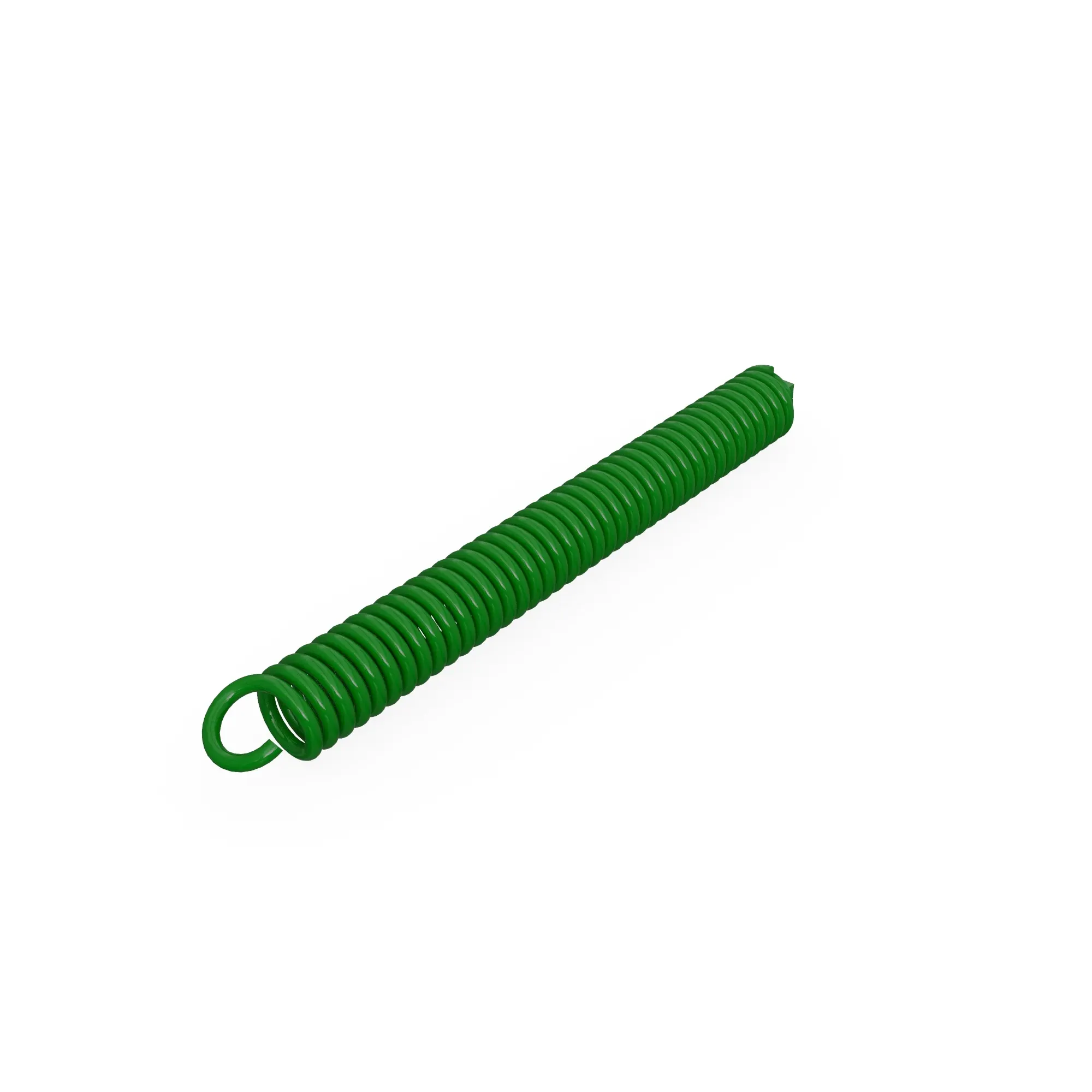

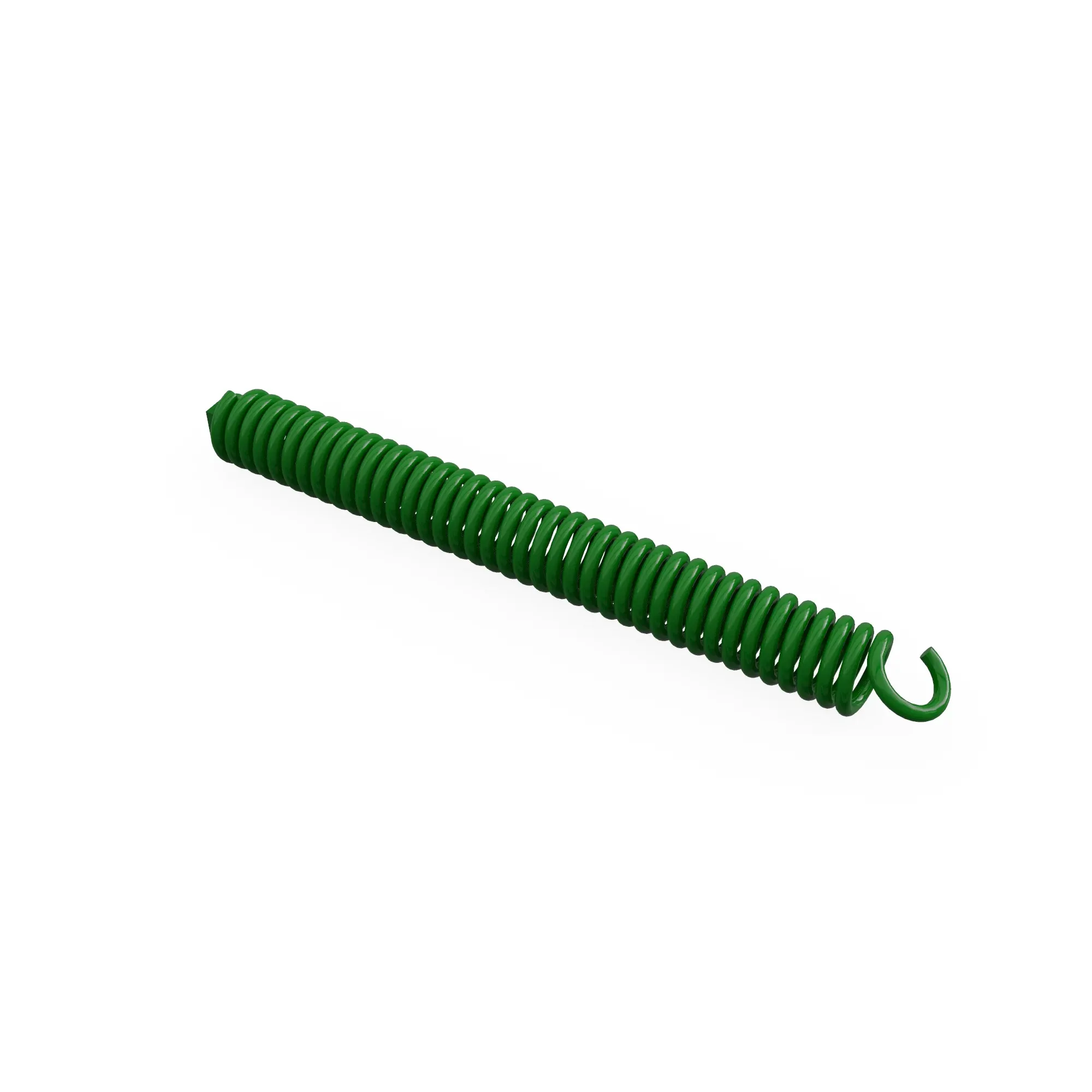

AXE75154: Pivot Frame Extension Spring Assembly

Part Number: AXE75154

Parts Tier: Original

  • High-performance extension spring designed for various agricultural and industrial applications
  • Features an 8.30 mm (0.33 in) wire diameter and a free length of 383.30 mm (15.09 in) for optimal tension and flexibility
  • Includes a 48 mm (1.89 in) outer diameter and a spring rate of 20.11 mm (114.83 in) for reliable performance
  • Made from high-quality material for enhanced durability and strength
  • Painted finish for added protection against corrosion and wear

    Product Dimensions

    Weight
    5.191 lb
    Height
    2.5 in
    Length
    16.1 in

    Specifications

    Spring Rate
    20.11 N/mm
    End Type
    01/06
    Wire Diameter
    8.3 mm
    Total Coils
    40
    Spring Type
    Extension Spring
    Material
    Steel Alloy
    Outside Diameter
    48 mm
    Free Length
    383.3 mm
