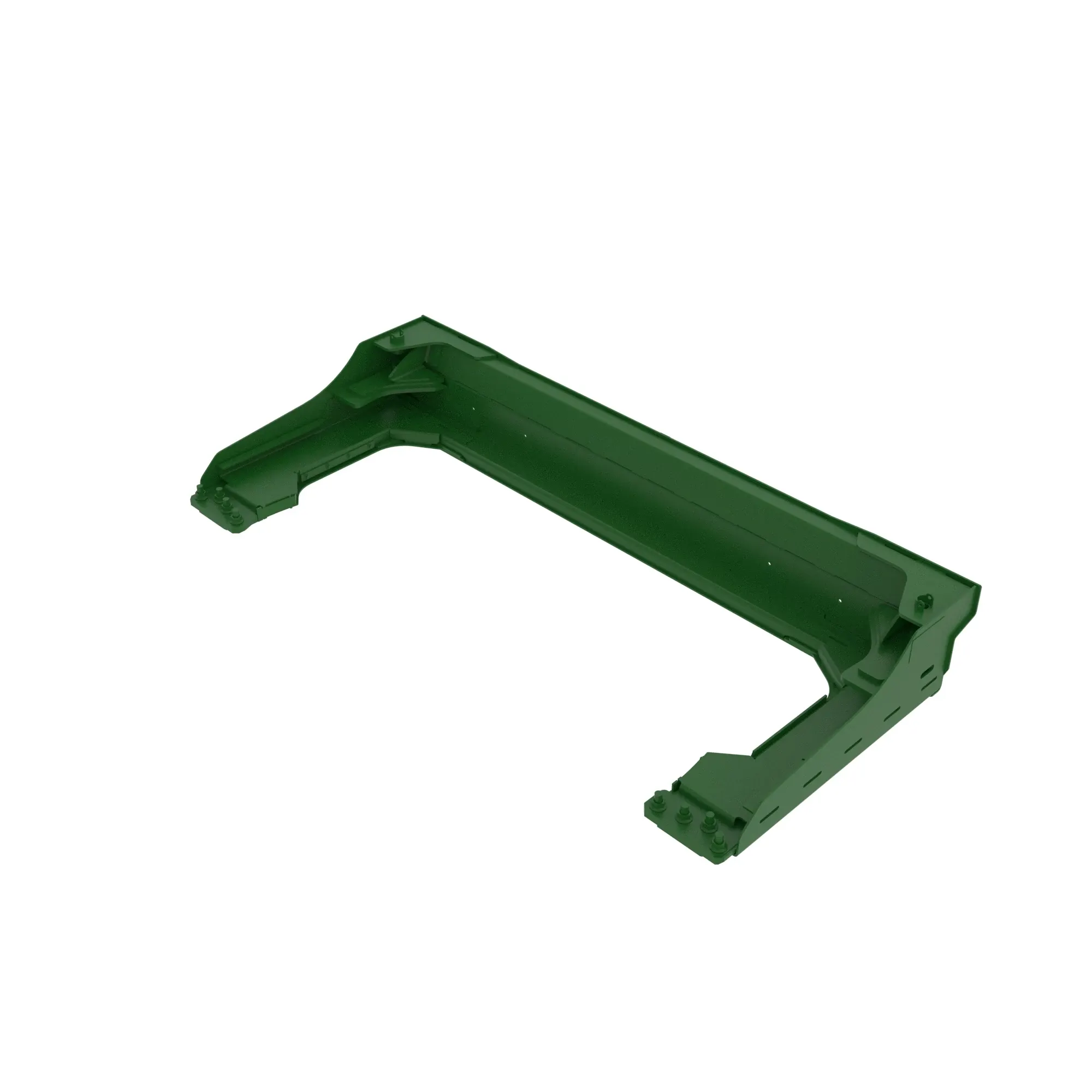

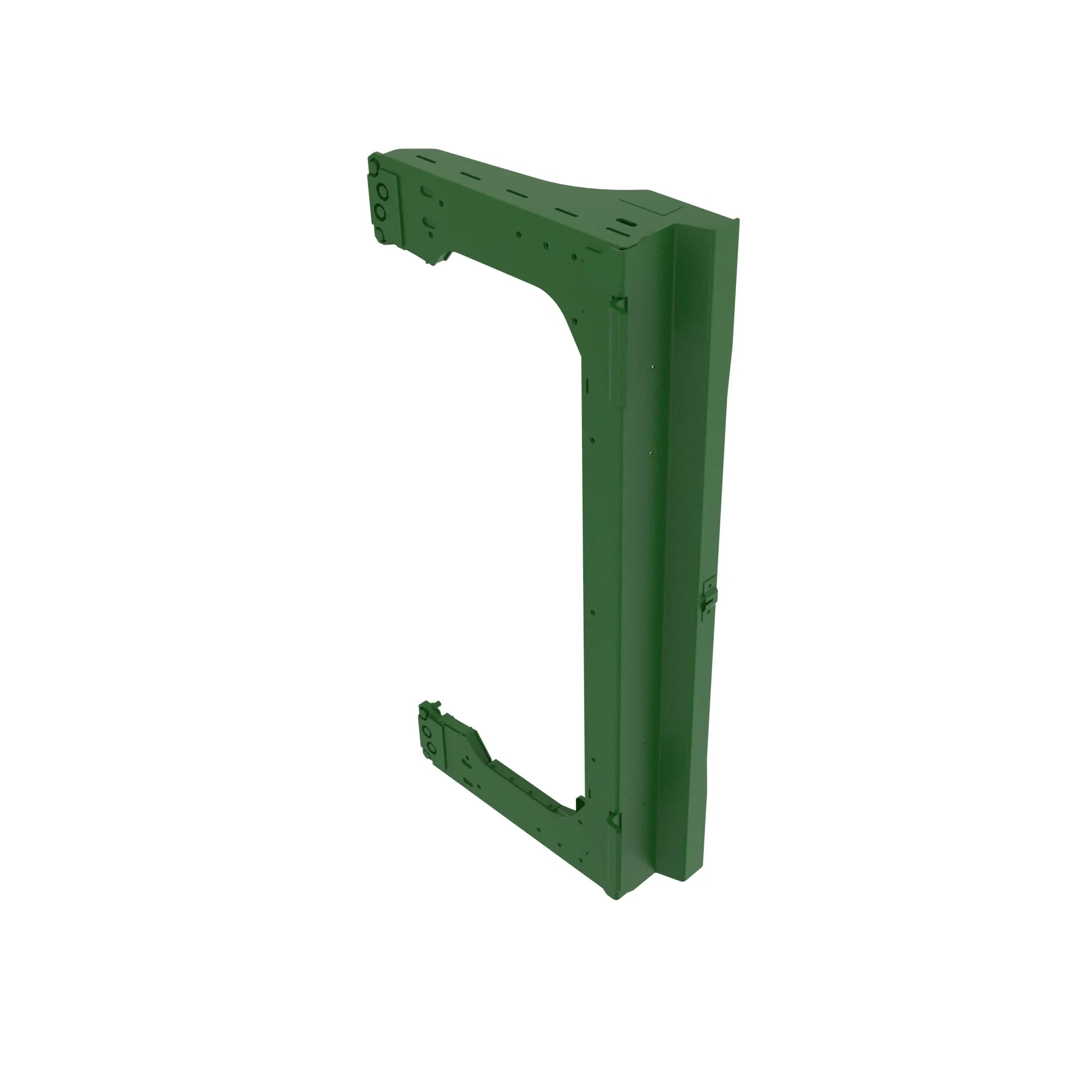

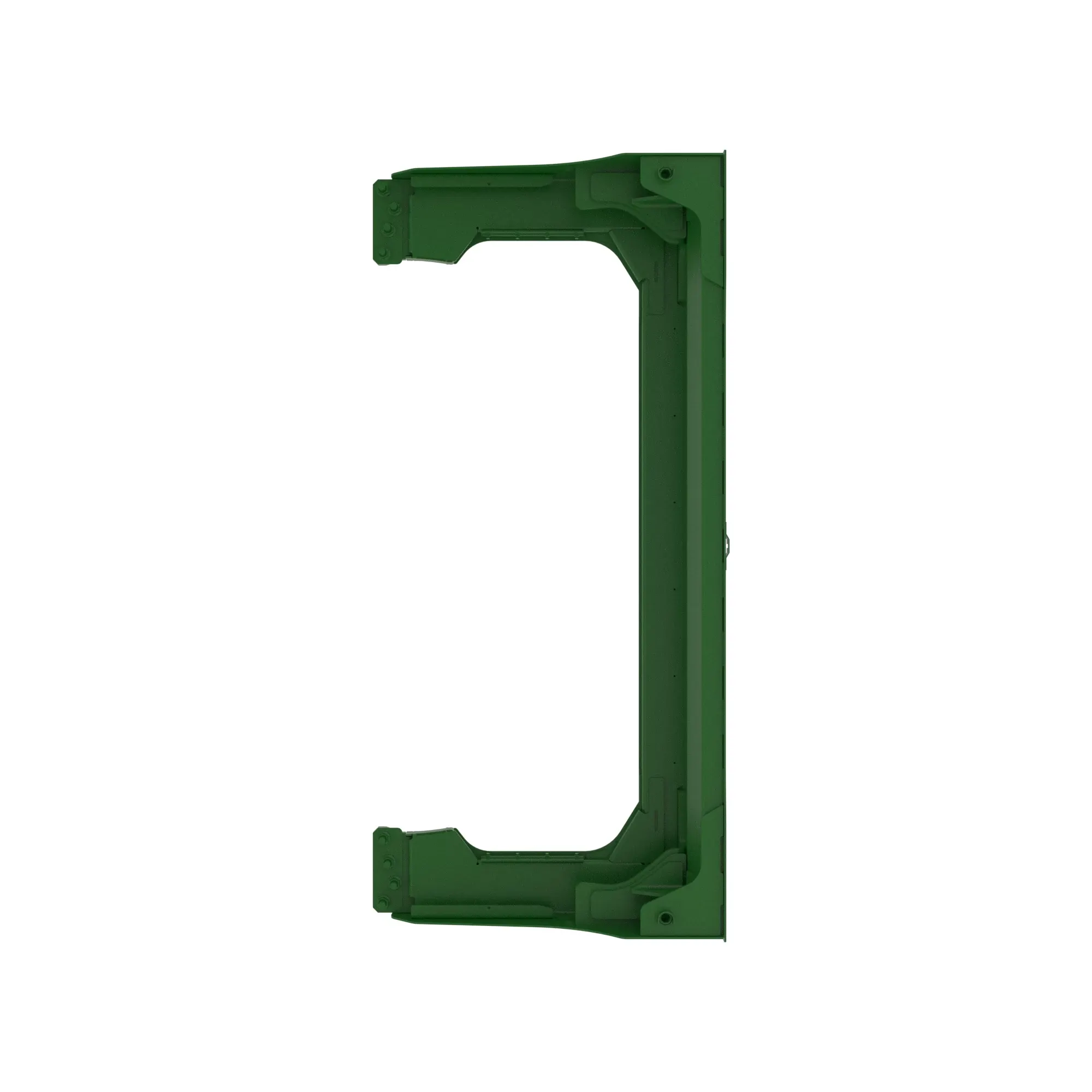

AXE63289: Frame

Part Number: AXE63289

Parts Tier: Original

John Deere Frame forms a strong structural foundation for tilting assemblies while managing dynamic forces to maintain equipment stability during heavy-duty applications
Stabilizes assembly fit through a rigid mounting area that protects connected assemblies for dependable machine function for tilt frame
Manufactured for extended service life, withstanding daily working conditions while contributing to lower service interruptions for tilt frame
Integrates the tilt frame within the tilt frame structure, creating dependable fit for tilting assemblies

Product Dimensions

Weight

360.757 lb

Height

15 in

Width

35 in

Length

72.1 in

For the most accurate fit and confidence, please select the equipment you are shopping for. Parts can be used across a number of different models, the models shown here indicate general fit of the part.

9670 STS
9770 STS
S7 600
S7 700
S7 800
S7 900
S660
S660 PRECISION UPGRADES
S670
S670 PRECISION UPGRADES
S680
S680 PRECISION UPGRADES
S690
S690 PRECISION UPGRADES
S760
S760 PRECISION UPGRADES
S770
S770 PRECISION UPGRADES
S780
S780 PRECISION UPGRADES
S790
S790 PRECISION UPGRADES
